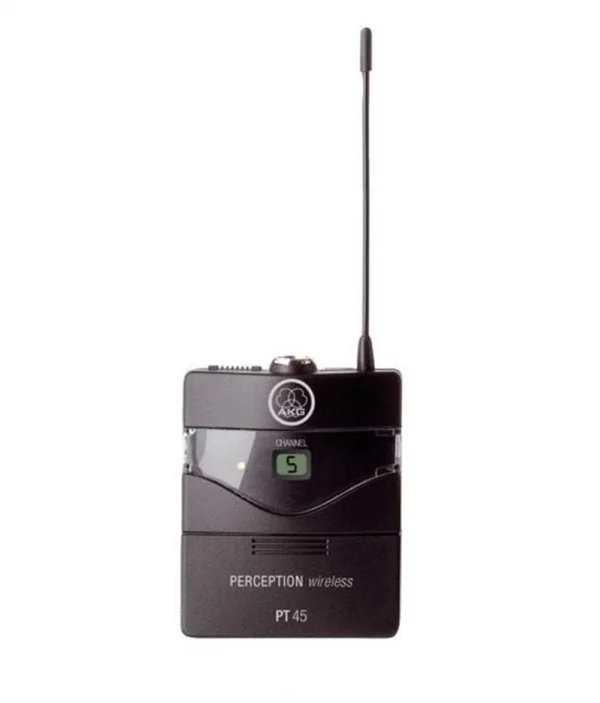

The PT45 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms.
The PT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.
| Audio | | Audio Frequency bandwidth | 40 to 20000 Hz | | Signal to Noise | 105 dB-A | | THD at 1 kHz | 0.8 Prozent |
|
| Enhanced | | Operating temperature range | -10 to 55 Celsius | | Peak deviation | 45 kHz |
|
| Pocket Transmitter | | Nominal deviation | 15 kHz kHz | | Radio Output Power (min/max) | 0 ... 0 mW | | Transmitter Synchronization | Manual |
|
| Audio Input | | Type | Mini XLR | | Gender | Weiblich | | Contacts | 3 Kontakte | | Maximum audio level | 12 dB | | Rated Impedance | 1 Ohms |
|
| Battery 1 | | Batterietype | LR6 AA Alkaline Batterie | | Number of Batteries | 1 | | Operating Time | 8 h |
|
| Design | |
| Dimensions / Weight | | Length | 60 mm | | Height | 75.5 mm | | Width | 30 mm |
|
| Radio | | Switching bandwidth | 30 MHz | | Recommended simultaneous channels | 5 | | Number of selectable frequencies | 8 Fixed frequencies | | Frequency Selection | Fixed frequency | | Wireless channels within device | - | | Radio Range (Line of Sight) | 30m | | Switchable RF Power | no | | Modulation | FM | | Encryption | No encryption | | Pilot Tone | no |
|
