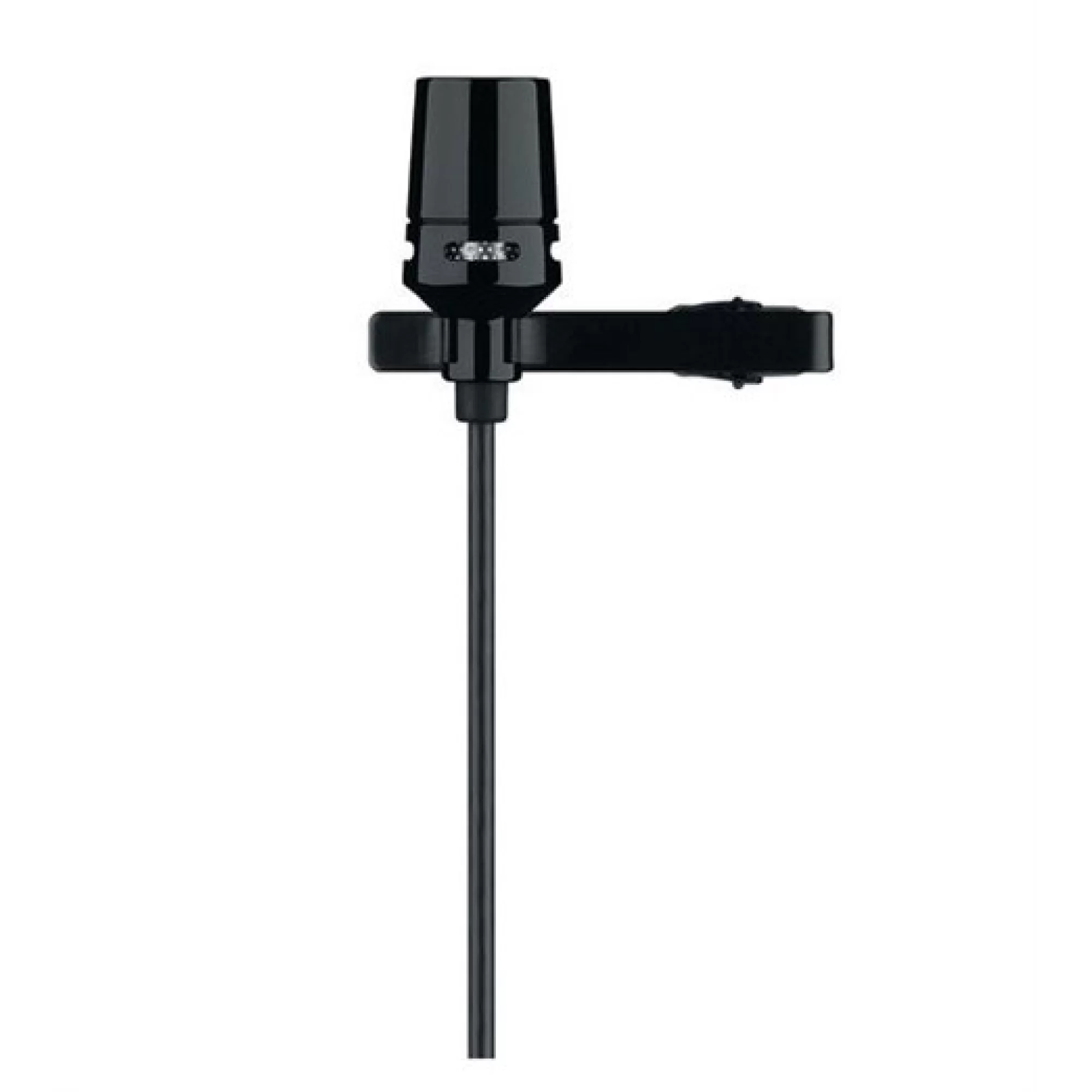

The CVL Centraverse Lavalier Condenser Microphone from Shure is a miniature lavalier condenser microphone that is optimized for speech and vocal performance. A tie clip and windscreen are included.
Designed for low visibility
Permanently charged electret condenser element for vocal reproduction
TA4F (TQG) connector integrates with Shure wireless bodypack systems
Tailored frequency response optimized for public speaking and presentation
Type
Electret condenser
Frequency Response
50 Hz to 20 kHz
Polar Pattern
Cardioid
Output Impedance
600 Ω @ 1 kHz, typical
Audio Output Level
-43.5 dBV/Pa
Signal to Noise Ratio
72 dB @ 1 kHz
Maximum SPL
139 dB, @ 1 kHz (1,000 Ω load)
Dynamic Range
117 dB, @ 1 kHz (1,000 Ω load)
Output Noise
22 dB, typical, A-weighted
Power Requirements
+5 V DC (nominal), 10 V maximum (DC bias)
Polarity
Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
