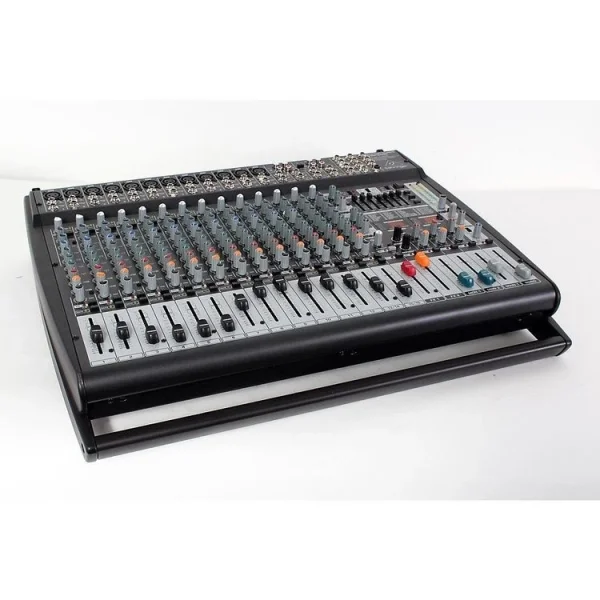

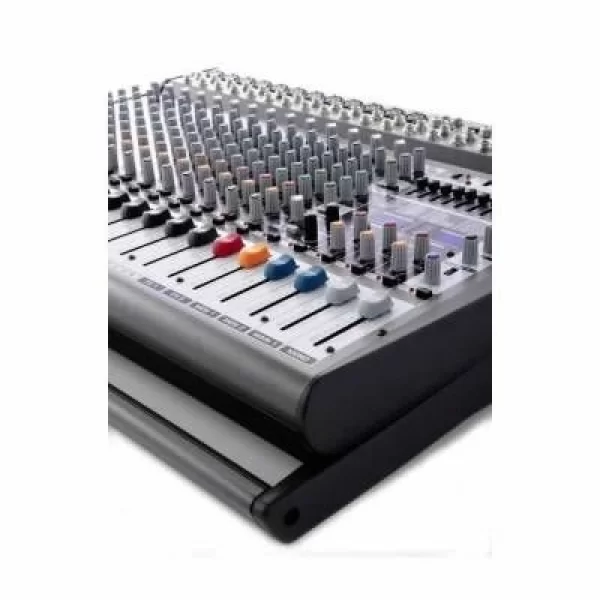

Behringer PMP6000, 1600W 20 Channel Power Mixer

Behringer PMP6000, 1600W 20 Channel Power Mixer

Key Features

• High Output Power: Features Class-D amplifier technology capable of operating at 2 x 800 Watts stereo (at 4 Ohms) or 1600 Watts in bridged mono mode. This allows for both powerful and efficient performance, generating less heat and being lightweight compared to traditional mixers.

• Number of Channels: Offers a wide range of connection options with 20 channels. 12 of these are mono channels with high-quality XENYX microphone preamps, and 4 are stereo channels.

• Built-in Effect Processors: Use 100 different studio-quality preset effects (reverb, chorus, flanger, delay, pitch shifter, and various multi-effects) thanks to the dual 24-bit stereo effect processor. These effects add depth and brightness to your live sound. Additionally, it offers the ability to use a foot pedal (not included) to switch effects during performances.

• FBQ Feedback Detection System: Equipped with Behringer's proprietary FBQ Feedback Detection System and a 7-band stereo graphic EQ. This feature allows you to instantly detect and easily eliminate the frequencies causing feedback as the LED lights on the EQ sliders illuminate.

• Flexible Operating Modes: You can switch between standard stereo (main L/R), dual mono (main/monitor), or bridged mono amp operating modes. The dual mono mode, in particular, is quite handy for working with passive stage monitors.

• XENYX Microphone Preamps: 12 studio-quality XENYX microphone preamps offer ultra-low noise and high headroom. With +48V phantom power support, you can also use condenser microphones.

• EQ and Filters per Channel: Includes effective 3-band EQ, selectable low-cut filter, and Clip LEDs for all mono channels.

• Voice Canceller Feature: This feature provides an ideal use for karaoke applications by deactivating the vocals in music tracks.

Amplifier and Power Output

• Amplifier Class:Class-D technology. This technology offers higher efficiency, less heat generation, and a lighter design compared to traditional amplifiers. This makes the PMP6000 ideal for portability and long-term use.

• Output Power (Maximum):

  • Stereo: 2 x 800 Watts @ 4 Ohms

  • Bridged Mono: 1600 Watts @ 8 Ohms

• Output Power (RMS @ 1% THD):

  • Stereo: 2 x 600 Watts @ 4 Ohms

  • Stereo: 2 x 300 Watts @ 8 Ohms

  • Bridged Mono: 1200 Watts @ 8 Ohms

• Load Impedance:

  • Main L/R (Stereo): 4 - 8 Ohms

  • Monitor/Main Mono: 4 - 8 Ohms

  • Main Mono/Main Mono: 4 - 8 Ohms

  • Bridged: 8 - 16 Ohms

• Operating Modes: Selectable stereo (main L/R), dual mono (main/monitor), or bridged mono amplifier operating modes. This flexibility allows the mixer to be optimized for different sound setups and stage monitoring needs.

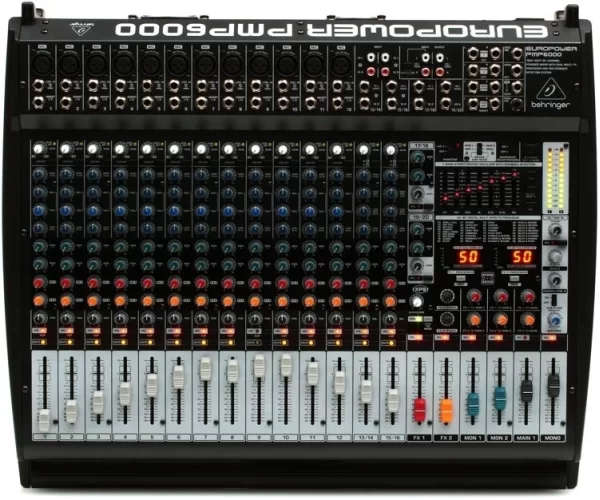

Mixer Section

• Number of Channels: Total 20 Channels

  • Mono Channels: 12 (with XLR and 1/4" TRS connections)

  • Stereo Channels: 4 (with Dual 1/4" TRS connections)

• Microphone Preamps: 12 XENYX microphone preamps

  • Type: XLR, electronically balanced input circuitry

  • Phantom Power: +48V (switchable for condenser microphones)

  • EIN (Equivalent Input Noise - 20 Hz - 20 kHz):

    • @ 0 Ω Source Resistance: -134 dB / 136 dB A-weighted

    • @ 50 Ω Source Resistance: -131.5 dB / 134 dB A-weighted

    • @ 150 Ω Source Resistance: -129 dB / 155 dB A-weighted

  • Frequency Response: < 10 Hz - 200 kHz (-1 dB), < 10 Hz - > 200 kHz (-3 dB)

  • Gain Range: +10 dB to +60 dB

  • Maximum Input Level: +12 dBu @ +10 dB gain

  • Impedance: Approximately 2.6 kOhm balanced, 1.3 kOhm unbalanced

  • Signal-to-Noise Ratio: 109 dB / 112 dB A-weighted (0 dBu Input @ +10 dB Gain)

  • THD+N (Total Harmonic Distortion + Noise): 0.002% / 0.0018% A-weighted

• Mono Line Inputs:

  • Type: 1/4" TS connectors, balanced

  • Impedance: Approximately 20 kOhm

  • Maximum Input Level: +21 dBu

• Stereo Line Inputs:

  • Type: 1/4" TRS connectors, unbalanced

  • Impedance: > 3.6 kOhm

  • Maximum Input Level: +22 dBu

• 2-Track Input (CD/TAPE IN):

  • Type: RCA

  • Impedance: Approximately 3.6 kOhm

Equalizer (EQ) and Feedback Detection

• Channel EQs (Mono Channels):

  • 3-Band EQ: Low, Mid, High

    • Low: 80 Hz / ±15 dB

    • Mid: 100 Hz - 8 kHz / ±15 dB (parametric mid-like broad range adjustment)

    • High: 12 kHz / ±15 dB

  • Low Cut Filter: Selectable (cuts low frequencies, reduces popping sounds on microphones).

  • Clip LEDs: Indicate signal overload on each channel.

• Graphic EQ:

  • 7-Band Stereo Graphic EQ: Provides precise frequency correction for Main or Monitor outputs.

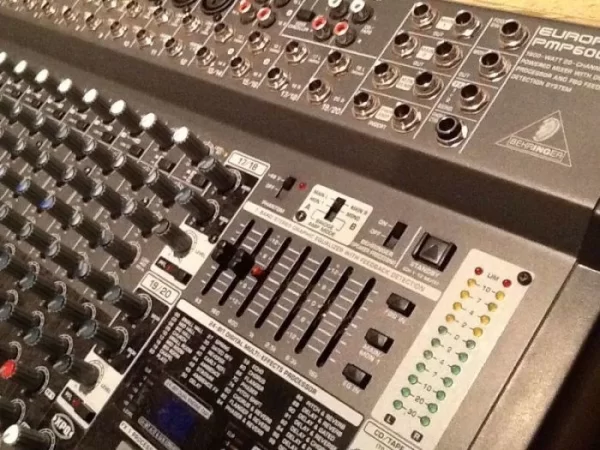

  • FBQ Feedback Detection System: Visually displays critical frequencies causing feedback with bright LED lights on the EQ sliders, allowing for quick and effective feedback elimination.

Digital Signal Processing (DSP) and Effects

• Effect Processors: Dual 24-bit Stereo FX Processor

  • Number of Presets: 100 studio-quality presets (reverb, chorus, flanger, delay, pitch shifter, various multi-effects, etc.)

  • Converter: 24-bit Delta-Sigma, 64/128-fold oversampling

  • Dynamic Range (D/A): 90 dB

  • Sample Rate: 46.875 kHz

  • Delay Time: Max. 5 seconds

  • Signal Transition Time: Approximately 1.5 ms (Line In > Line Out)

• XPQ 3D Stereo Surround Effect: Used to create a wider and more immersive sound stage.

• Voice Canceller Function: Helps remove the singer's vocals from recordings for karaoke applications.

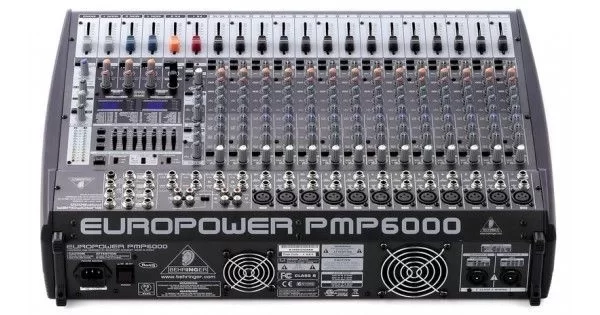

Outputs and Connections

• Speaker Outputs: Professional locking Speakon connectors.

• Preamp Outputs (MAIN and MONITOR):

  • Type: 1/4" TRS connectors, unbalanced

  • Impedance: Approximately 150 Ohm, unbalanced

  • Maximum Output Level: +21 dBu

• Aux Send (FX Sends): 2 (Post-fader FX, Pre-fader Monitor)

• Aux Return (FX Returns): 2

• Headphone Output: 1/4" TRS connector, unbalanced. Maximum Output Level: +21 dBu / 150 Ω (+25 dBm).

• CD/Tape Output: RCA

• Insert Points: Available (for external effects devices or compressors).

• Footswitch Input: For external effect bypass control (FX1 and FX2 can be controlled independently with a dual footswitch).

• Subwoofer Output (Mono Out): This feature on the PMP6000 allows sending low frequencies with a specific cutoff frequency to an external active subwoofer. The cutoff frequency can be adjusted between 30 Hz - 200 Hz.

Physical Features and Power Supply

• Dimensions (H x W x D): Approximately 122 x 596 x 496 mm

• Weight: Approximately 13.1 kg

• Power Supply: Built-in switch-mode power supply. This ensures noise-free audio, superior transient response, and very low power consumption. Universal voltage support (100 – 240 V~, 50/60 Hz).

• Power Consumption: 50 W
