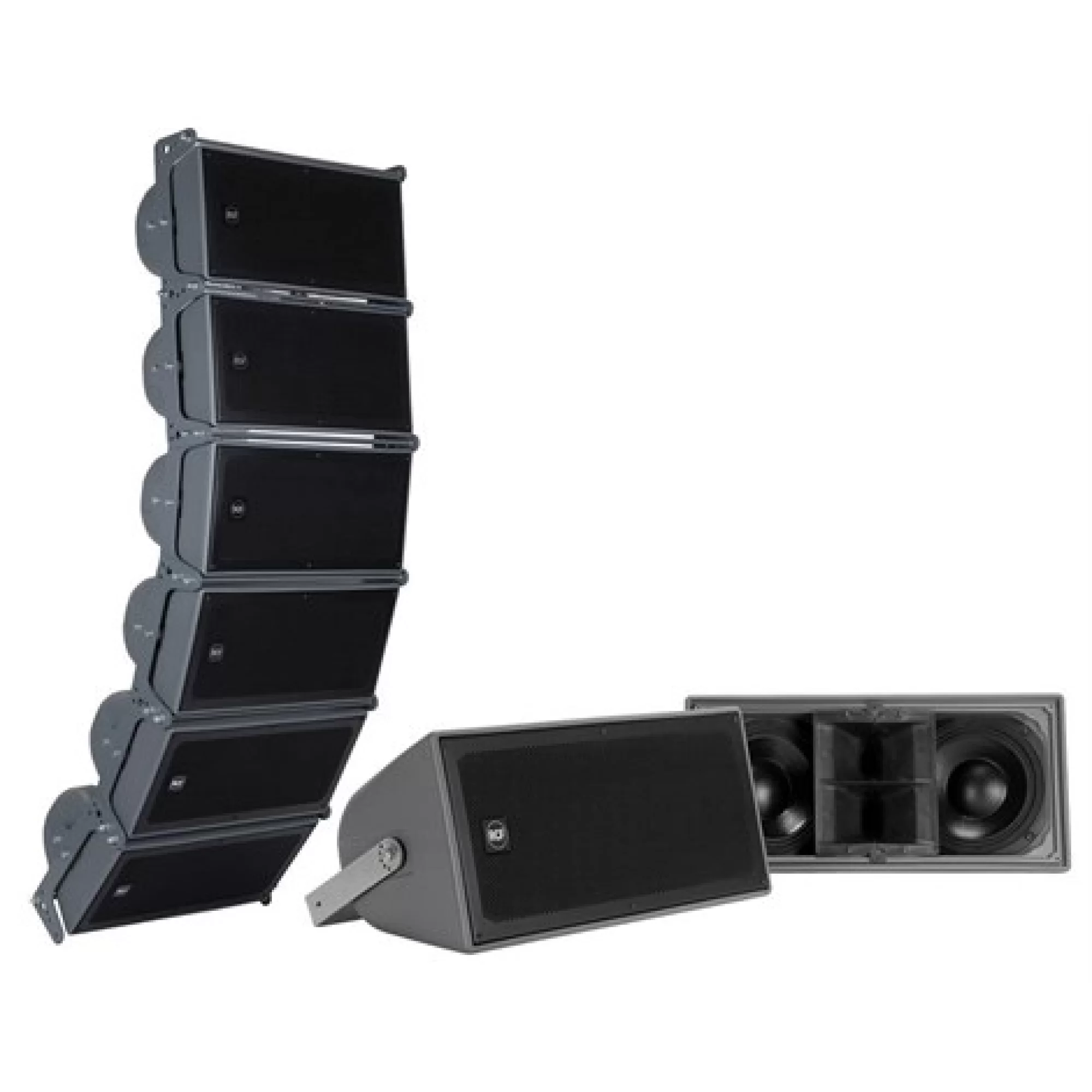

RCF P5228-L Outdoor Line Array

Barcode: 2242005295069

Brand: RCF

Category: Large Area Speaker

Hoparlör Türü: Aktif Hoparlörler

Speaker Size: 2x8"

%40Discount

4.074 USD

2.445 USD

253 USD in installments starting from ..

The product is out of stock.

Fast Shipping

Secure shopping

RCF P5228-L Dış Ortam Line Array Hoparlör

The high frequency section includes two constant directivity CMD horn, each loaded with a 1" RCF Precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, wide horizontal dispersion and highly controlled 20° vertical coverage. The low frequency transducers are two 8" woofers with a 2.5" voice coil.

The cabinet is a single piece rotational moulded enclosure, made in medium density polyethylene, fully UV protected equipped with 4 x M8 brass inserts and a stainless steel U-Bracket. Connections to the amplifier are made through a watertight multi-pole connector. The grille is in custom perforated aluminium with open-cell fibers and water repellent woven fabric backing.

500 W RMS
Weatherproof cabinet IP55
Aluminium grill and stainless steel bracket
Two 8" high-output LF transducers with 2.5" voice coil
One RCF Precision neodymium 1" compression driver with 1.75" diaphragm assembly
90° x 20° constant directivity horn
2° x 15° enclosure sides for array configurations
Active Mosfet Compression Driver Protection
LICC (Low Impedance Compensated Crossover) network
Input connector 4 pole Amphenol IP67

ACOUSTICAL SPECIFICATIONS

Frequency Response -10 dB:80 Hz ÷ 20000 Hz

Max SPL @ 1m:131 dB

Horizontal coverage angle:90°

Vertical coverage angle:20°

Directivity index; Q:11

System Sensitivity:98 dB

Nominal Impedance:8 Ω

Power Handling:500 W

Peak Power Handling:2000 W

Recommended Amplifier:1000 W

Protections:Dynamic

Crossover frequencies:1300 Hz

TRANSDUCERS

Compression Driver:2 x 1" neo throath, 1.75" coil diaphragm assembly

Nominal Impedance:16 Ω

Input Power Rating:50 W AES

Sensitivity:109 dB

Woofer:2 x 8" neo woofer with 2.5" coil

Nominal Impedance:16 Ω

Input Power Rating:300 W AES

Sensitivity:95 dB

INPUT SECTION

Input connector:4 pole Amphenol

CABINET

Cabinet Material:8 mm Polyethylene rotomoulded

Hardware:4 x M8 inserts +

Grille:Custm perforated aluminium grille with open-cell fiber and water repellent woven fabric backing

Colour:Grey

Hoparlör Türü	Aktif Hoparlörler
Speaker Size	2x8"
