SHURE Mxwncs4-E 4 Kanal Ağ Tipi Şarj İstasyonu

price for Piece
Fast Shipping

Designed to fit discreetly into existing room aesthetics, the four- or eight-port MXWNCS easily connects between conference room credenzas and AV rack closets over Ethernet via a single Cat5e cable. Each versatile docking station accepts all Microflex Wireless transmitters, charges batteries to 50% in one hour, and charges them fully in two hours.

  • Easily link docked transmitters to channels on an Access Point Transceiver by pressing “link”
  • Front-panel LEDs clearly display battery charge status
  • Remote runtime monitoring capability is available via Microflex Wireless Control Software or third-party control systems
  • Smart recharging circuitry safeguards against battery damage from overcharging
Overview

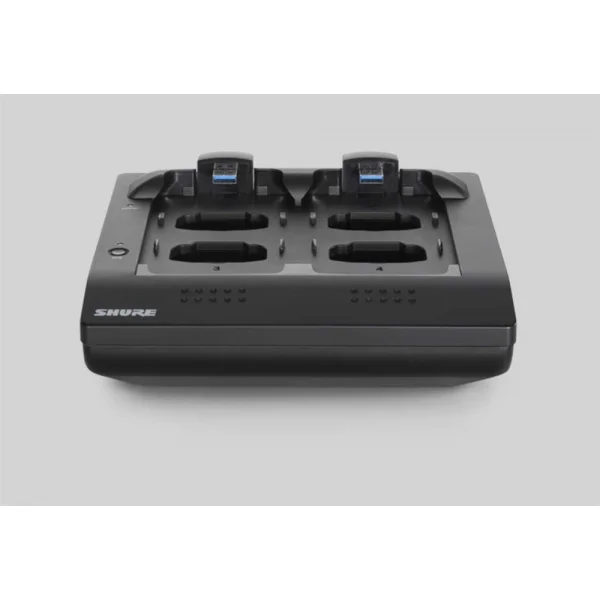

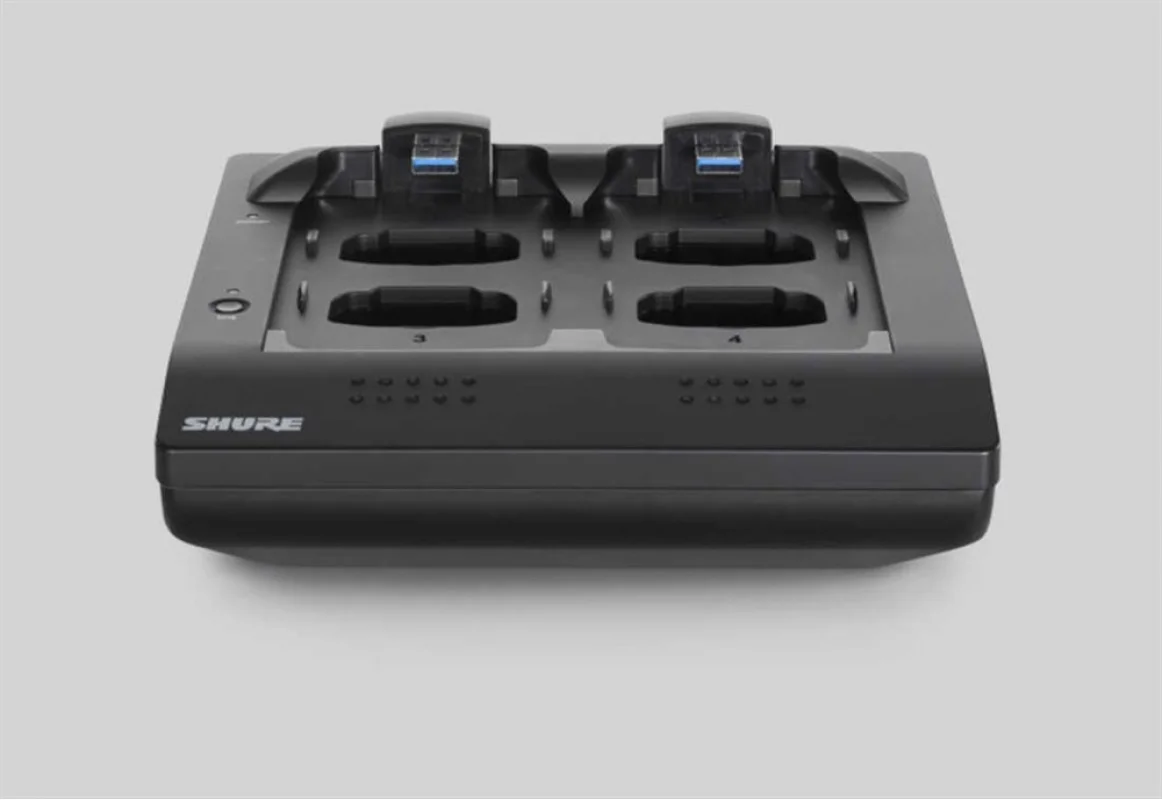

The MXWNCS is a 4 port Networked Charging Station compatible with Microfl ex™ Wireless microphone systems.
Designed to complement boardroom aesthetics, Networked Charging Stations easily connect between conference room
credenzas and AV rack closets over Ethernet via a single Cat5e cable. The front panel displays battery charge in 5
segment LED’s, and remaining runtime and charge levels in hours and minutes can be monitored from any networked
computer via the control software. Handheld, bodypack and boundary transmitter styles each occupy one docking space
while gooseneck bases require two spaces to dock.

Features
• Versatile microphone docking: Each station accepts all Microfl ex Wireless transmitters
• Charge status indicators: 5-segment LED’s on the unit display charge status individually for every docked microphone
• Remote charge status monitoring: Ethernet connection to the system enables remote monitoring of battery charge status in
hours and minutes via the control software or third party control systems
• Easy transmitter linking: Assign docked wireless microphones to channels on an Access Point Transceiver by simply
pressing “link”
• Rapid charge times: Reaches 50% charge in one hour and fully charges transmitters in two hours
• Overcharge protection: Smart recharging circuitry safeguards against battery damage and extends life cycles

Specifications (subject to change)
Charge Time MXW1, MXW6, MXW8:
MXW2:
50%=1 hour;
100%=2 hours
50%=1.5 hour;
100%=3 hours
Network Interface 10/100 Mbps Ethernet
Power Requirement 15 V DC @ 3.3 A maximum, supplied by external power supply (tip positive)
Housing Molded Plastic, Cast Zinc
Dimensions NCS8: 68 mm x 343 mm x 184 mm (2.7 in. x 13.5 in. x 7.25 in.), H x W x D
NCS4: 68 mm x 191 mm x 184 mm (2.7 in. x 7.5 in. x 7.25 in.), H x W x D
Weight NCS8 2.9 kg (6.4 lbs)
NCS4 1.7 kg (3.7 lbs)
