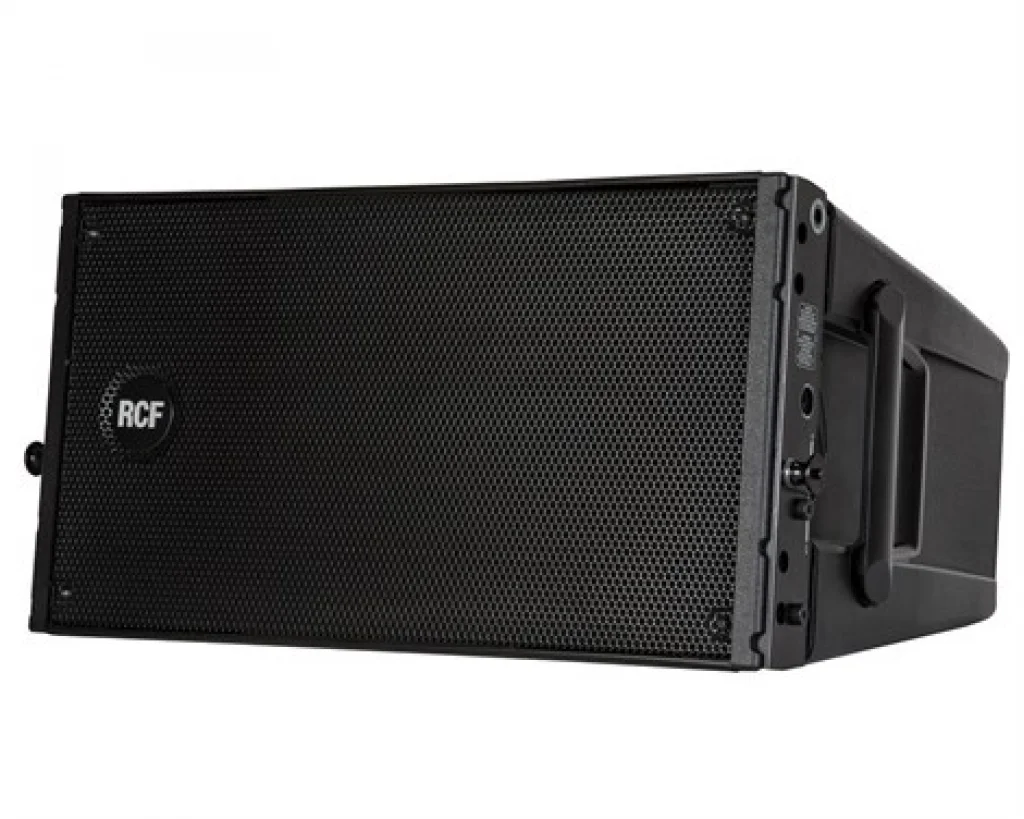

RCF HDL10A 2x8"+2" Aktif Line Array Speaker

FEATURES

• 1400 Watt Peak power - 700 Watt RMS
• 133 dB max SPL
• 65 Hz 20 kHz frequency response
• 2 x 8" Woofers
• 1 x 2" Compression Driver
• DSP controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics
• Composite PP enclosure structurally wooden reinforced

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:65 Hz ÷ 20000 Hz
• Max SPL:133 dB
• Horizontal coverage angle:100°
• Vertical coverage angle:15°
• Compression Driver:2", 2.5" v.c.
• Woofer:2 x 8", 2.0" v.c.

INPUT/OUTPUT SECTION

• Input signal:bal/unbal
• Input connectors:XLR
• Output connectors:XLR
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies:800 Hz
• Protections:Thermal, RMS
• Limiter:Soft limiter
• Controls:Cluster, HF, High curving, Indoor

AMPLIFIER SPECIFICATIONS

• Total power:1400 W PEAK
•    High frequencies:400 W PEAK
•    Low frequencies:1000 W PEAK
• Total power:700 W RMS
•    High frequencies:200 W RMS
•    Low frequencies:500 W RMS
• Cooling:Convection
• Connections:Powercon in/out

CABINET

• Cabinet Material:Composite PP, wooden reinforced
• Hardware:Rigging flyware
• Handles:2 side
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:294 / 11.5 mm/inch
• Width:569 / 22.40 mm/inch
• Depth:434 / 17.09 mm/inch
• Net Weight:20.4 / 44.97 kg/lbs
