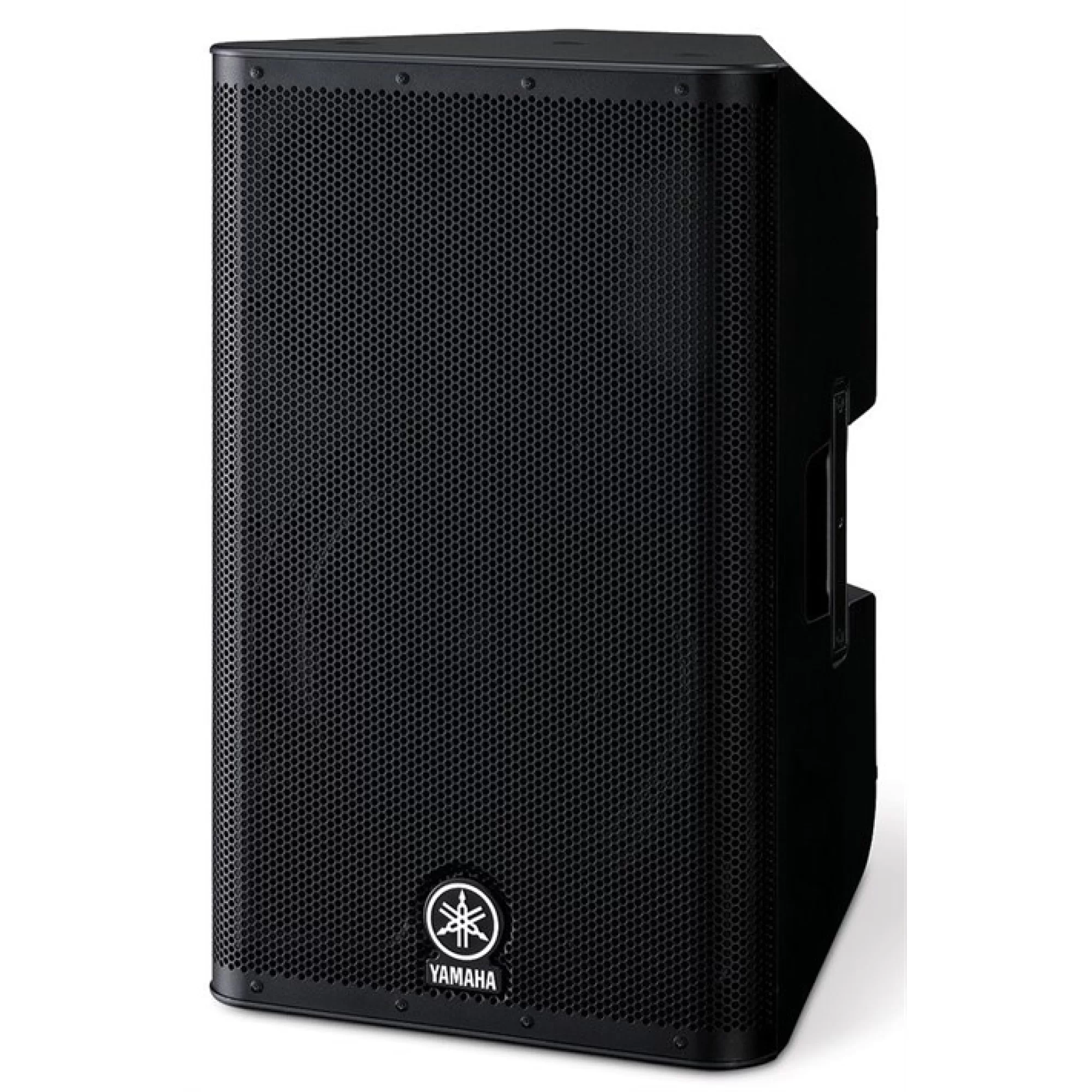

| Speaker type | 8" 2-way, Bi-amp powered speaker, Bass-reflex type | 10" 2-way, Bi-amp powered speaker, Bass-reflex type | 12" 2-way, Bi-amp powered speaker, Bass-reflex type | 15" 2-way, Bi-amp powered speaker, Bass-reflex type |
|---|
| Frequency range | -10dB | 57Hz - 20kHz | 56Hz - 20kHz | 52Hz - 20kHz | 49Hz - 20kHz |
|---|
| Nominal coverage | H | 90° | 90° | 90° | 90° |
|---|
| V | 60° | 60° | 60° | 60° |
|---|
| Components | LF | Diameter:8" cone, Voice Coil:2", Magnet:Ferrite | Diameter:10" cone, Voice Coil:2", Magnet:Ferrite | Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite | Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite |
|---|
| HF | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
|---|
| Crossover | FIR-X tuning™ (linear phase FIR filter) | FIR-X tuning™ (linear phase FIR filter) | FIR-X tuning™ (linear phase FIR filter) | FIR-X tuning™ (linear phase FIR filter) |
|---|
| Output power | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
|---|
| Maximum output level (1m; on axis) | 129dB SPL | 131dB SPL | 132dB SPL | 133dB SPL |
|---|
| I/O connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1),LINK OUT: XLR x 1 | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ),LINK OUT: XLR x 1 | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ),LINK OUT: XLR x 1 | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ),LINK OUT: XLR x 1 |
|---|
| Processors | D-CONTOUR :FOH / MAIN, MONITOR, OFF | D-CONTOUR: FOH/MAIN, MONITOR, OFF | D-CONTOUR: FOH/MAIN, MONITOR, OFF | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
|---|
| Power requirements | 100V - 240V, 50Hz/60Hz | 100V - 240V, 50Hz/60Hz | 100V - 240V, 50Hz/60 Hz | 100V - 240V, 50Hz/60Hz |
|---|
| Power consumption | 90W | 90W | 110W | 110W |
|---|
| Flying and mounting hardware | Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) | Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) | Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) | Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) |
|---|
| Pole socket | 35mm with 2-way features (0 or 7 degrees) | 35mm with 2-way features (0 or 7 degrees) | 35mm with 2-way features (0 or 7 degrees) | 35mm with 2-way features (0 or 7 degrees) |
|---|
| Dimensions | W | 280mm (11") | 305mm (12") | 362mm (14 2/8") | 445mm (17 4/8") |
|---|
| H | 458mm (18") | 502mm (19 6/8") | 601mm (23 5/8") | 700mm (27 4/8") |
|---|
| D | 280mm (11") | 310mm (12 2/8") | 350mm (13 6/8") | 380mm (15") |
|---|
| Net weight | 13.5kg (29.8lbs) | 14.6kg (32.2lbs) | 19.3kg (42.5lbs) | 22.5kg (49.6lbs) |
|---|
| Accessories | UB-DXR8 (U-barcket) | UB-DXR10 (U-barcket) | UB-DXR12(U-barcket) | UB-DXR15 (U-barcket) |
|---|
| Others | Material: ABS (Matte Finish, Black) | Material: ABS (Matte Finish, Black) | Material: ABS (Matte Finish, Black) |
|---|
