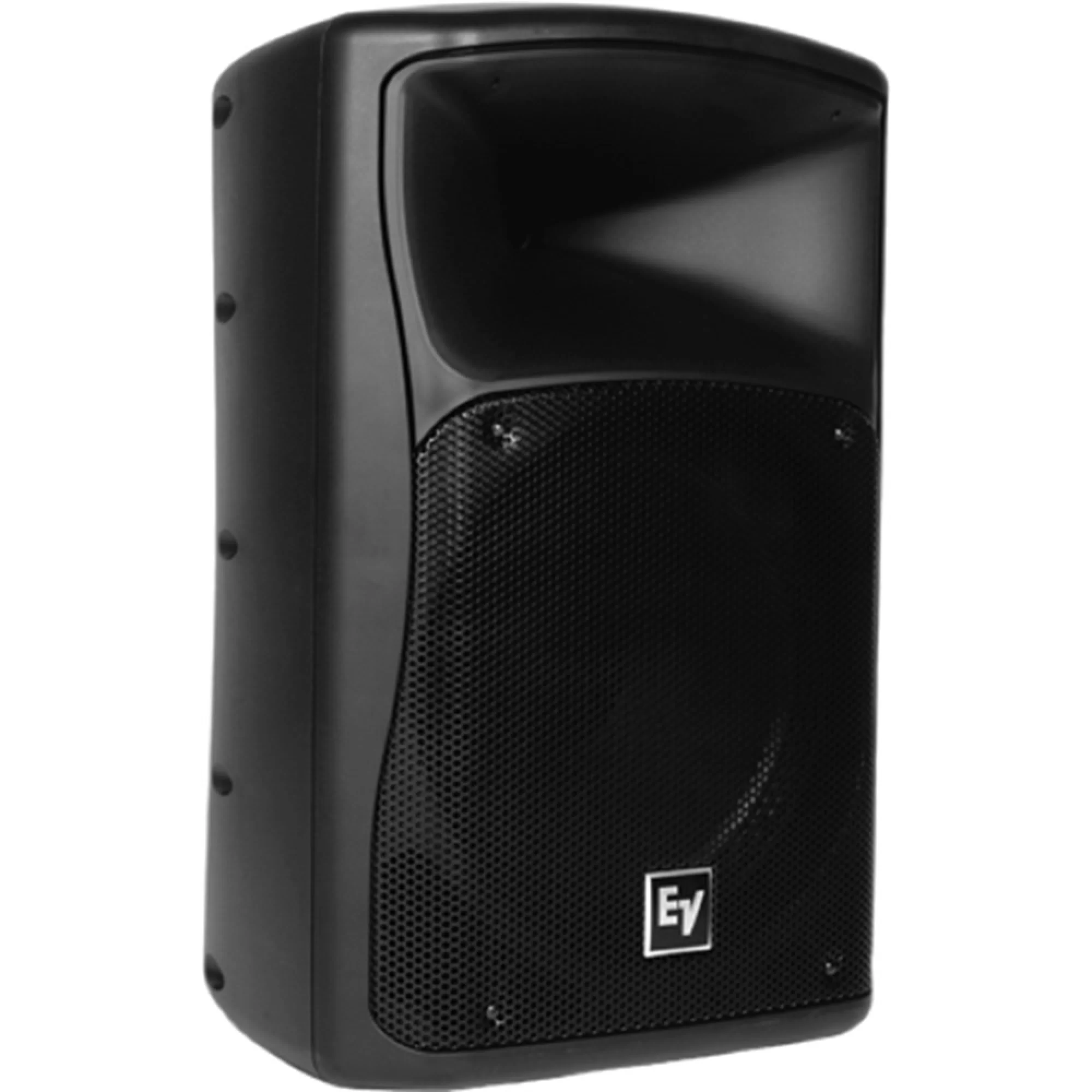

Electro Voice ZX4 15" Full-Range Pasif Hoparlör, 400/800W

The product is out of stock.
Fast Shipping
  • Perfect for portable mains and monitors
  • EVS15-SF woofer
  • 1.25-inch DH3/2010A titanium HF driver
  • Passive crossover
  • 90º x 50º coverage horn
  • High sensitivity, 132 dB maximum SPL
  • Power handling: 400 W continuous, 1600 W peak
  • Lightweight high-impact polypropylene enclosure
  • Wedge shape for monitors at 45º or 55º
  • Integrated pole mount adapter and pocket handle
  • Mounting via attachment plates or eyebolts
  • Black finish



Chassis Size381 mm (15")
ColorBlack
Input ConnectionsParallel Neutrik® NL4
Speaker TypeFullrange, Mid-High, Two-Way, Wedges
Frequency Response (-3 dB)60 - 20000 Hz
Frequency Response (-10 dB)42 - 20000 Hz
Internal CrossoverYes
Recommended High-Pass Frequency42 Hz
Sensitivity 1 W/1 m100 dB
Max. SPL/1m (calc)132 dB
Coverage (Nominal -6 dB) H90 °
Coverage (Nominal -6 dB) V50 °
System Power Handling (Continuous/Program/Peak)400//1600 Watts
LF Transducer15-inch EVS15-SF
HF Transducer1.25-inch DH3/2010A
Crossover Frequency1500 Hz
Nominal Impedance (Passive)8 Ω
Minimum Impedance6.5 Ω
Enclosure MaterialHigh Impact Polystyrene
FlyingYes
OutdoorNo
GrillPolyester Powder Coated, 18GA Galvanized Steel
Height686 mm (27.01")
Width445 mm (17.52")
Depth406 mm (15.98")
Weight Net20.2 kg (44.53 lbs)
