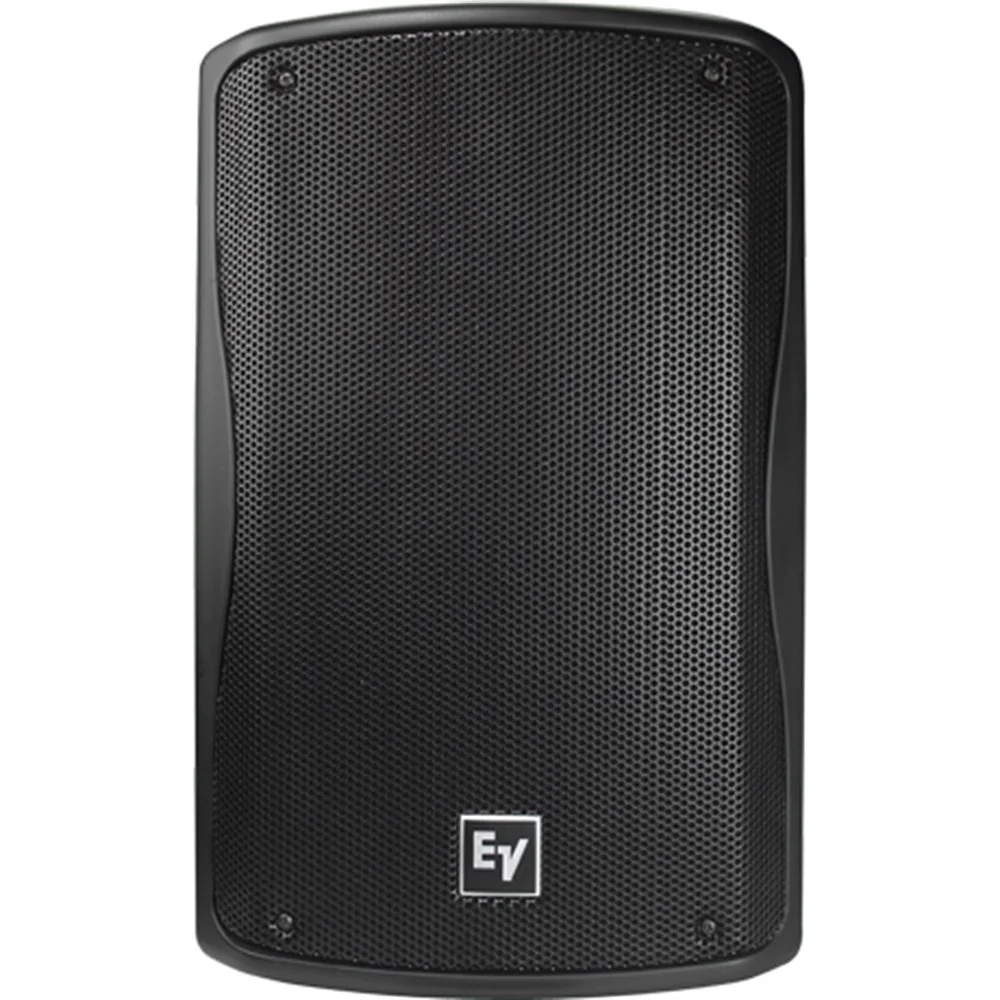

Electro Voice ZX1/90 8" Pasif Hoparlör, 200W/800W

The product is out of stock.
Fast Shipping
  • Smooth, wide frequency response
  • Ideal for mains, fills, or monitors
  • Velocity-compensated port for exceptional LF
  • Long-excursion weather-treated EV8L woofer
  • 1.25-inch DH2005 titanium HF compression driver
  • Rotatable 90º x 50º horn for flexible coverage
  • Passive crossover with full-band overload protection
  • High sensitivity, 123 dB maximum SPL
  • Power handling: 200 W continuous, 800 W peak
  • High-impact polypropylene enclosure
  • Compact monitor-friendly wedge shape
  • Integrated pole mount adapter and pocket handle
  • Metric mounting inserts (4)
  • Available in black or white
Chassis Size203.2 mm (8")
ColorBlack
Input ConnectionsParallel Neutrik® NL4
Speaker TypeFull-range, Mid-High, Two-Way, Wedges
Frequency Response (-3 dB)60 - 20000 Hz
Frequency Response (-10 dB)48 - 20000 Hz
Internal CrossoverYes
Recommended High-Pass Frequency40 Hz
Sensitivity 1 W/1 m94 dB
Max. SPL/1m (calc)123 dB
Coverage (Nominal -6 dB) H90 ° Rotatable
Coverage (Nominal -6 dB) V50 ° Rotatable
Rotatable HornYes
System Power Handling (Continuous/Program/Peak)200//800 Watts
LF Transducer8-inch EV8L
HF Transducer1.25-inch DH2005
Crossover Frequency1700 Hz
Nominal Impedance (Passive)8 Ω
Minimum Impedance6 Ω
Enclosure MaterialHigh Impact Polystyrene
FlyingNo
OutdoorNo
GrillPolyester Powder Coated, 18GA Galvanized Steel
Height457 mm (17.99")
Width282 mm (11.1")
Depth264 mm (10.39")
Weight Net8.4 kg (18.52 lbs)
