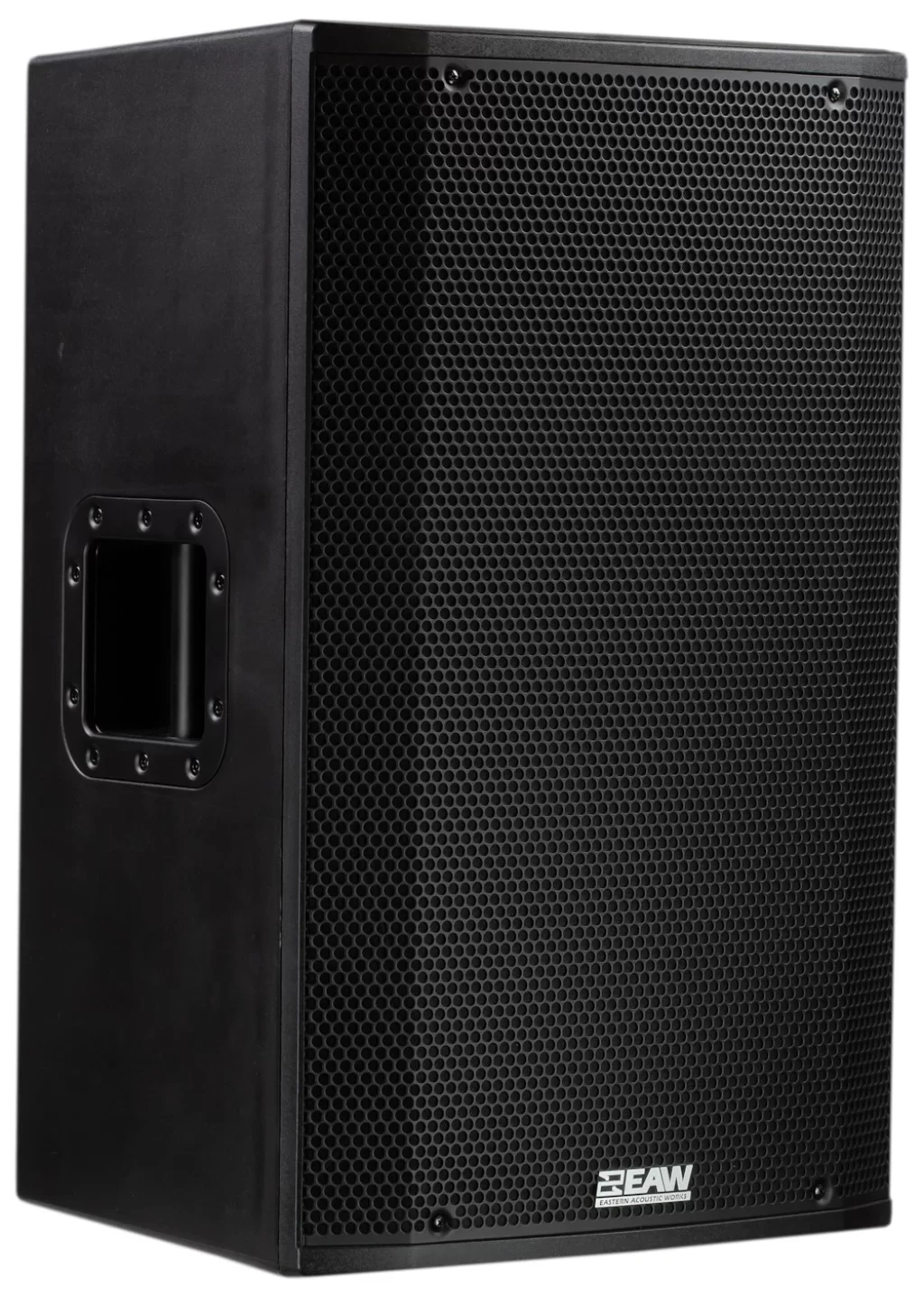

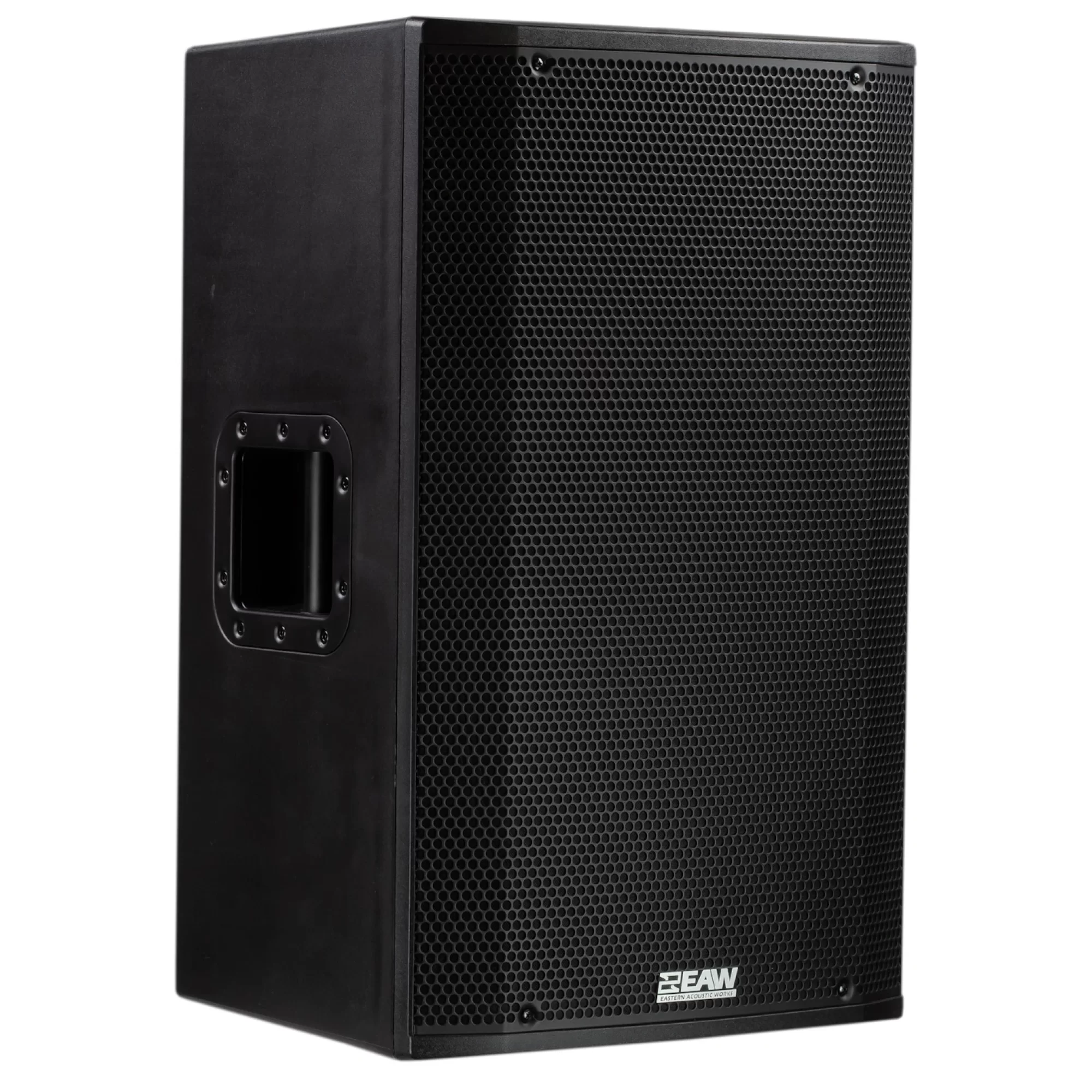

EAW LA151: Active Speaker 15" + 1.7" 1500W 136-dB

EAW LA151 is a professional 2-way active speaker designed by Eastern Acoustic Works (EAW). This model stands out with its built-in amplifier and DSP technologies, offering a versatile and powerful sound solution.

General Features

• Model: EAW LA151

• Type: Active Speaker

• Usage Areas:

  • Live music performances

  • Club and bar sound systems

  • Corporate AV applications

  • Fixed installations and places of worship

Technical Details

Acoustic Performance

• Frequency Response:

  • 43 Hz – 20 kHz

• Maximum SPL:

  • 136 dB

• Dispersion Angle:

  • 90° conical

  • Asymmetrical in the vertical plane (+40°, -50°)

Drive and Amplification

• Amplifier Power: 1500W total

  • LF (Low Frequency): 1000W

  • HF (High Frequency): 500W

• Built-in DSP:

  • EAW Focusing™ and DynO™ technologies

Drivers

• Low Frequency: 15-inch LF driver

• High Frequency: 1.7-inch voice coil HF compression driver

Connectivity

• Inputs:

  • Electronically balanced XLR/TRS combo

• Outputs:

  • Electronically balanced XLR loop (link out)

• Power Connection: IEC AC input

Physical Features

• Dimensions:

  • Height: 700 mm

  • Width: 440 mm

  • Depth: 430 mm

• Weight: 26.4 kg

• Cabinet Material:

  • Trapezoidal design

  • Black durable paint finish

Advantages

• Effective sound performance in large areas with high SPL capacity.

• Optimized acoustic quality thanks to built-in DSP technologies.

• Durable structure and versatile mounting features.

EAW LA151 offers a solution-oriented choice for projects requiring professional sound systems. It provides exceptional sound quality with correct usage and installation.
