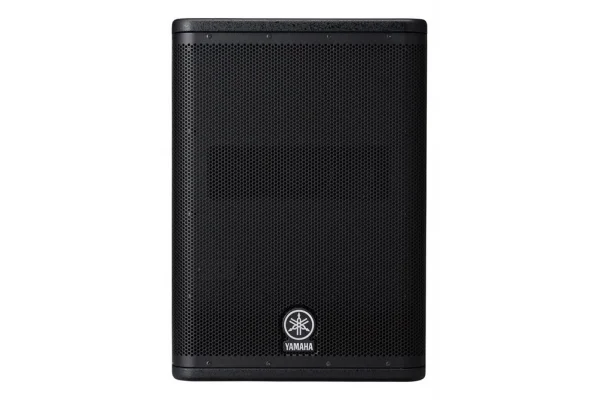

Yamaha DXS 12 12" Aktif Subwoofer 950-watt 131-dB Spl

Stokta yok veya sipariş üzerine tedarik edilir. Lütfen iletişime geçiniz: 0 (533) 592 49 10

Touring Intelligence in Portable Loudspeakers



Ever since we first started developing professional audio equipment in the 1960’s, we ve made it our goal to stay at the forefront of the technology curve. Drawing on decades of experience as a true industry innovator, we don t merely utilize cutting -edge technologies- we create them. With the express purpose of making the most powerful and reliable high-resolution speakers possible, we assembled a specialized team of Yamaha s most skilled engineers to examine, and improve on, every detail of loudspeaker design. This passion for innovation served as the impetus for an intensive collaboration with loudspeaker giant NEXO, adding their insight and expertise as an industry leader in touring-grade sound reinforcement to the development of our DSR, DXR and DXS Series speakers. As a result of working closely with NEXO s engineers at their state-of-the-art facility, our team adopted a new approach to some crucial aspects of these speakers’ design. The detailed analysis of the transducers, thorough testing of the enclosures acoustic properties and optimized limiter setting all contributed to higher SPL delivered with stunning clarity and an unsurpassed level of reliability.

By incorporating touring-grade technology into these speakers, we ve succeeded in creating the most powerful and
dependable high-performance, active loudspeakers...ever.





General specifications DXS12 DXS15
Speaker type 12" powered subwoofer, Band-pass type 15" powered subwoofer, Band-pass type
Frequency range -10dB 47Hz - 160Hz 45Hz - 160Hz
Components LF Diameter:12" cone, Voice Coil:2.5" Diameter:15" cone, Voice Coil:2.5"
Output power Dynamic:950W / Continuous: 600W Dynamic:950W / Continuous: 600W
Maximum output level (1m; on axis) 131dB SPL 132dB SPL
I/O connectors INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT) INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)
Processors D-XSUB: BOOST,XTENDED-LF, OFF D-XSUB: BOOSTXTENDED-LF OFF
Power requirements 100V - 240V, 50Hz/60Hz 100V - 240V, 50Hz/60Hz
Power consumption 120W 120W
Pole socket 35mm (Top x1) 35mm (Top x1)
Dimensions W 397mm (15 5/8") 478mm (18 7/8")
H 563mm (22 1/8") 618mm (24 3/8")
D 594mm (23 3/8") 624mm (24 4/8")
Net weight 33.0kg (72.8lbs) 38.0kg (83.8lbs)
Others Material: Wood (Paint, Black) Material: Wood (Paint, Black)



Hoparlör TürüAktif Subwoofer
Hoparlör Ölçüsü12"
