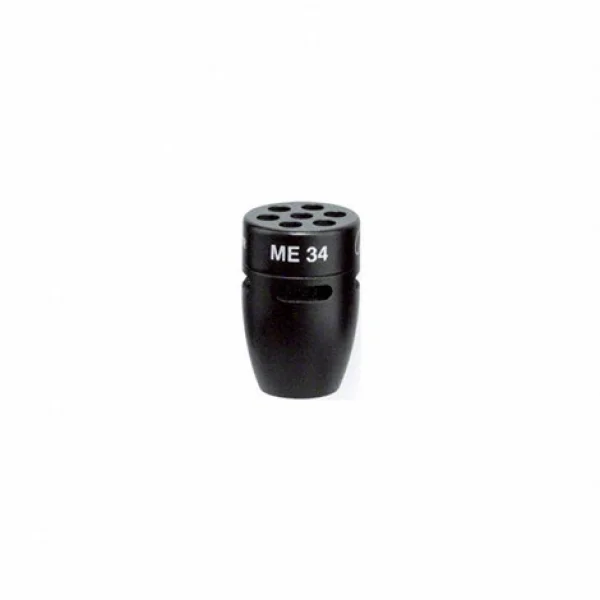

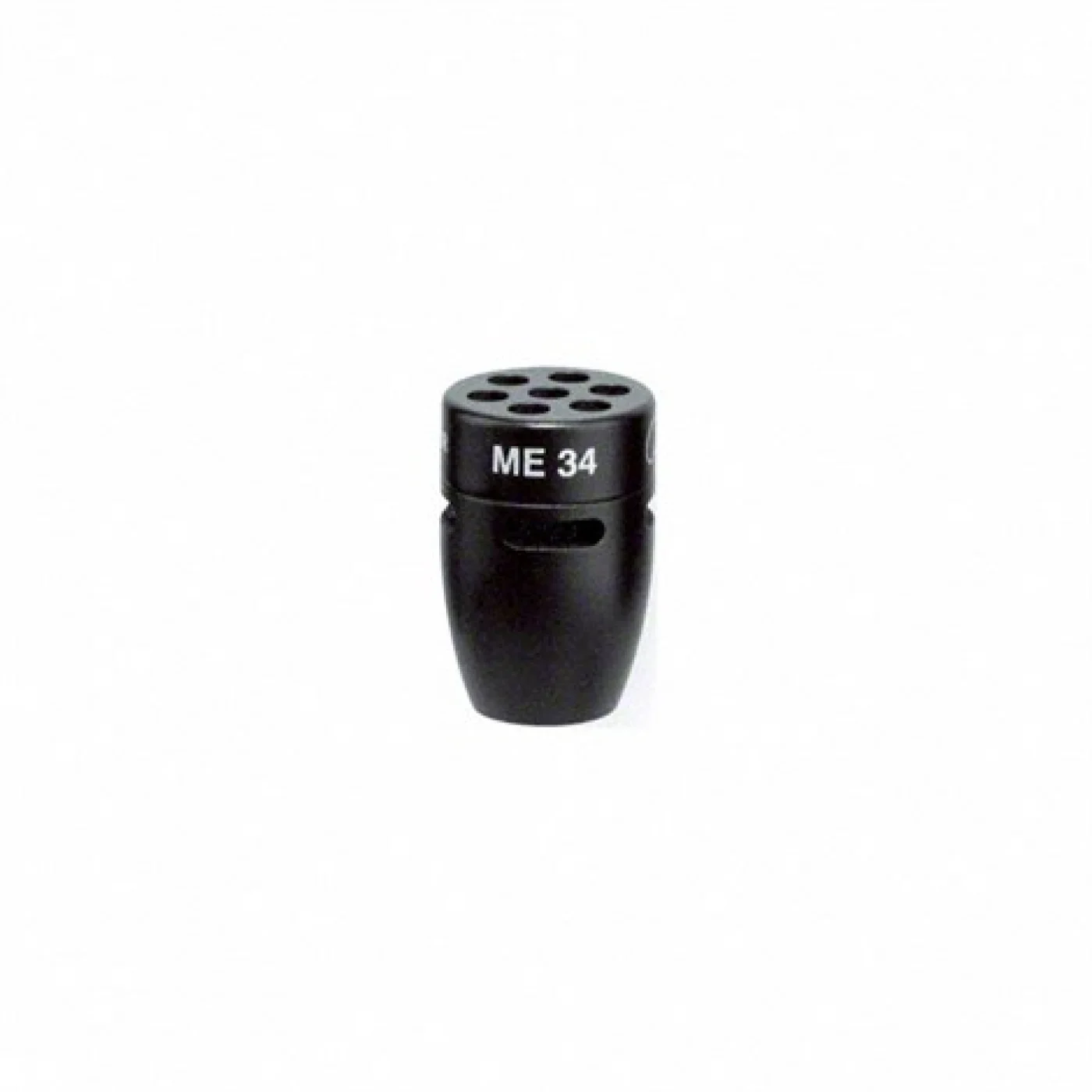

The ME 34 is a permantly polarized condenser microphone capsule for use with Sennheiser MZH goosenecks. This cardioid capsule is suitable for a very wide range of applications including: conference, public address, studio, broadcast, video and others.
Features
A cardioid capsule for universal miking applications with a smooth response across all frequencies
Element based on legendary KE10 capsule, used in Sennheiser s celebrated MKE 40 lavalier and MKE44P stereo microphones
All contact points are gold plated and corrosion resistant, insuring maintainence-free long term operation
| Impedance | 50 Ohm | |
|---|
| Dimensions | ø12 x L18 mm | |
|---|
| Frequency response (microphone) | 40 Hz - 20 kHz | |
|---|
| Transducer principle (Microphone) | pre-polarised condenser microphone | |
|---|
| Weight | approx. 3 oz | |
|---|
| Pick-up pattern | cardoid | |
|---|
| Min. terminating impedance | 1 kOhm | |
|---|
| Phantom powering | P12 - P48 | |
|---|
| Equivalent noise level | 26 dB(A) | |
|---|
| Equivalent noise level weighted as per CCIR 468-3 | 37 dB | |
|---|
| Maximum sound pressure level (passiv) | 130 dB SPL | |
|---|
| Current consumption | 250 μA | |
|---|
| Acoustics | pressure gradient transducer |
|---|
