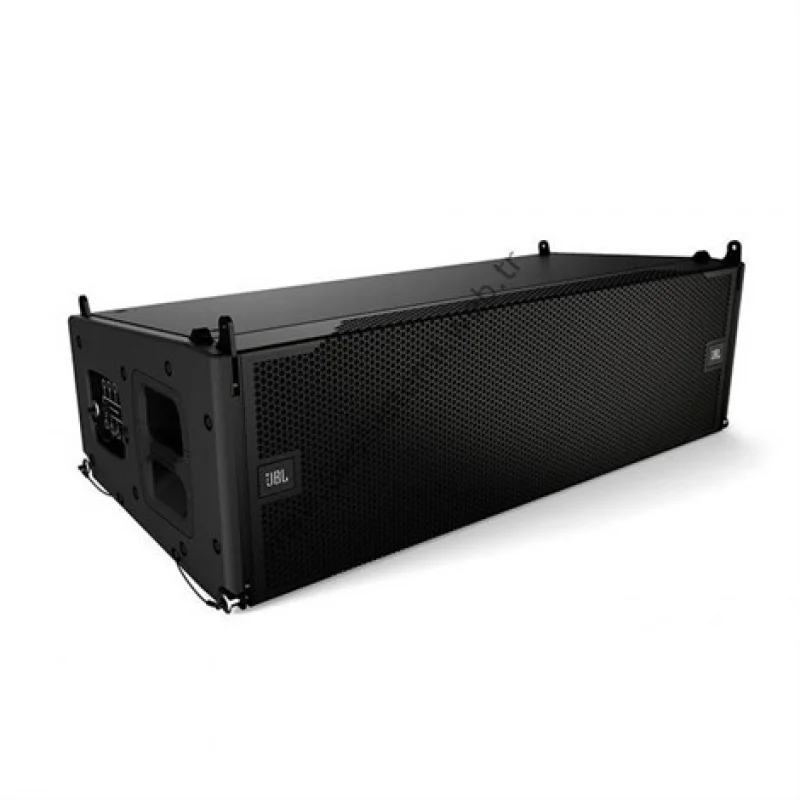

JBL VTX A12 2x12" Line Array Loudspeaker

Stok yok sipariş üzerine tedarik edilir. Lütfen iletişime geçiniz: 0 (533) 592 49 10

JBL VTX A12 Next Generation Dual 12" Line Array Loudspeaker

JBL VTX A12 is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers and tour sound production crews. Next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage. A patented JBL rigging mechanism and redesigned suspension system streamline deployment and setup. And refinements to the physical design maximize reliability and versatility, while minimizing size and dramatically reducing weight. VTX A12 isn’t just a superior line array—it’s a completely new way to approach tour sound.



  • New and improved JBL transducers for the best output per weight
  • Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels
  • Redesigned Radiation Boundary Integrator® (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion, and 90-degree coverage down to 250 Hz
  • Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion
  • Best-in-class rigging for streamlined, rapid deployment
  • Full-face grill for superior weatherization and refined aesthetics
  • New transport cart and frame for simplified transport and setup
  • Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance
  • Full integration with JBL system control and prediction software
  • Lightweight design


Frequency Response46 Hz - 19 kHz (Preset: VTX A12)
Coverage PatternHorizontal: 90 degrees nominal (250Hz - 18kHz)Vertical: Varies with array size and configuration
Max SPL146 dB (Preset: VTX A12)
System ProcessingCrown Audio I-Tech HD Series, Crown Audio I-Tech 4x3500HD
IP RatingIP55 EN (60529)
UV Rating6 (ISO105-B01)
Dimensions (H x W x D)330.2mm x 1117.6mm x 495.3mm13.0in x 44.0in x 19.5in
Weight60.8 kg (134.0 lbs)
Hoparlör TürüAktif Line Array
