Özellikler
– Powered 3-way system
– Light-weight Class D amplifier topology
– High-end DSP chipsets
– Easy-DSP™ Interface
– Quality Neutrik® connectors
– Top grade Birch cabinet construction
– Durable ISO-flex finish
– Robust “quick-rig” professional rigging hardware
– Proprietary injected aluminium HF waveguide (not plastic)
– D.A.S. M-75 compression driver and cone transducers

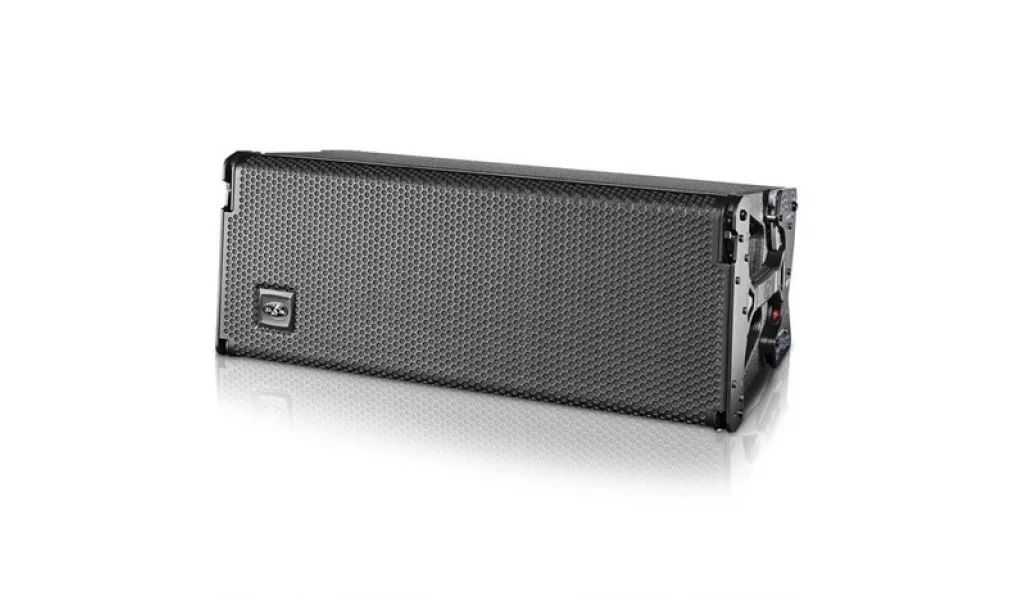

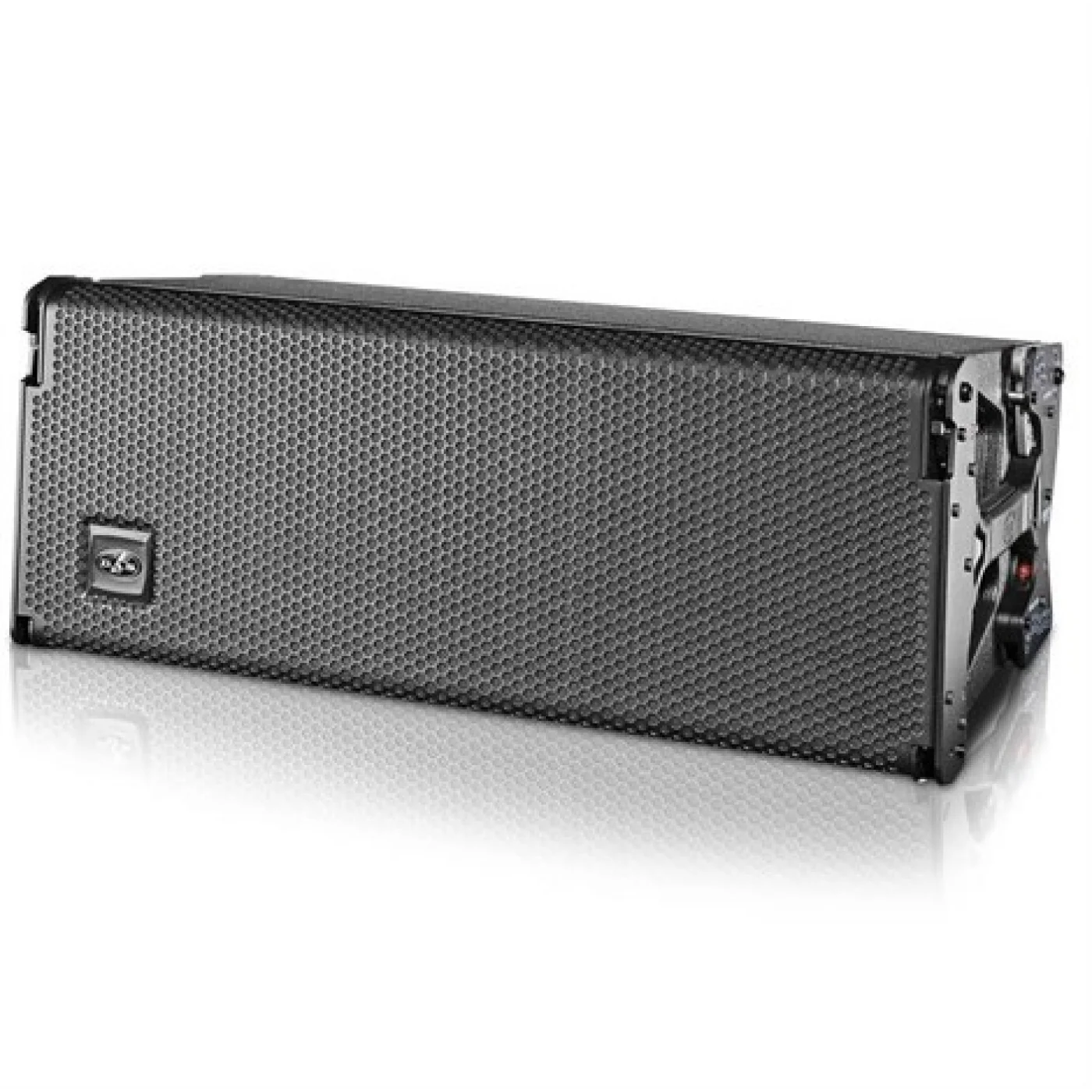

The Event 208A Line is a three-way powered line array in a double 8” configuration. The D.A.S. loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 208A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.
Teknik Özellikler
| Nominal HF Amplifier Power | 360 Wpeak |
| Nominal MF Amplifier Power | 360 Wpeak |
| Nominal LF Amplifier Power | 360 Wpeak |
| Frequency Range (-10 dB) | 75 Hz - 20 kHz |
| Rated Peak SPL at 1 m | 132 dB |
| Horizontal Coverage (-6 dB) | 90º Nominal |
| Vertical Coverage | Splay Dependent |
| Enclosure Material | Birch Plywood |
| Color/Finish | Black/ISO-flex Paint |
| Connectors | Input: Female XLR
Loop Thru: Male XLR
AC Input: powerCON
AC Output: powerCON |
| AC Requirements | 115 V, 2.6 A, 50 Hz/60 Hz
230 V, 1.3 A, 50 Hz/60 Hz |
| Dimensions (H x W x D) | 27 x 67 x 36.6 cm
10.6 x 26.4 x 14.4 in |
| Weight | 30 kg (66 lb) |
