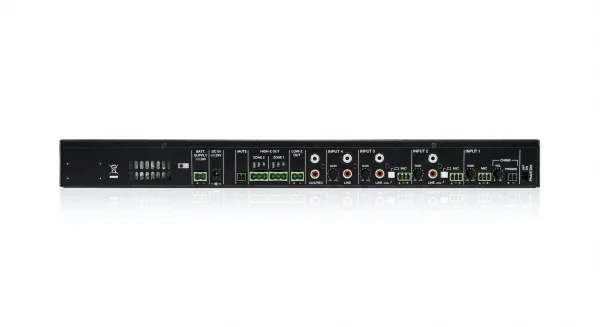

eHMA120 is a self-powered audio mixer including three MIC/LINE ST inputs and one LINE ST input. It features a 120W powered mono output that supports both low (4 ohm) and high impedance (70V, 100V) loudspeaker lines, with independent 2-ZONE ON/OFF switches (ZONE 1, ZONE 2). It also includes an audio priority system (voice messages, emergencies, etc.) available in 3 inputs, Pager and embedded Chime function (compatible with 1 zone paging microphones),2 band tone control, auto stand-by mode, MUTE port and universal power supply unit, being compatible with external 24 VDC IN backup supply systems.
Features- 1 x 95W @ 4ohm
- 1 x 95W @ 70V / 100V
- 2 x ZONE ON/OFF selection switches
- 1 ST LINE input
- 3 MIC / LINE inputs, including Talkover function (priority)
- 1 Pager port, including embedded Chime tone
- 2-band EQ (BASS/TREBLE) for Mix Output
- 24VDC external power supply included, with external battery backup connector
- Auto Stand-by function
- 24VDC Phantom Power (external switch)
- MUTE port to remotely mute the unit from an external device, via dry contact closure.
- Rack mount kit included
