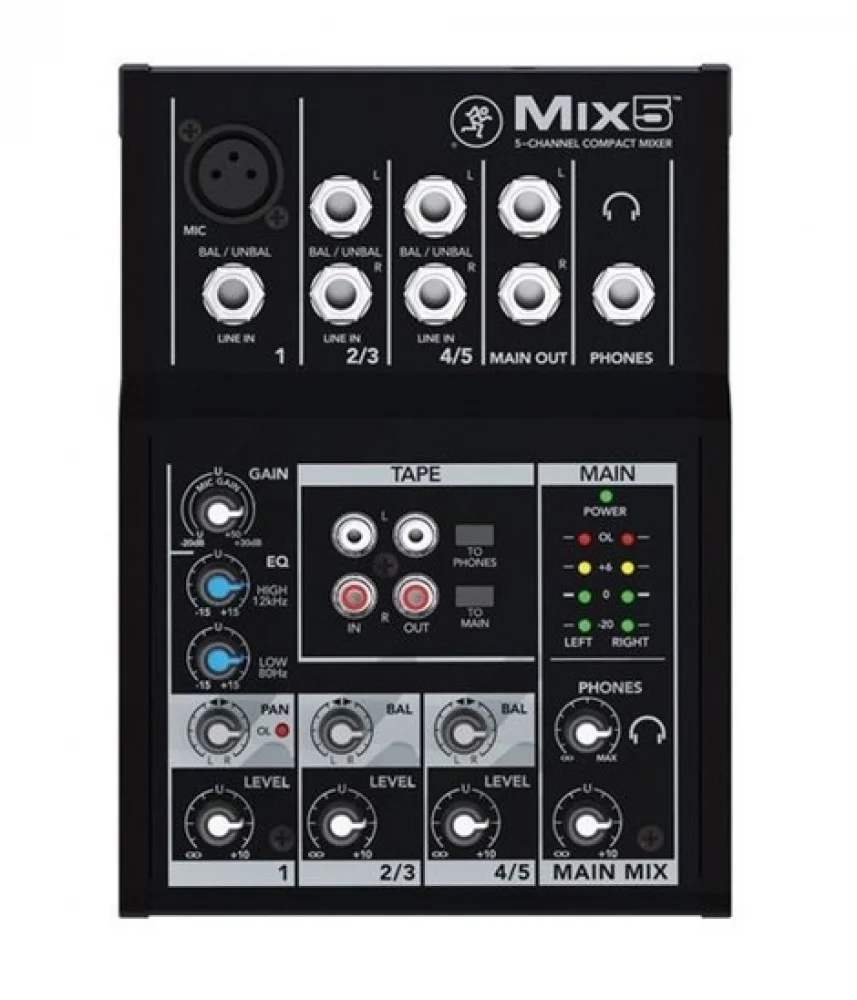

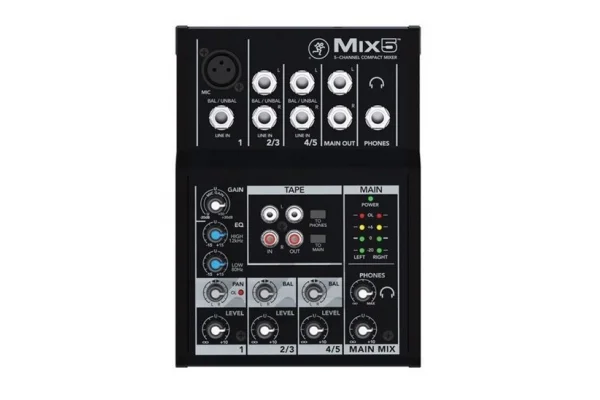

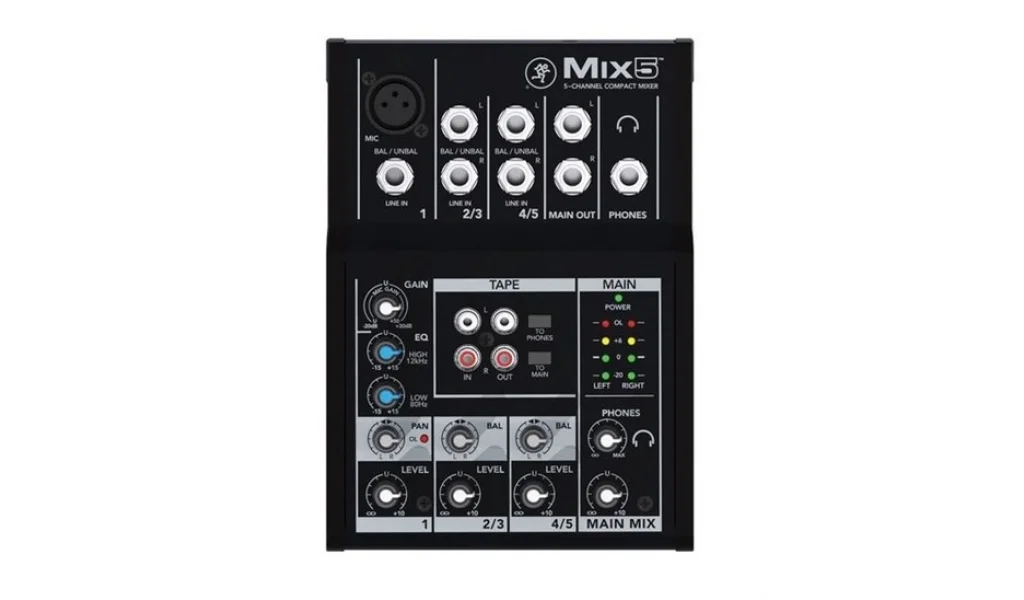

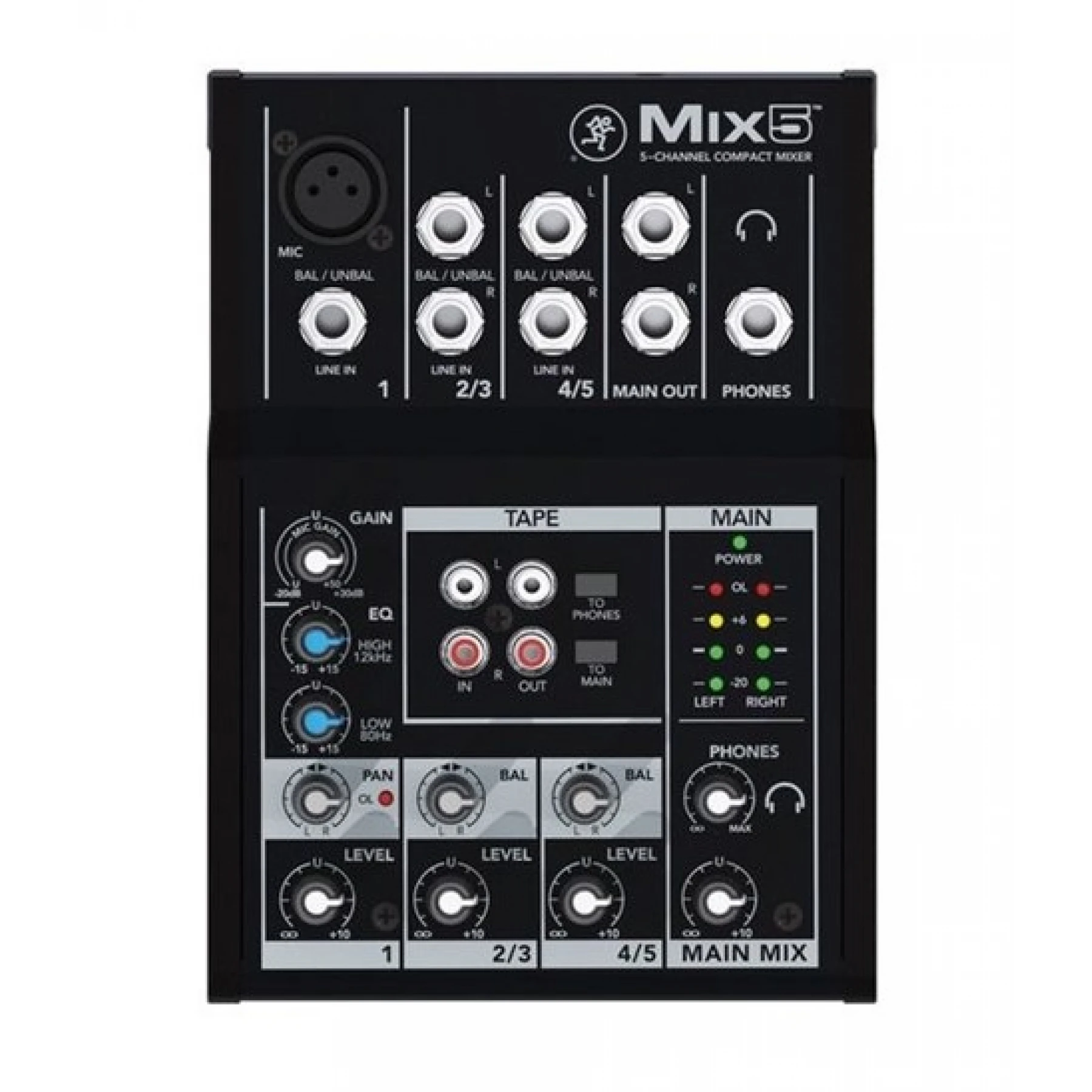

The Mackie Mix5 is a 5-channel compact mixer that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features one mic/line input, two stereo 1/4" line inputs, and is capable of accommodating dynamic microphones, keyboards, DJ setups, portable music players, and more.
The mic/line input is equipped with XLR and 1/4" connectors, a dedicated 3-band EQ, pan, level control and an LED overload indicator. The two stereo 1/4" line inputs each feature a 3-band EQ, balance control, level control have an LED overload indicator.
| Noise | (20 Hz – 20 kHz bandwidth, , 150 ohm source impedance, EIN)
All outputs, master levels and channel levels off–100 dBu All outputs, master levels unity, all channel levels off –90 dBu All outputs, master levels unity, 1 channel level unity –85 dBu |
| THD+N | (20 Hz – 30 kHz bandwidth)
Mic input to main output <0.25% @ +4 dBu output |
| Attenuation and Crosstalk | (20 Hz – 20 kHz bandwidth)
Inputs to outputs @1 kHz–85 dB Main mix off @1 kHz–75 dB |
| Frequency Response | Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz |
| Equivalent Input Noise | -125 dBu, (mic in to insert send out, max gain) |
| Common Mode Rejection Ratio | 1 kHz better than –70 dB, (mic in to insert send out, max gain) |
| Impedance | Mic In: 2 kohms
All Other Inputs: 10 kohms or greater Tape Out: 1 kohms Phones: 22 ohms All Other Outputs: 120 ohms unbalanced, 240 ohms balanced |
| Maximum Level | Mic Inputs (XLR): +19 dBu
Aux Return In: +16 dBu All Other Inputs: +21 dBu All Outputs: +21 dBu |
| Equalization | High Shelving: ±15 dB @ 12 kHz
Mid Peaking:±15 dB @ 2.5 kHz Low Shelving: ±15 dB @ 80 Hz Low Cut Filter: 18 dB/octave, –3 dB @ 75 Hz |
| Power Requirements | Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]
Input:120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU] Output: 18 VAC, 600 mA |
| Dimensions | 1.7 x 5.5 x 7.7" (43 x 140 x 196 mm) |
| Weight | 1.4 lb (0.6 kg) |
| Ürün Grubu | Mixer (Analog) |
