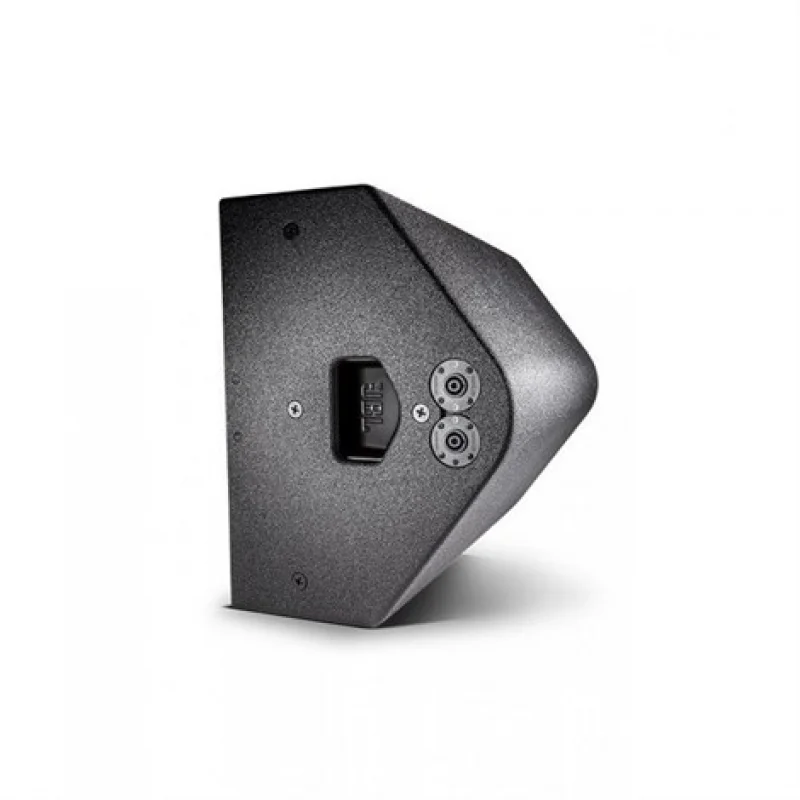

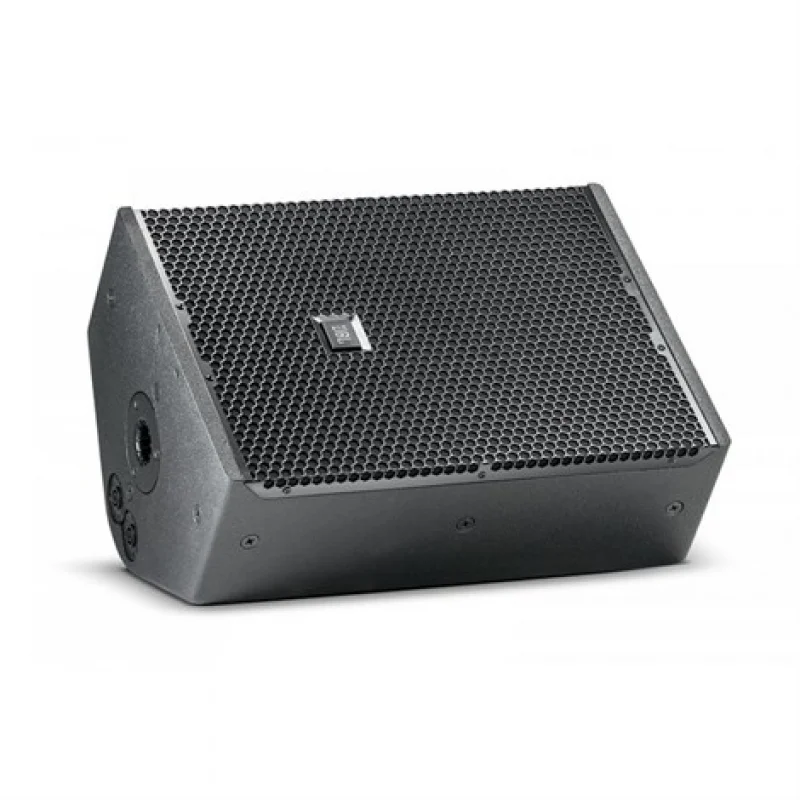

JBL VTX-F15 15" Bi-Amplified Stage floor monitor and fill speaker
The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.
Features
- D2430K D2 Dual Diaphragm Dual Driver
- Progressive Transition Waveguide (90° x 50°)
- Bi-Amplified 2-Way System
- BSS Audio OmniDriveHD V5 Processing
- For use with Crown ITechHD and Crown VRack
- JBL HiQnet Performance Manager Control™
Specifications
| System Type | 2-Way Premium Multi-Purpose Loudspeaker with 15” Differential Drive® Woofer and D2 Dual Driver |
| Components | 1 x 2265H 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
| Coverage Pattern | 90 x 50 degrees |
| Frequency Range (-10 dB) | 43 Hz - 21.5 kHz (short throw mode, free field) 42 Hz - 21.5 kHz (monitor mode, half-space) |
| Frequency Response (+/-3 dB) | 59 Hz - 20 kHz (short throw mode, free field) 58 Hz - 20 kHz (monitor mode, half-space) |
| Sensitivity (1W, 1m) | 98 dB LF, 108 dB HF |
| Nominal Section Impedances | 8 ohms LF, 20 ohms HF |
| Transducer Power Rating (AES 2 hour) | 1000W LF, 200W HF cont 4000W LF, 800W HF peak |
| Dimensions (W x H x D) Vertical cabinet orientation | 640.1 x 457.2 x 327.7 mm (25.2 x 18 x 12.9 in) |
| Weight | 22.9 kg (50.5 lbs) |
