SHURE BLX288E/PG58 Çift El Telsiz Mikrofon Seti

Marka : Shure

Bayi Girişi Yapınız

Barkod : 75040
Bilgi-Al
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Sayfayı Yazdır
Yorum Yaz

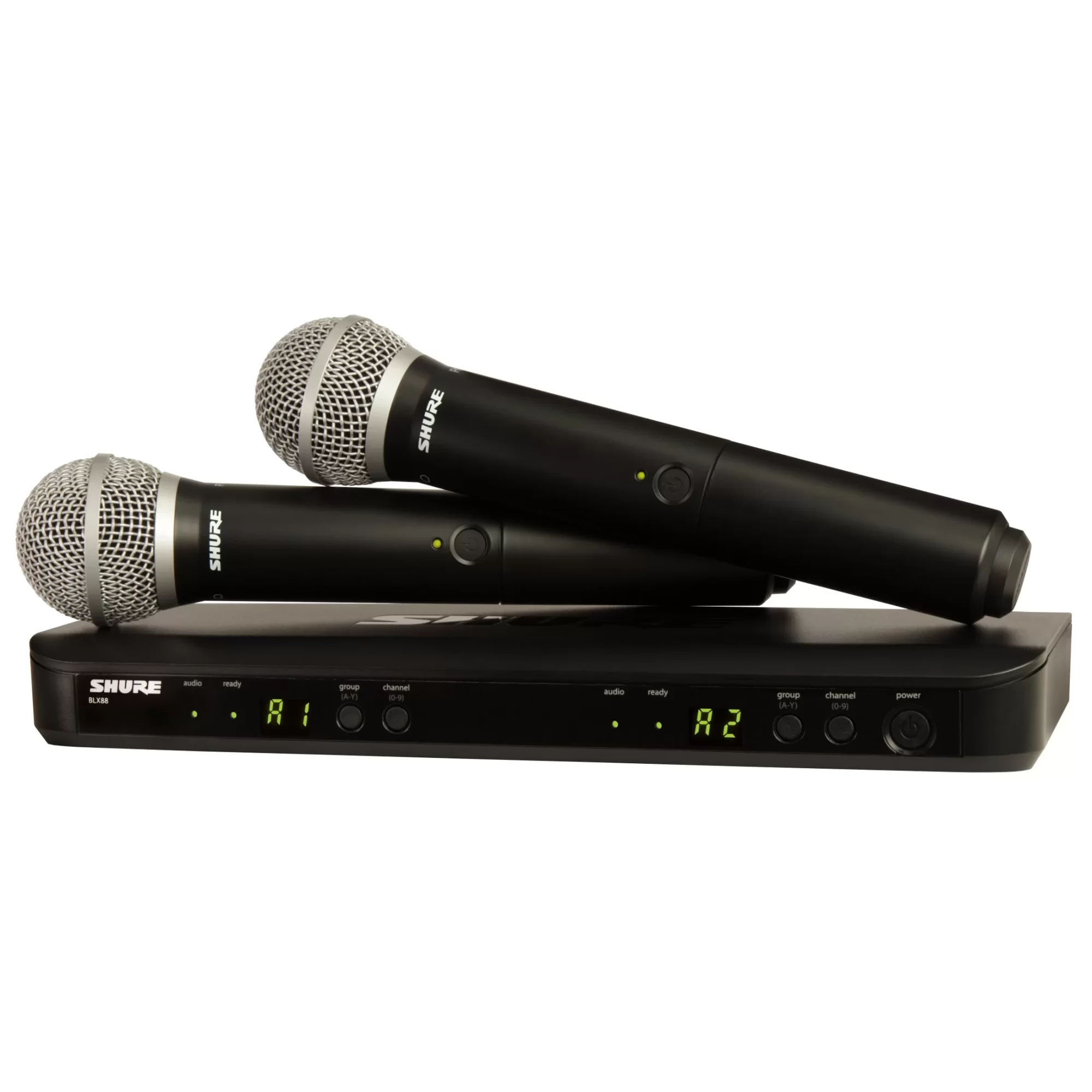

Shure BLX288E/PG58



  • Dual-Channel Wireless Receiver
  • 2x BLX2 Transmitters with PG58 Mic
  • One-Touch QuickScan Frequency Selection
  • Internal Antenna Diversity
  • 300' Operating Range
  • Batteries Included

                  Frekans

  • H8 - 518 / 542 Mhz
  • J10 - 584 / 608 Mhz
  • K12 - 614 / 638 Mhz
  • M15 - 662 / 686 Mhz



BLX88 Dual Channel Receiver

Output 2x XLR Output
2x 1/4" (6.35 mm) Output
Output Impedance XLR: 200 Ω
1/4": 50 Ω
Audio Output Level XLR Connector: -20.5 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
RF Sensitivity -105 dBm for 12 dB SINAD, Typical
Image Rejection >50 dB, Typical
Housing Molded ABS
Power Requirement 12 to 15 V DC @ 320 mA, Supplied by External Power Supply (Tip Positive)
Dimensions (H x W x D) 1.5 x 15 x 4.5" (40 x 388 x 116 mm)
Weight 15.1 oz (429 g)



BLX2 Handheld Transmitter / PG58

Transmitter
Audio Input Level 0 dB Gain: -20 dBV Maximum
-10 dB Gain: -10 dBV Maximum
Gain Adjustment Range 10 dB
RF Output 10 mW, Typical (Varies by Region)
Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline
Housing Molded ABS
Dimensions (Ø x L) 2.1 x 8.8" (53 x 224 mm)
Weight 7.7 oz (218 g)
Microphone
Type Dynamic (Moving Coil)
Polar Pattern Cardioid
Frequency Response 60 Hz to 15 kHz
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector
Sensitivity -53 dBV/Pa, (2.2 mV), 1 Pascal=94 dB SPL (@ 1 kHz)
Electromagnetic Hum Sensitivity 26 dB equivalent SPL in a 1 millioersted field (60 Hz)
Temperature Range -20 to 153°F (-29 to 57°C)
Relative Humidity 0 to 95%
