Neumann KH 80 DSP A G EU 4"+1" Aktif Monitor

Stokta yok veya sipariş üzerine tedarik edilir. Lütfen iletişime geçiniz: 0 (533) 592 49 10

Olağanüstü güç rezervlerine sahip ultra kompakt, DSP kontrollü çift güçlendirilmiş yakın alan monitörü

  • Yeni DSP motoru, referans sınıfı ses elde etmek için çıkışı optimize eder

  • Her ortamda mükemmel ayrıntı sağlamak için matematiksel olarak optimize edilmiş dağılım

  • Kurulum, oda hizalama ve çalıştırma için isteğe bağlı Neumann.Control iPad® uygulaması





0 Sınıfında 1 numara

KH 80 DSP, dijital çekirdeği ile her ortama referans seviyesi yeniden üretimini getiren filtreleme işlevlerini ve oda ayarlama seçeneklerini etkinleştirir. Kompakt tasarımıyla bile, olağanüstü rezerv kapasitesine ve Neumann monitör felsefesinin klasik güçlü yönlerine sahiptir: açıkça tanımlanmış dağılım açısı, distorsiyonsuz tasarım ve sofistike malzeme seçimi.



İş yerinde yüksek matematiğin mükemmel sesi

Neumann geliştiricileri, KH 80 DSP'nin her nüansı, her açısını ve her dalga yansımasını bilir. Kulağa çok saf geliyor çünkü her ses dalgasını çok hassas bir şekilde yönlendiriyorlar. KH 80 DSP'nin tasarımı, Neumann dışında kimsenin yapamadığı bir doğruluk düzeyinde hesaplama yapan bilgisayar simülasyonlarına dayanmaktadır. Matematiksel Modelli Dağılım Dalga Kılavuzu (MMD ™), stüdyo serisine benzersiz kalan hassas ses yönü için sağlam bir temel sağlar. Matematik hiç bu kadar güzel olmamıştı.

Neumann, hesaplamalarımıza bilinmeyen en büyük faktörü bile dahil eder: Odanız

Bir proje stüdyosu, bir dış yayın minibüsü, iş yerindeki bir köşe veya sadece bir tuğla bina olabilir: Sesi oda tanımlar. Odadaki yüzeyler ve köşeler girişime, kırınıma, yansımaya ve kırılmaya neden olur: bunların tümü distorsiyon biçimleridir. Akustik-fiziksel "kazalar" olmadan gerçekten gerçek bir ses için, normalde pahalı ekipmanlara ve doğru şekilde hizalamak için bolca zamana ve uzmanlığa veya akıllı algoritmalara ihtiyacınız vardır. Arka "Akustik Kontrol" anahtarı ile monitör konumuna kolay bir ayarlama (bağımsız, küçük / orta / büyük masa) mümkündür.

İsteğe bağlı, ücretsiz olarak temin edilebilen Neumann.Control iPad® uygulaması birkaç adım daha ileri gider. KH 80 DSP'yi bireysel oda durumuna uyarlayarak fiyat etiketinin çok üzerinde bir kalite sunar. Ve en iyi bölüm: patentli "Yönlendirmeli Hizalama", sistemi çevrenize uyarlamak için bir uzman olmanıza gerek olmadığı anlamına gelir.

Tüm işlevler hakkında ayrıntılı bilgi aşağıda bulunabilir.

Profesyonel standartları olan herkes için bir araç

En zorlu koşullar altında bile bu stüdyo sınıfı üründen en yüksek kaliteli bileşenler, üst düzey koruma sistemleri ve güç rezervleri beklediğiniz şeylerdir. Tasarımı, KH 80 DSP'yi ihtiyacınız olan her yerde profesyonel kalitede ses sunan çok yönlü bir yakın alan monitörü yapar - proje ve müzik stüdyolarında, kurgu ve yayın odalarında veya dış yayın araçlarında. Bazı müşterilerimiz onu çok seviyor, oturma odalarında KH 80 DSP kullanıyorlar. Neden olmasın? Sonuçta KH 80 DSP, bir analog teknoloji şaheseri olan kulaklarınız için dijital hassasiyet sunar.

KH 750 DSP subwoofer KH 80 DSP mükemmel bir tamamlayıcısıdır.

KH 80 DSP ve Neuman.Control iPad® uygulaması

İPad®, yönlendirici ve monitör arasında bir Ethernet kablosuyla standart bir IP ağı üzerinden KH 80 DSP'ye bağlanır. KH 750 DSP ile 2.0 stereo yapılandırması durumunda, stereo çifti analog ses sinyalini doğrudan subwoofer'dan alır.
Sistem, kurulum / ayarlama aşamasında aşağıdaki işlevleri sunar:

Kurmak:

  • 1, 2, 4, 5, 7 veya 9 hoparlör
  • Ağdaki tüm hoparlörlerin kimlik doğrulaması
  • Bekleme süresi ve seviyesinin, sistem gecikmesinin (dudak senkronizasyonu) ve logo parlaklığının ayarlanması

Hizalama:

  • Kılavuzlu Hizalama - oda ve hoparlör / subwoofer konumu hakkında basit soruların sorulduğu patentli bir işlem; uygulama, her hoparlörün / subwoofer'ın yanıtını buna göre ayarlar.

  • Manual Alignment – expert users have complete freedom to adjust an 8-band fully parametric equalizer, levels and the time-of-flight delay in each loudspeaker/subwoofer as they wish. Manual Alignment can also be used to edit Guided Alignments in a more detailed way.


After setup, the iPad® can be removed if necessary; the settings are permanently stored in the monitors.

During operation the iPad® offers:

  • Switching between different setups and alignments
  • Volume control, saving and recalling volume presets
  • Dim, Solo, Mute, Mute all


System Requirements: iPad® with iOS® 10 or higher

Hundreds of good reasons from the Neumann philosophy

The KH 80 DSP has also been developed true to the Neumann philosophy for monitor loudspeakers. Every component, every shape, every signal and every wave motion is a consequence of this philosophy. No form or component is there without reason. There are hundreds of tangible reasons built into the KH 80 DSP, which all stand for exceptionally pure and neutral sound. These include, for example, curvatures of the housing that reduce edge diffraction. Also included is the pistonic output of the bass driver which does not give rise to harmonic distortions, even with the highest sound peaks. Some of these reasons are obvious in the KH 80. Others Neumann prefers to keep to itself. But together, each can be heard – sound professionals in both large and small studios all around the world can testify to this. You can read more about the Neumann philosophy for studio monitors here.



(1)
In-house simulated tweeter with alloy fabric dome

  • Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
  • Low-distortion high frequency reproduction

(2)
Elliptical Mathematically Modelled Dispersion™ (MMD™) waveguide

  • Smoother off-axis response
  • More forgiving of diverse acoustical environments

Wide horizontal dispersion

  • Freedom of movement across the mixing console

Narrow vertical dispersion

  • Reduces reflections off the mixing console

(3)
Two-color Neumann logo

  • Displays operation status and activation of the extensive protection system

(4)
In-house modelled long-throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™) and flow optimized die cast basket

  • Damping of break up modes brings low distortion at high sound levels
  • Linear pistonic motor gives a very low harmonic distortion even at high excursions
  • Reduced air noise and improved rocking modes

(5)
Robust metal grilles

  • Protects against mechanical damage

(6)
Large high-capacity flow-optimized bass reflex ports with pipe resonance damping

  • Fast bass transient response
  • Reduced bass compression at high output levels
  • No coloration from organ pipe resonance
  • Easier to mount in tight spaces

(7)
Compact polycarbonate composite cabinet

  • Robust package for a long life
  • No standing wave resonances

One-piece front panel with no discontinuities

  • Reduced diffraction and smoother frequency response

(8)
Standby function

  • Reduces power consumption when product is not in use

Control function

  • Use the back panel controls or the control set defined by the Neumann.Control iPad@ app

(9)

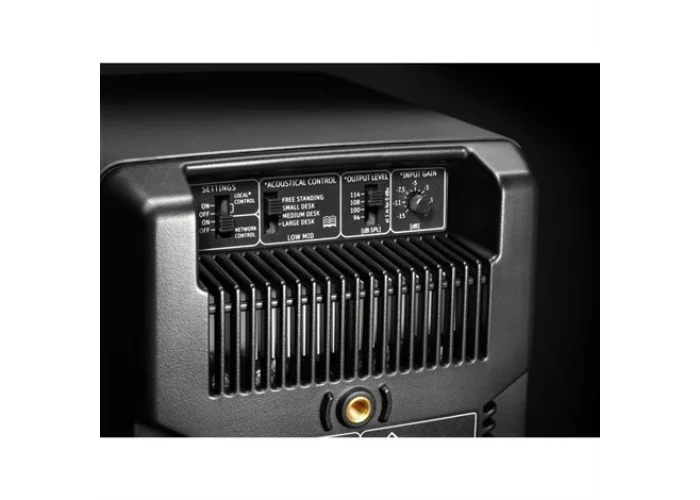

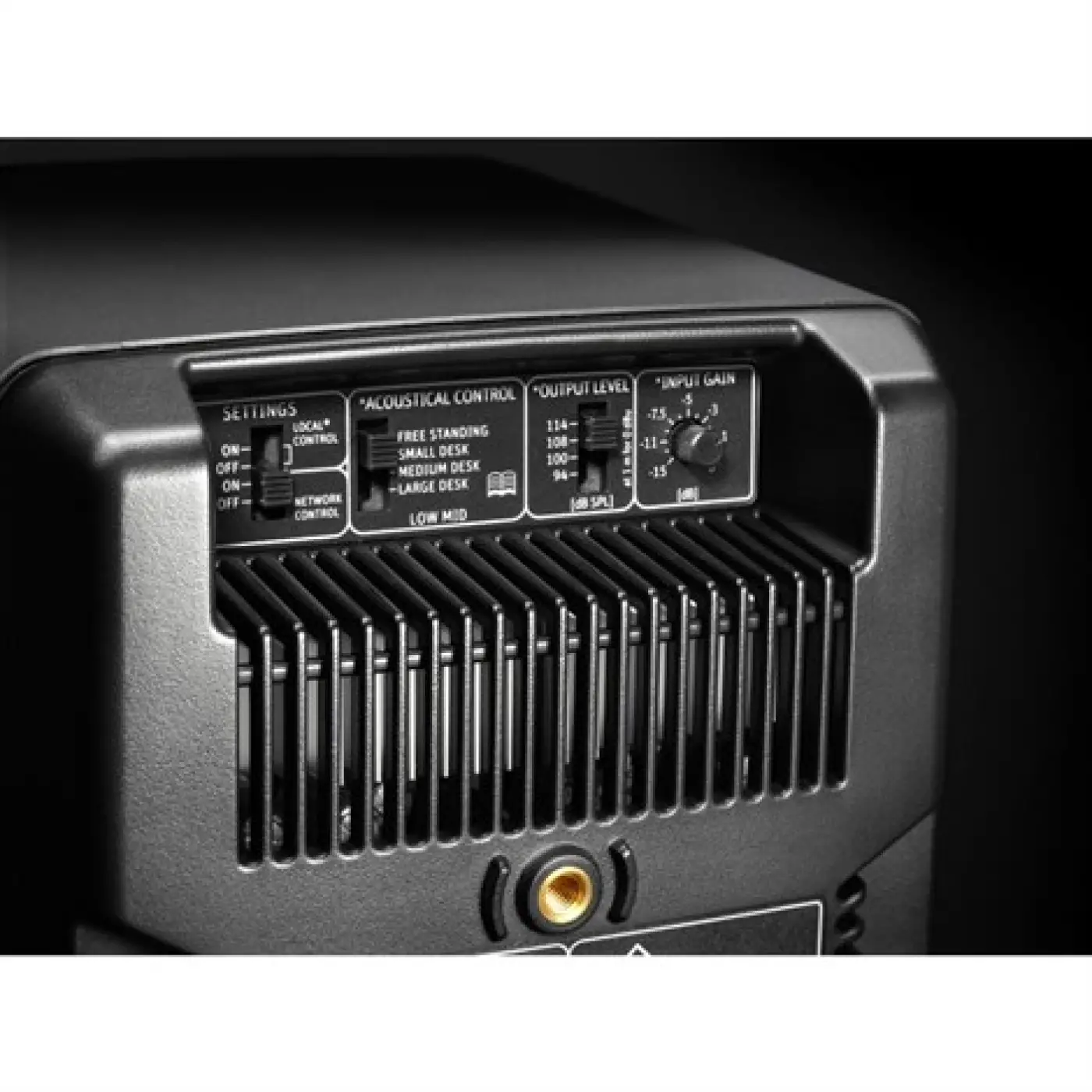

4-position low-mid acoustical control

  • Compensates for nearby desktops
  • Fast acoustical set up in mobile applications
  • Repeatable acoustical settings after moving loudspeakers

(10)
Wide range input gain and output level controls

  • Easier interfacing with signal sources

(11)
Fully documented extensive mounting hardware range

  • More flexibility in mounting cabinets in more diverse locations and backwards compatible to previous products
  • Easy advanced planning for installations

(12)
Universal double-insulated switched-mode power supply (100 … 240 V)

  • One version works in any country and robust to poor quality mains supply
  • Ground loops are impossible

(13)
Network connector using standard IP protocol and your existing network infrastructure

  • Loudspeaker system can be controlled via the Neumann.Control iPad@ app

(14)
Analogue input socket can accept XLR or 6.3 mm (1/4”) Jack plugs, electronically balanced with completely symmetrical internal signal chain

  • Completely symmetrical internal signal routing minimizes noises caused by external electromagnetic interference

More Features

Production consistency due to automated computer optimized alignment in final testing

  • Any KH 80 DSP is “pair matched” to any other KH 80 DSP

Separate fast acting thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers

  • Woofer soft clip and excursion limiters
  • Fast acting and highly reliable
  • Allows extraction of the maximum performance

Büyük tavan boşluklu ve aşırı ısınmayı sınırlayan düşük ısı yayma amplifikatörleri

  • Geliştirilmiş geçici yanıt
  • Garantili güvenilirlik ve güvenlik

Doğrusal faz geçişi

  • Zamanlama şeffaflığı için düz faz yanıtı

Neumann.Control iPad® uygulaması ile:

  • 8 x Precision Alignment akustik kontrolleri: Hoparlörün odada ve sistemler içinde doğru ve esnek hizalanması
  • Dudak senkronizasyon gecikmesi: Ses ve video sinyallerini 50 Hz'de 1,75 kareye veya 60 Hz'de 2,1 kareye kadar hizalamak için
  • Uçuş süresi gecikmesi: 24 m'ye (79 ft.) Kadar dinleme mesafesi farklılıklarını telafi etmek için
  • Düşük aydınlatma seviyesi koşulları için veya ekran uygulamalarının arkasındaki Neumann logosunun karartılması

iPad®, ABD ve diğer ülkelerde kayıtlı Apple Inc.'in ticari markasıdır.



Free field frequency response ±6 dB53 Hz … 21 kHz
Free field frequency response ±3 dB57 Hz … 21 kHz
Free field frequency linearity deviation between 100 Hz and 10 kHz± 0.7 dB
Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced±0.26; ±0.23; ±0.17 dB
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu)<20 dB(A) SPL
Sine wave output with a THD < 0.5 % at 1 m in half space90 dB SPL (>200 Hz)
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)108.8 dB SPL
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)102.8 dB SPL
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz)96.8 dB SPL
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions104 dB(C) SPL
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range)93 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer)100 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range)88 / 93 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer)91 / 96 dB(C) SPL
Analog input(s)XLR / 6.3 mm (¼”) Jack: analog electronically balanced
Analog input impedance14k Ohms
Max. input level+24 dBu for 94 dB SPL setting; +18 dBu for 100 dB SPL setting; +10 dBu for 108 dB SPL setting; +4 dBu for 114 dB SPL setting
Common mode rejection ratio (CMRR)>56 dB @ 15 kHz
Volume controlvia Neumann.Control software
Volume control range; resolution0 … -∞ dB; 0.1 dB
Input gain control (sensitivity)0 dB ... -15 dB
Output level control (output level in 1 m based on 0 dBu input level)94; 100; 108; 114 dB SPL
Digital converter: resolution; design24-bit DAC; Δ∑
Digital converter: sampling rate48 kHz
Digital internal sampling rate48 kHz
Dynamic range A-D114 dB(A)
Dynamic range A-D-A111 dB(A) woofer; 112 dB(A) tweeter
Dynamic range D-A114 dB(A) woofer; 117 dB(A) tweeter
Latency2 ms (A-D-A linear phase)
Delay: User adjustable delay range0 … 70 ms
Delay: Resolution: time; distance0.1 ms; 3.44 cm (1 3/8”)
Delay: Max. frames Audio-video synchronisation (lip sync)1.75 (40 ms frames); 2.1 (33 ms frames)
Delay: Time-of-flight maximum distance24 m (79 ft)
Controller designDigital; active
Crossover frequency1.8 kHz
Crossover slope48 dB/oct; 8th order with phase correction
Equalization: Low-Mid0; -1.5; -3; -4.5 dB
Equalization: via Neumann.Control software8 x full parametric IIR + low / high shelf global balance
FIR phase correctionLinear phase (170 Hz ... 16 kHz; +/- 45°)
Protection circuitryIndependent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
Infrasonic filter: frequency; slope61 Hz; 12 dB/Okt.
Remote controlNeumann.Control software via an RJ45 connector carrying standard IP data
Display: On; Normal OperationNeumann logo “White”
Display: IdentificationNeumann logo “Rosé”
Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down MuteNeumann logo “Red”
Display Brightnessvia Neumann.Control
Output power woofer amplifier (THD+N with limiter deactivated: 10%)120 W
Output power tweeter amplifier (THD+N with limiter deactivated: 10%)70 W
Output power woofer amplifier (THD+N with limiter deactivated: 0.1%)90 W
Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%)50 W
Mains Power Supply: input voltage; frequency100-240 V; 50/60 Hz
Power consumption (230 V / 100 V): Standby<330 / <50 mW
Power consumption (230 V / 100 V): Idle9 / 8 W
Power consumption (230 V / 100 V): Full output180 W
In-rush current (Peak)20 A
StandbyDisabled; 90 mins (default); user defined in software
Cabinet materialComposite polycarbonate
Cabinet surface finish; color (front / back)Painted; metallic anthracite (RAL 7021) / Black (RAL 9005)
Operating conditions+10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing
Transport/storage conditions-25° C to +60° C (-13° F to 158° F); <90% RH; non-condensing
Woofer100 mm (4") with protecting black metal grille
Tweeter25 mm (1") with protecting black metal grille
Mounting points2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”)
Product dimensions (height x width x depth)233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8")
External net volume6.7 liters
Product weight3.5 kg (7 lbs 8 oz)
Packed dimensions (height x width x depth), mm (inches)345 x 277 x 243 mm (13 5/8" x 10 7/8" x 9 5/8")
Packed weight4.1 kg (9 lbs 1 oz)
Packed cube0.023 m³
RenkSiyah
Hoparlör TürüStüdyo Monitör Hoparlörler
Hoparlör Ölçüsü4"
