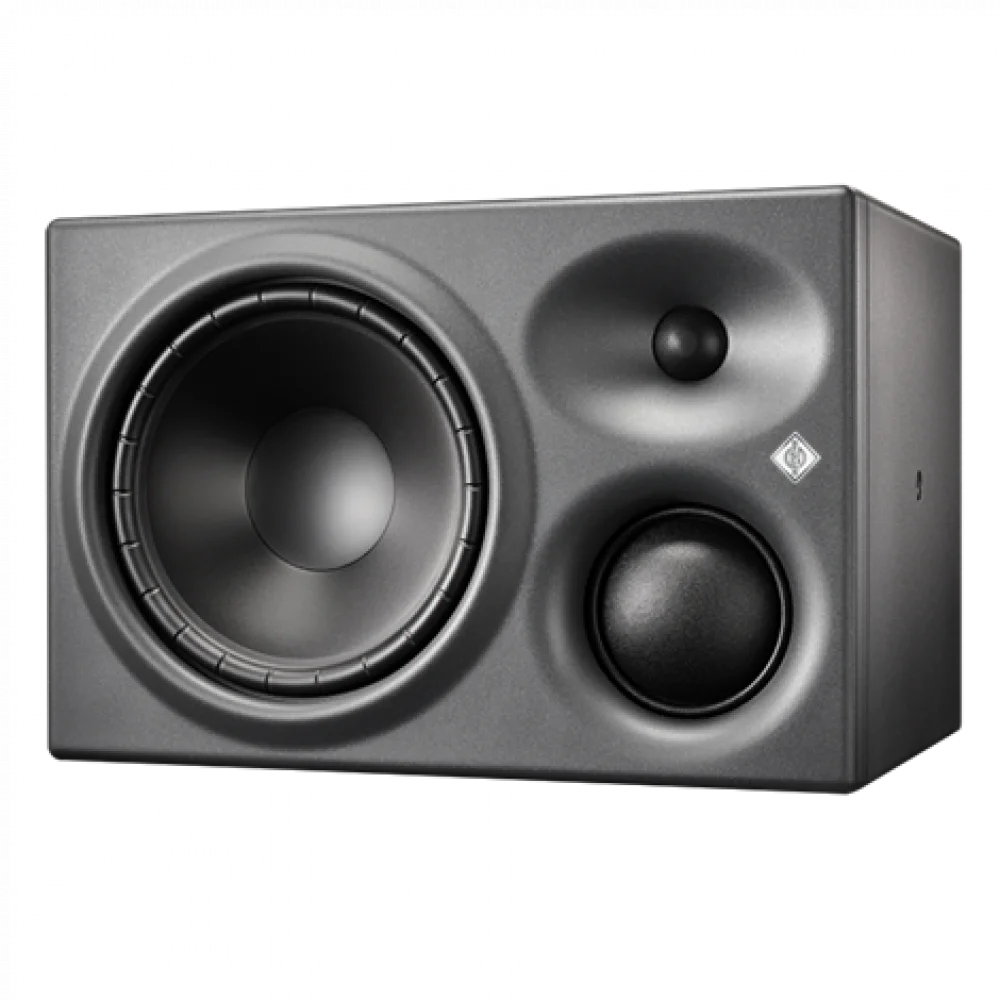

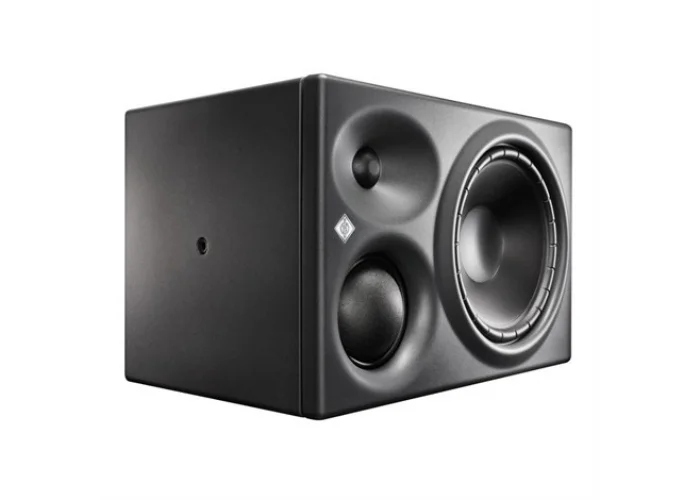

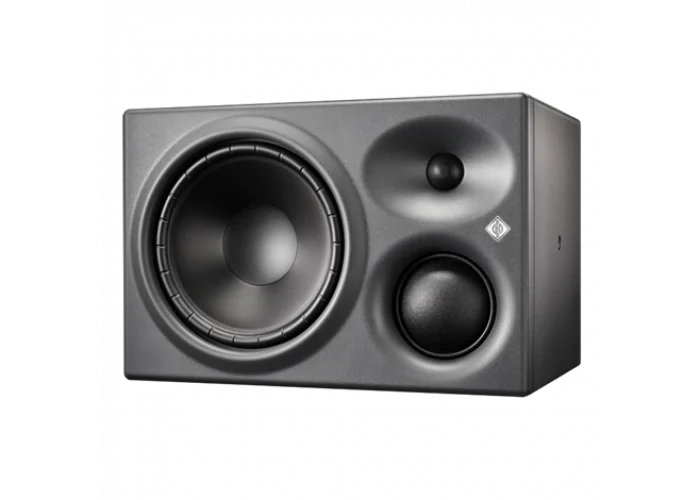

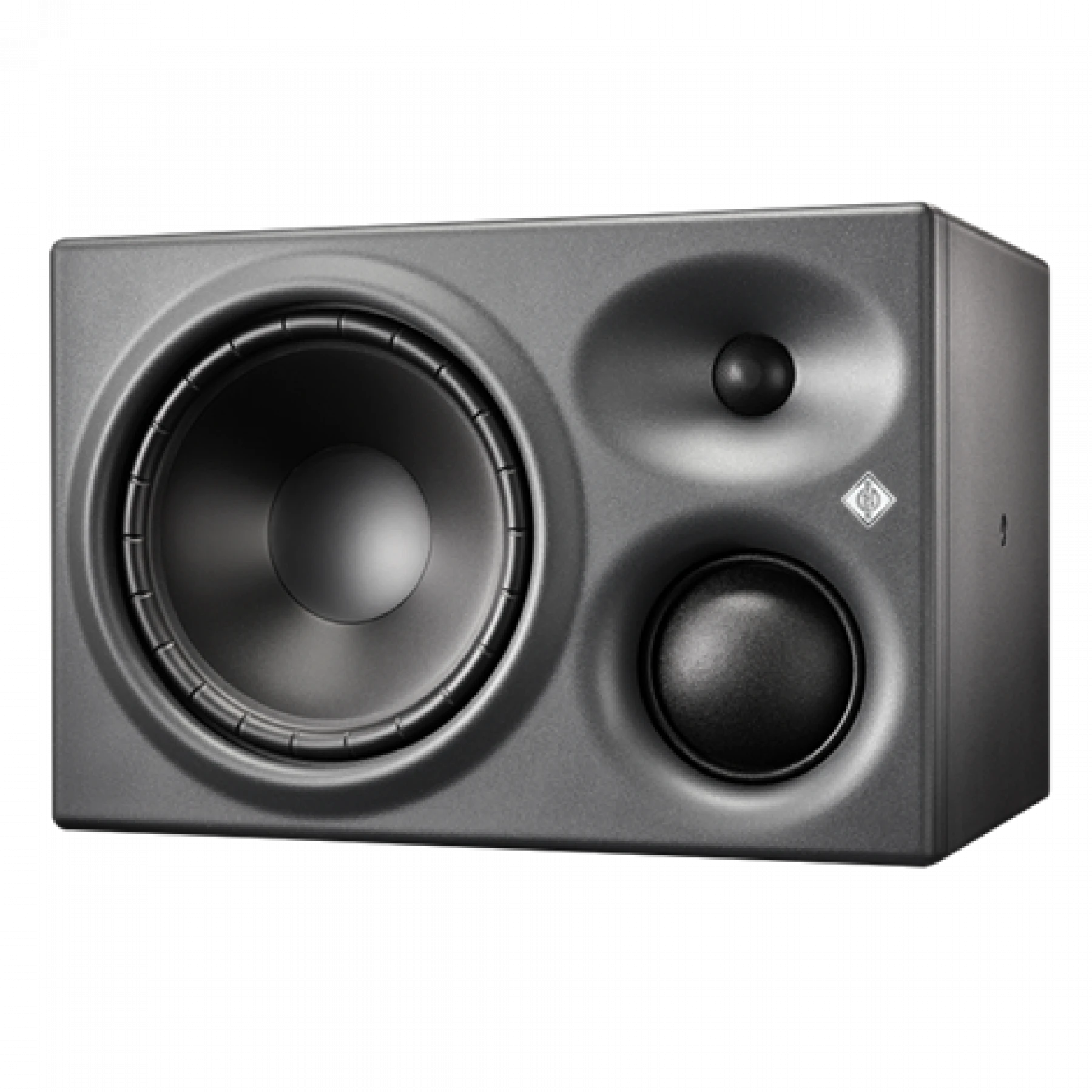

Neumann KH 310 A R G 8+3+1" Aktif Monitor

Adet

Orta aralık ve kuru bas sesi için optimize edilmiş, yüksek çözünürlüklü üç güçlendirilmiş yakın alan monitörü.

  • Sınıfının en hızlı geçici yanıtı

  • 34 Hz'e kadar muazzam bas kapasitesi

  • Özel olarak tasarlanmış bir sürücü sayesinde orta aralıkta daha yüksek hassasiyet

  • KH 750 DSP ve iPad® uygulamasına sahip bir stereo sistem olarak, kontrol edilebilir ve odaya göre hizalanabilir





Genişletilmiş orta kademe hassasiyeti - kuru bas sesi

Özel olarak tasarlanmış orta kademe sürücüsü ile kompakt KH 310, özellikle orta kademe vurgusu olan konuşma, vokal, gitar ve diğer enstrümanlar ile hassas çalışma için uygundur. Kapalı tasarımı, çok hızlı bir geçici yanıt sağlar. İlişkili düşük harmonik distorsiyon, en yüksek standartları karşılamak için nötr bir referans sesi garanti eder.

KH 310, termal olarak korumalı AB Sınıfı amplifikatörlere (210 W ve iki kez 90 W) sahip üç yollu üç amplifikatörlü bir monitördür. Matematiksel Olarak Modellenmiş Dispersion ™ (MMD ™) dalga kılavuzu, ses dalgalarını odaya üstün doğrulukla iletir. Sürücüler, her durumda doğrusal olmayan distorsiyonu azaltan, Neumann'ın kendi bünyesinde geliştirdiği yazılım kullanılarak modellenmiştir. Yatay olarak hassas bir şekilde dağıtılan ses, dinleme konumunda esneklik sağlar; daha dar dikey dağılım, örneğin bir masa veya karıştırma konsolundan gelen yakın yansımaların olumsuz etkilerini azaltır. Hassas bir şekilde kontrol edilen dağılım özellikleri, farklı oda konfigürasyonlarında reprodüksiyonu optimize eder ve yanıt, çeşitli akustik kontrol ayarları aracılığıyla son derece uyarlanabilir.

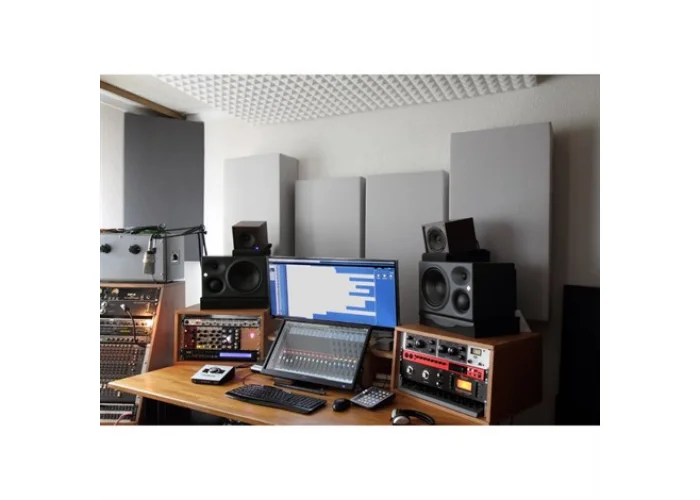

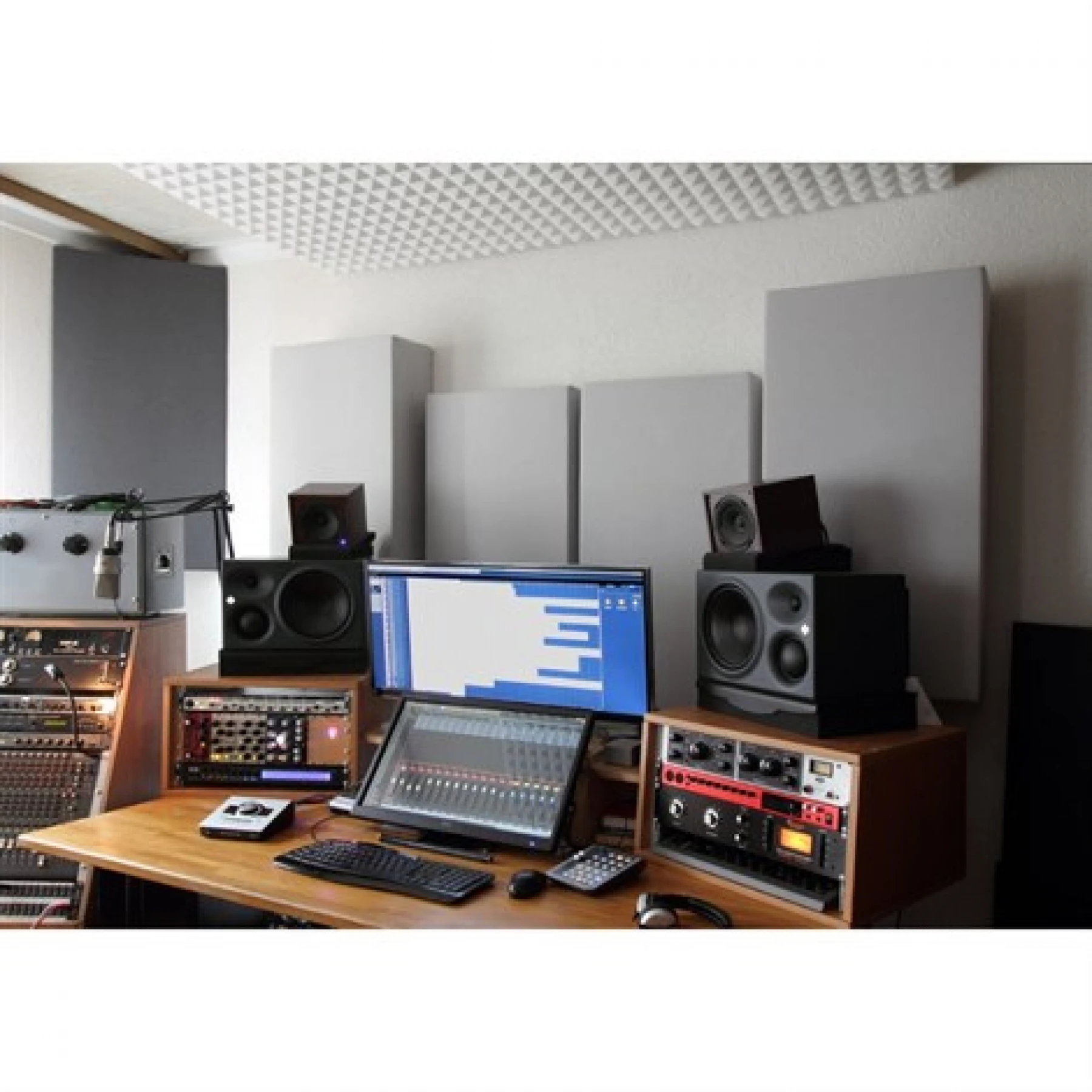

En iyi çalışma ortamı: Profesyonel kulaklara yakın

KH 310 genellikle kayıt, miksaj ve mastering için proje, müzik, yayın ve post prodüksiyon stüdyoları gibi yakın alan uygulamalarında kullanılır. Ayrıca dijital giriş "D" versiyonu olarak da mevcuttur.

Sağlam bir bas temeli, yüksek darbe doğruluğu

Güçlü anahtarlamalı güç kaynağı ve üç kanallı amplifikatörleri ile KH 310, 116,3 dB'ye kadar ses basıncını gerçekleştirir ve böylece tüm frekans yanıtı boyunca yüksek çözünürlüklü ve nötr bir gösterimi korur. Bu, en zorlu dürtü dinamikleri için bile bozulma veya kayıp olmaksızın yeterli enerji sağlar. Bas etkileyici bir 34 Hz'ye iniyor.

Kapalı kabin tasarımı, daha düşük bir grup gecikmesi anlamına gelir. Bu, neredeyse tüm frekans aralığının aynı anda yeniden üretilmesine neden olur; geçici tepki her zaman tam olarak kontrol edilir.

Ultralight fabric dome optimizes midrange reproduction

The optimized design of the driver enables a pristine sound right down to the lowest bass regions. For most applications, the rich foundation offers enough bass extension to work cleanly on the mix without the necessity of a supplementary subwoofer. For demanding treble sounds, our own specially developed, powerful alloy fabric dome ensures distortion-free clarity in the high-frequency range.
The fabric midrange dome captures the middle frequency range with the utmost precision. Its ultralight material and the powerful neodymium magnet enable a significantly better transient response with considerably less distortion than comparable midrange domes.

The perfect complement: The KH 750 DSP subwoofer

In addition to its outstanding acoustic characteristics this DSP-based subwoofer not only offers excellent acoustic properties, but - in combination with the Neumann.Control iPad® app - it also provides the possibility of adapting a KH 310 stereo pair to the room using the patented "Guided Alignment“. Furthermore the entire stereo system can be controlled via the app. Detailed information about all additional features can be found here.

Hundreds of good reasons from the Neumann philosophy

The KH 310 has been developed true to the Neumann philosophy for monitor loudspeakers. Every component, every shape, every signal and every wave motion is a consequence of this philosophy. No form or component is there without reason. There are hundreds of tangible reasons built into the KH 310, which all stand for exceptionally pure and neutral sound. These include, for example, curvatures of the housing that reduce edge diffraction. Also included is the pistonic output of the bass driver which does not give rise to harmonic distortions, even with the highest sound peaks. Some of these reasons are obvious in the KH 310. Others Neumann prefers to keep to itself. But together, each can be heard – sound professionals in both large and small studios all around the world can testify to this. You can read more about the Neumann philosophy for studio monitors here.



(1)

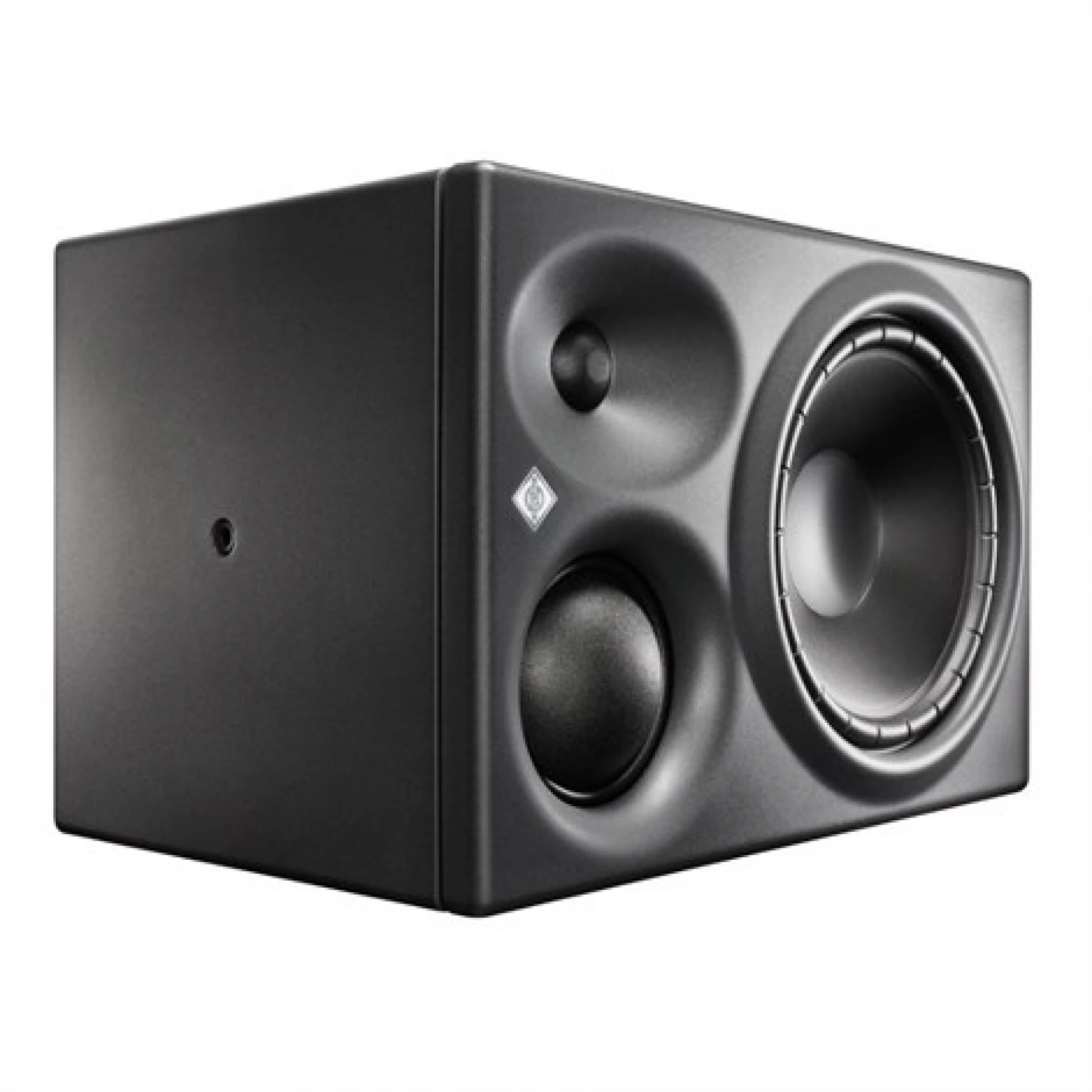

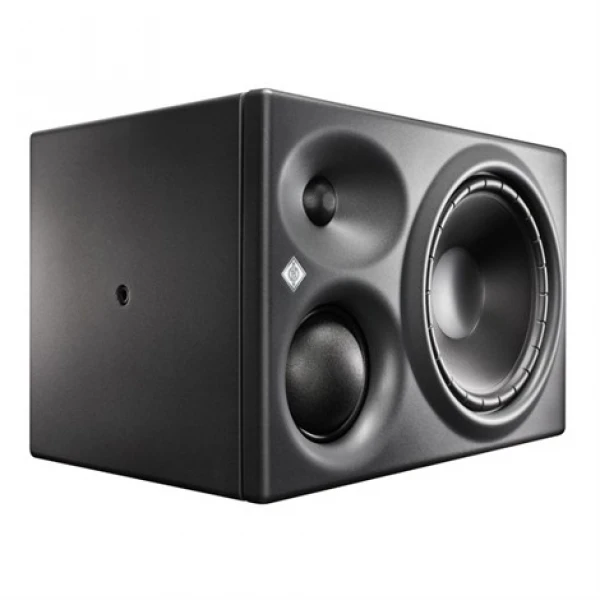

In-house simulated tweeter with alloy fabric dome and robust metal grille

  • Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
  • Low-distortion high frequency reproduction
  • Grille protects against mechanical damage

(2)
Elliptical Mathematically Modelled Dispersion™ (MMD™) waveguide

  • Smoother off -axis response
  • More forgiving of diverse acoustical environments

Wide horizontal dispersion

  • Freedom of movement across the mixing console

Narrow vertical dispersion

  • Reduces reflections off the mixing console

(3)
Two-color + dimmable Neumann logo

  • Displays operation status and activation of the extensive protection system
  • Dimmable for low lighting level conditions or behind the screen applications

(4)
In-house simulated, neodymium magnet, fabric dome, midrange driver with optimized low stray magnetic field

  • Dedicated driver reproduces important midrange frequencies for speech and vocals
  • Latest modeling techniques used to minimize non-linear distortion
  • Light-weight dome has better transient response and less breakup modes than cone designs
  • High power magnet reduces harmonic and intermodulation distortion

(5)
In-house modelled long-throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™), magnetic shielding and flow optimized die cast basket

  • Damping of break up modes brings low distortion at high sound levels
  • Linear pistonic motor gives a very low harmonic distortion even at high excursions
  • Reduced air noise and improved rocking modes

(6)
Compact cabinet

  • Robust package for a long life
  • No standing wave resonances

One-piece front panel with no discontinuities

  • Reduced diffraction and smoother frequency response

(7)

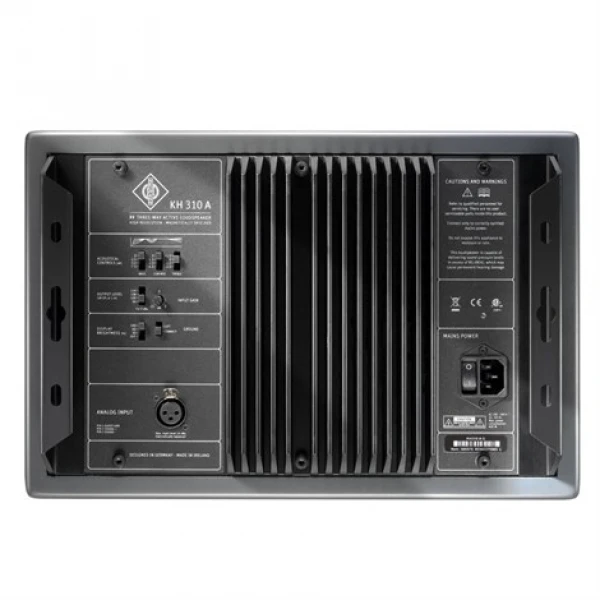

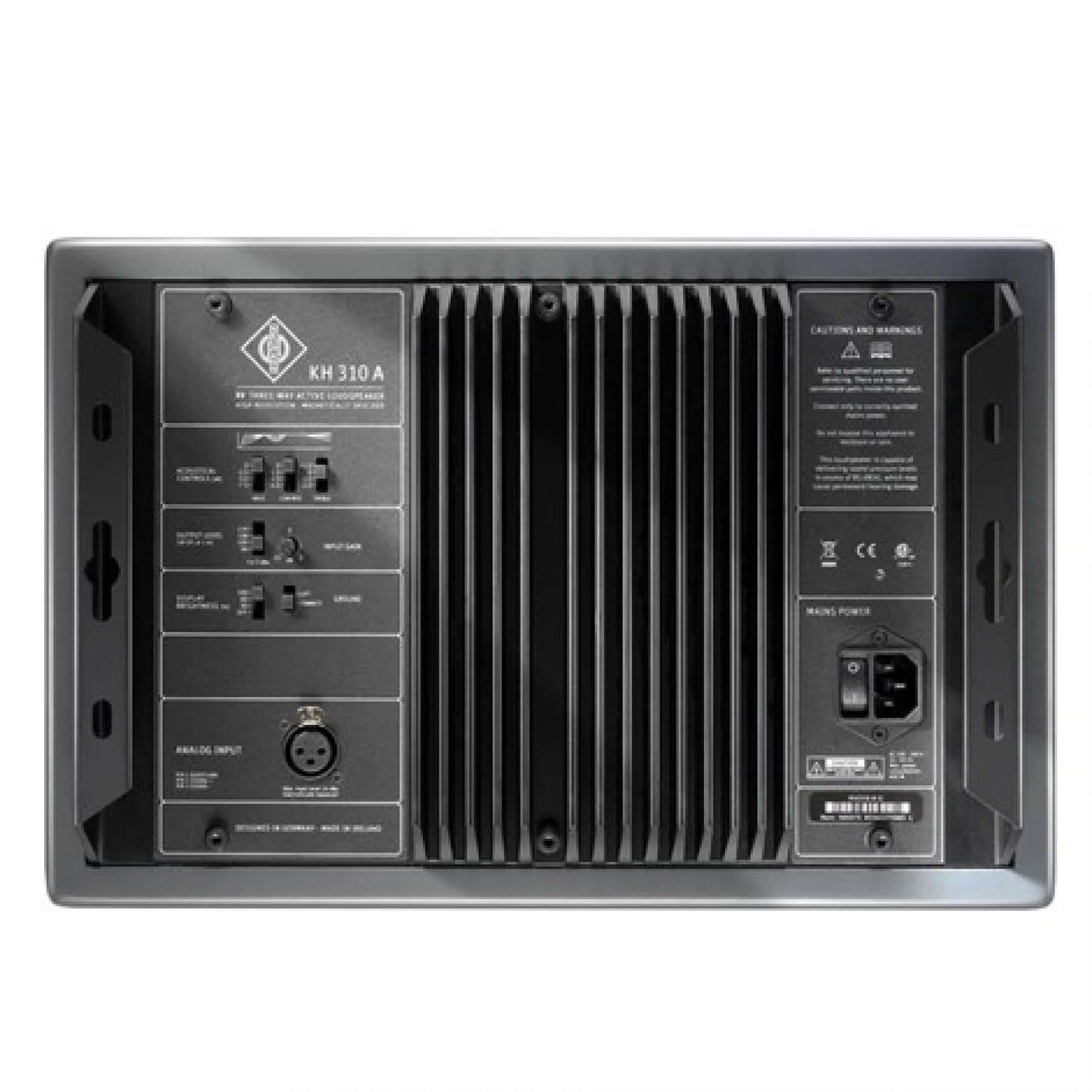

4-position bass, low-mid and treble acoustical controls

  • More control in diverse acoustical environments
  • Fast acoustical set up in mobile applications
  • Repeatable acoustical settings after moving loudspeakers

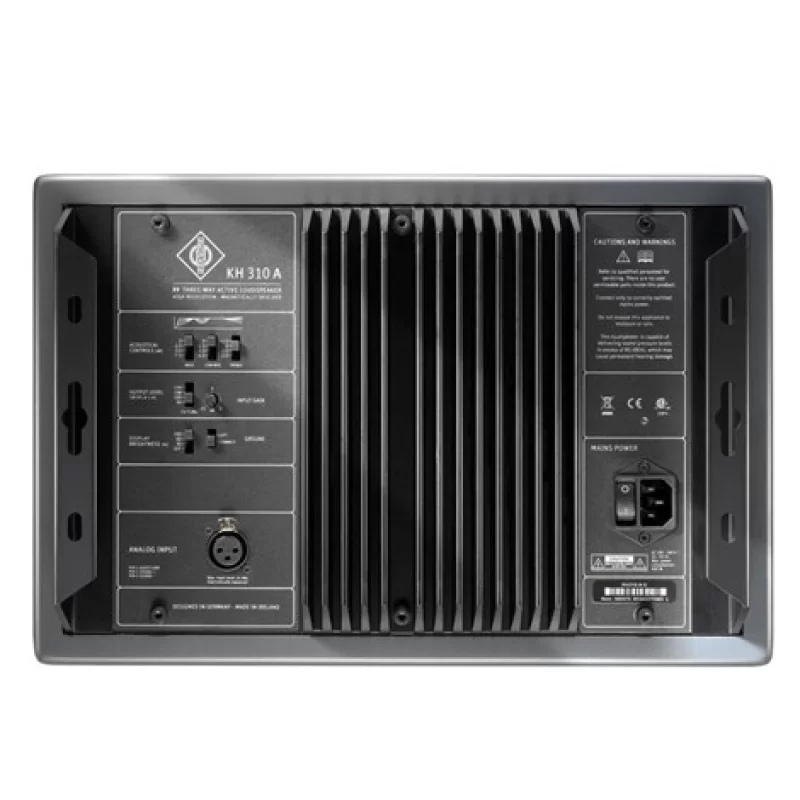

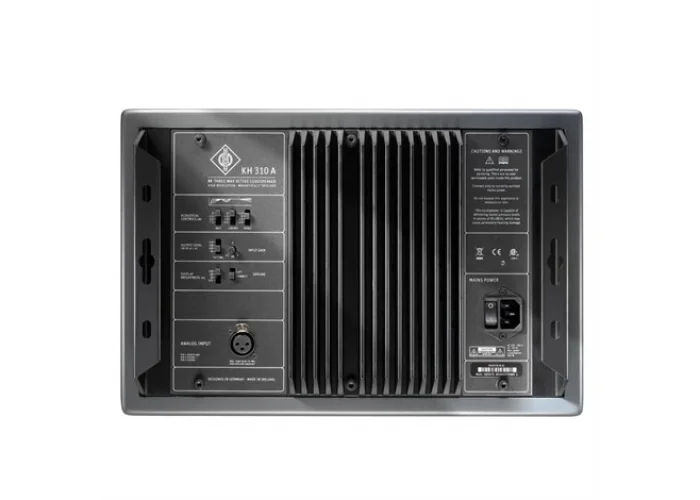

(8)
Wide range input gain and output level controls

  • Easier interfacing with signal sources

(9)
Display dimmer and ground lift

  • For low lighting level conditions or behind the screen applications
  • Reduced noise in electrically noisy environments and over-comes ground loops

(10)
XLR electronically balanced analogue input

  • Standard interfacing to professional equipment

(11)
Universal switched-mode power supply (100 … 240 V)

  • One version works in any country and robust to poor quality mains supply

(12)
Fully documented extensive mounting hardware range

  • More flexibility in mounting cabinets in more diverse locations and backwards compatible to previous products
  • Easy advanced planning for installations

(13)
Powerful amplifiers with large headroom and overheat limiting

  • Improved transient response
  • Assured reliability and safety

Separate fast acting thermo limiters for woofer, midrange and tweeter to protect the voice coils and power amplifiers

  • Woofer soft clip and excursion limiters
  • Increases system reliability
  • Allows extraction of the maximum performance

More Features

Production consistency due to individual hand alignment in final testing

  • Herhangi bir KH 310, diğer herhangi bir KH 310 ile "eşleştirilir"

İsteğe bağlı sağlam metal ızgara

  • Sürücüleri korumak için kullanılabilir
RenkSiyah
Hoparlör TürüStüdyo Monitör Hoparlörler
Hoparlör Ölçüsü8"
