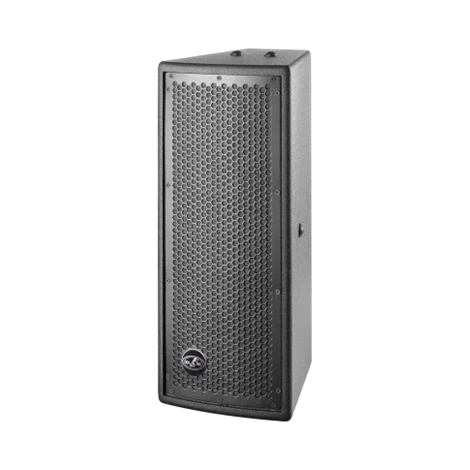

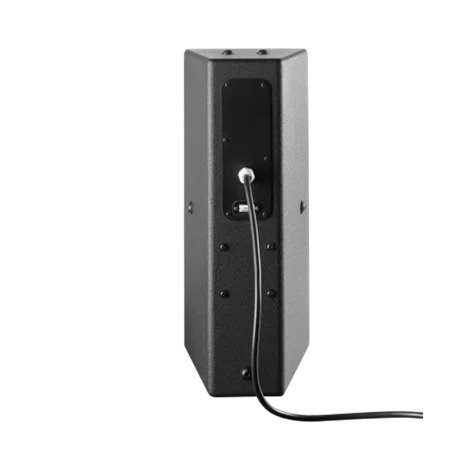

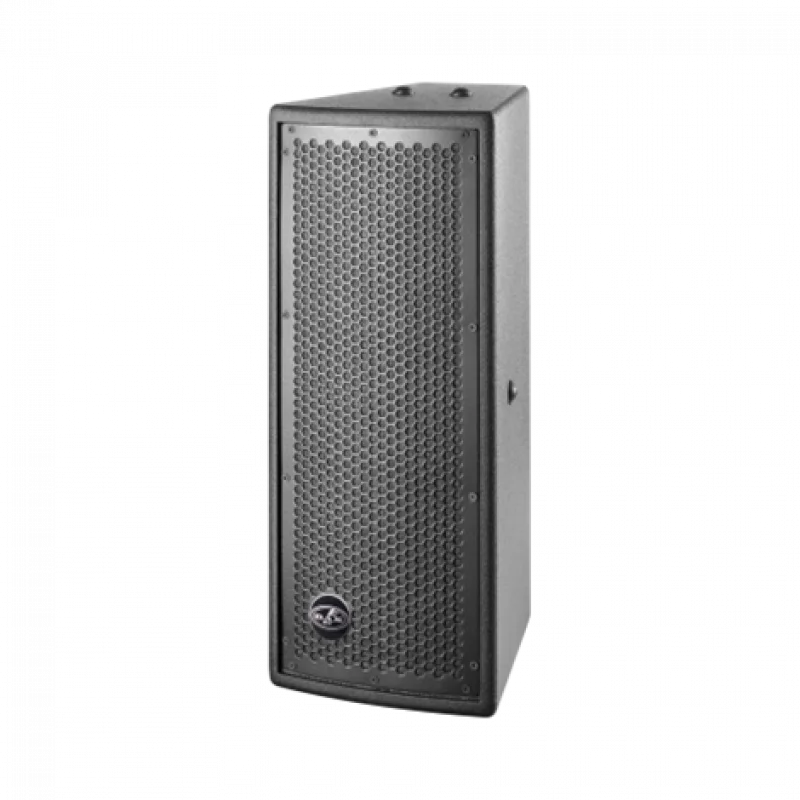

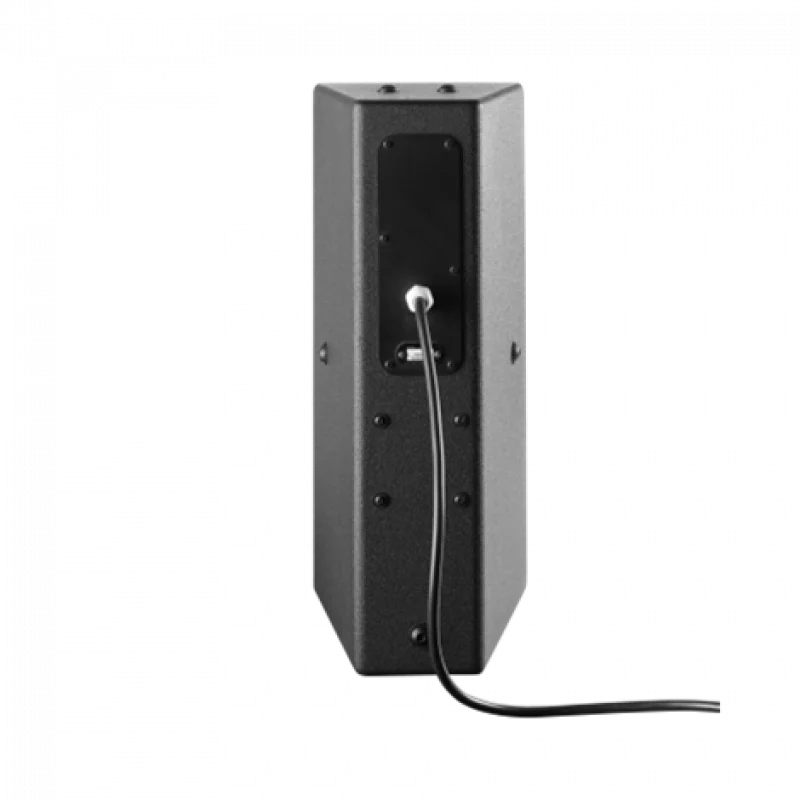

Name: DAS WR-8826-TCX 2x6" Pasif Hoparlör 75W/150W/300W@100V
Brand: DAS Audio
SKU: DAS WR-8826-TCX
Availability: OutOfStock

Performance
Frequency Range (-10 dB)	76 Hz – 20 kHz
Horizontal Coverage (-6 dB)	80º
Vertical Coverage	80º
Nominal Impedance	133 ohms
Transformer Taps 70 V	37 W
Transformer Taps 100 V	75 W
RMS Power Handling	75 W
Peak Power Handling	300 W
On-axis Sensitivity 1W/1 m	93 dB SPL
Maximum Peak SPL at 1 m	118 dB
Recommended Amplifier	DX-80-230 DX-80-115
Recommended Processor	DSP-2040
Connectors
Audio Input Connector	Covered Barrier Strip Terminals
Audio Output Connector	Covered Barrier Strip Terminals
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Trapezoidal
Rigging	M10 Rigging Points
Finish	ISO-flex Paint
Color	Black
IP Rating	IP-56
Depth	270 mm (10,6 in)
Dimensions ( H x W x D )	550 x 230 x 270 mm 21,7 x 9,1 x 10,6 in
Net Weight	12,0 kg ( 26,5 lb )
Components
LF Driver	6B
HF Driver	M-1
Horn/Waveguide	BC-88
Shipping
Carton Dimensions ( H x W x D )	608 x 274 x 345 mm 23,9 x 10,8 x 13,6 in
Shipping Weight	29,4 kg ( 64,8 lb )

Hoparlör Türü	Pasif Hoparlörler
Hoparlör Ölçüsü	6.5"
