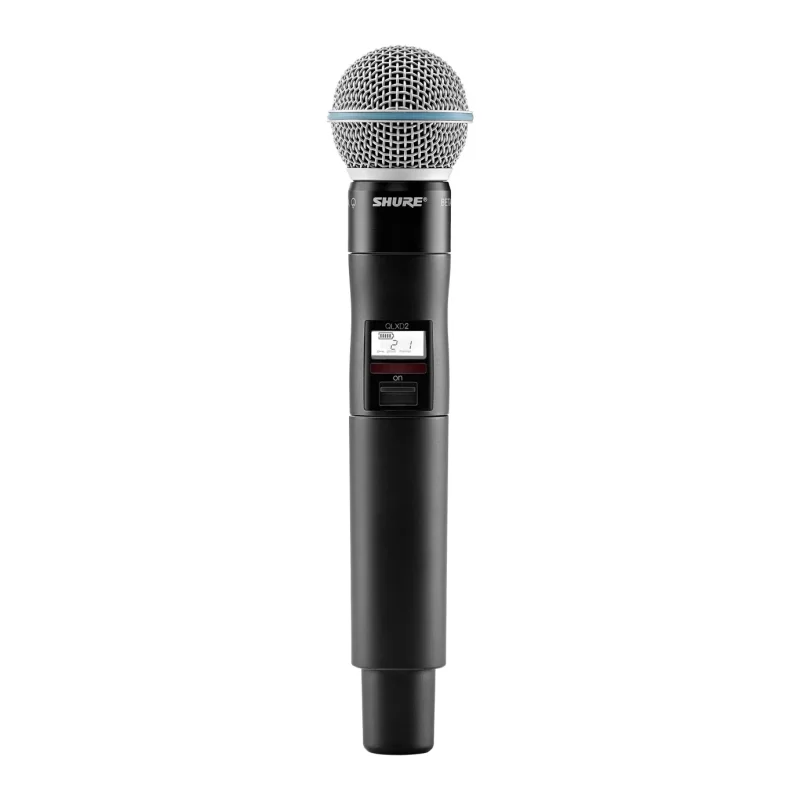

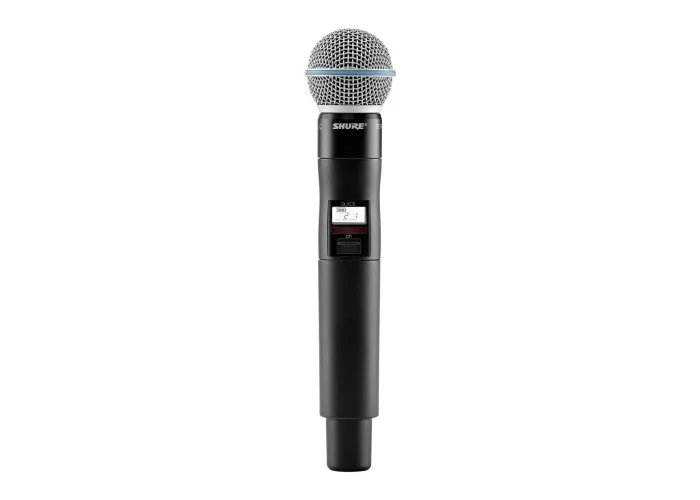

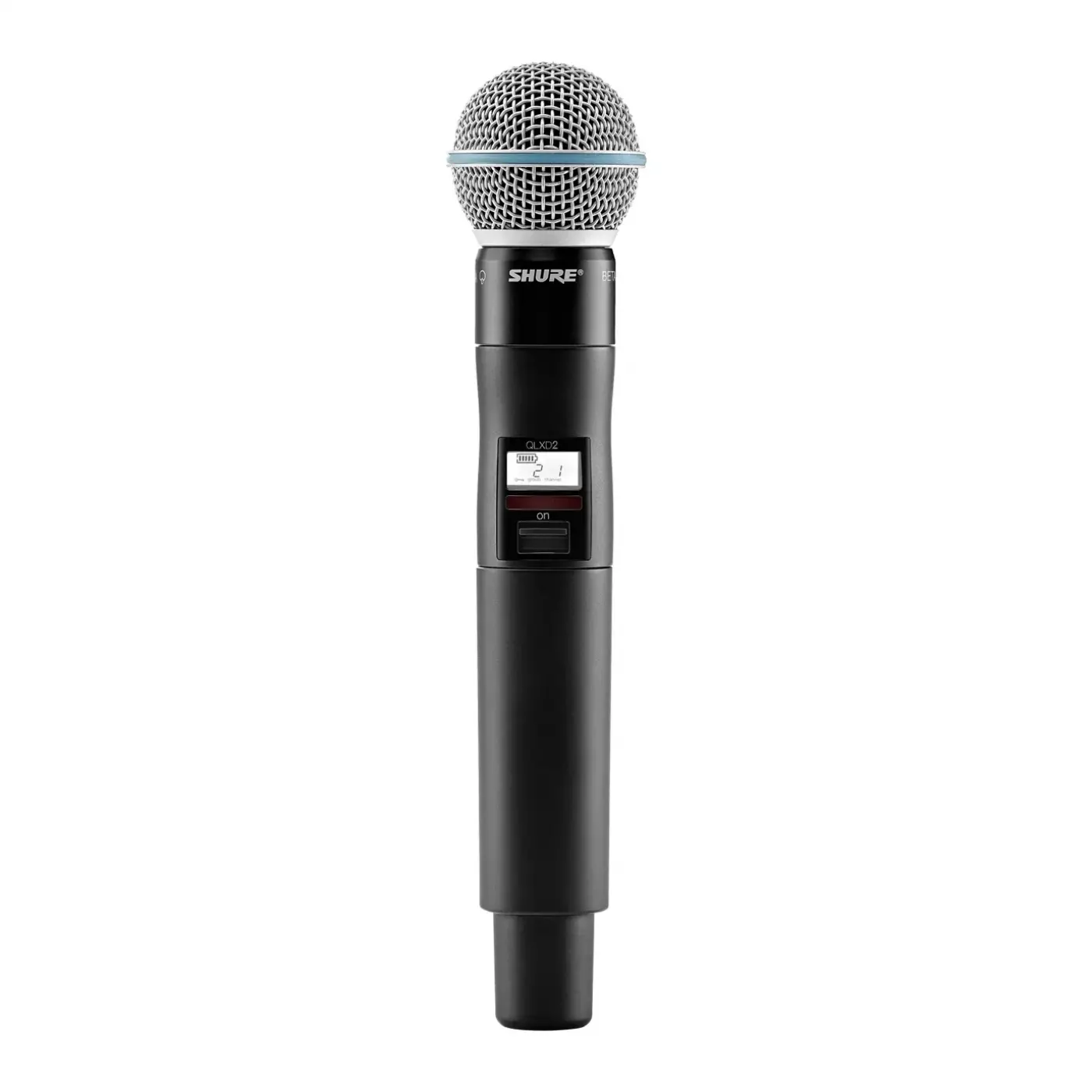

SHURE QLXD2/B58 Handheld Transmitter

ULX2 Handheld Wireless Transmitters

• 8-9 hour battery life

• Power On/Off switch

• LED - green when on, red when battery low

• Three-segment battery power icon

• PEAK icon appears when audio signal overloads

• Group/channel displays

• SET button for saving settings

• Adjustable audio gain control

• Input attenuation switch-select 0dB for voice/low output; 20dB for high output

• Battery cover unscrews to expose battery and gain control

Beta 58 Vocal Microphone

• Smooth frequency response with gradual presence rise

• Highly consistent supercardioid polar pattern provides superior gain-before-feedback

• Electronic low-frequency roll-off compensates for proximity effect

• Wide dynamic range (117 dB) and low distortion characteristics

• Very low susceptibility to RFI and electromagnetic hum

• Advanced cartridge shock-mount system absorbs mechanical shocks and reduces handling noise

• Built-in pop filter reduces undesirable wind and breath sounds

• Legendary Shure quality and reliability



# Of Channels	Over 1400 User Selectable Frequencies (Channel Group / G3)
Type of Microphone	Beta 58 Dynamic Microphone Head
Polar Pattern	Super-cardioid
Interchangeable Mic Heads	Yes
Battery Type/Approx. Life	Non-Rechargeable Type 9v Lithium Battery / 21 Hours (Recommended) 9v Alkaline Battery / 8 - 9 Hours (Recommended) 9v Carbon-Zinc Battery / 5 Hours (NOT Recommended) Rechargeable Type 9v Ni-Cad Battery / 2 Hours (NOT Recommended) 9v Ni-MH Battery / 2.5 Hours (NOT Recommended)
Mute Switch	Yes
Level Control	25 dB Gain Adjustment Range
Antenna Type	Internal
Display	Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Length	8.8" (223.5 mm)
Diameter	2" (51 mm)
Weight	9.1 oz (258 g)
