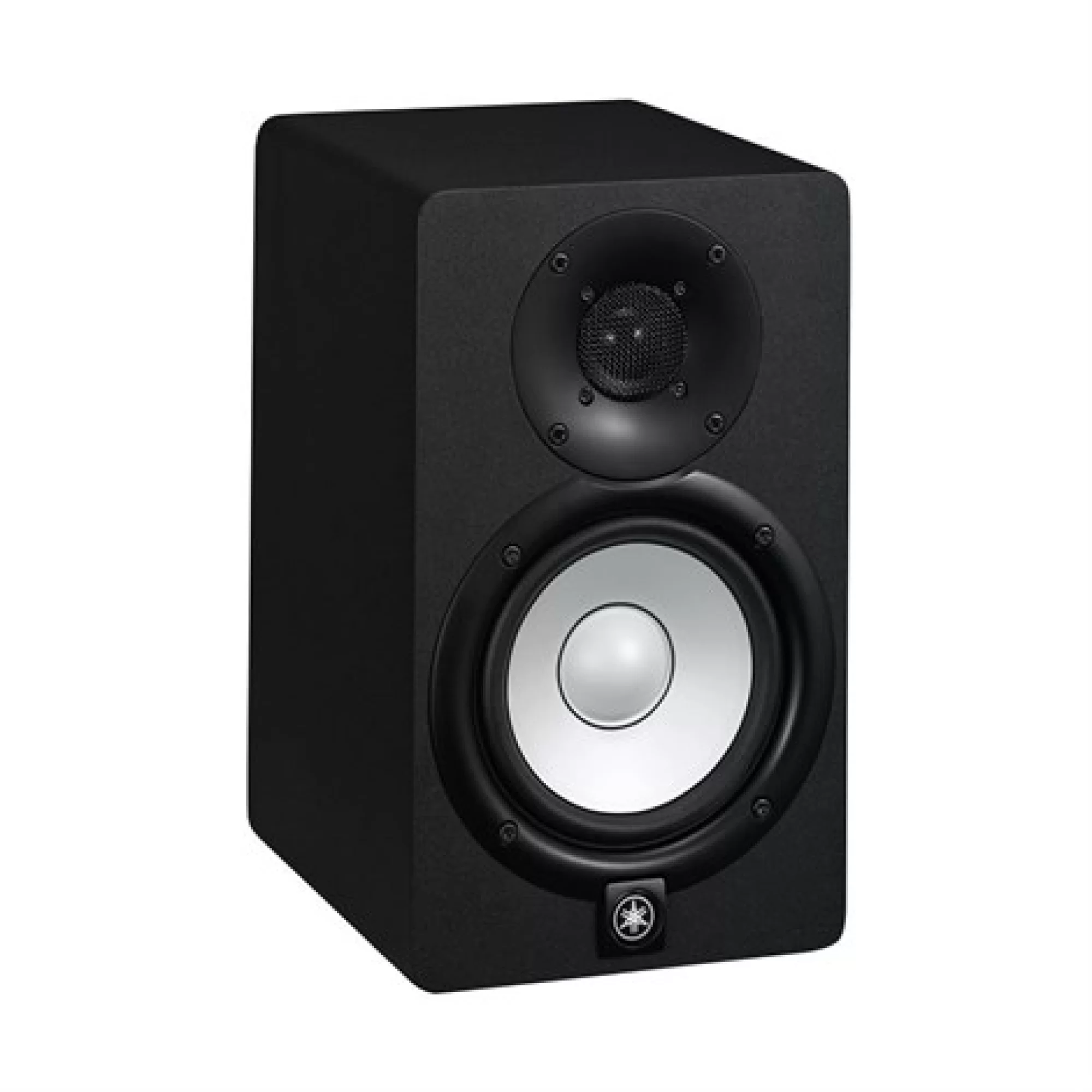

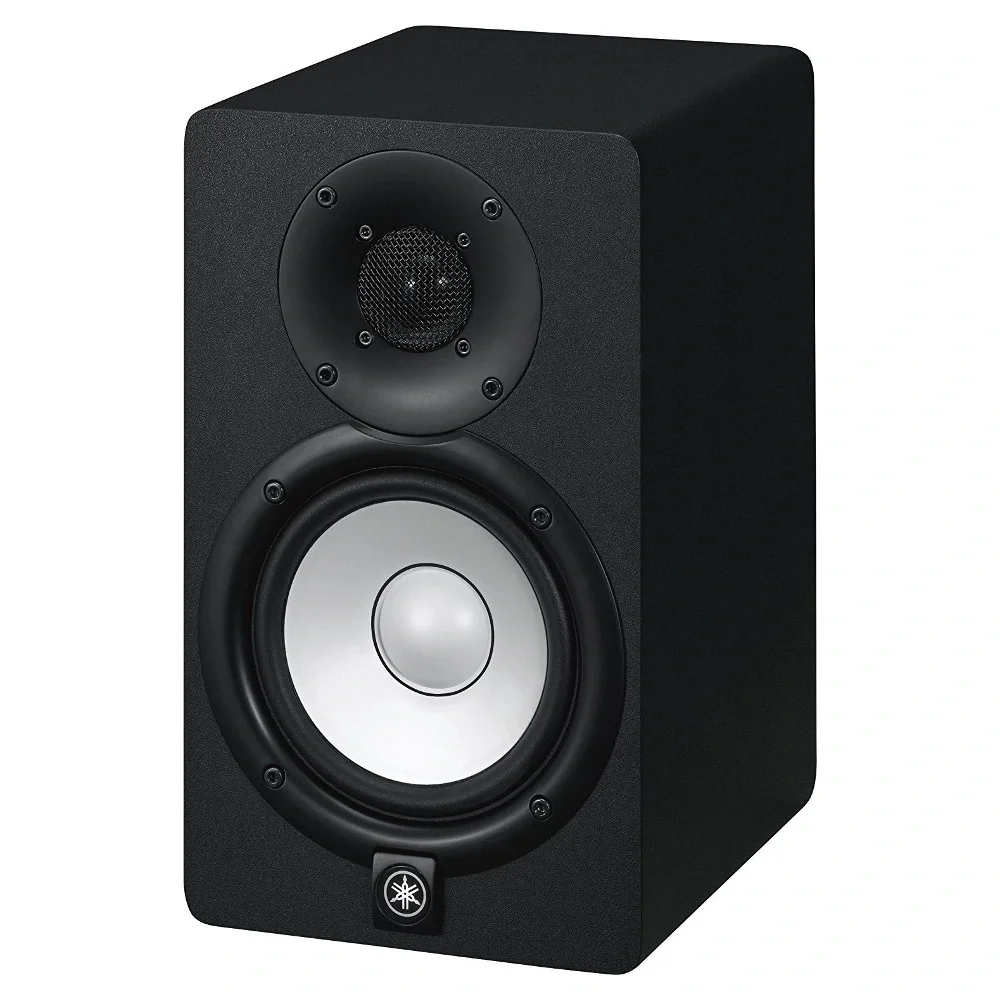

Yamaha HS5 5" Aktif Stüdyo Monitör Hoparlörü, 70 Watt Siyah / Beyaz
2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
54Hz - 30kHz frequency response
45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
ROOM CONTROL and HIGH TRIM response controls
XLR and TRS phone jack inputs accept balanced or unbalanced signal
| Speaker type | 2-way bi-amp powered studio monitor |
|---|
| Frequency range (-10dB) | 54Hz - 30kHz |
|---|
| Components | LF | 5" cone |
|---|
| HF | 1" dome |
|---|
| Crossover | 2kHz |
|---|
| Output power | 70W (LF:45W, HF:25W) |
|---|

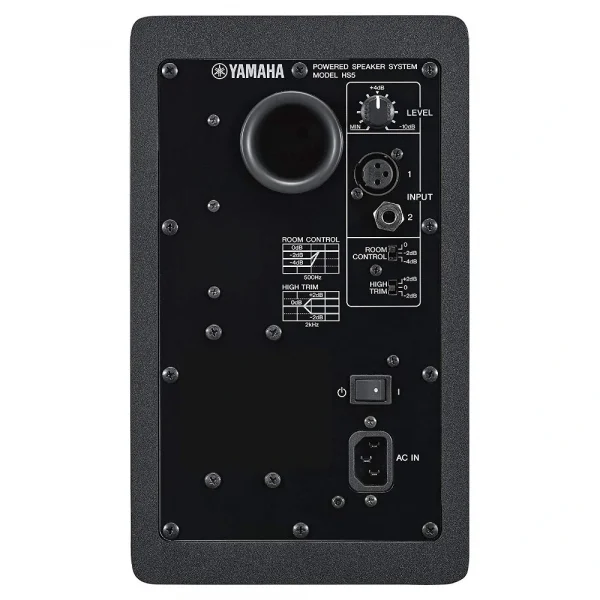

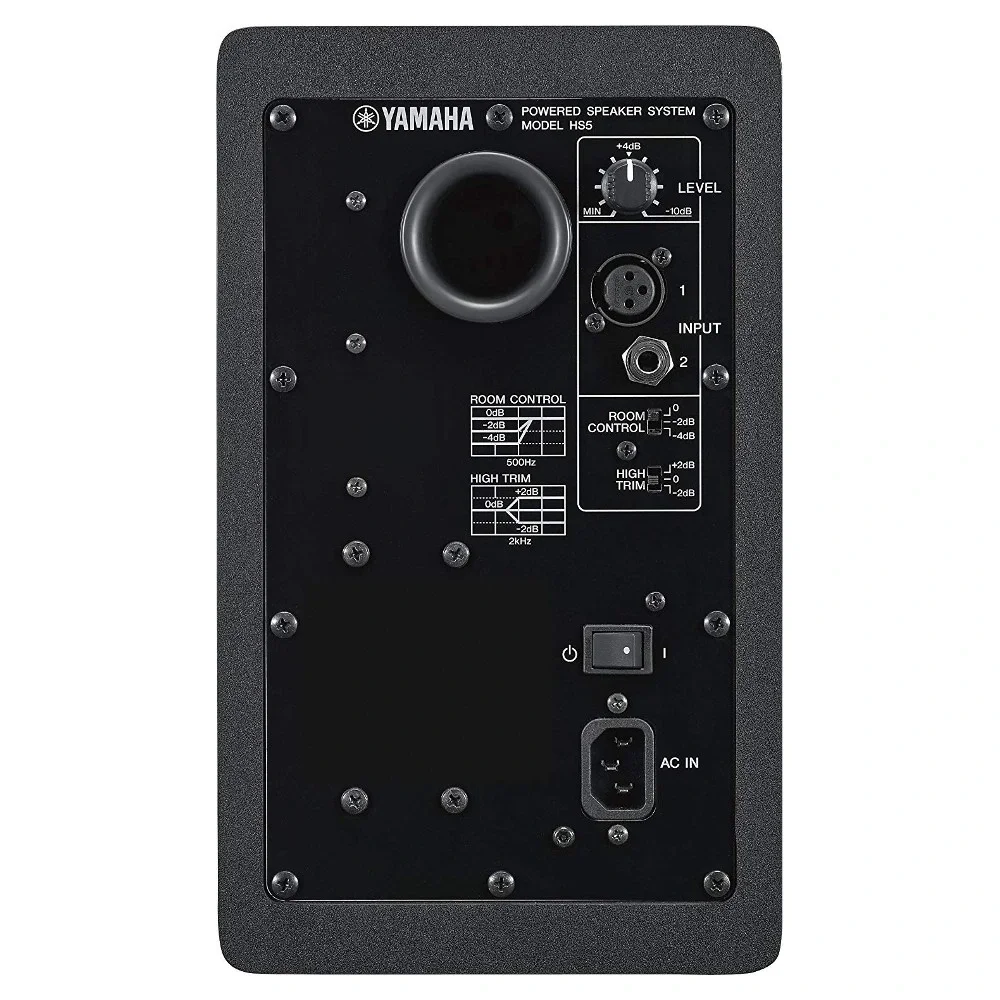

| I/O connectors | XLR3-31 type (balanced),PHONE (balanced) |
|---|
| Power consumption | 45W |
|---|
| Shape | Bass-reflex type |
|---|
| Cabinet material | MDF |
|---|
| Dimensions | W | 170mm (6.7") |
|---|
| H | 285mm (11.2") |
|---|
| D | 222mm (8.7") |
|---|
| Net weight | 5.3kg (11.7 lbs.) |
|---|
| Others | LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) |
|---|
