- High efficiency driver
- Excellent speech reproduction
- Up to 37.5 W (max power)
- Provision for inside mounting of the optional line/loudspeaker supervision board

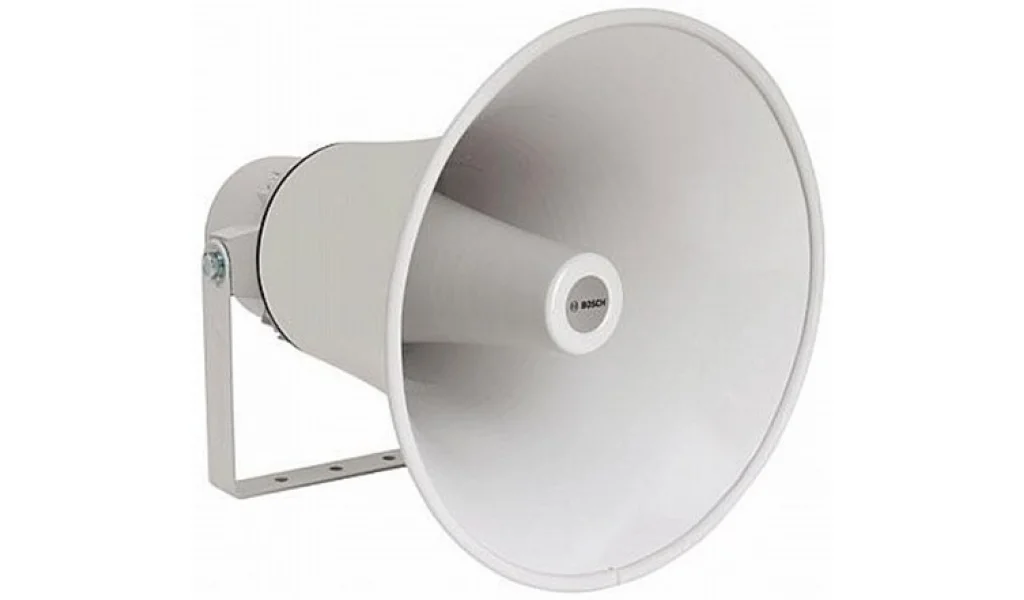

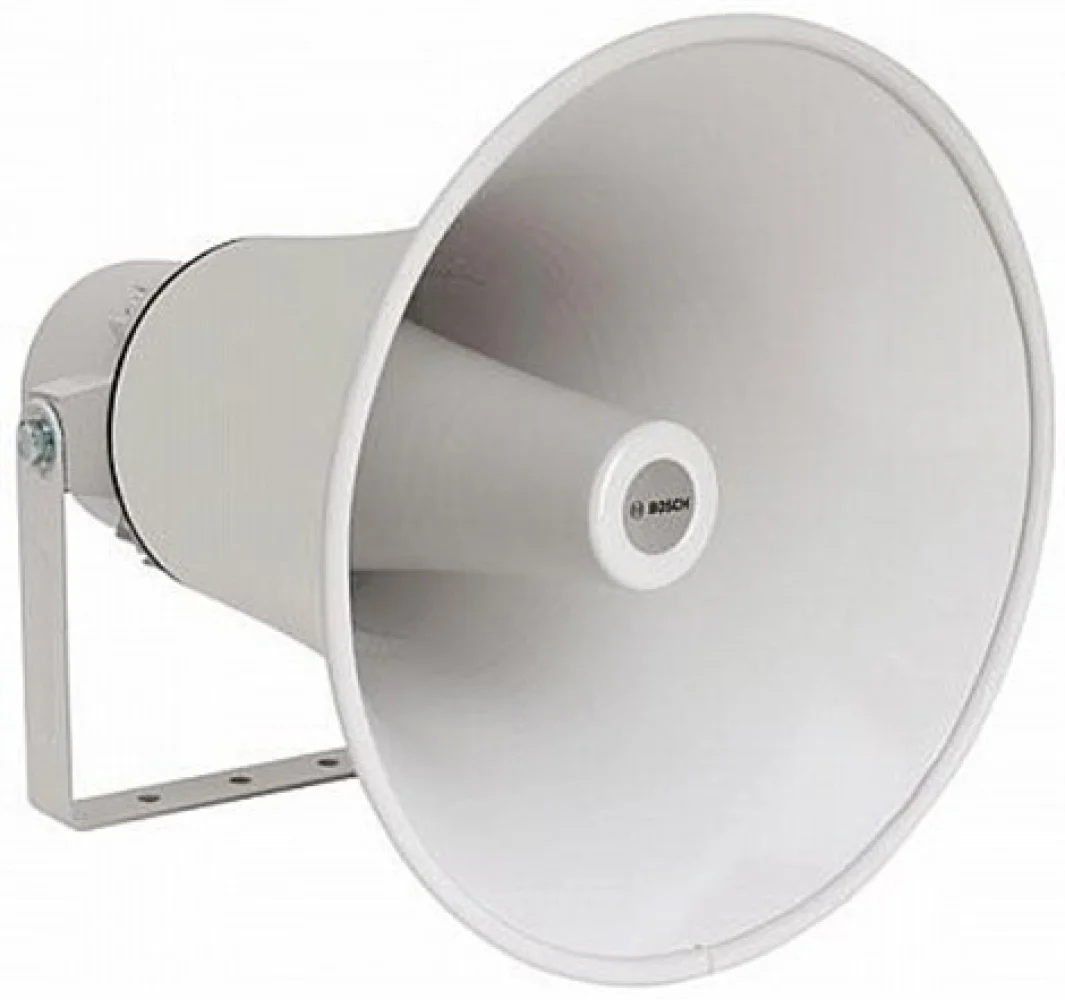

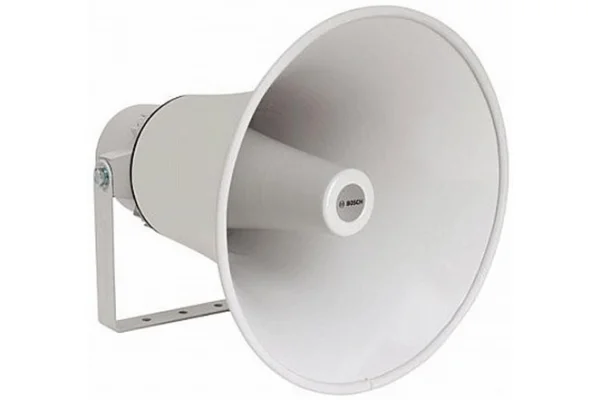

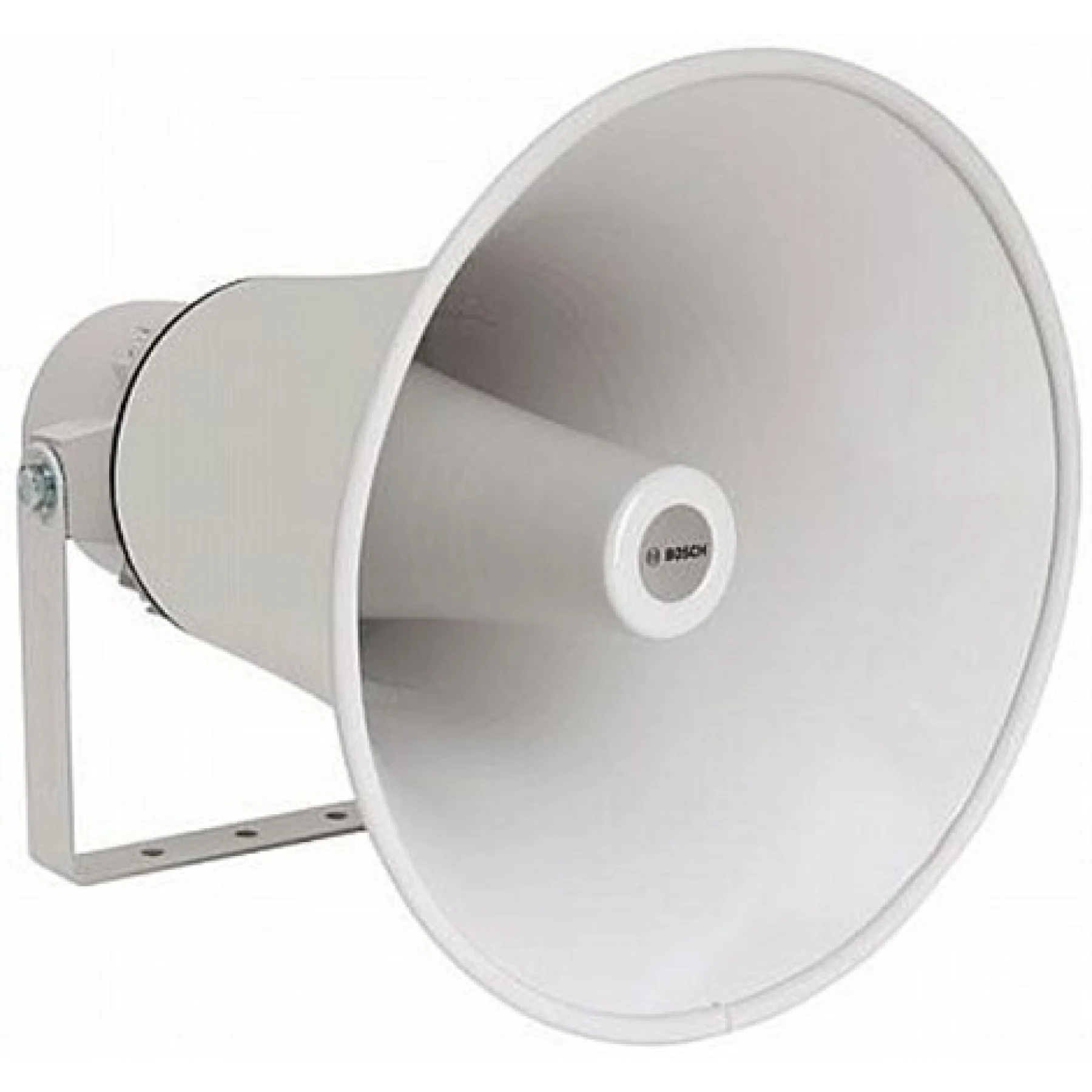

Bosch high-efficiency horn loudspeakers provide excellent speech reproduction and sound distribution for a wide scope of outdoor applications. They are ideal for sports grounds, parks, exhibitions, factories and swimming pools. The LBC 3482/00 is a circular 25 W horn loudspeaker, measuring 355 mm (14 in) in diameter. They are made from aluminum.
Maximum power 37.5 W
Rated power 25 / 12.5 / 6.25 W
Sound pressure level at 25 W / 1 W (1 kHz, 1 m) 121 dB / 107 dB (SPL)
Effective frequency range (-10 dB) 550 Hz to 5 kHz
Opening angle at 1 kHz/4 kHz (-6 dB) 70° / 25°
- Rated voltage 100 V
Rated impedance 400 ohm
Connector Screw terminal block
Mechanical
Dimensions (L x Dmax) 425 x 355 mm (16.7 x 14 in)
Weight 3.6 kg (8 lb)
Color Light grey (RAL 7035)
Cable diameter 6 mm to 12 mm
(0.24 in to 0.47 in)
Environmental
Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
- Relative humidity <95%
