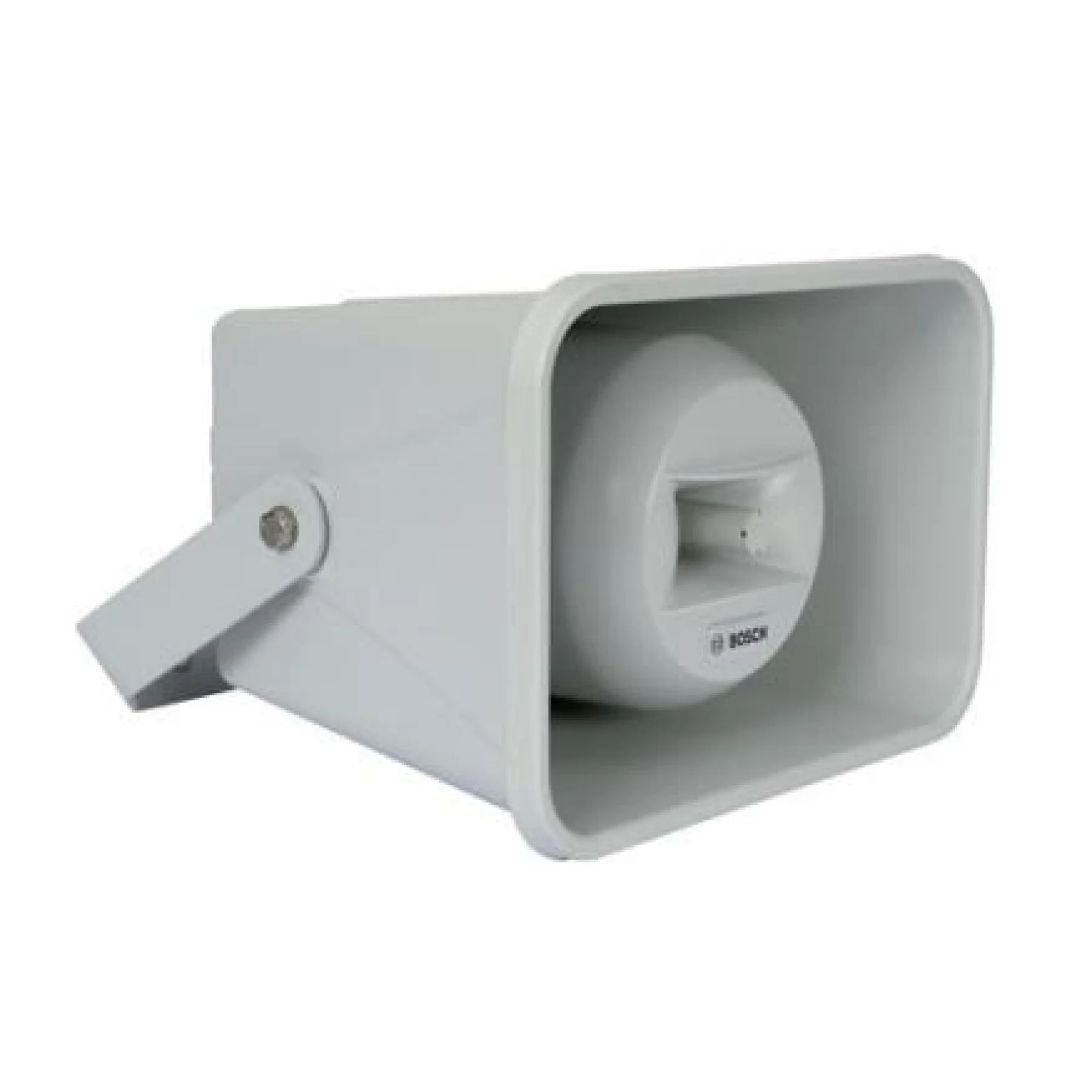

The Bosch LH1-UC30E Music Horn Loudspeaker features good speech and music reproduction and can be used in areas of high humidity, making it ideal for use outdoors in sporting venues as well as exhibition areas and passenger terminals. The horn s rectangular design accommodates two transducers - one for low frequencies and one for high frequencies - resulting in clear sound.
Functions
The rectangular horn features a unique combination of a re-entrant horn with two transducers, one for low and the other for high frequencies, resulting in breathtaking sound clarity
The horn is weather protected and can be used in areas with high humidity. It is therefore suitable for outdoor applications such as sport grounds, sports stadiums, leisure parks, exhibition areas and passenger terminals, as well as for indoor public address
The ABS horn loudspeaker and aluminum bracket are finished in light grey (RAL 7035)
The LH1-UC30E is designed for use in voice alarm systems and compliant with EVAC standards
The horn loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained, ensuring loudspeakers in other areas can still be used to inform people of the situation. The horn loudspeaker has ceramic terminal blocks, thermal fuse and heat resistant high temperature wiring
The loudspeaker has provisions for internal mounting of the optional line/loudspeaker supervision boards
ELECTRICAL
Power
Maximum Power: 45 W Rated Power: 30 W
Power Taps
30/15/7.5/3.75 W
SPL
115/100 dB
Frequency Range
212 Hz to 20 kHz
Angle of Coverage
Horizontal: 68/68° Vertical: 98/118°
Input Voltage
70/100 V
Impedance
167/333 ohm
Connector
6-pole screw terminal
MECHANICAL
Material
Horn: ABS Bracket: Aluminum
Color
Light gray
Temperature / Humidity
Operating Temperature: -13 to 131 ºF (-25 to 55 ºC) Storage Temperature: -40 to 158 ºF (-40 to 70 ºC) Relative Humidity: < 95%
