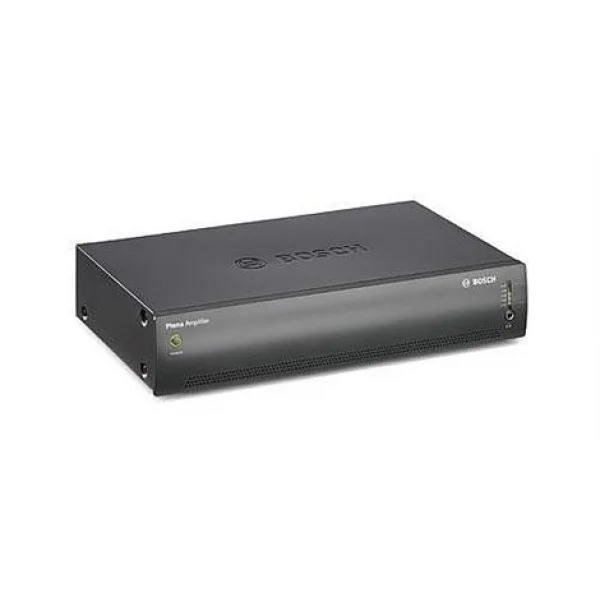

Bosch Ple-1P120-Eu Plena Power Amplifier, 120W/100V

0,00
Marka : Bosch
Fiyat : $0.00  + KDV
KDV Dahil : $0.00
Barkod : 74380

Adet

Artır Azalt
  • 120 and 240 W power amplifier in a compact housing
  • 1 V line level balanced input
  • 70 V, 100 V and 8 ohm outputs
  • 100 V input for slave operation on 100 V speaker line

The PLE-1P120-EU and PLE-1P240-EU are two high-power plug-and-play cost effective power amplifiers that deliver 120 and 240 Watts to constant voltage or 8 ohm loads. Built with premium quality and protections, they offer basic functionality at a budget price. The amplifiers offer straight 1 V and 100 V line in, and 70 V, 100 V and 8 ohms out. They can extend the power of the PLE- series ...

Technical Specifications

Electrical

  • Mains power supply
  • Voltage 115 - 230 VAC ±10%,
  • 50/60 Hz
  • Inrush Current PLE-1P120-EU 4.5/9 A (230/115 VAC)
  • Inrush Current PLE-1P240-EU 9/18 A (230/115 VAC)
  • Power consumption PLE-1P120-EU 380 VA
  • Power consumption PLE-1P240-EU 760 VA
  • Battery power supply
  • Voltage 24 VDC ±15%
  • Current PLE-1P120-EU 5.5 A
  • Current PLE-1P240-EU 11 A
  • Charge current 0.5 ADC
  • Charge float voltage 27.3 VDC
  • Power consumption (PLE-1P120-EU)
  • Max power (mains) 227 W -6dB (mains) 130 W
  • Idle (mains) 12 W
  • Max power (24 V) 7 A (150 W) -6 dB (24 V) 4.4 A (194 W)
  • Idle (24 V) 0.3 A (7 W)
  • Power consumption (PLE-1P240-EU)
  • Max power (mains) 451 W
  • -6dB (mains) 244 W
  • Idle (mains) 16 W
  • Max power (24 V) 12 A (290 W) -6 dB (24 V) 8.1 A (194 W)
  • Idle (24 V) 0.3 A (7 W)
  • Performance
  • Max / rated power PLE-1P120-EU 180 W / 120 W
  • Max / rated power PLE-1P240-EU 360 W / 240 W
  • Power reduction on backup power -1 dB
  • Frequency response 50 Hz to 20 kHz (+1/-3 dB @ -10 dB ref. rated output)
  • Distortion <1% @ rated output power, 1 kHz
  • Inputs
  • Connector 1 3-pin XLR, balanced
  • Sensitivity 1 V
  • Impedance 20 kohm
  • Connector 2 3-pin Euro style, balanced
  • Sensitivity 100 v Impedance 300 kohm
  • Dynamic range 100 dB
  • CMRR (mic) >40 dB (50 Hz to 20 kHz)
  • Loudspeaker outputs 70 V / 100 V



  • Connector Euro style pluggable screw terminals



  • Loudspeaker output 8 ohm
  • Connector Euro style pluggable screw terminals
  • PLE-1P120-EU 31 V (120 W)
  • PLE-1P240-EU 44 V (240 W)
  • Mechanical
  • Dimensions (H x W x D) 100 x 430 x 270 mm (19" wide, 2U high)
  • Mounting Stand-alone, 19" rack
  • Color Charcoal
  • Weight (PLE-1P120-EU) Approx. 10.5 kg
  • Weight (PLE-1P240-EU) Approx. 12.5 kg
  • Environmental
  • Operating temperature -10 ºC to +55 ºC
  • Storage temperature -40 ºC to +70 ºC
  • Relative humidity <95%
  • Acoustic noise level of fan <40 dB SPL @ 1 m
  • temperature controlled
