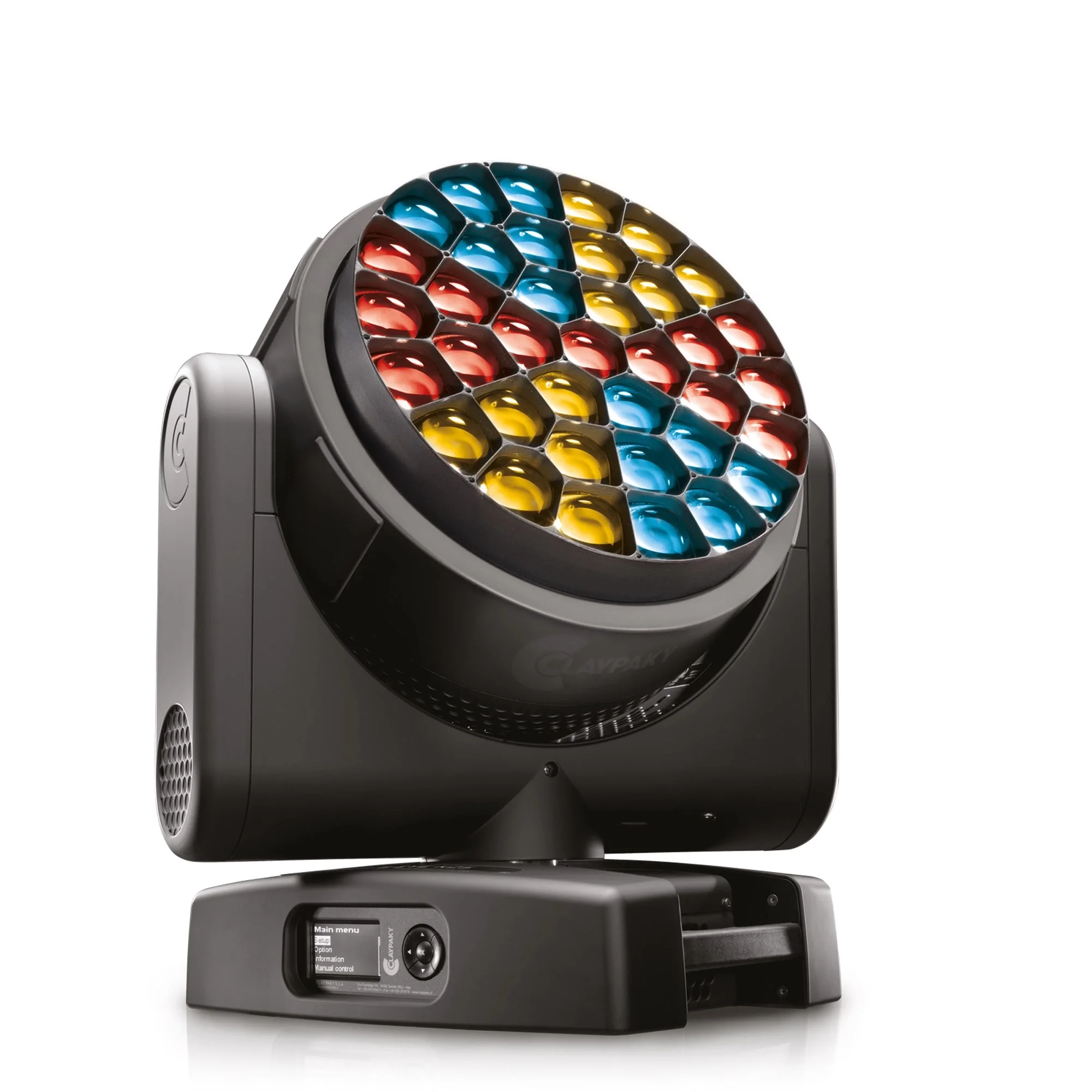

Claypaky HY B-EYE K25 TEATRO 37 Adet x 40W OSRAM OSTAR - Stage II LE RTDUW S2WN tipi Led kullanır, 4°-60° elektronik zoom kullanan, daha çok büyük sahneler, stadlar ve büyük tiyatrolarda kullanma yönelik hazırlanmış Led Wash moving head spotdur.
Teknik Özellikleri ;
LIGHT SOURCE TYPE
37 RGBW LEDs driven at 40 Watt
Type: OSRAM OSTAR - Stage II LE RTDUW S2WN
Color Temperature: 6000 K
Life: 50000 hrs *It may vary depending on various factors, as type of use and environment
OPTICS
Zoom range: 4°-60° Electronic Zoom Range
High efficiency optical system
INPUT POWER
1250 VA @230Vac - 50Hz
CONTROL and CONNECTIONS
22/36/111/148 DMX channels.
Basic Engine (Standard and Shape Mode).
Pixel Engine (RGB and RGBW Mode).
DMX protocol signal: USITT DMX 512.
Art-Net / RDM / sACN.
Arkaos Kling-Net protocol already included in the firmware.
Display: Graphic LCD backlit b/w Display.
Pan/Tilt Resolution: 16 bit.
Dimmer Resolution: 16 bit.
Movement control: vectorial.
DMX signal connection: 3 and 5 pole XLR input and output.
Software upload through DMX input
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects).
Bi-directional Rotating Front Lens.
Digital Wash-Beam Framing effect.
Beam edge softening control (in Wash mode).
Pixel Patterning Macros with enhanced control.
0-100% linear electronic dimmer.
Adjustable speed stop/strobe effect, with instantaneous blackout.
Dedicated channel for color temperature setting.
White CT Emulation 2500-8000K.
RGBW auto-tuning to lamp CT Emulation.
Tungsten Lamp Emulation.
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
Movement:
- PAN = 540°- TILT = 210°
HARDWARE and SOFTWARE
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
HOUSING
Aluminum structure with die-cast plastic cover.
Two side handles for transportation.
PAN and TILT lock for transport and maintenance.
WORKING POSITION
Working in any position.
Hanging system: with fast-lock omega clamps (1/4 turn) on the base.
Optional safety chain.
ELECTRICAL
Power Supply:100-240V 50/60Hz
1250 VA @230Vac - 50Hz
THERMAL SPECIFICATION
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%
SAFETY SPECS
Automatic power safety derating in case of overheat of the LED board.
