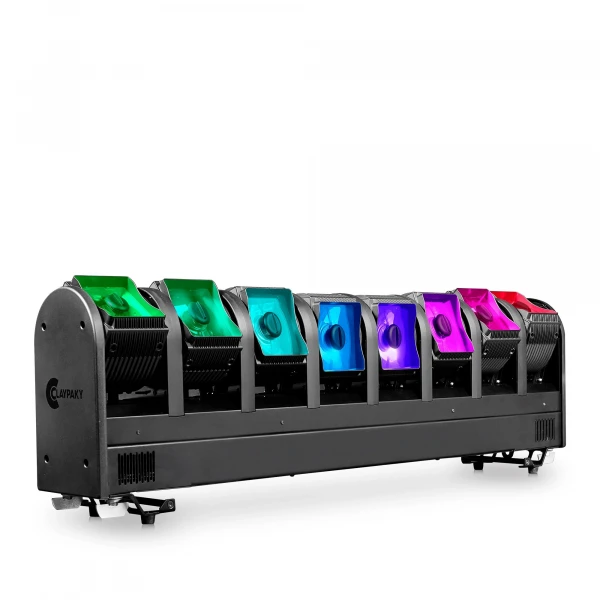

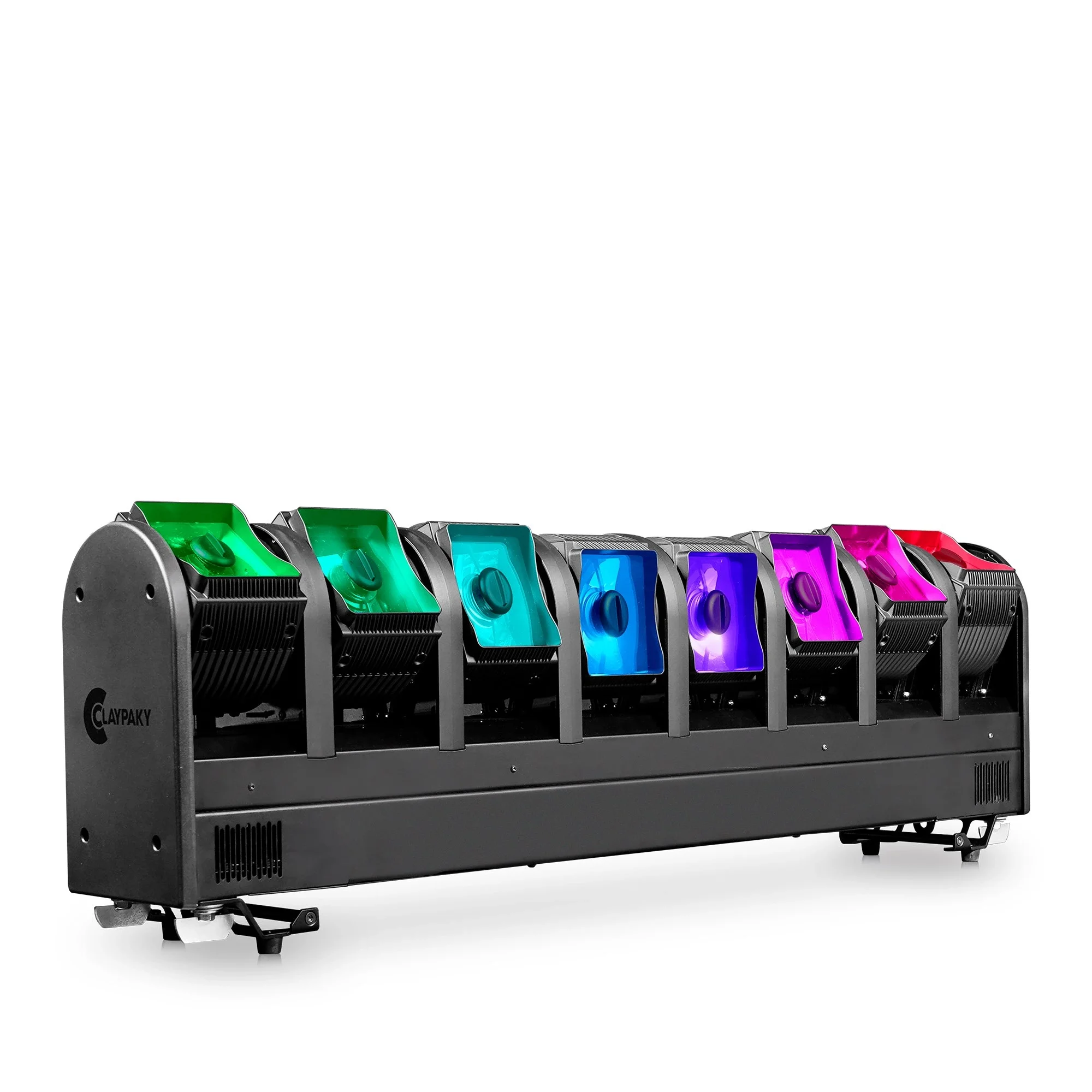

Volero Wave is an incredible LED bar with original and innovative features because it is a system of 8 independent moving bodies. With Volero Wave you will have eight separate heads at your disposal, each independently capable of moving on a 220° tilt and giving rise to three-dimensional and volumetric projections that have never been seen before.
Claypaky has always been known for its research and innovation skills, thanks to which it has often introduced fixtures and solutions that revolutionized the world of Entertainment Lighting.
Today we are pleased to present Volero Wave, an incredible LED bar with original and innovative features, because it is a system of 8 independent moving bodies. Each of these heads contains a brand-new mirror-based optical system combined with 40W RGBW LEDs, which express a higher light intensity than any LED bars currently on the market. The innovative concept behind Volero Wave, as well as the main challenge for the Claypaky R&D team, could move the entire light source on its axis, thus preserving the same intensity of the light flux in any position of the tilt range.
The beams always appear extremely sharp and collimated, parallel to each other thanks to the 2.9° projection angle. The synchronized movement produces an impressive wave of light, all the more overwhelming the more Volero Wave fixtures are seamlessly connected.
Claypaky has designed a system that would allow the Volero Waves to be aligned with each other with extreme precision. They are easily set up and mounted on the truss to create the “wave effect”. Mounted on the Claypaky Panify, they even add an endless PAN rotation at variable speed, making Volero Wave the most dynamic light effect fixture on the market.
Volero Wave adopts all the most important functions that characterize a product for first-class spectacular effects. We have the pixel mapping for the control of each parameter for each LED pixel and the exclusive Advanced Layers Management, which allows the operator to use three levels of effects simultaneously.
Volero Wave is a new lighting effect that distinguishes any lighting design. It offers the lighting designer the power to create truly original and three-dimensional light scenes within television and film productions, musicals, live events, touring, and any show where you want to stand out. It is a must-see product.
Specifications
Light Source Type
8 Each 40W RGBW LED Engine
LED Colour Temperature: 8600K
LED Life Expectancy: 50000 Hours L70*
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom: 2.9° (Fixed Aperture)
292 Lumens (single pixel - integrating sphere)
Front lenses (8 Each): 86 x 114mm
Noise Level
Standard mode: 41.8 dBA
Control and Connections
Main engine: 3 modes with 20 / 38 / 37 control channels
Pixel engine: 2 modes with 24 / 32 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM Connectors: Locking 5 pin XLR IN/THRU
Ethernet Switch: RJ45 IN/OUT
Power Connector: Power Con True1 IN/OUT
Built In Web Server
Dynamic Effects
Colours:
RGBW Colour Mixing 16 bit
Linear 16bit CTC 2500 – 8000K
Movement:
Tilt 220° (each module can move independently)
Accuracy ±0.08° (Range 0.16°)
Smooth & Fast Speed Selectable by Function Channel
Dimmer/Shutter:
High Resolution Electronic Dimmer – 24-bit.
High Speed Electronic Shutter and Strobe
Hardware and Software
Long Life Self-charging Battery
Display Graphic LCD backlit Monochrome Display
Firmware Upload from Another Fixture
Firmware Upgrade via Web Server or CloudIO
Diagnostics
DMX Monitoring
Remote Access through RDM
CloudIO Compatible
Housing
Aluminum and Steel Structure with Plastic covers
IP20 Rated
Working Position
Operates in any Position
Hanging System: Supplied with Fast-lock Omega Brackets (1/4 turn)
