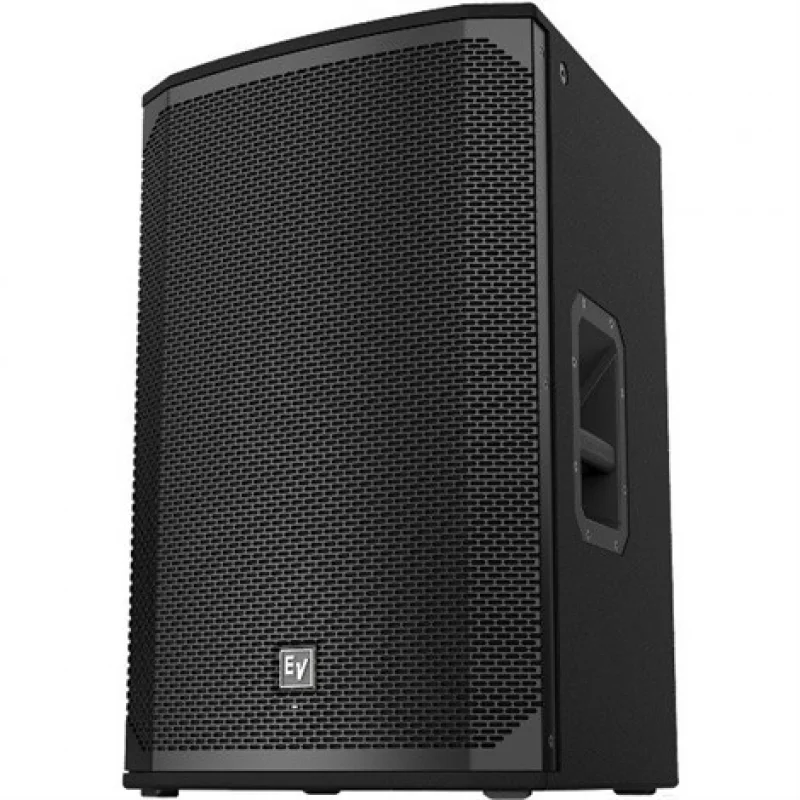

Electro-Voice EKX-15, 15" Pasif Hoparlör 800W, 132-dB

Electro-Voice EKX-15 15" Passive Speaker 800W Program, 132 dB

• EKX-15: 1600 W (peak),132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
• 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

• Axial Sensitivity (SPL, 1 W @ 1 m)	96 dB Full Space Measurement
  Maximum SPL	132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
  Nominal Impedance	8 Ω
  Power Handling (Continuous / Peak)	400 W/1600 W
  Frequency Response (-3 dB)	75 Hz - 18 k Hz Full Space Measurement
  Frequency Response (-10 dB)	50 Hz - 20 k Hz Full Space Measurement
  Recommended High-Pass Frequency	50 Hz
  Coverage (Nominal -6 dB) H	90 °
  Coverage (Nominal -6 dB) V	60 °
  LF Transducer	EVS-15M 381 mm (15 in)
  HF Transducer	DH-1M 1-inch titanium compression driver
  Crossover Frequency	1.6 k Hz
  Minimum Impedance	7.2 Ω
  Connector Type	Dual NL4
  Enclosure Material	15 mm, plywood with EVCoat
  Grill	18 AWG steel with powdercoat
  Suspension	(8) M10 threaded mounting points
  Height	685 mm (26.97")
  Width	432 mm (17.01")
  Depth	429 mm (16.89")
  Weight Net	23.2 kg (51.15 lbs)
  Shipping Weight	28.2 kg (62.17 lbs)
