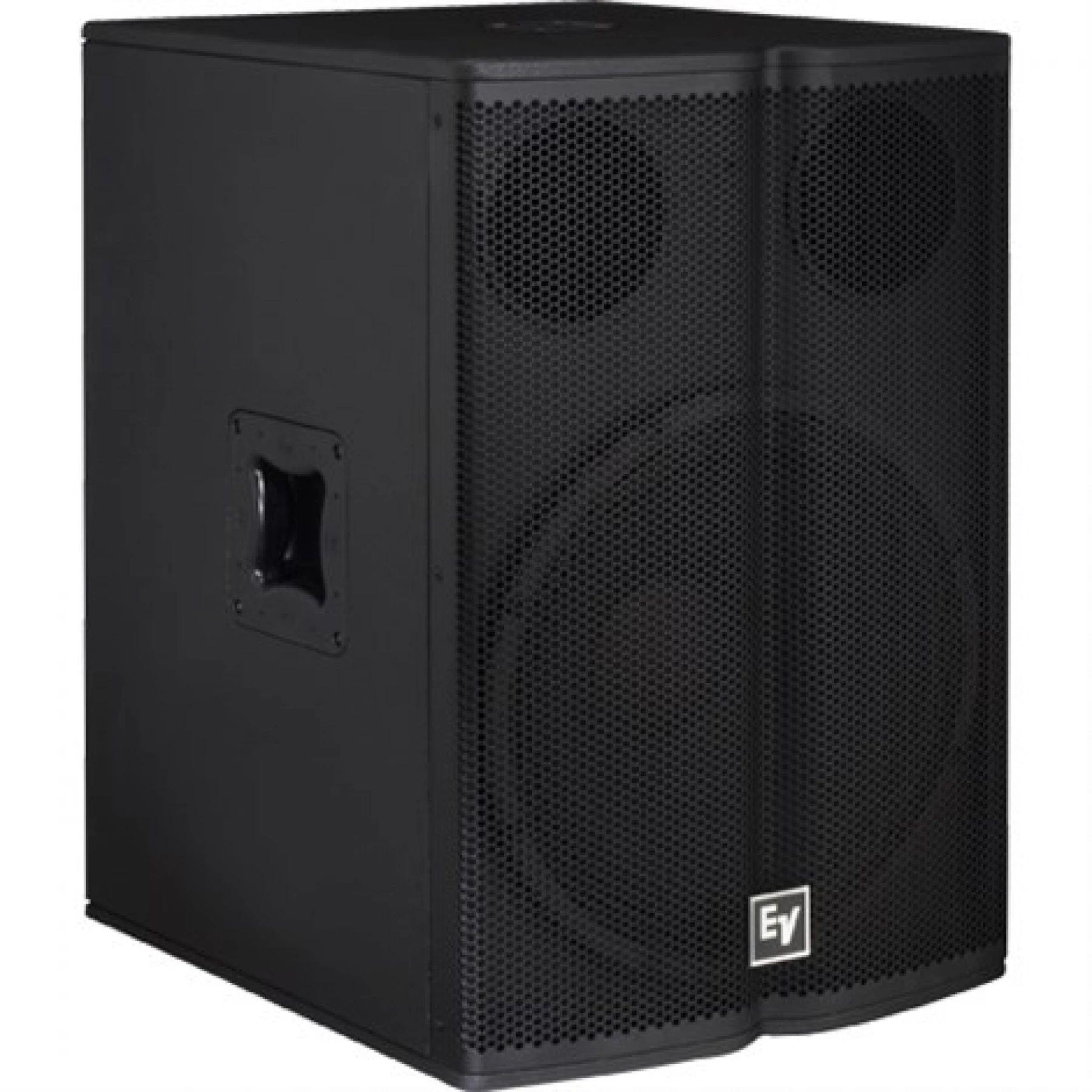

Electro Voice TX1181 18" Tour Seri Pasif Subwoofer 1000W/prog 2000W Peak

  • High-power LF supplement to TX1122 and TX1152
  • High-excursion EVS-18S woofer
  • 6 dB/octave low-pass filter for parallel connection without added amp
  • 100 dB sensitivity, 132 dB max SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Top-side socket for speaker pole
  • Mount points (6) for optional wheel kit
  • Braced plywood/MDF enclosure
  • Black EVCoat™ finish


Input ConnectionsParallel Neutrik® NL4
Speaker TypeSubwoofer
Frequency Response (-3 dB)50 - 160 Hz
Frequency Response (-10 dB)45 - 700 Hz
Internal CrossoverLow-pass filter
Recommended High-Pass Frequency30 Hz
Sensitivity 1 W/1 m100 dB
Max. SPL/1m (calc)132 dB
System Power Handling (Continuous/Program/Peak)500//2000 Watts
LF Transducer18-inch EVS18S
Nominal Impedance (Passive)8 Ω
Minimum Impedance7.5 Ω
Enclosure MaterialPlywood and MDF with EVCOAT
Height769 mm (30.28")
Width439 mm (17.28")
Depth591 mm (23.27")
Weight Net33.8 kg (74.52 lbs)
