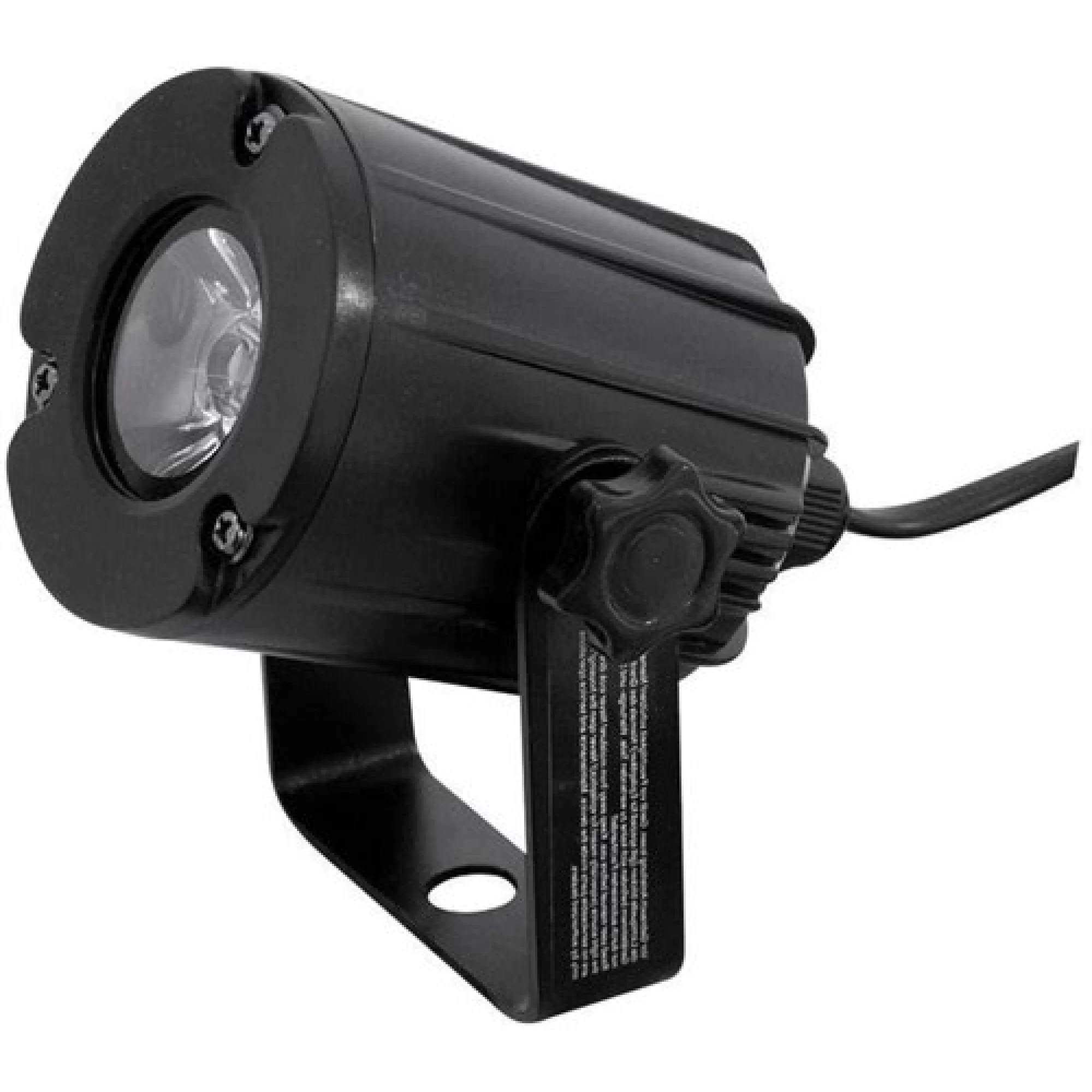

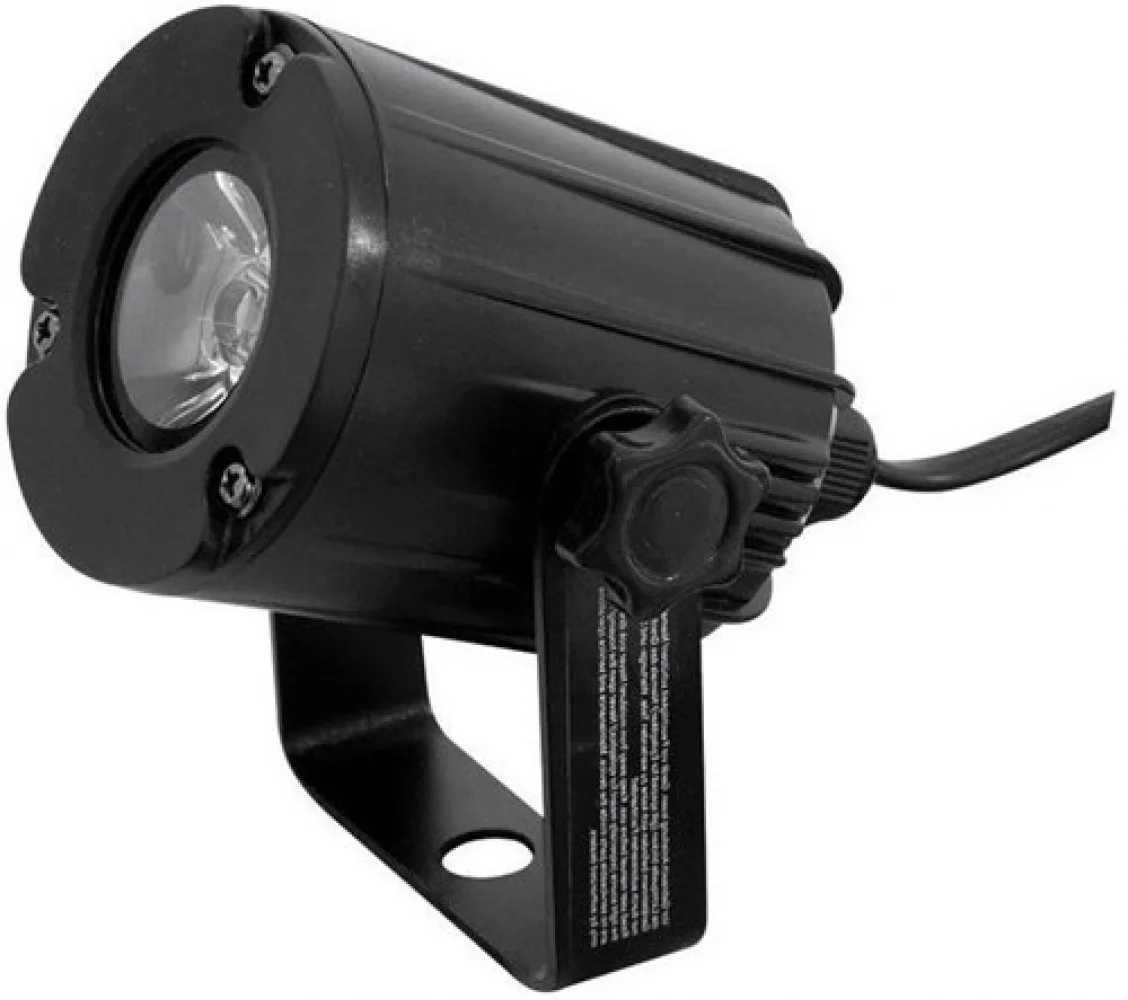

Narrow beam pinspot with 3 W warm white (WW) LED
Package contents
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 5 W |
| IP classification: | IP20 |
| Protection class: | Protection class II |
| Power connection: | Fixed power supply cord with Euro plug |
| Cable construction: | 2 x 0,75 mm² H03VVH2-F |
| Cable length: | Approx. 0,9 m |
| Lamp type: | LED lamp |
| LED type: | 1 x 3 W high-power warm white (WW) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 6° |
| Beam angle (1/2 peak): | 6° |
| Color temperature: | 3200K |
| Color rendering index (CRI): | 82 Ra |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Material: | Plastic |
| Dimensions: | Width: 9 cm Depth: 10 cm Height: 10 cm |
| Weight: | 240 g |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø12mm |
| Material: | Metal, 2 mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397649079 | 0,28 kg | 9cm x 9cm x 13cm |
| 20 | 4026397649086 | 5,70 kg | 46cm x 19cm x 28cm |
