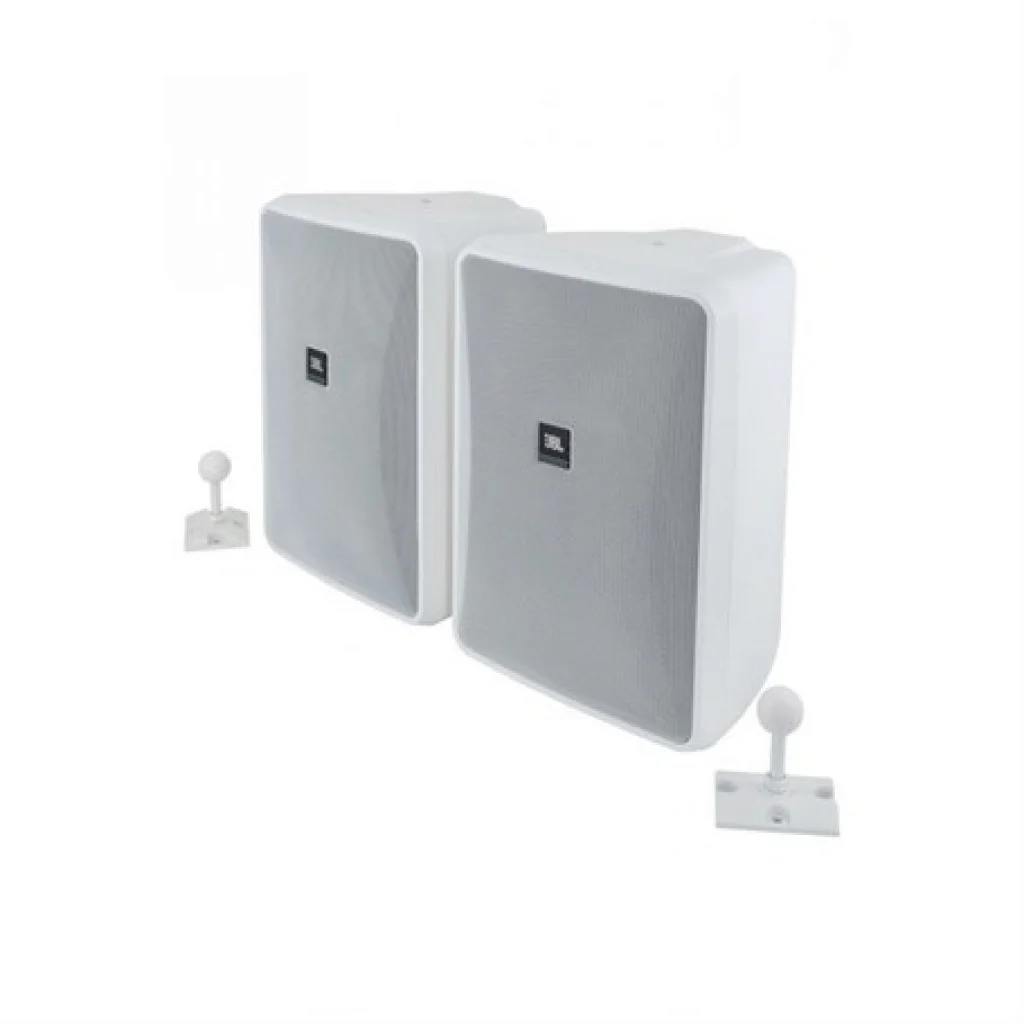

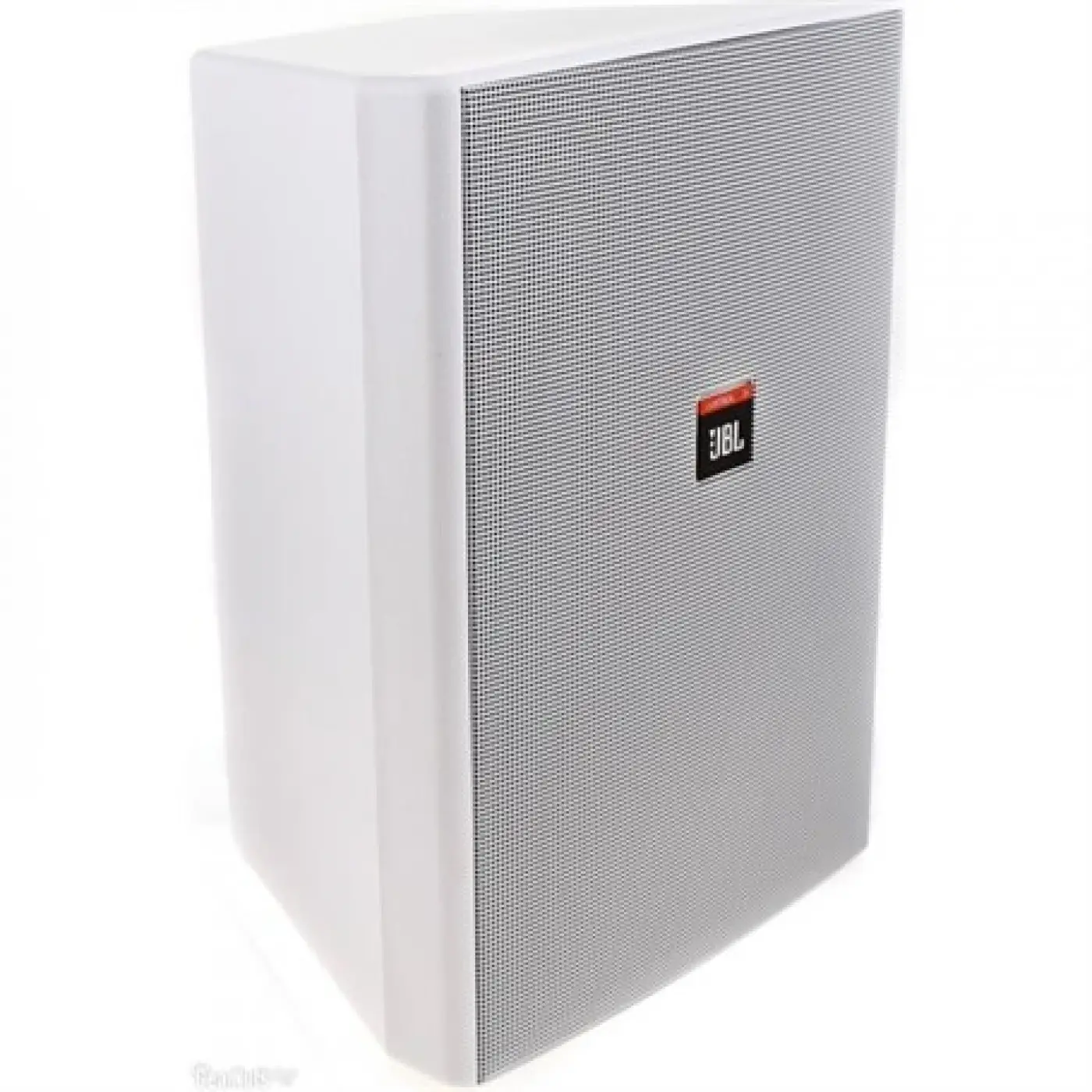

JBL Control-25 5.25" indoor / outdoor Hoparlör (beyaz renk)
Compact Indoor/Outdoor Background/Foreground Loudspeaker
The Control 25 is perhaps the most versatile of JBL Professional’s Control Contractor Series
indoor/outdoor loudspeakers.
Features
- Components: 5.25 in Polypropylene coated woofer, .75 in Titanium coated horn loaded tweeter.
- Built-in InvisiBall® mounting hardware*.
- Weather resistant enclosure and transducers.
- Readily paintable.
- 90° x 90° high frequency horn.
- Overload Protection Circuitry.
- Sensitivity: 88 dB SPL, 1W, 1m
- *Patents pending worldwide
Specifications
| Frequency Range | 80 Hz to 16 kHz (-10 dB) |
| Power Capacity | 150 W Continuous Program Power; 75 W Continuous Pink Noise |
| Sensitivity | 88 dB SPL, 1 W, 1m |
| Directivity Factor (Q) | 5.3 dB |
| Directivity Index (DI) | 7.2 dB |
| Nominal Impedance | 8 ohms |
| Crossover Frequency | 3.0kHz |
| Frequency LF Driver | 135mm (5.25 in) Polypropylene cone w/ WeatherEdge |
| HF Driver | 19mm (.75 in) Titanium coated polycarbonate |
| Enclosure Material | HIPS (High Impact Polystyrene) |
| Overload Protection | Full-Range power limiting to protect network and transducers |

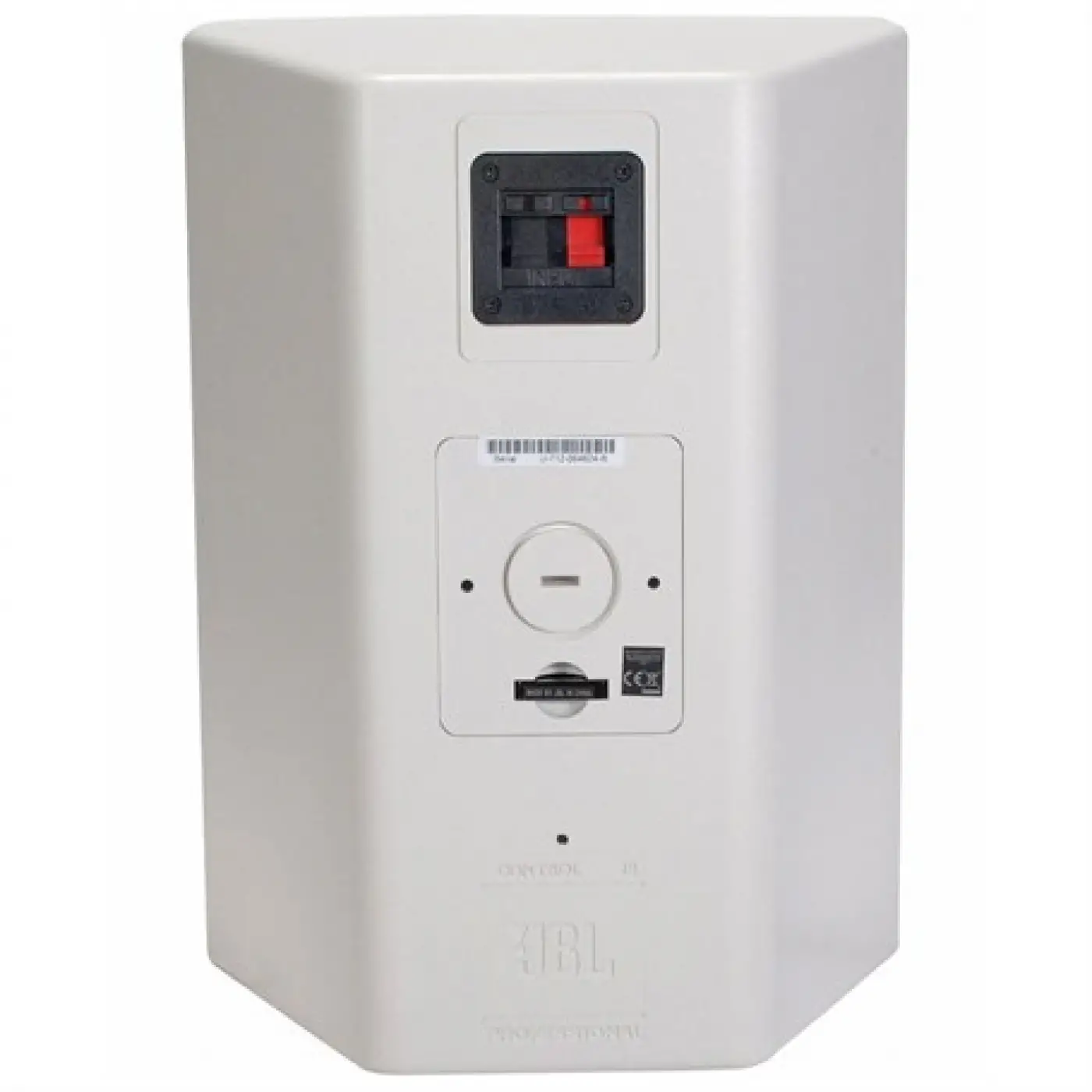

| Terminations | Spring terminals, accepts banana plug |
| Environmental | Conforms to Mil Spec 810 for humidity, salt spray,temperature& UV. IEC 529 IP-X4 splashproof rating |
| Dimensions (H x W x D) | 236 x 188 x 149 mm (9.3 x 7.4 x 5.8 in) |
| Net Weight (each) | 2.3 kg (5 lb) |
| Shipping Weight (ea) | 5 kg (11 lb) |
| Included Accessories | Invisiball Assembly |
| Optional Accessories | MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter. MTC-25SSG: Stainless Steel Grille for harsh environments. Available in silver, black (-BK) or white (-WH) MTC-25WMG: WeatherMax™ Stainless Steel Grille protects against driving precipitation. Available in black or white (-WH) MTC-PC2: Input panel cover protects input terminals in outdoor environments. |
