| Power Supply | AC 100-240 V, 50/60 Hz |
|---|
| Power Consumption *1 | 400 W (North America),
410 W (other countries)
When [STANDBY MODE] is set to [ECO] : approx. 0.3 W (North America,
Taiwan),approx. 0.5 W (Other countries)
When [STANDBY MODE] is set to [NORMAL] and [IN STANDBY MODE] of
[AUDIO SETTING] is set to [OFF]: approx. 12 W |
|---|
| BTU Value | 1,365 BTU (North America),1,399 BTU (Other countries) |
|---|
| LCD Panel | Panel Size | 16.3 mm (0.64 inches) diagonal (16:10 aspect ratio) |
|---|
| LCD Panel | Display Method | Transparent LCD panel (x 3, R/G/B) |
|---|
| LCD Panel | Drive Method | Active matrix method |
|---|
| LCD Panel | Pixels | 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels |
|---|
| Lens | Manual zoom (1.6x),manual focus,
F 1.6-2.12, f 15.30 - 24.64 mm |
|---|
| Lens | Throw Ratio | 1.09-1.77:1 |
|---|
| Lamp | 280 W UHM lamp |
|---|
| Projection Size | 0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio |
|---|
| Colors | Full color (16,777,216 colors) |
|---|
| Light Output *2 | 5,000 lumens (Lamp power: Normal, Dynamic mode, Iris off,
Daylight View:off, Auto Power Save:off) |
|---|
| Center-to-Corner Uniformity | 85% |
|---|
| Contrast Ratio*2 | 16,000:1(all white/all black, Image mode:Dynamic,
Lamp power: Normal, Iris: On) |
|---|
| Resolution | 1920 x 1200 pixels (Input signals that exceed this resolution will be
converted to 1920 x 1200 pixels.) |
|---|

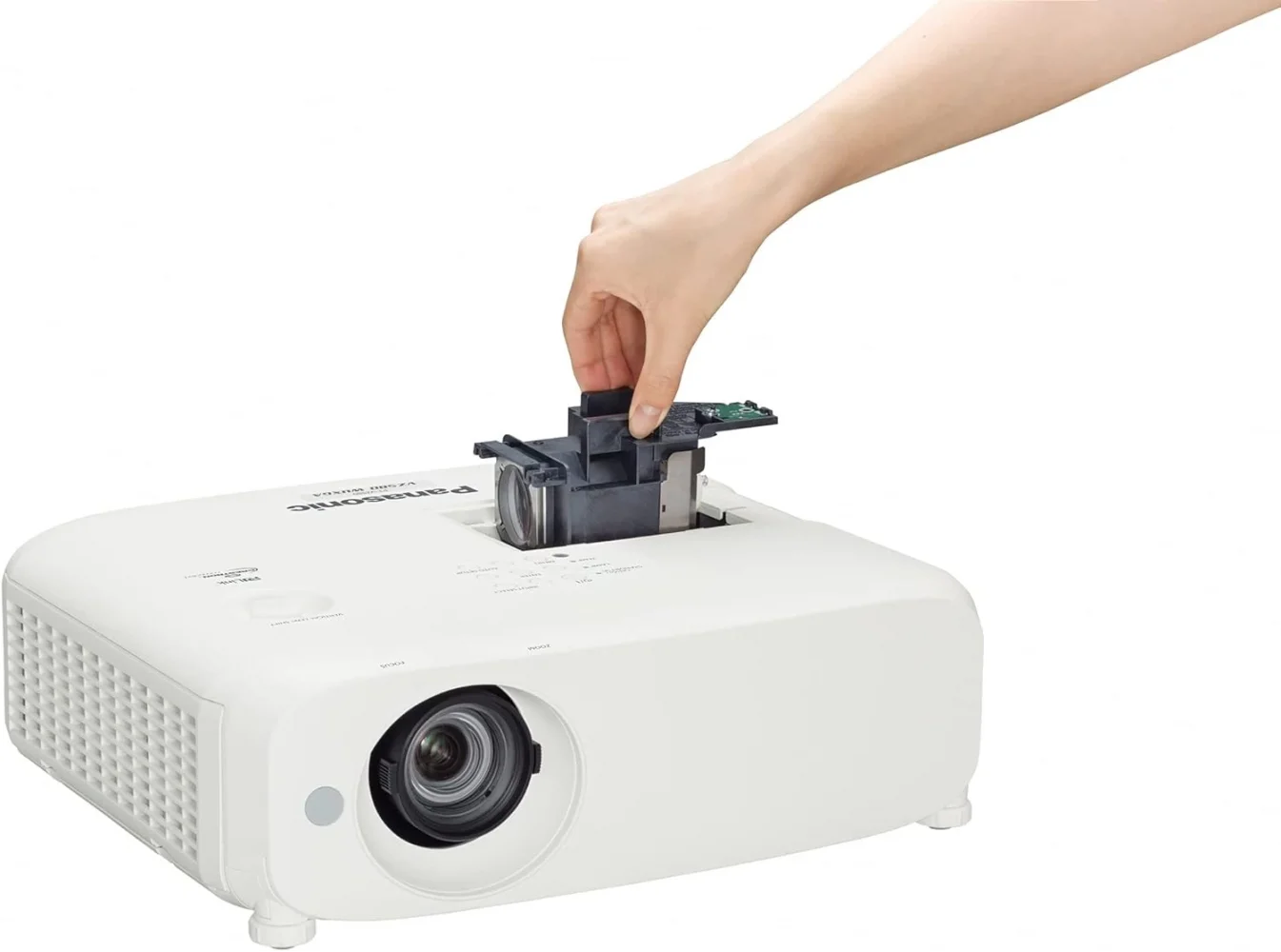

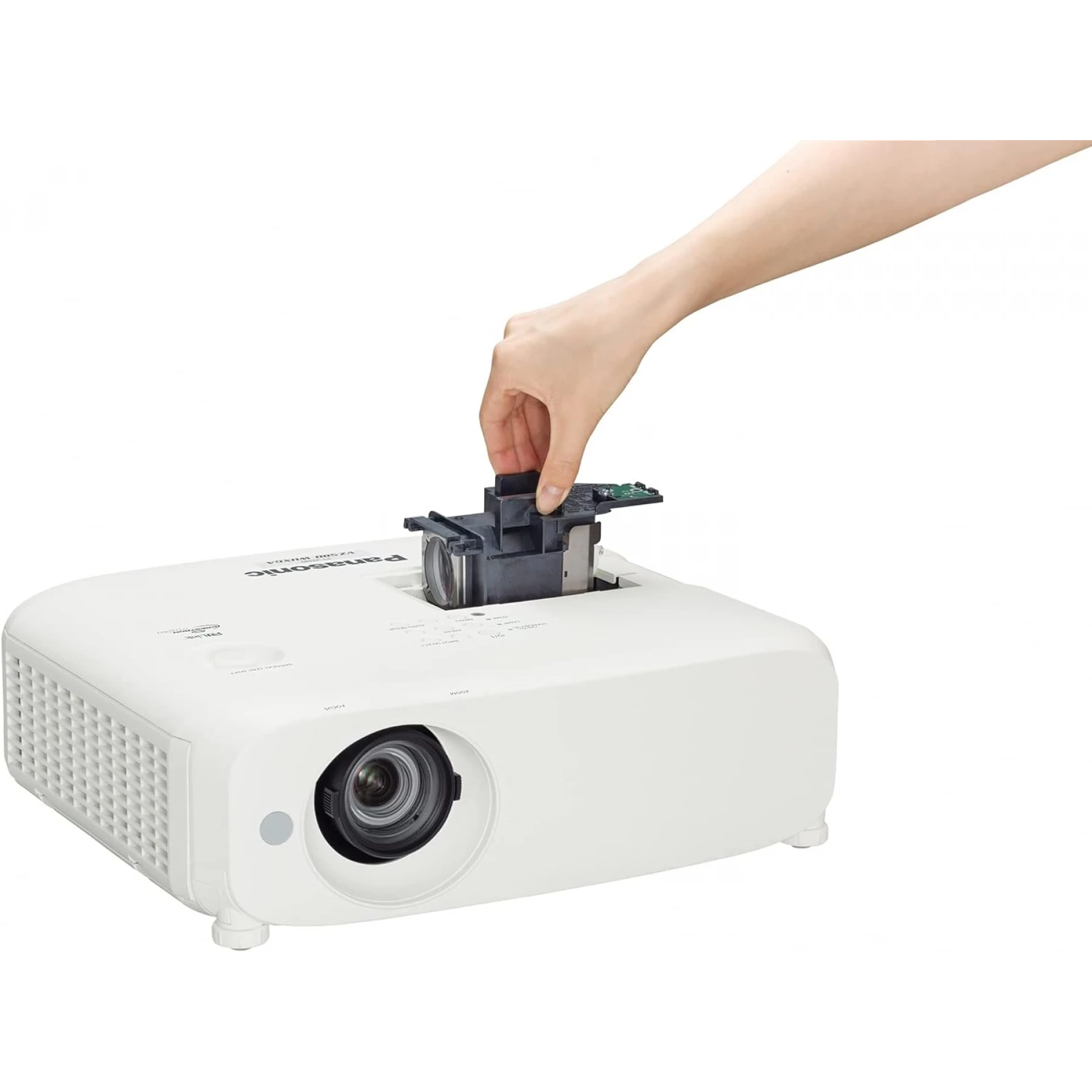

| Lamp Replacement Cycle | Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours |
|---|
| Filter Replacement Cycle | 7,000 hours (Period varies depending on usage environment.
It can be washed and reused up to 2 times.) |
|---|
| Scanning Frequency | HDMI/DIGITAL LINK | •Moving image signal resolution:
480i (525i)*3, 576i (625i)*3, 480p (525p),576p (625p),720 (750)/60p,
720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p,
1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p,
1080 (1125)/50p
Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace)
•Dot clock frequency: 25 MHz to 162 MHz |
|---|
| Scanning Frequency | RGB | fH: 15- 91kHz, fV: 24 - 100Hz, dot clock: 162 MHz or less |
|---|
| Scanning Frequency | YPBPR (YCBCR) | 480i (525i): fH 15.73 kHz; fV 59.94 Hz,
576i (625i): fH 15.63 kHz; fV 50 Hz,
480p (525p): fH 31.47 kHz; fV 59.94 Hz,
576p (625p): fH 31.25 kHz; fV 50 Hz,
720 (750)/60p: fH 45.00 kHz; fV 60 Hz,
720 (750)/50p: fH 37.50 kHz; fV 50 Hz,
1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz,
1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz,
1080 (1125)/25p: fH 28.13 kHz; fV 25 Hz,
1080 (1125)/24p: fH 27.00 kHz; fV 24 Hz,
1080 (1125)/24sF: fH 27.00 kHz; fV 48 Hz,
1080 (1125)/30p: fH 33.75 kHz; fV 30 Hz,
1080 (1125)/60p: fH 67.50 kHz; fV 60 Hz,
1080 (1125)/50p: fH 56.25 kHz; fV 50 Hz |
|---|
| Scanning Frequency | Video | fH: 15.73 kHz / 15.63 kHz fV: 59.94 Hz / 50 Hz
[NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM] |
|---|
| Installation | CEILING/DESK/AUTO, FRONT/REAR |
|---|
| Speaker | 4.0 cm round-type x 1 |
|---|
| Maximum Usable Volume Output | 10 W (monaural) |
|---|

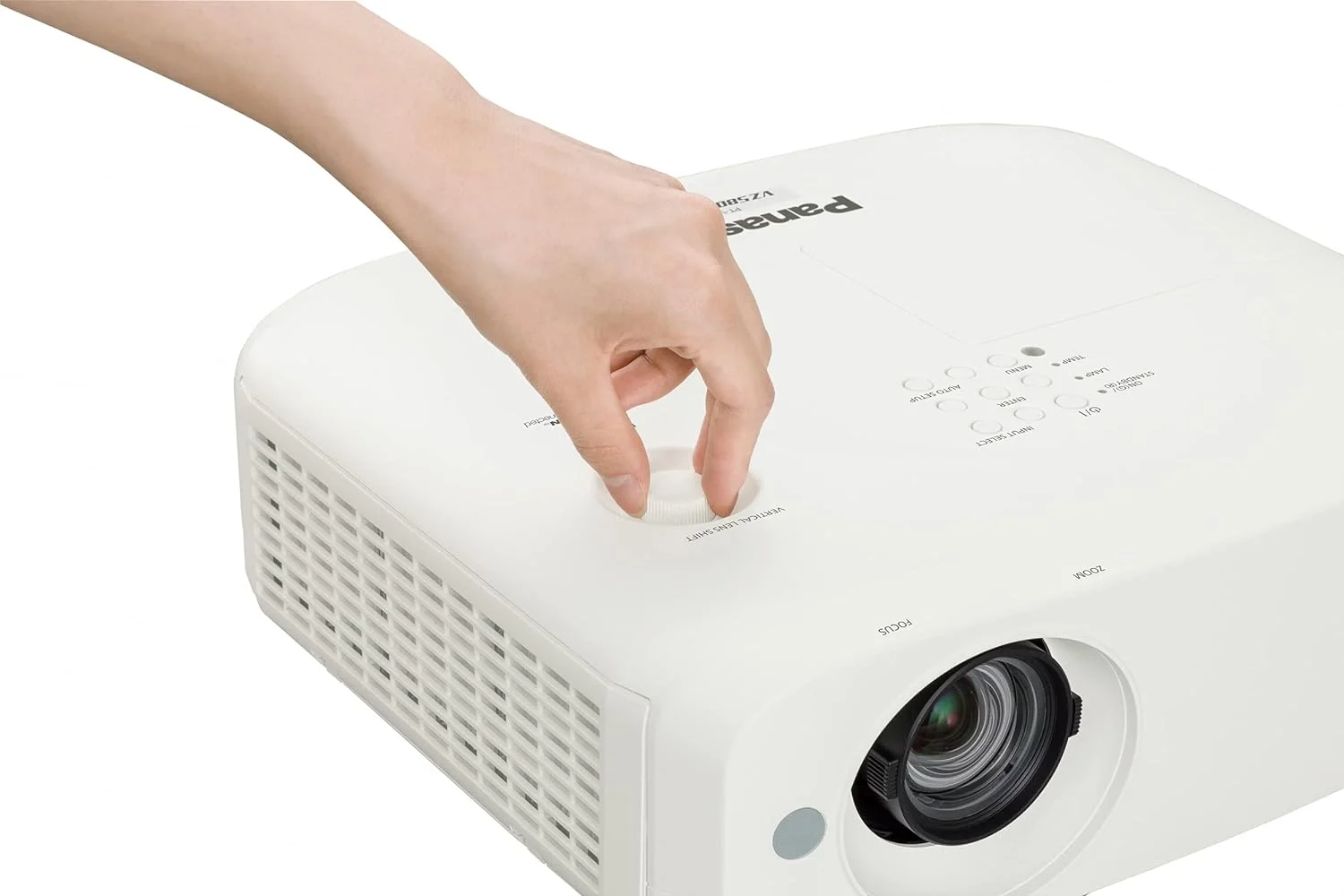

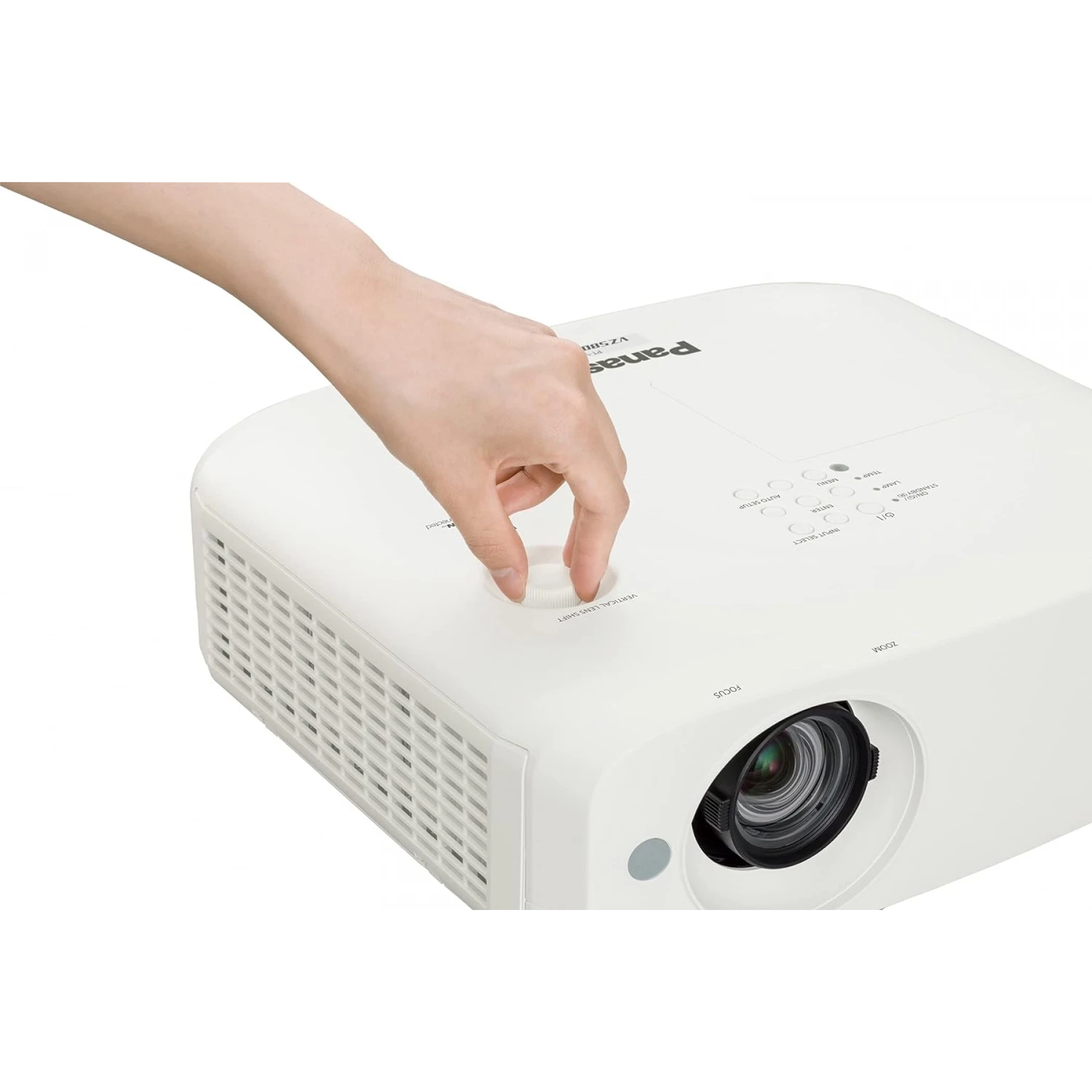

| Optical Axis Shift | Vertical 0 - +44% from center of screen (manual)
U/D ratio 17:1 (when on top end) |
|---|

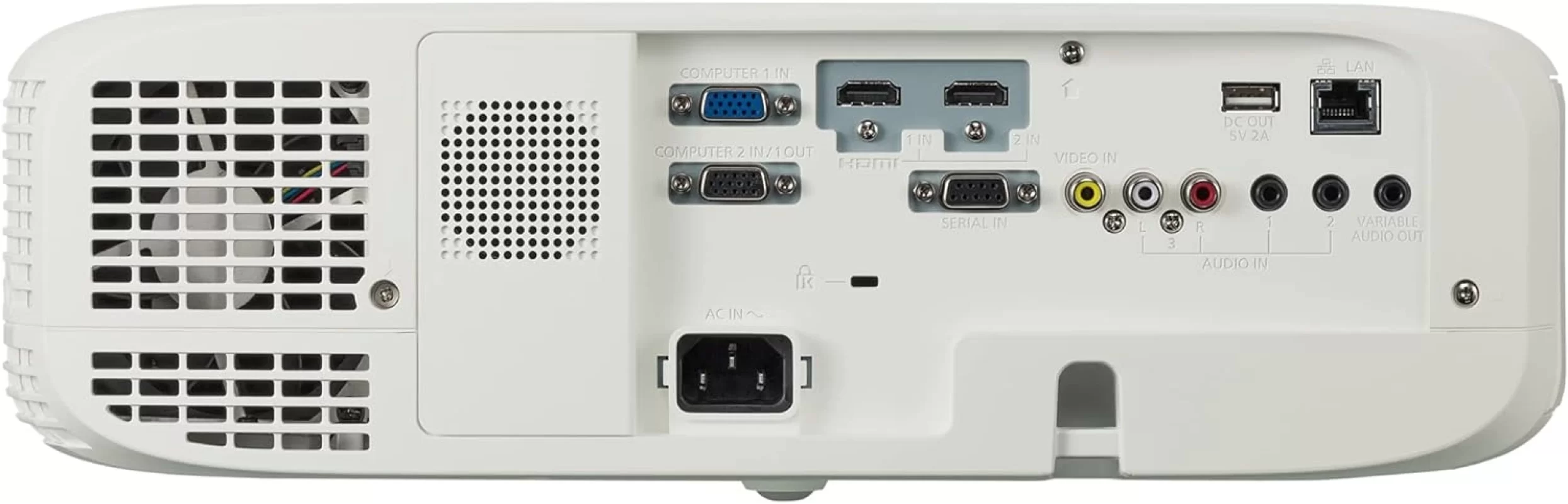

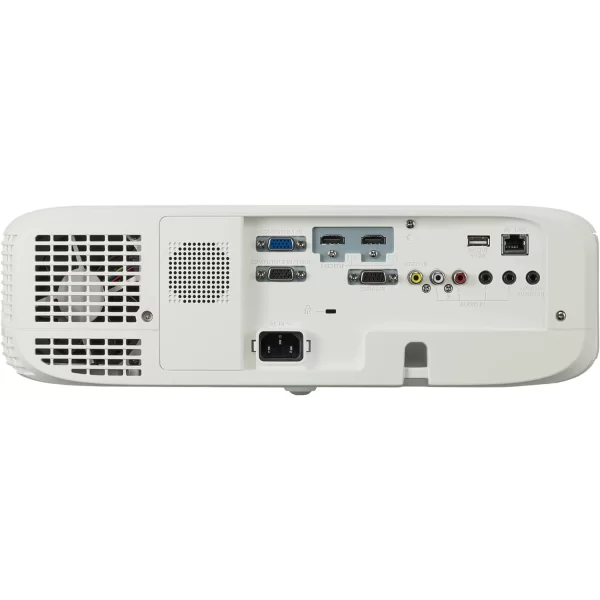

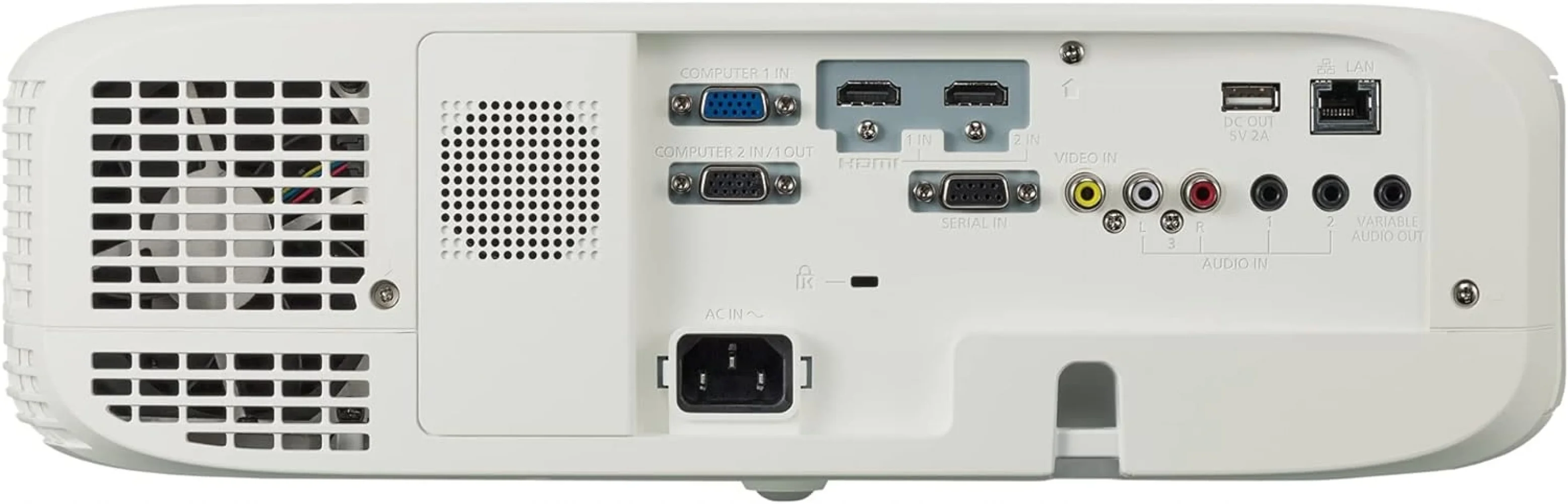

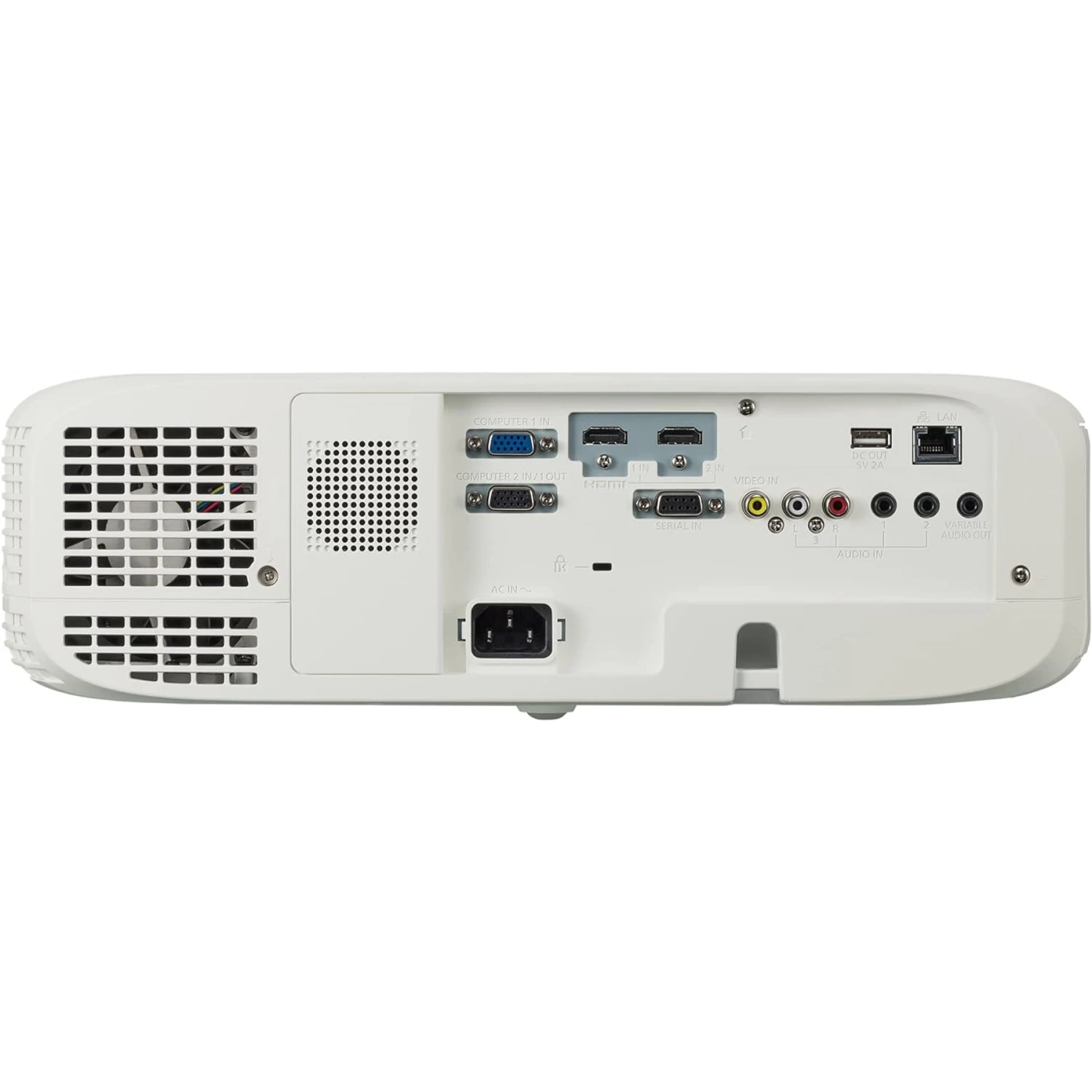

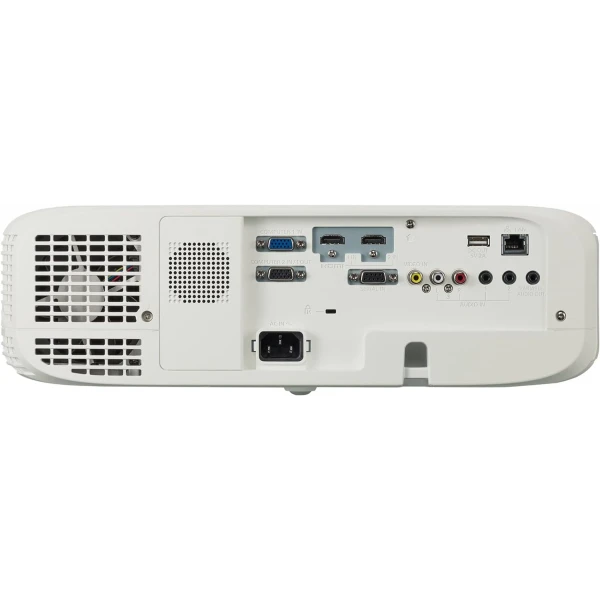

| Terminals | Computer 1 In | high-density D-Sub 15 p (female)
[RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) ,
75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL,
high impedance, positive/negative automatic
[YPBPR signal] Y: 1.0 Vp-p (including sync signal),
PB/PR (CB/CR): 0.7 Vp-p, 75 ohms |
|---|
| Terminals | Computer 2 In/1 Out | high-density D-Sub 15 p (female)
[RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) ,
75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL,
high impedance, positive/negative automatic
[YPBPR signal] Y: 1.0 Vp-p (including sync signal),
PB/PR (CB/CR): 0.7 Vp-p, 75 ohms |
|---|
| Terminals | Video In | Pin jack 1.0 Vp-p, 75 ohms |
|---|
| Terminals | HDMI 1 In | HDMI 19 pin, HDCP and Deep color compatible
Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz) |
|---|
| Terminals | HDMI 2 In | HDMI 19 pin, HDCP and Deep color compatible
Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz) |
|---|
| Terminals | Audio In 1 | M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more |
|---|
| Terminals | Audio In 2 | M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more |
|---|
| Terminals | Audio In 3 | Pin jack x 2(L-R),0.5 V[rms], input imedance 22 k ohms and more |
|---|
| Terminals | Variable Audio Out | M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance
2.2 k ohms and less |
|---|
| Terminals | USB A (DC Out) | USB connector (type A) |
|---|
| Terminals | Serial In | D-sub 9 pin, RS-232C compliant, for computer control use |
|---|
| Terminals | LAN | RJ-45, for network, PJLink™ compatible, 100Base-TX |
|---|
| Power Cord Length | 3.0 m(9 ft 10 in)(India),2.0 m(6 ft 7 in)(Other countries) |
|---|
| Cabinet Materials | Molded plastic |
|---|
| Dimensions (W x H x D) | 389 x 125*4x 332mm
(15-5/16 x 4-29/32*4x 13-1/16 inches) |
|---|
| Weight *5 | Approx. 4.9 kg (10.8 lbs) |
|---|
| Noise Level *2 | 37dB (LAMP POWER: NORMAL/ECO1),29dB (LAMP POWER: ECO2) |
|---|
| Operating Environment | Temperature*6 | 0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937'))
0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858')) |
|---|
| Operating Environment | Humidity | 20% to 80% (no condensation) |
|---|
| Note | Weights and dimensions shown are approximate. Specifications subject to change without notice.
*1 When the Standby mode is set to Eco, network functions such as power on over the LAN network will not operate.
Also, only certain commands can be received for external control using the serial terminal.
*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*3 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal) for 480i(525i) and 576i(625i)
*4 When adjustable feet shortened.
*5 Average value. May differ depending on models.
*6 If [LAMP POWER] set to [NORMAL], [LAMP MODE] will be switched to [ECO1] automatically when the operating
environment temperature is 35°C (95°F) to 40°C (104°F). |
|---|
| Technology | LCD |
|---|
| Brightness | 5000 lumens |
|---|
