Shure Blx14RE

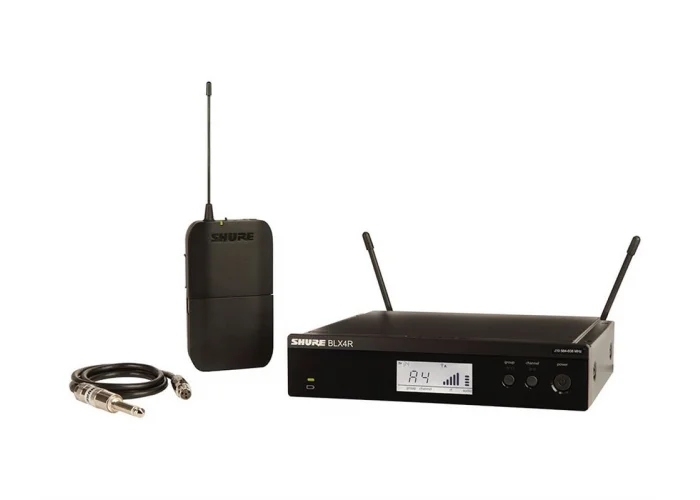

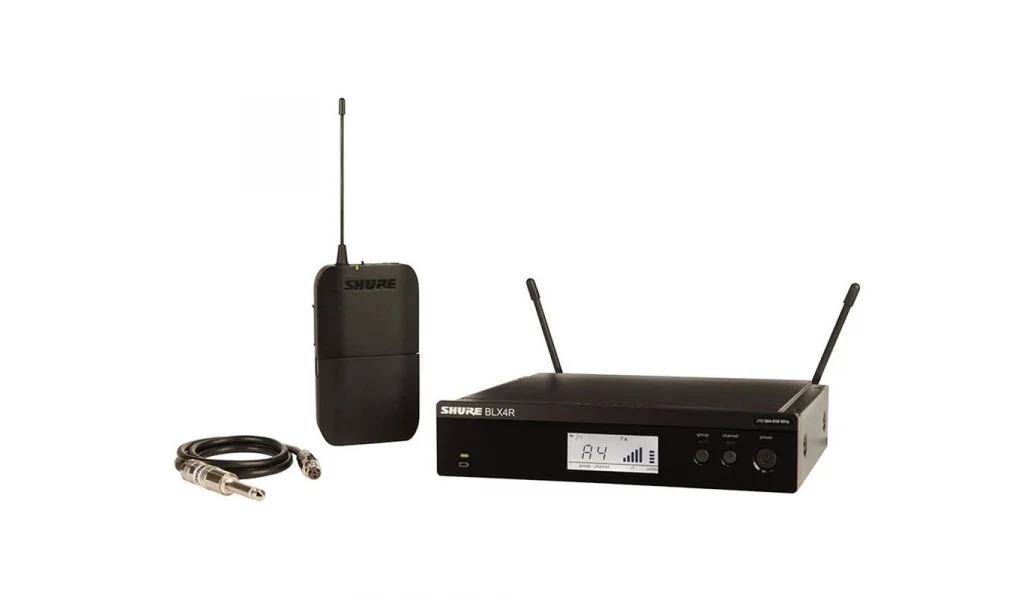

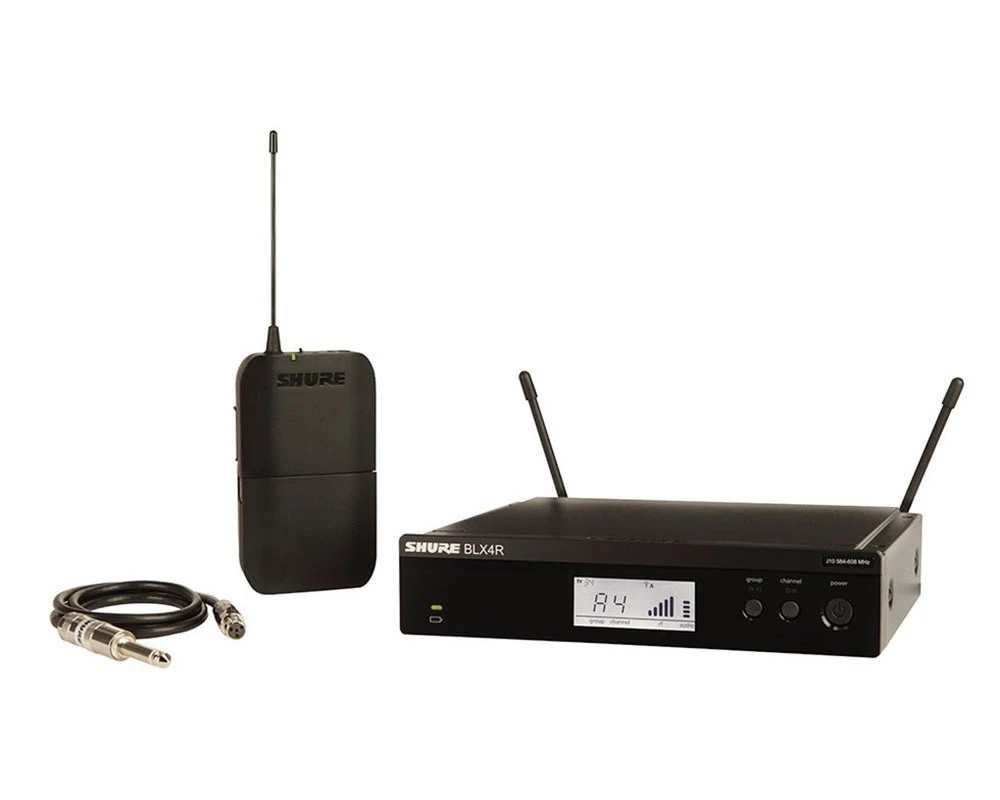

The BLX14R Bodypack Wireless System for Guitar or Bass from Shure includes a BLX1 bodypack transmitter, a BLX4R single-channel rackmountable receiver, and a WA302 1/4" TS to TA4F connector. It is designed for use with guitar, bass, or any instrument with a 1/4" output.
- For Guitar, Bass
- 1/4" to TA4F Cable
- BLX1 Bodypack Transmitter
- Rackmountable BLX4R Receiver
- 300 Range of Operation
- One-Touch QuickScan Frequency Selection
- 1x XLR & 1x 1/4 Instrument Outputs
- Includes 2x AA Batteries
BLX4R Rack Mountable Wireless Receiver
| Output | 1x XLR Output
1x 1/4" (6.35 mm) Output |
| Output Impedance | XLR: 200 Ω
1/4": 50 Ω |
| Audio Output Level | XLR Connector: -20.5 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, Typical |
| Image Rejection | >50 dB, Typical |
| Housing | Molded ABS, Steel |
| Power Requirement | 12 to 15 V DC @ 260 mA, Supplied by External Power Supply (Tip Positive) |
| Dimensions (H x W x D) | 1.9 x 7.7 x 6.4" (50 x 198 x 163) |
| Weight | 2.2 lb (998 g) |
BLX1 Body Pack Transmitter
| Audio Input | Gain: -16 dBV (Maximum), 10 dBV (Minimum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 MΩ |
| RF Output | 10 mW, Typical |
| Housing | Molded ABS |
| Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline |
| Battery Life | Up to 14 Hours |
| Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm) |
| Weight | 2.6 oz (75 g) |
