| SPECIFICATIONS | is-12 |
|---|

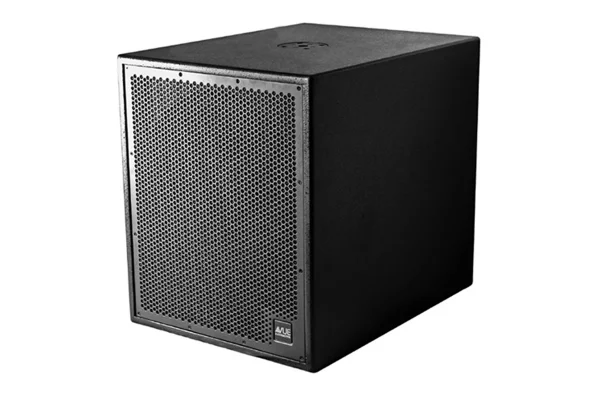

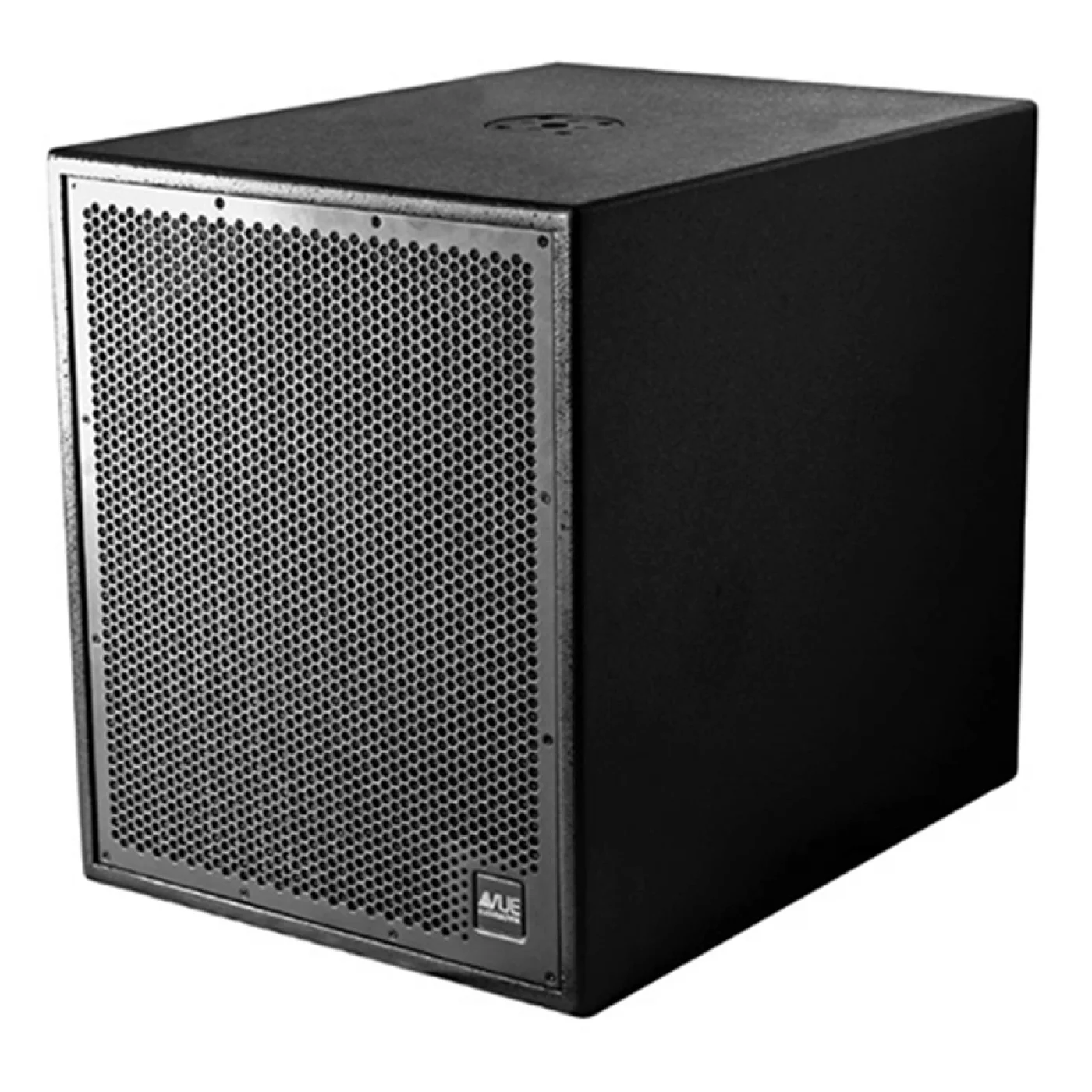

| DESCRIPTION | Passive Single 12-in subwoofer |
| ACOUSTIC DATA | |
| Frequency Response (+- 3 dB) | 45 – 200 Hz |
| Frequency Range (-10 dB) | 38 – 800 Hz |
| Sensitivity (1 W/1 m) | 96 dB |
| Power Handling Long Term(Continuous Power Output for powered Versions) | 400 watts |
| Power Handling Program | 800 watts |
| Max Peak SPL(band limited pink noise 6 dB crest factor) | 122 dB SPL |
| Max SPL Long Term (AVG SPL @1 band limited pink noise 6 dB crest factor)) | 118 dB SPL |
| Coverage Horizontal | 360 degrees – 6 dB |
| Coverage Vertical | 360 degrees – 6 dB |
| TRANSDUCER DATA | |
| LF Driver Description | 12”, paper cone, cloth surround, 3” (75 mm) voice coil, ferrite |
| Impedance | 8 Ohms |
| Connectors | NL4 |
| PHYSICAL DATA | |
| Cabinet Material | Multi-ply wood |
| Cabinet Surface | Black polyurethane coating |
| Power Input (Mains) | NA |
| Dimensions (H x W x D) | 18.89 x 13.98 x 17.72 in (480 x 355 x 450 mm) |
| Net Weight | 44.7 lbs (20.28 kg) |
| Shipping Weight | 52.7 lbs (23.90 kg) |
