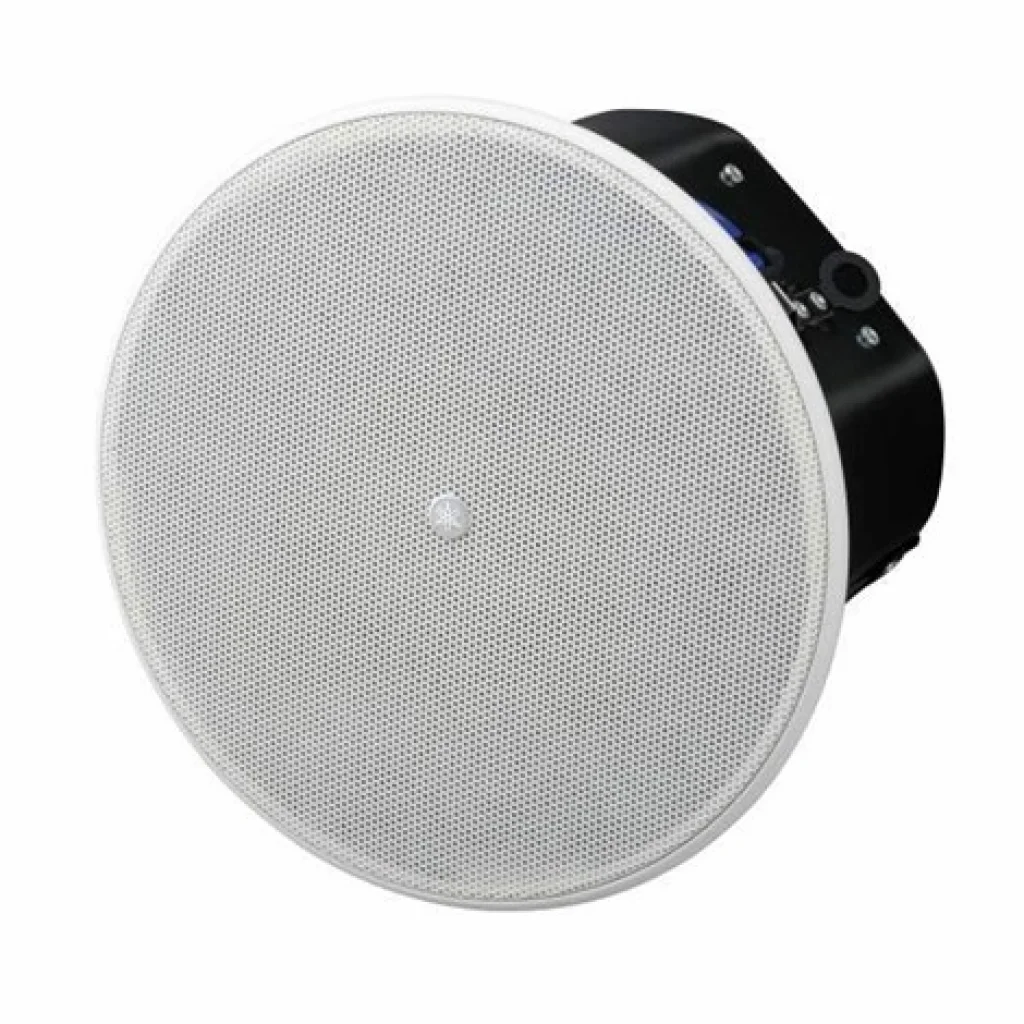

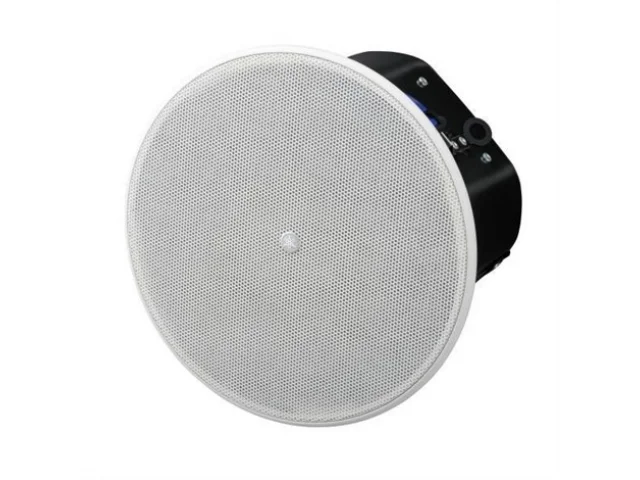

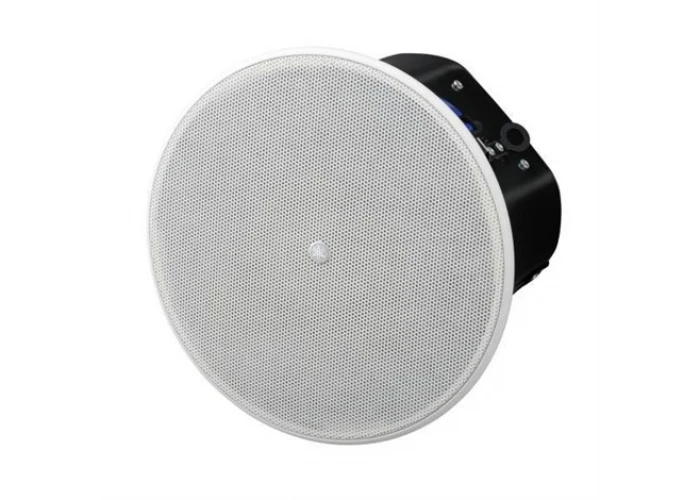

| General specifications | VXC4 / VXC4W | VXC4-VA / VXC4-VAW |
|---|
| Speaker type | Full-range, Bass-reflex | Full-range, Acoustic suspension |
|---|
| Frequency range (-10dB) | 80Hz - 20kHz (Half-space:2π) | 80Hz - 20kHz (Half-space:2π) |
|---|
| Nominal coverage | 130° conical (Half-space:2π) | 130° conical (Half-space:2π) |
|---|
| Components | LF-HF | 4" full-range | 4" full-range |
|---|
| Power rating | NOISE | 30W | 30W |
|---|
| PGM | 60W | 60W |
|---|
| PEAK | 120W | 120W |
|---|
| Nominal impedance | 8Ω | 8Ω |
|---|
| Transformer taps | 100V | 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ) | 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ) |
|---|
| 70V | 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) | 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) |
|---|
| SPL | Sensitivity (1W; 1m on axis) | 87dB SPL (Half-space:2π) | 87dB SPL (Half-space:2π) |
|---|
| Peak (Calculated) | 108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) | 108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) |
|---|
| I/O connectors | 1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -) | 1x Ceramic terminal block (3P) (input: +/-, Earth) |
|---|
| Finish | VXC4: Black / VXC4W: White | VXC4-VA: Black / VXC4-VAW: White |
|---|
| Dimensions | Diameter | 225mm (8.9") | 225mm (8.9") |
|---|
| D | 195mm (7.7") | 232mm (9.1") |
|---|
| Net weight | 2.6kg (5.7lbs) | 2.6kg (5.7lbs) |
|---|
| Cutout size | Ø186 mm (Ø7-5/16") | Ø186 mm (Ø7-5/16") |
|---|
| Required ceiling board thickness | 5 mm – 35 mm | 5 mm – 35 mm |
|---|
| Accessories | O-ring, Tile Rail, Cutout Template | O-ring, Tile Rail, Cutout Template |
|---|
| Packaging | Packaged in pairs | Packaged in pairs |
|---|
| Certificate | UL1480, UL2043, NFPA70, CE, EAC, RoHS | CE, RoHS |
|---|
| EN54-24 compliance | - | Yes (DoP No. 0359-CPR-00405) |
|---|
| Waterproof | - | IP32 |
|---|
