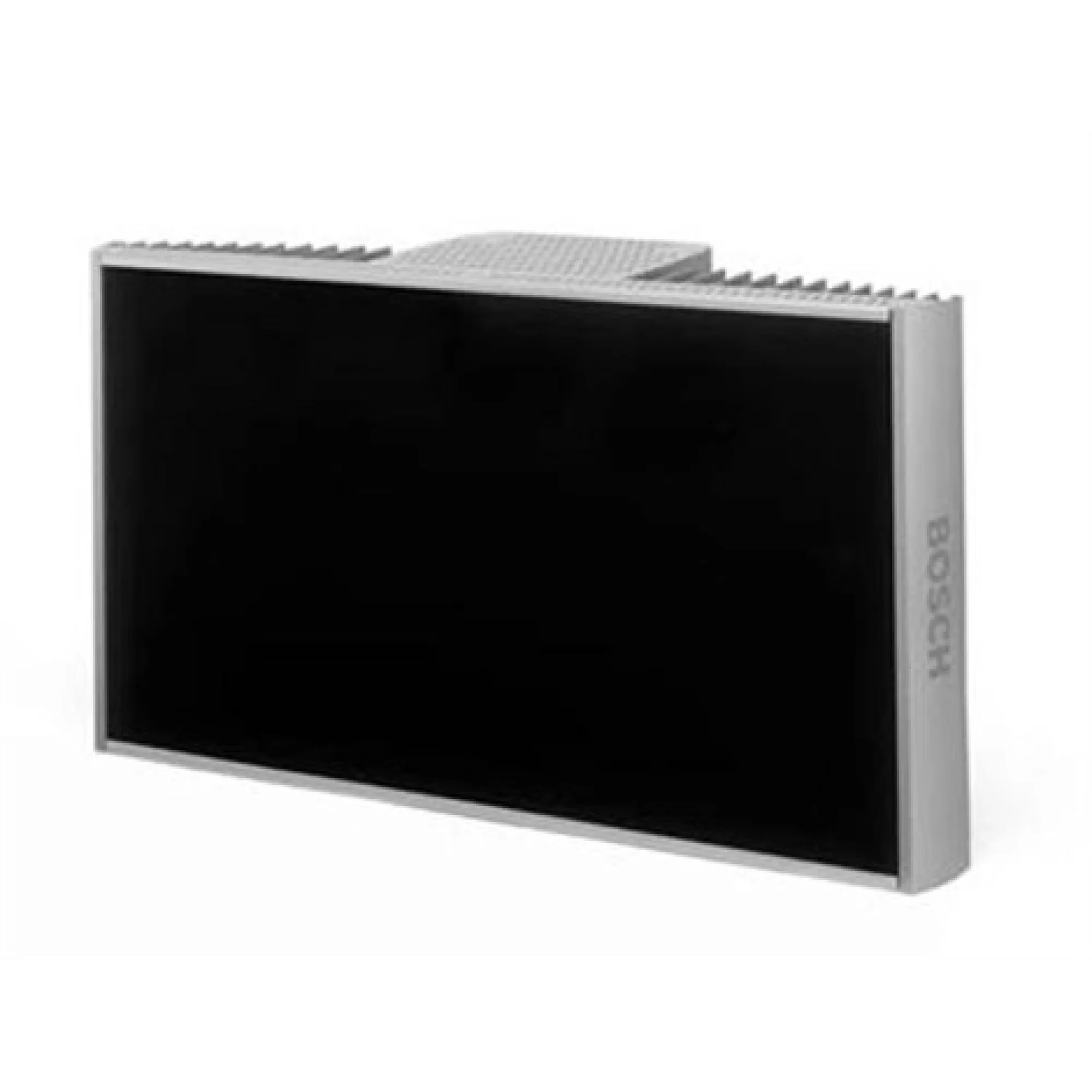

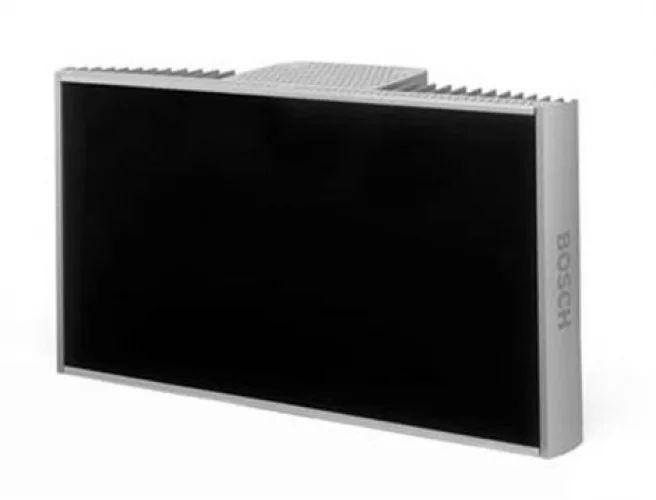

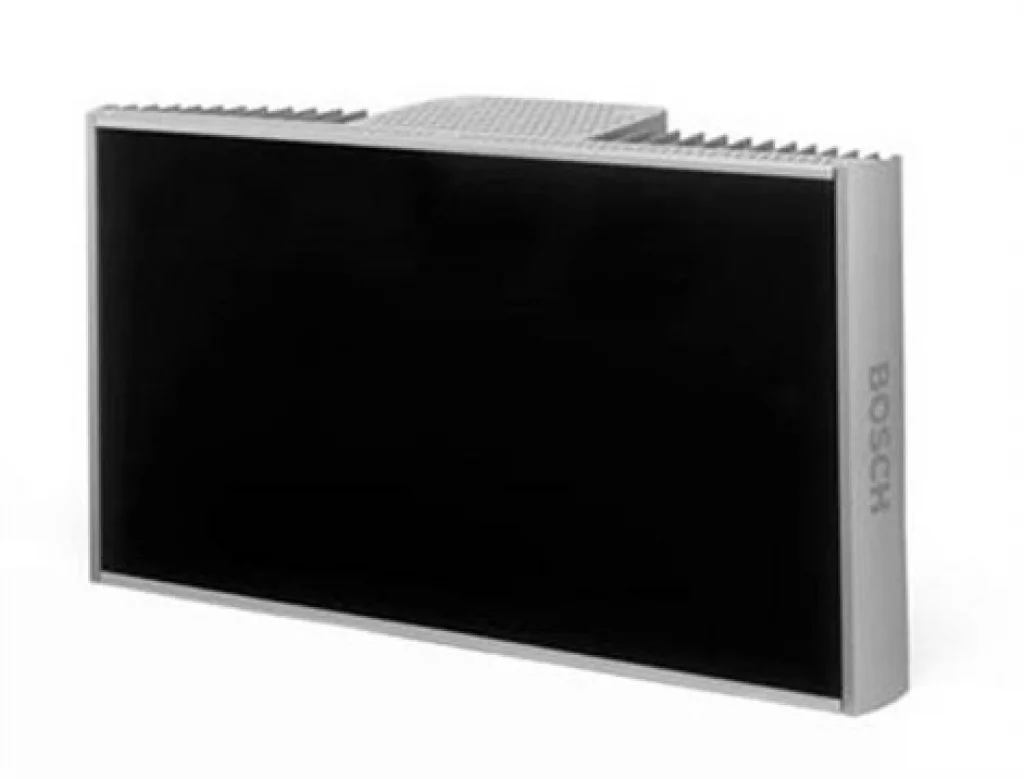

These radiators are used to distribute infrared signals throughout the conference venue, enabling delegates to listen to the proceedings by means of personal pocket receivers. Functions • Universal mains power facility allows use worldwide • No fan - cooled by convection - resulting in quieter operation and less moving parts to wear out • LED indicators for radiator status checking • Communication between radiator and transmitter for easy checking by the operator • Automatically switches on when transmitter is switched on and vice versa • Automatic cable equalization ensures maximum transmission efficiency with different quality of cables • Automatic cable termination simplifies installation • Temperature protection circuitry automatically switches radiator from full- to half- power if the temperature becomes too high • Adjustable radiator angle ensures maximum coverage • IREDs protected by a cover plate, making the units easy to maintain and clean • Attractive and stylish design | | Controls and Indicators • Two yellow LEDs: one on each radiator panel to indicate that this panel is switched on and is receiving carrier waves from the transmitter • Two red LEDs: one on each radiator panel to indicate that this panel is in standby mode • Red and yellow LEDs simultaneously illuminated to indicate the radiator panel is malfunctioning • Red LED flashing and yellow LEDs to indicate the radiator panel is in temperature protection mode • Power reduction switch to reduce the output of the radiator to half-power • Two delay compensation switches to compensate for differences in cable lengths between transmitter and radiators Interconnection • Male Euro socket for mains connection • HF input and output connectors (2 x BNC) for connection to transmitter and loop-through to other radiators |
