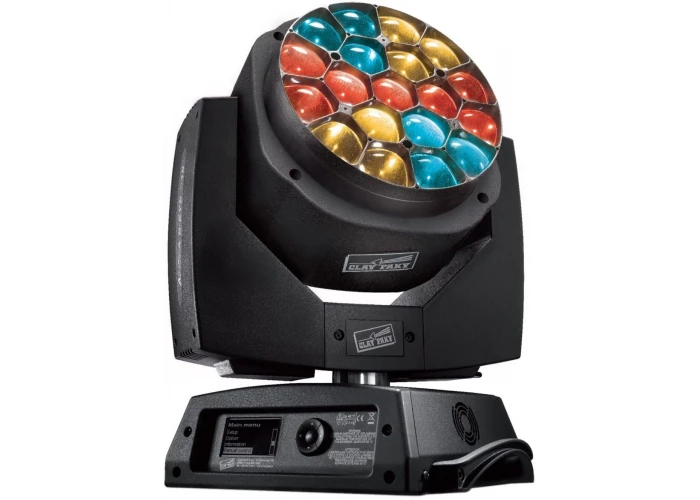

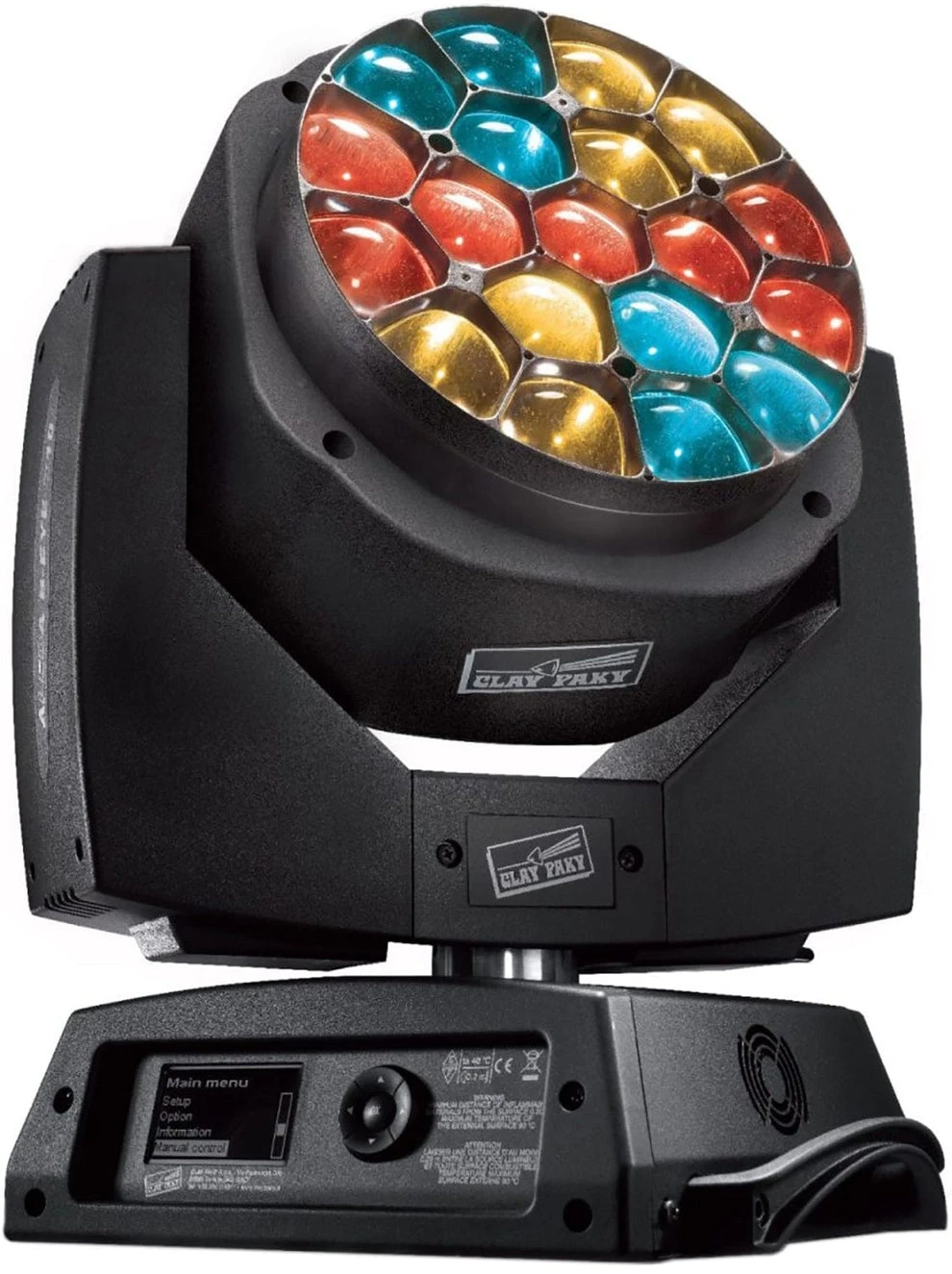

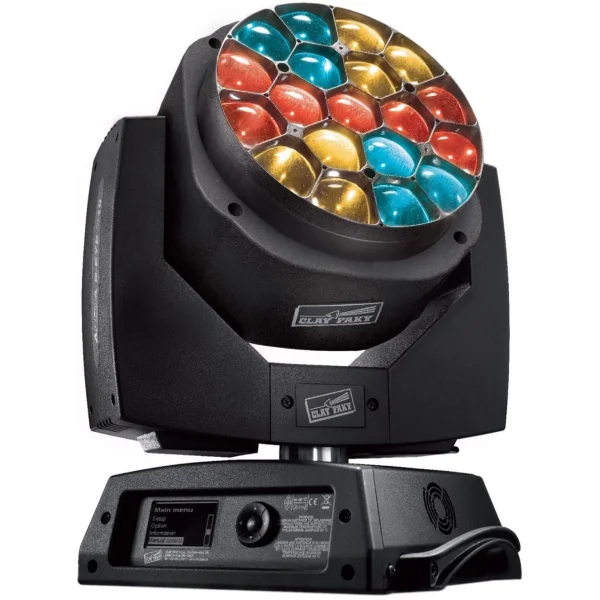

Claypaky A.Leda B-Eye K10 (C61419)

Cihazda 19 adet Osram Ostar RGBW LED bulunur ve her LED'in nominal gücü 15 W'tır. Toplam ışık çıkışı üretici verilerinde 5.500 lm olarak verilir. Elektronik zoom sistemi 4°–60° arasında çalışır.

The A.leda B-EYE K10 is a high-performance wash light, a breathtaking beam light, and a creator of completely new spectacular visual effects. Its unparalleled versatility makes it an interesting creative tool for all lighting designers.

The B-EYE is first and foremost an excellent quality wash light. It can wash surfaces with colors anywhere, making the most of its light source. The B-EYE is brighter than any LED-wash with the same rated power, thanks to its special optical unit with a truly amazing lumen/watt ratio, designed and built by Claypaky. The zoom ranges from 4° to 60°, suitable for environments with low ceilings (small theatres and TV studios, for example), where large angles are useful, and for shows in arenas or large environments, where a tight zoom is perfect.

When the B-EYE beam is zoomed down to 4°, the “wash” light turns into a “beam” fixture. The B-EYE therefore becomes a surprising mid-air parallel effect light, capable of generating a pulsating beam of micro-rays, which may be controlled individually, each with its colors and shades. All the parameters of each LED can be completely controlled. Lastly, the B-EYE K10 introduces a new feature: the front lens may be rotated to create many small bright compositions, which may be opened and closed like petals. The B-EYE generates never-seen-before graphic light effects, adding colors and dynamic graphics.

Specifications:

• Light Source Type:
  • 19 Osram Ostar RGBW LEDs
  • LED Nominal Wattage: 15W
  • LED Average Life: 50,000 h
• Photometric Data:
  • 5,500 lumen
  • 4°-60° Electronic Zoom Range
  • High efficiency optical system
• Input Power:
  • 450 VA @230Vac - 50Hz
• Control and Connections:
  • Control channels: 21/35/57/76
  • Basic Engine (Standard and Shape Mode)
  • Pixel Engine (RGB and RGBW Mode)
  • DMX protocol signal: USITT DMX 512
  • Art-Net / RDM / sACN
  • Display: Graphic LCD backlit b/w Display
  • Pan/Tilt Resolution: 16 bit
  • Dimmer Resolution: 16 bit
  • Movement control: vectorial
  • DMX signal connection: 5 pole XLR input and output
  • Software upload through DMX input
• Effects Section:
  • Three operating modes: wash, beam, FX (Kaleido effects)
  • Front Lens Bi-directional Rotation
  • Digital Wash-Beam Framing effect
  • Beam edge softening control (in Wash mode)
  • Pixel Patterning Macros with enhanced control
  • 0-100% linear electronic dimmer
  • Adjustable speed stop/strobe effect, with instantaneous blackout
  • Dedicated channel for color temperature setting
  • White CT Emulation 2500-8000K
  • RGBW auto-tuning to lamp CT Emulation
  • Tungsten Lamp Emulation
  • Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
  • Movement:
    • PAN = 540°
    • TILT = 210°
• Hardware and Software:
  • Long-life auto-charging buffer battery
  • Preset color and graphic effect macros
  • Function reset controllable from a central control unit
  • Menu-driven internal self-test function
  • Art-Net / RDM / sACN
  • Display: backlit black-and-white graphic LCD display
  • Electronic check-up of every single parameter with error alarm
  • DMX level monitoring on each channel
  • Automatic internal data transmission error diagnostics
  • Firmware upgrade even when the unit is not connected to the power supply
  • Firmware transfer from one light to another
• Housing:
  • Aluminium structure with die-cast plastic cover
  • Two side handles for transportation
  • PAN lock for transport and maintenance
• Working Position:
  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Electrical:
  • Power Supply: 100-240V 50/60Hz
  • 450 VA @230Vac - 50Hz
  • Max Power consumption: 450 VA
• Safety Specs:
  • Automatic power safety derating in case of overheat of the LED board
  • Forced ventilation
• Compliance:
  • In conformity with the European Directives:
    • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU - Electromagnetic Compatibility (EMC)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • ETL: This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.
• Packaging:
  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (4 positions)
• Weight - Size:
  • 15 Kg (33.1 lbs)
