| | System Type | Passive 15”, three-way, bass-reflex |
| | Maximum SPL Output | 137dB |
| | Frequency Range (-10dB) | 32hz - 20khz |
| | Frequency Response (- 3dB) | 43hz - 17khz |
| | Sensitivity (1W/1m) | 95dB |
| | System Power Rating | 3200W Peak, 1600W Program, 800W Continuous |
| | Nominal Impedance | 8 Ohm |

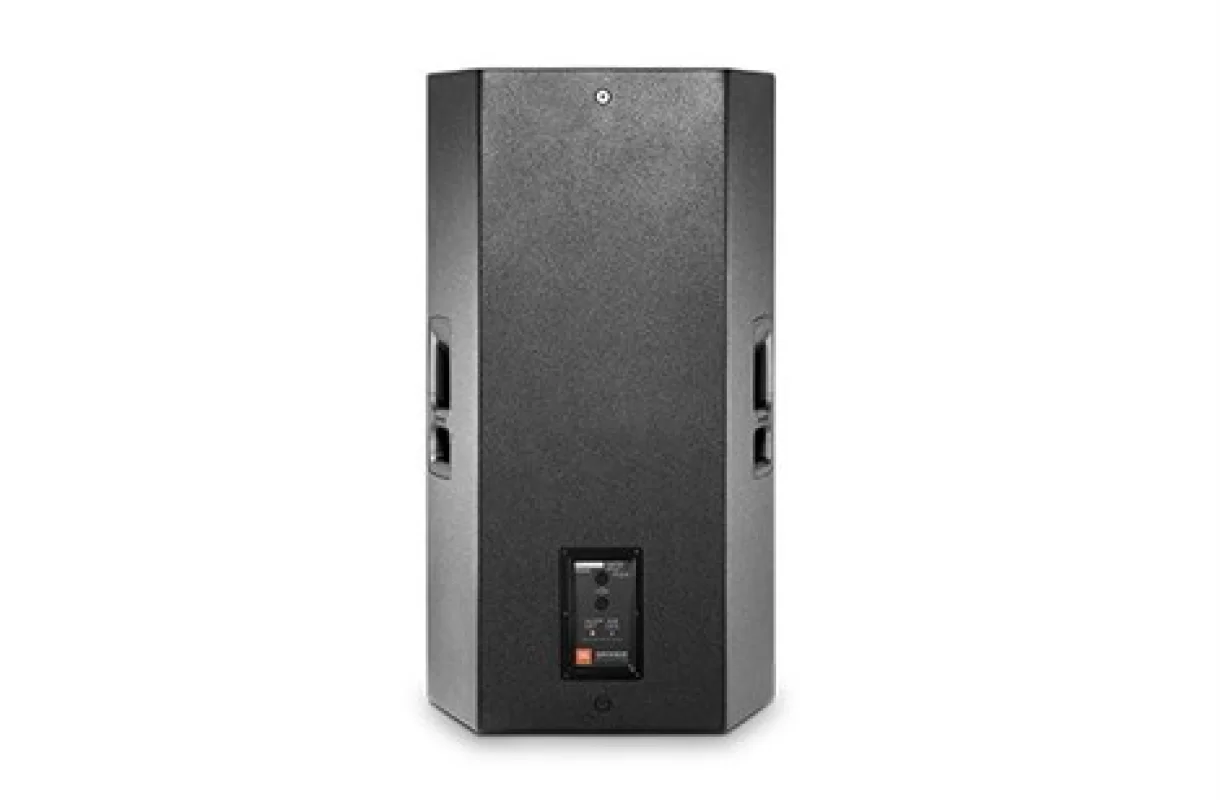

| | Connectors | NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable) |
| | Operational Modes | Passive/Bi-Amp |

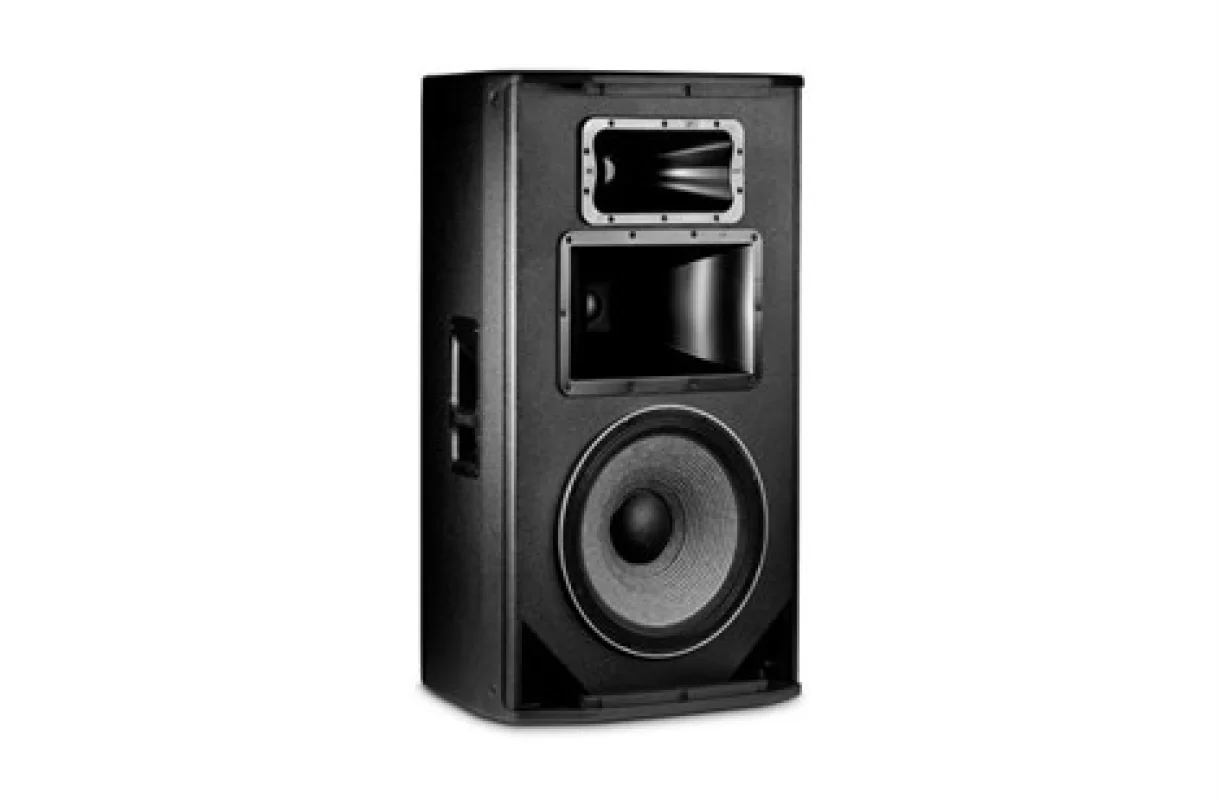

| | LF Driver | 2275F |
| | MF Driver | 2107H |
| | HF Driver | 2432H |
| | Coverage Pattern | 60 x 40 |
| | Crossover Frequency | 330hz & 2.4khz |
| | Enclosure Material | 18mm plywood |
| | Suspension/Mounting | Single 36mm pole socket, 12 x M10 Suspension points |

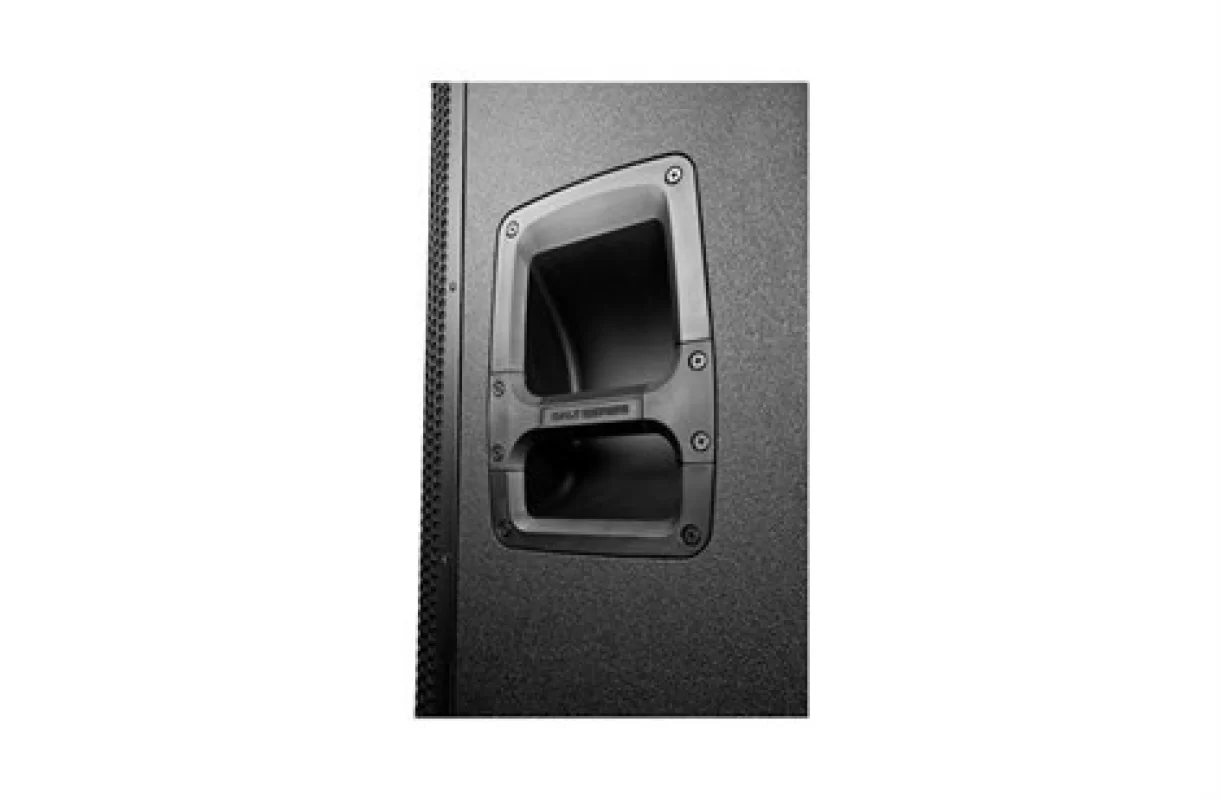

| | Handles | 2 |
| | Finish | Obsidian Duraflex™ finish |

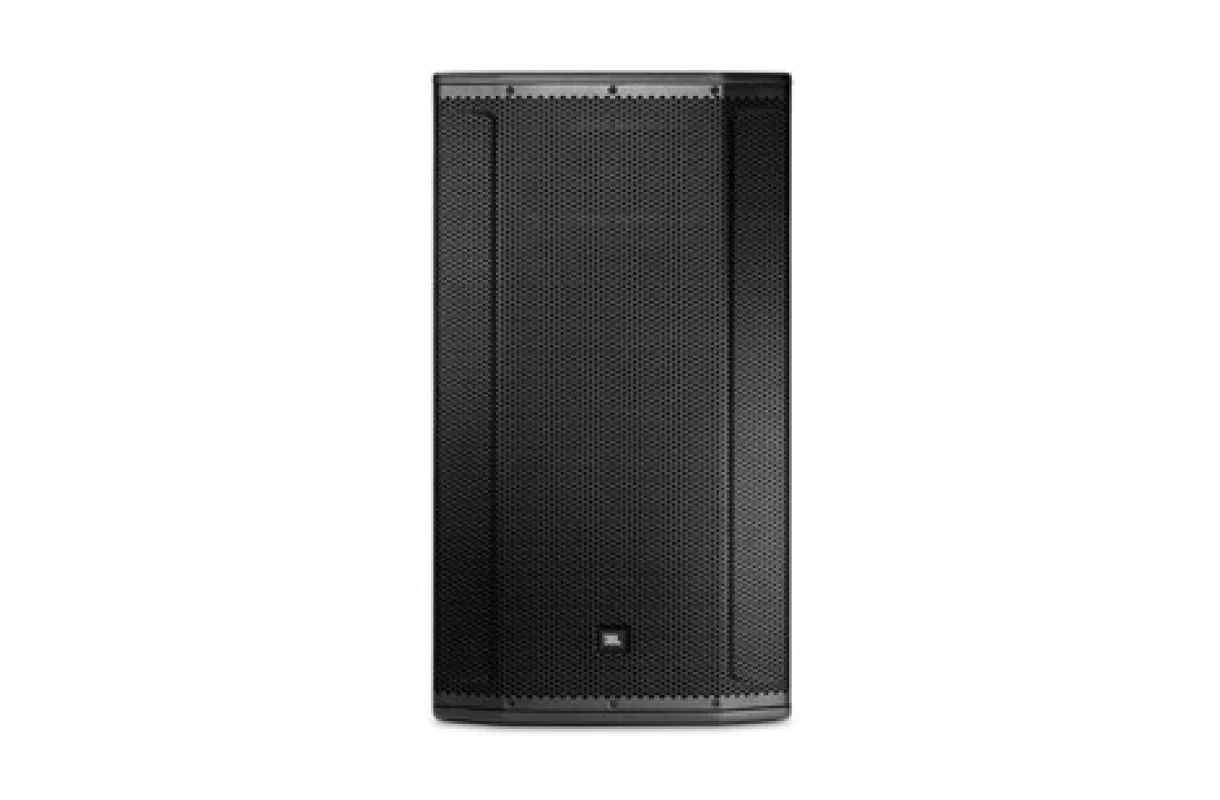

| | Grille | Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing |
| | Dimensions (L x W x H) | 18.74" x 21.4" x 38.74" (476mm x 544mm x 984mm) |
| | Weight | 95.0 lbs (43.1kg) |
