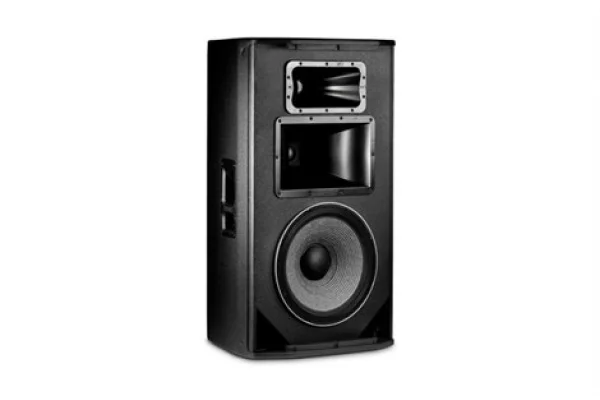

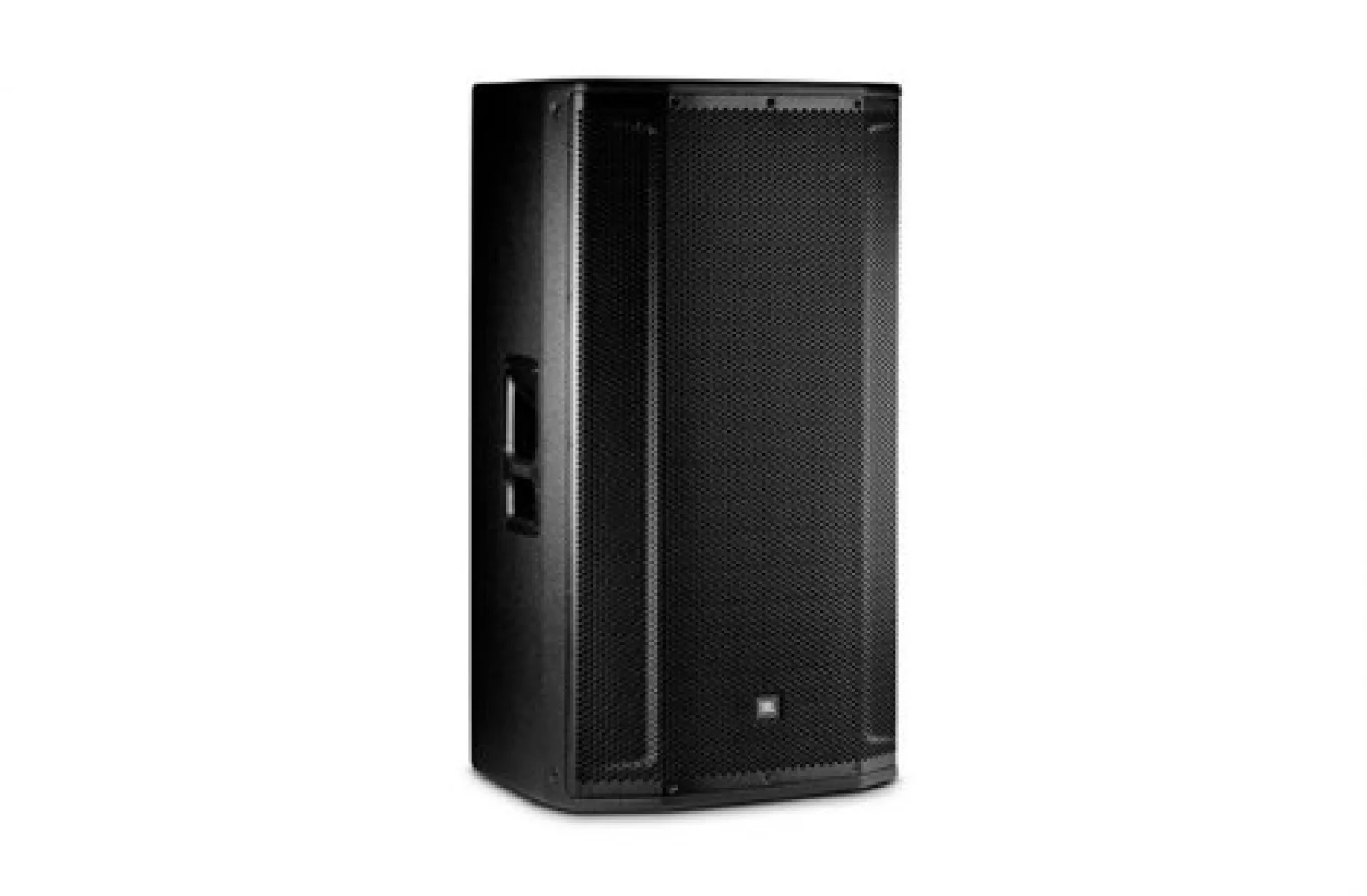

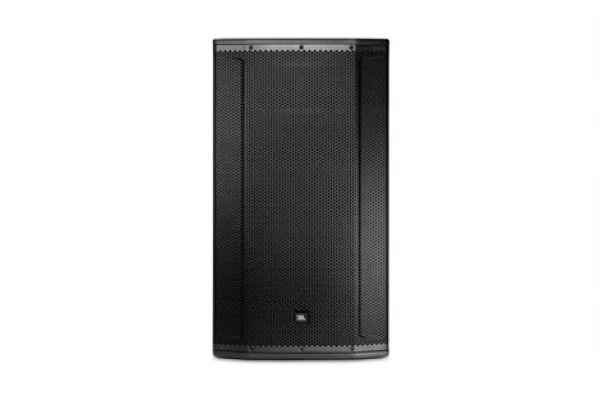

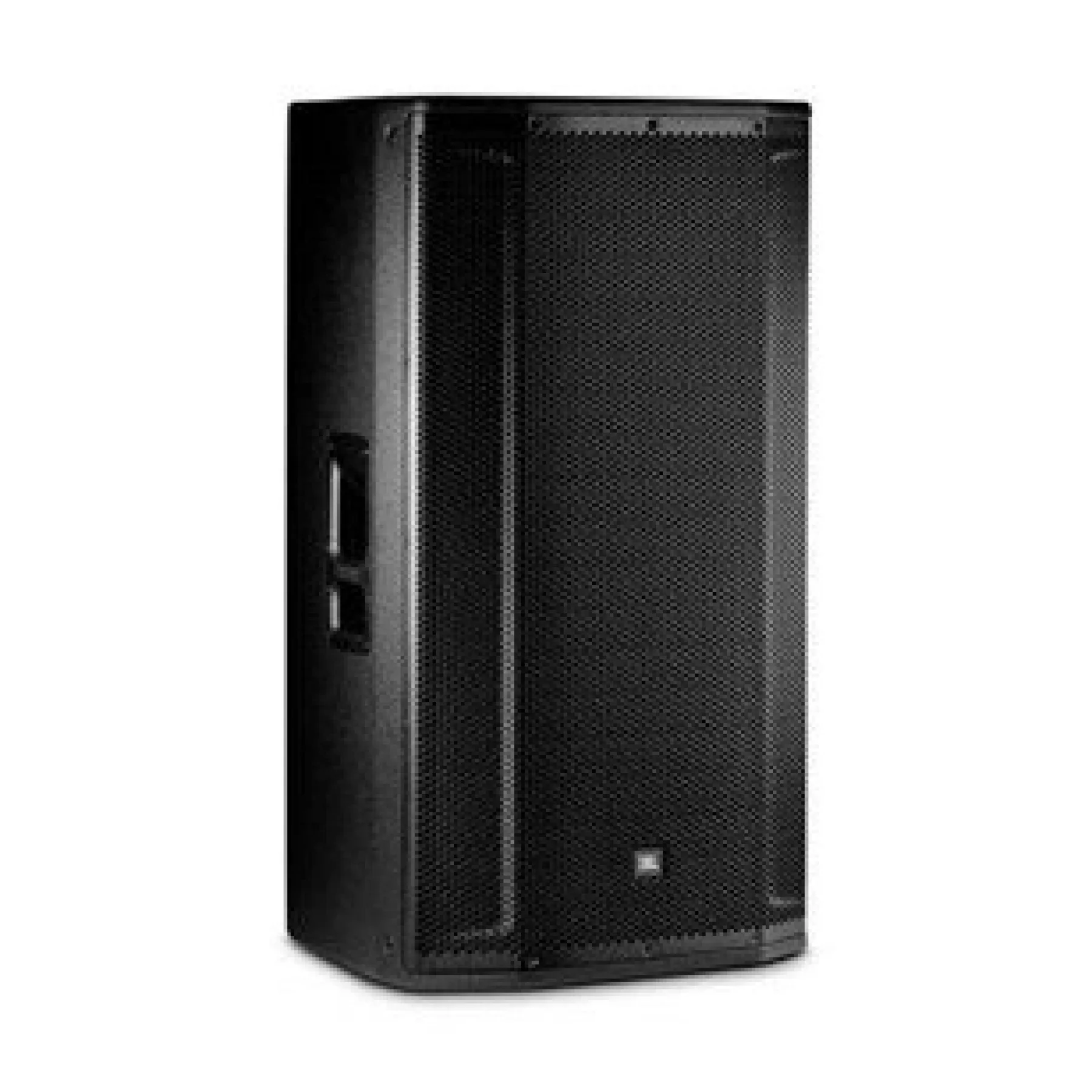

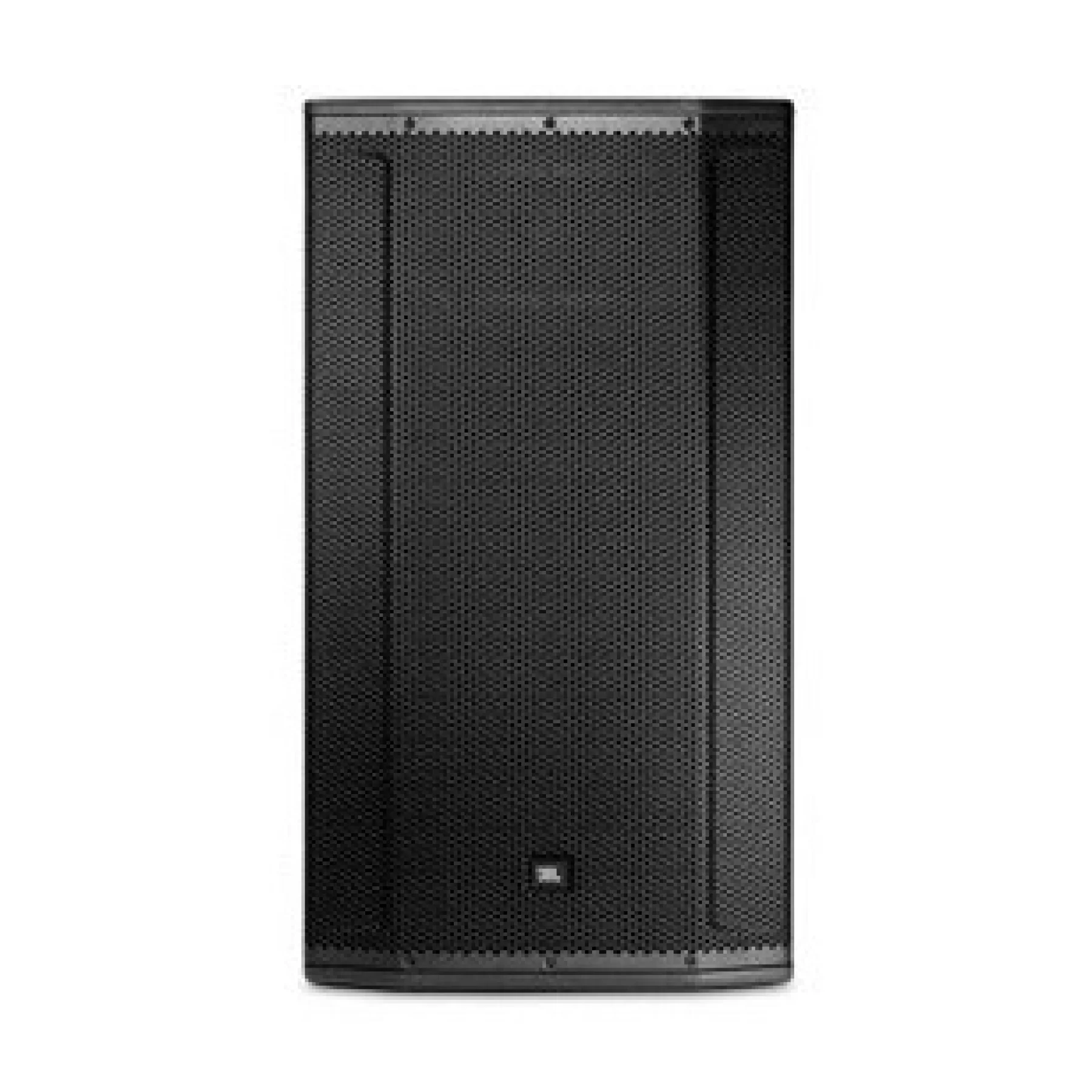

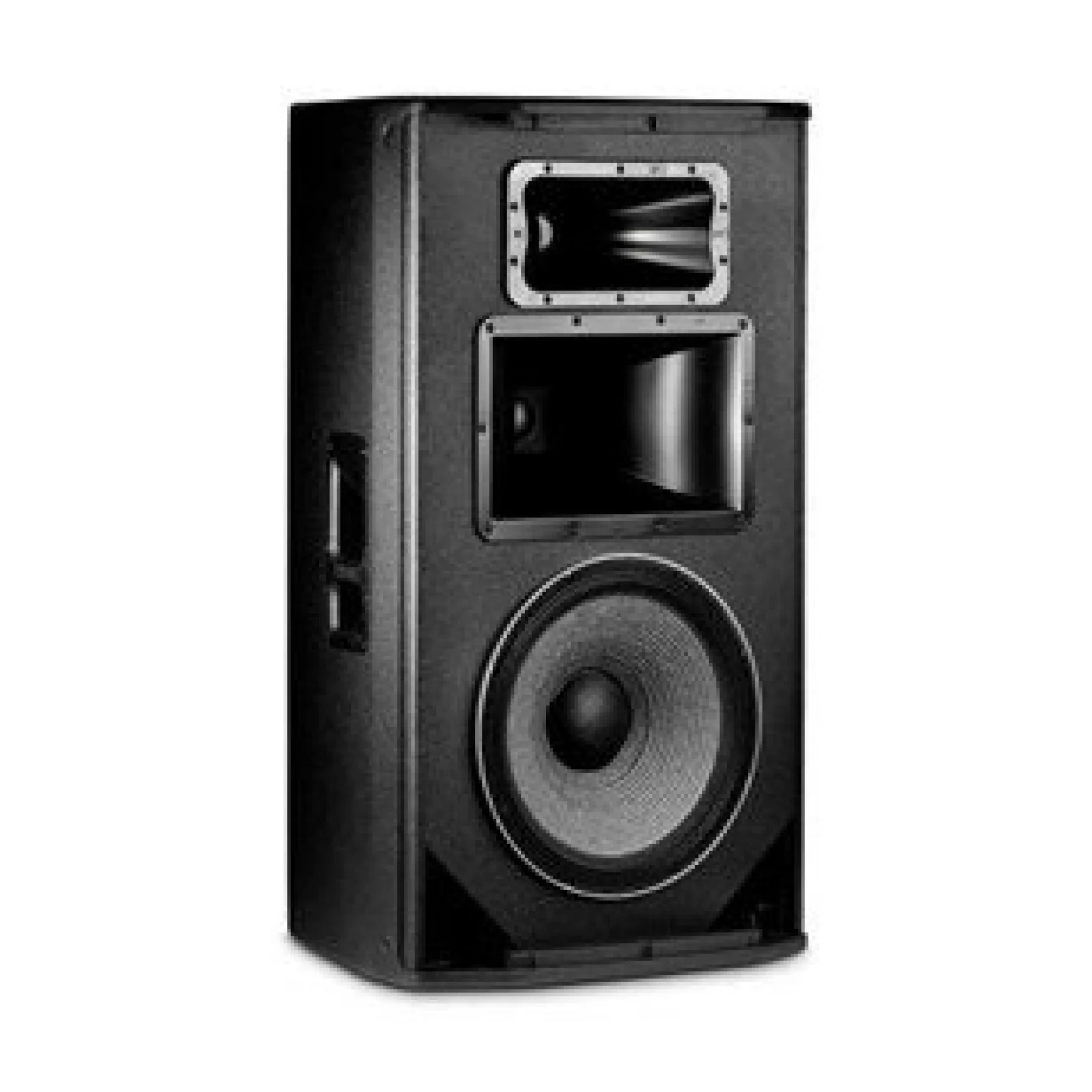

JBL SRX835 15"+1.75" Pasif Hoparlör, 2000W, 137 Db

Stok yok sipariş üzerine tedarik edilir. Lütfen iletişime geçiniz: 0 (533) 592 49 10

JBL SRX835 15"+1.75" Passive Speaker, 2000W, 137 dB

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 32Hz-20kHz
  • Frequency Response: 43Hz-20kHz
  • Max SPL: 137dB
  • Coverage Pattern: 60x40
  • Amplification options: Passive/Bi-Amp

SPECIFICATIONS

 System TypePassive 15”, three-way, bass-reflex
 Maximum SPL Output137dB
 Frequency Range (-10dB)32hz - 20khz
 Frequency Response (- 3dB)43hz - 17khz
 Sensitivity (1W/1m)95dB
 System Power Rating3200W Peak, 1600W Program, 800W Continuous
 Nominal Impedance8 Ohm

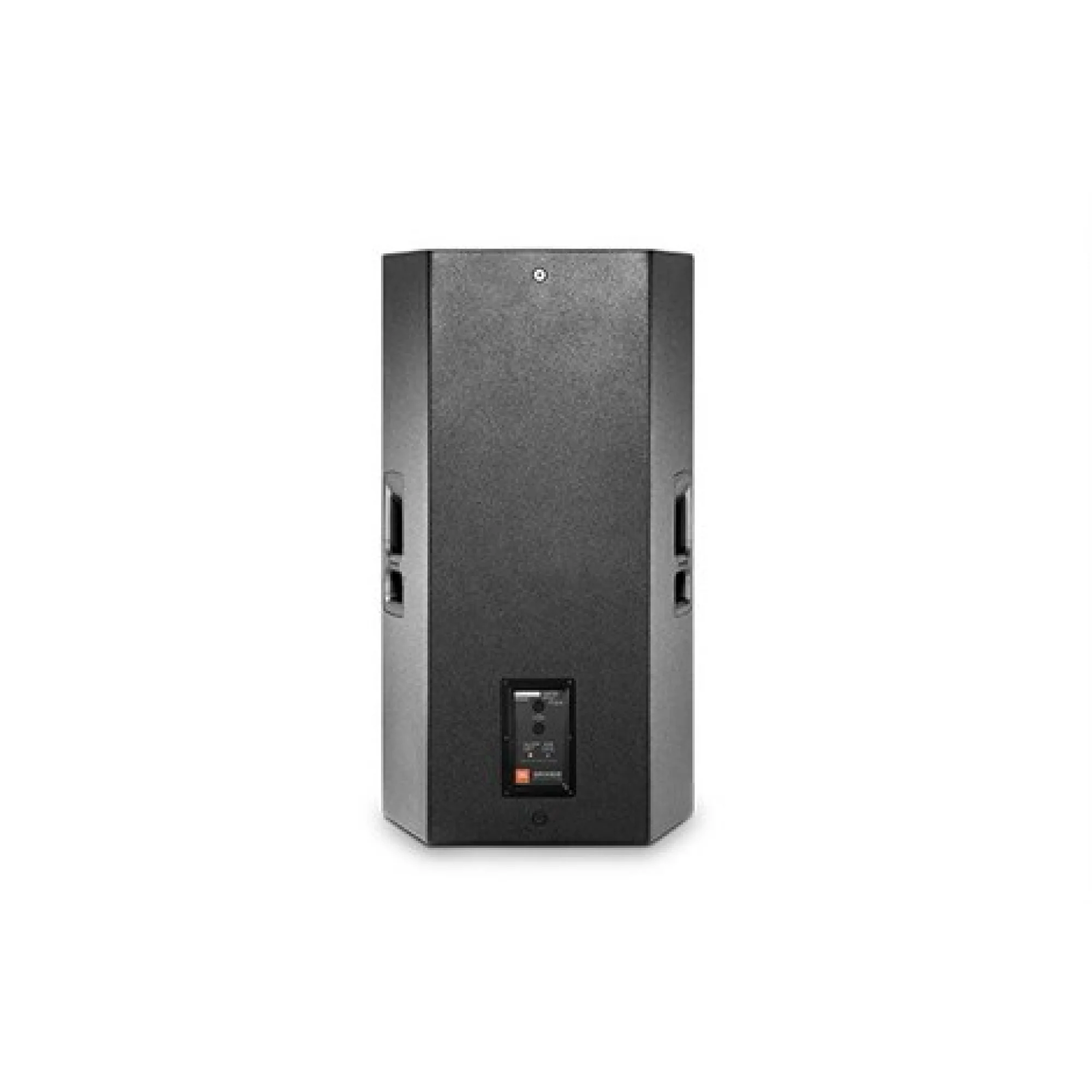

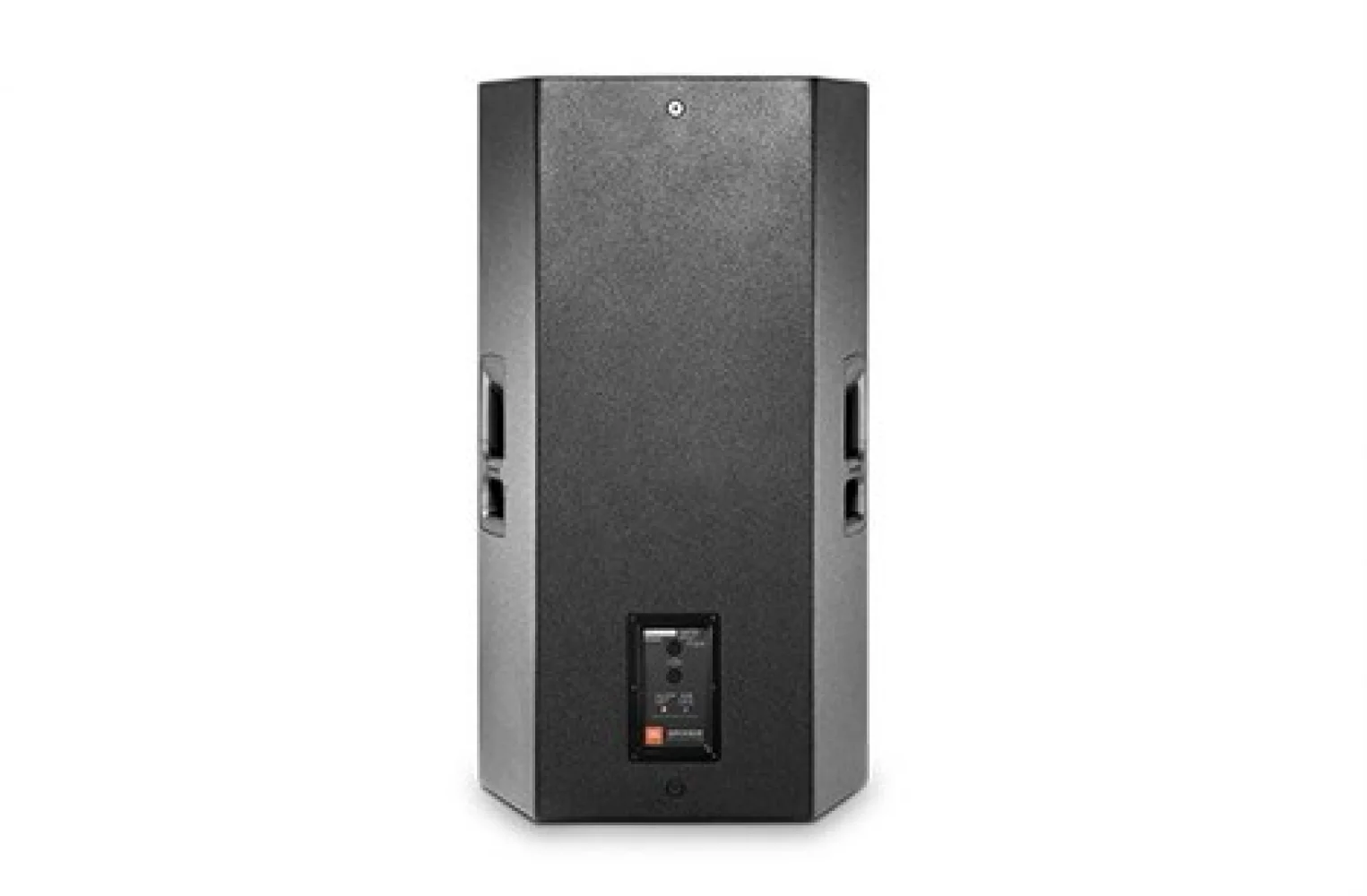

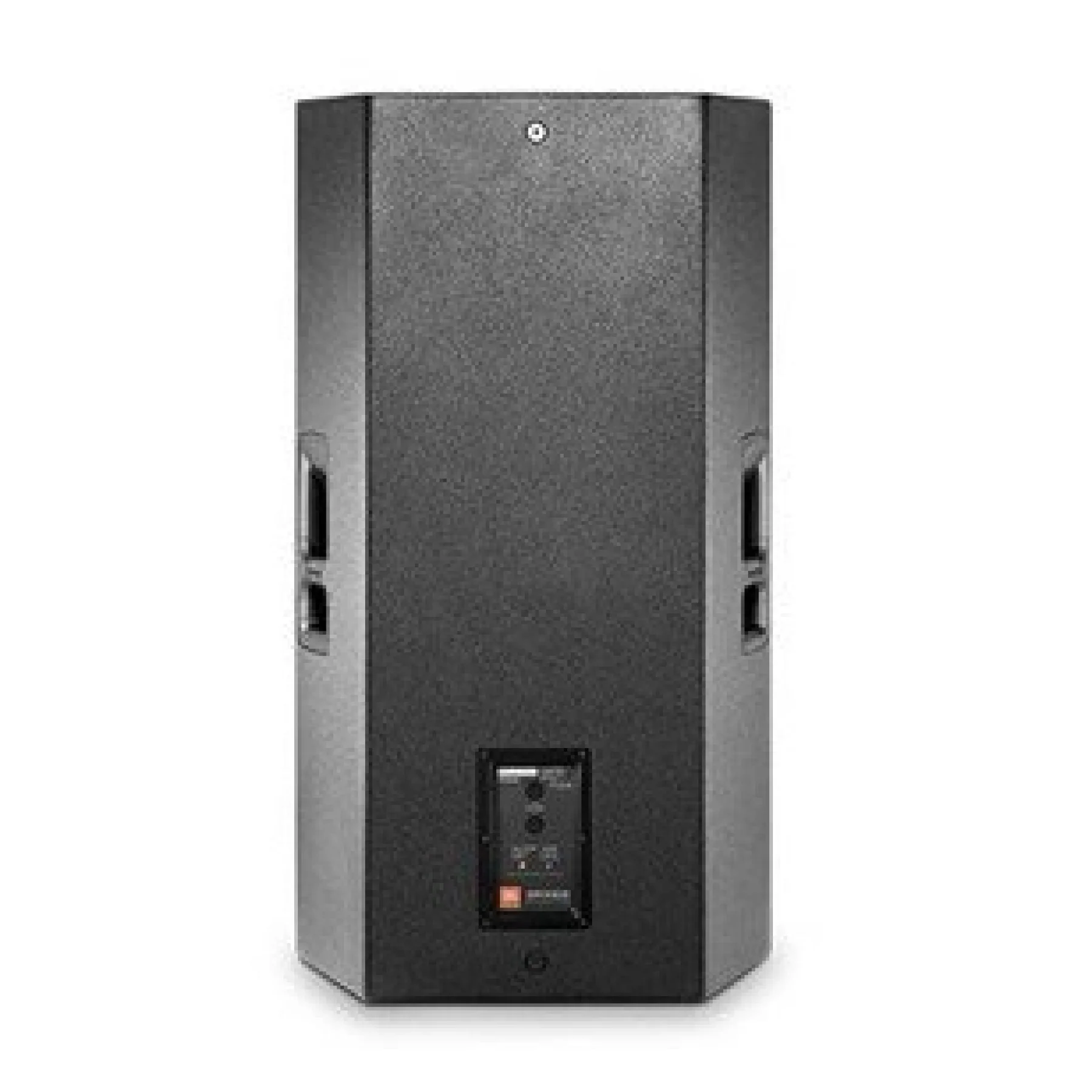

 ConnectorsNL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
 Operational ModesPassive/Bi-Amp

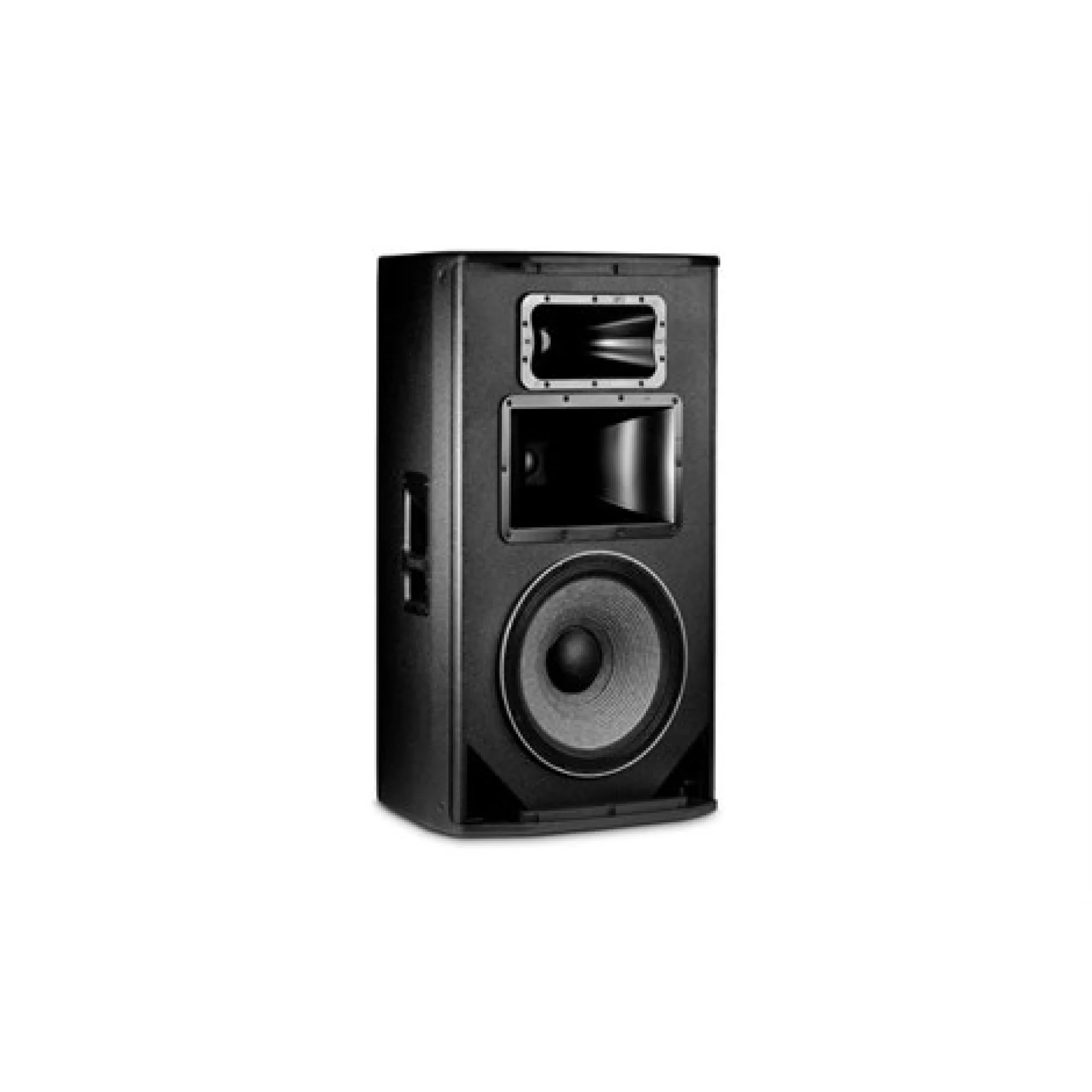

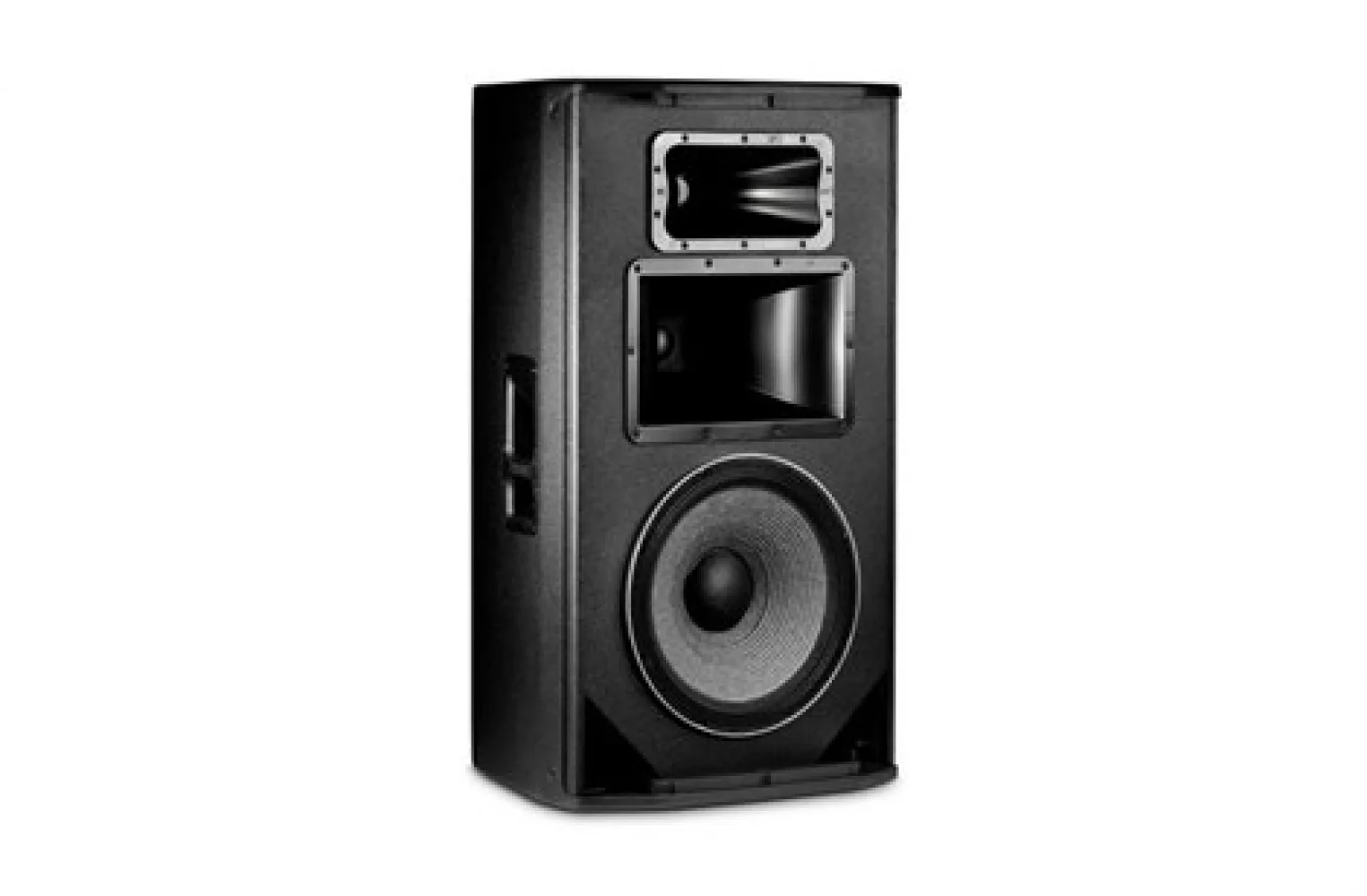

 LF Driver2275F
 MF Driver2107H
 HF Driver2432H
 Coverage Pattern60 x 40
 Crossover Frequency330hz & 2.4khz
 Enclosure Material18mm plywood
 Suspension/MountingSingle 36mm pole socket, 12 x M10 Suspension points

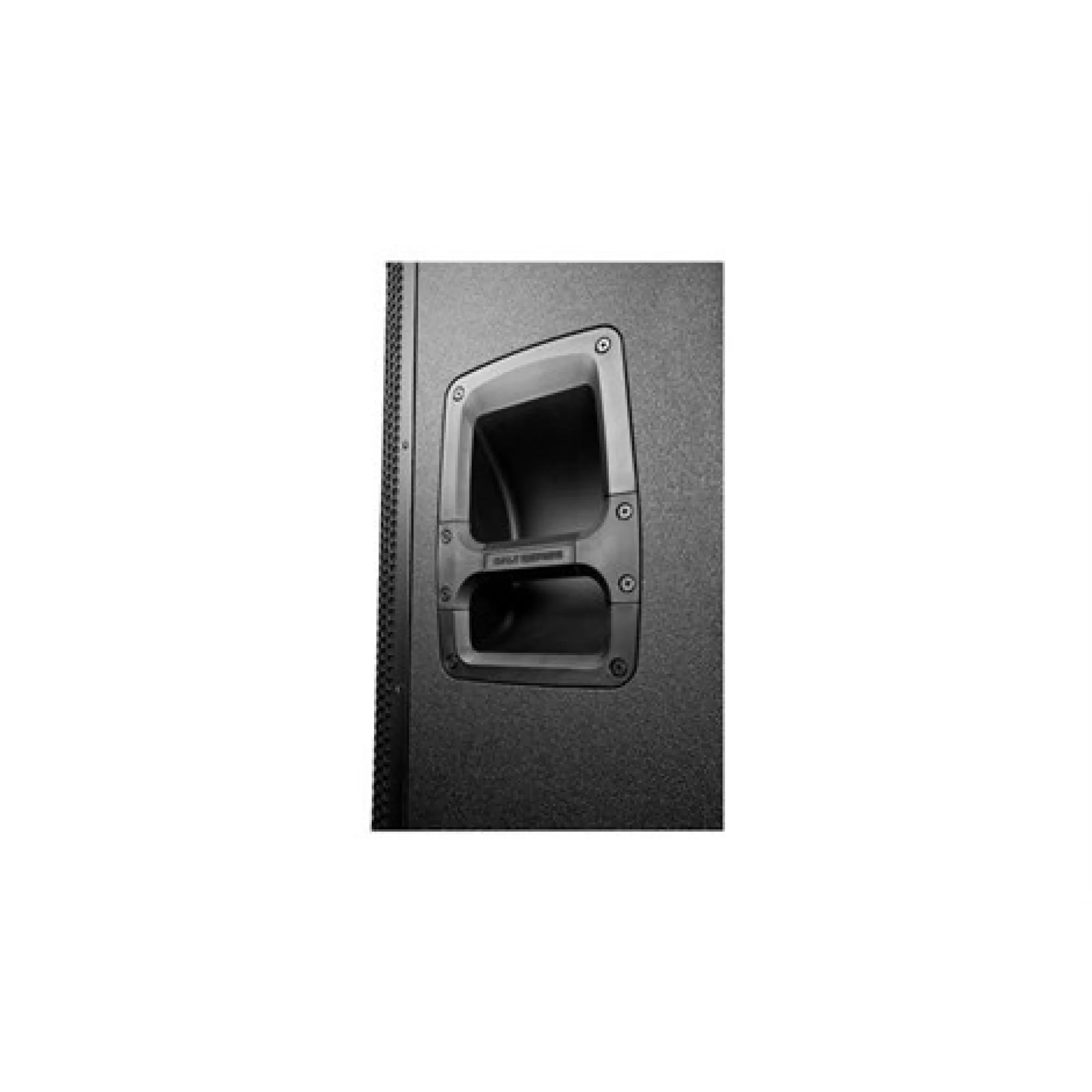

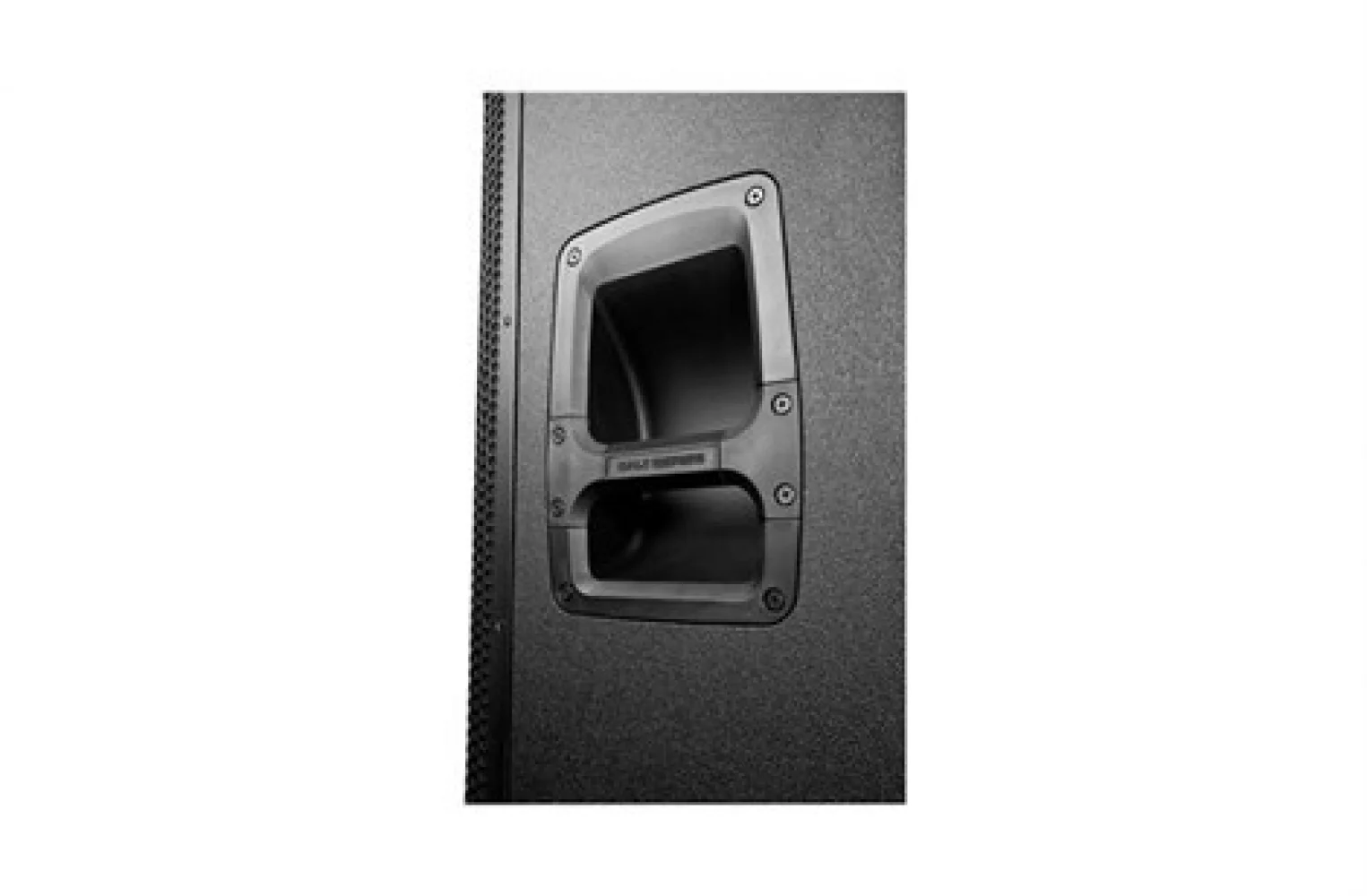

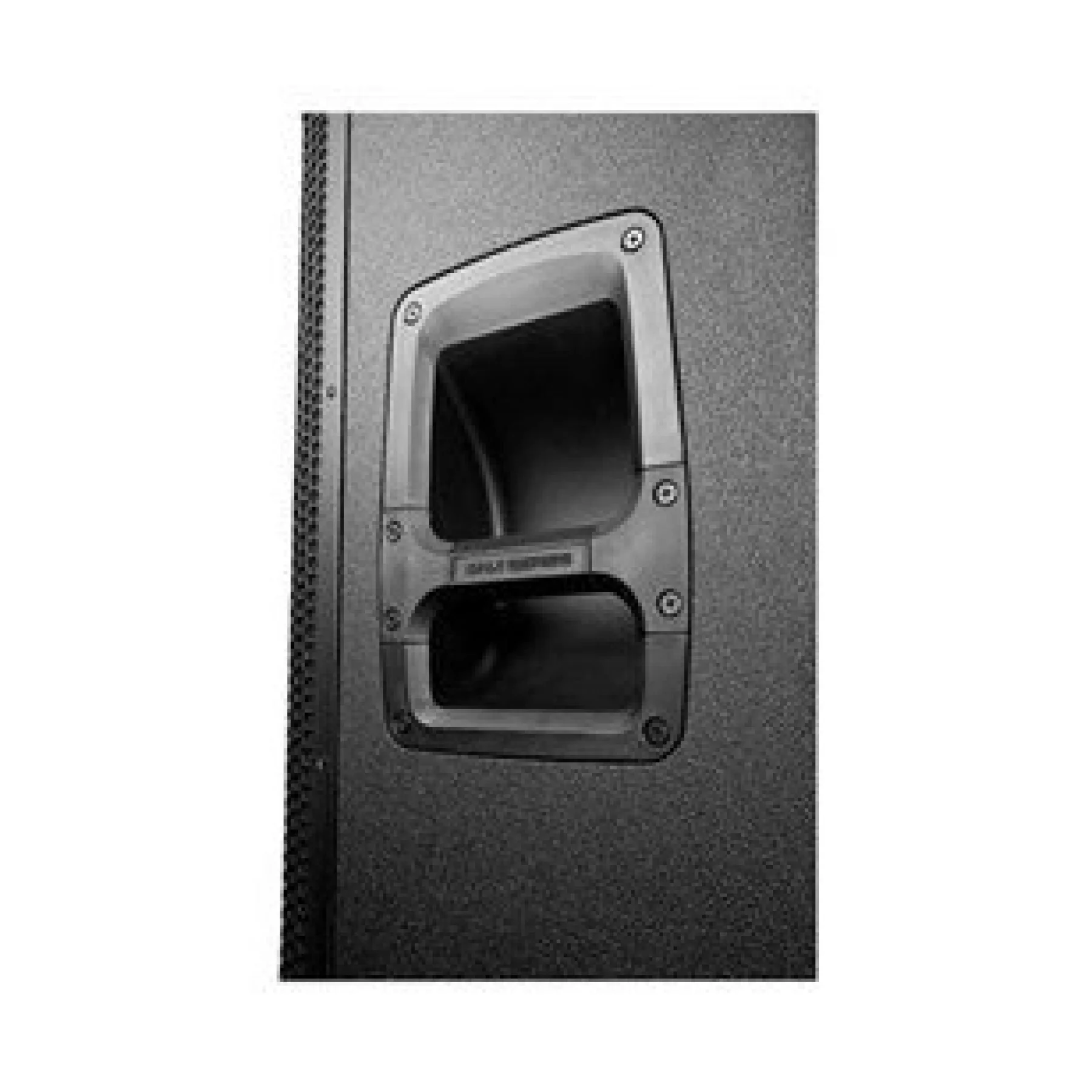

 Handles2
 FinishObsidian Duraflex™ finish

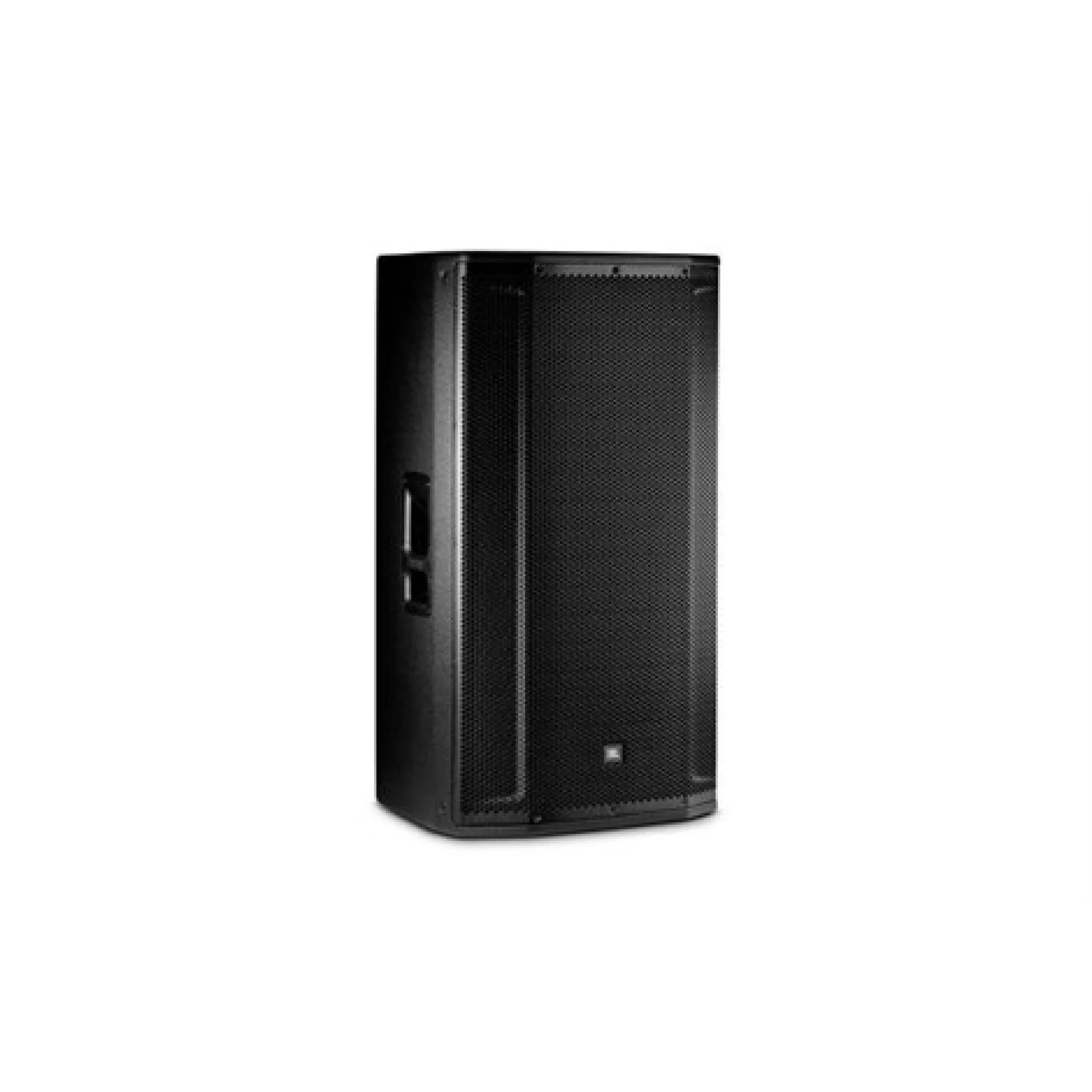

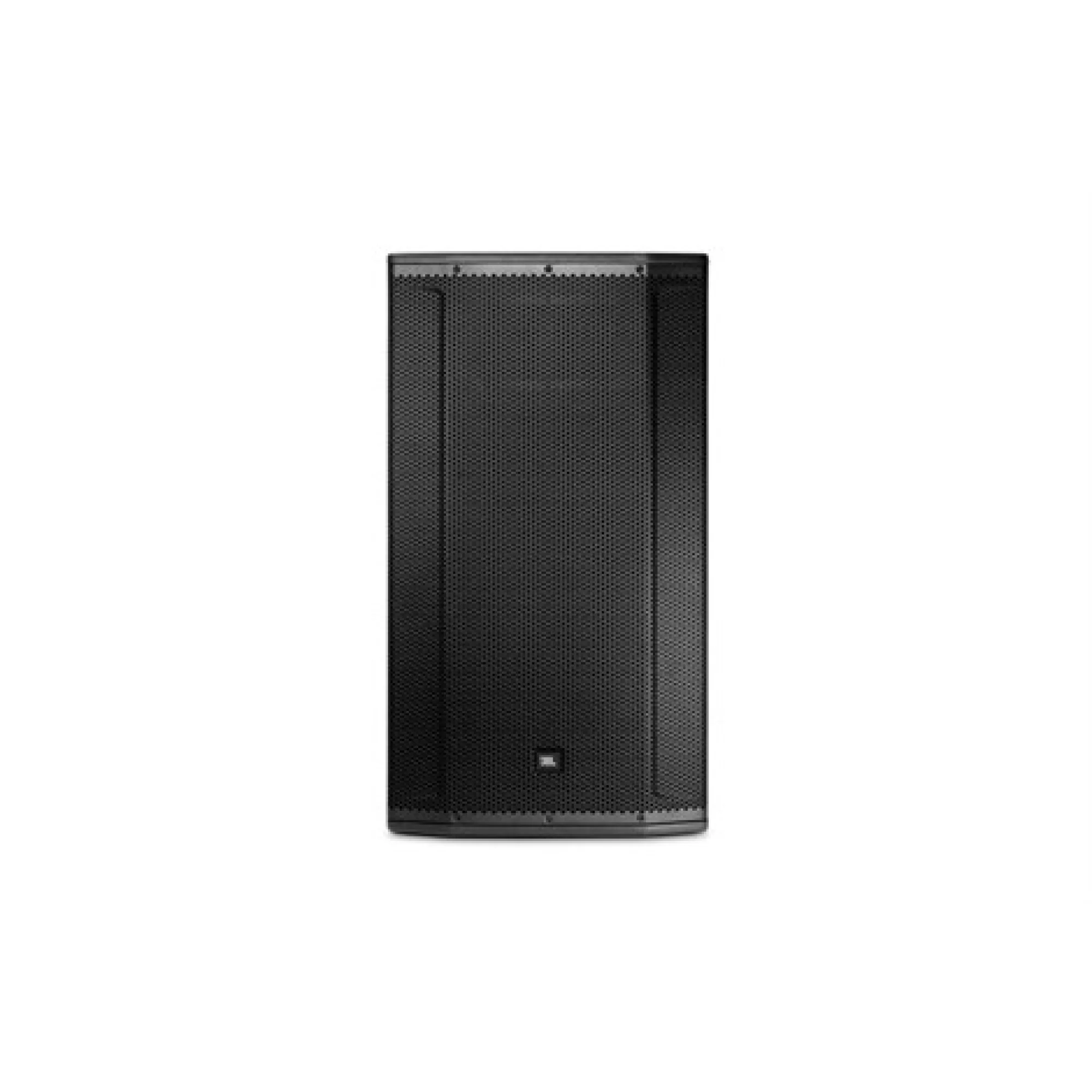

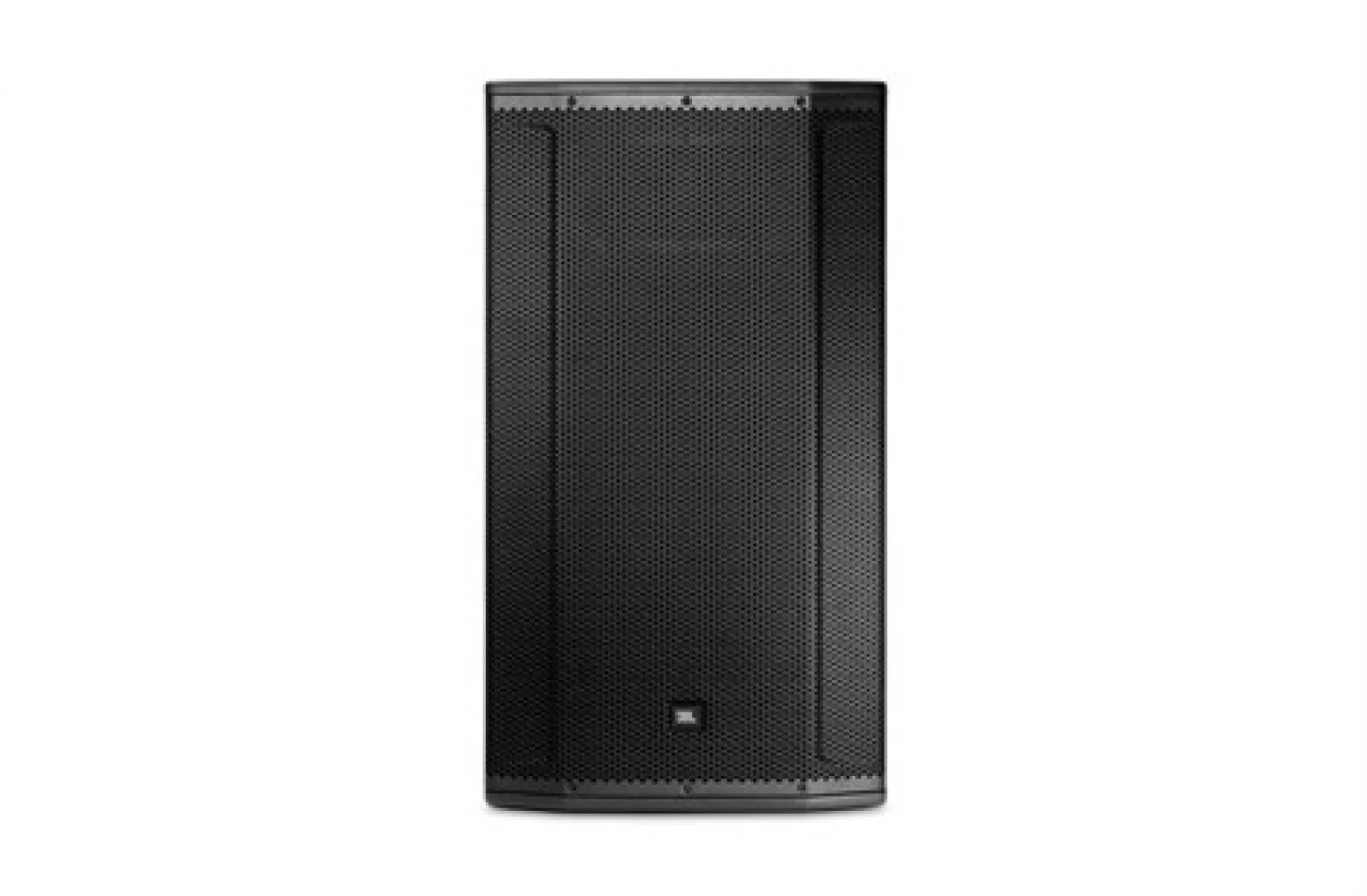

 GrillePowder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
 Dimensions (L x W x H)18.74" x 21.4" x 38.74" (476mm x 544mm x 984mm)
 Weight95.0 lbs (43.1kg)

Hoparlör TürüPasif Hoparlörler
