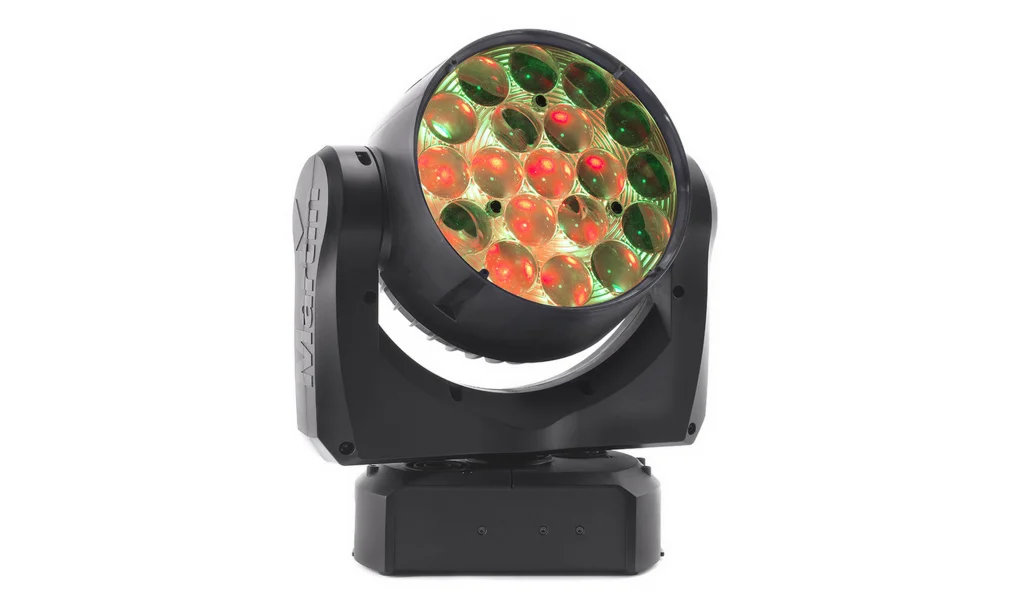

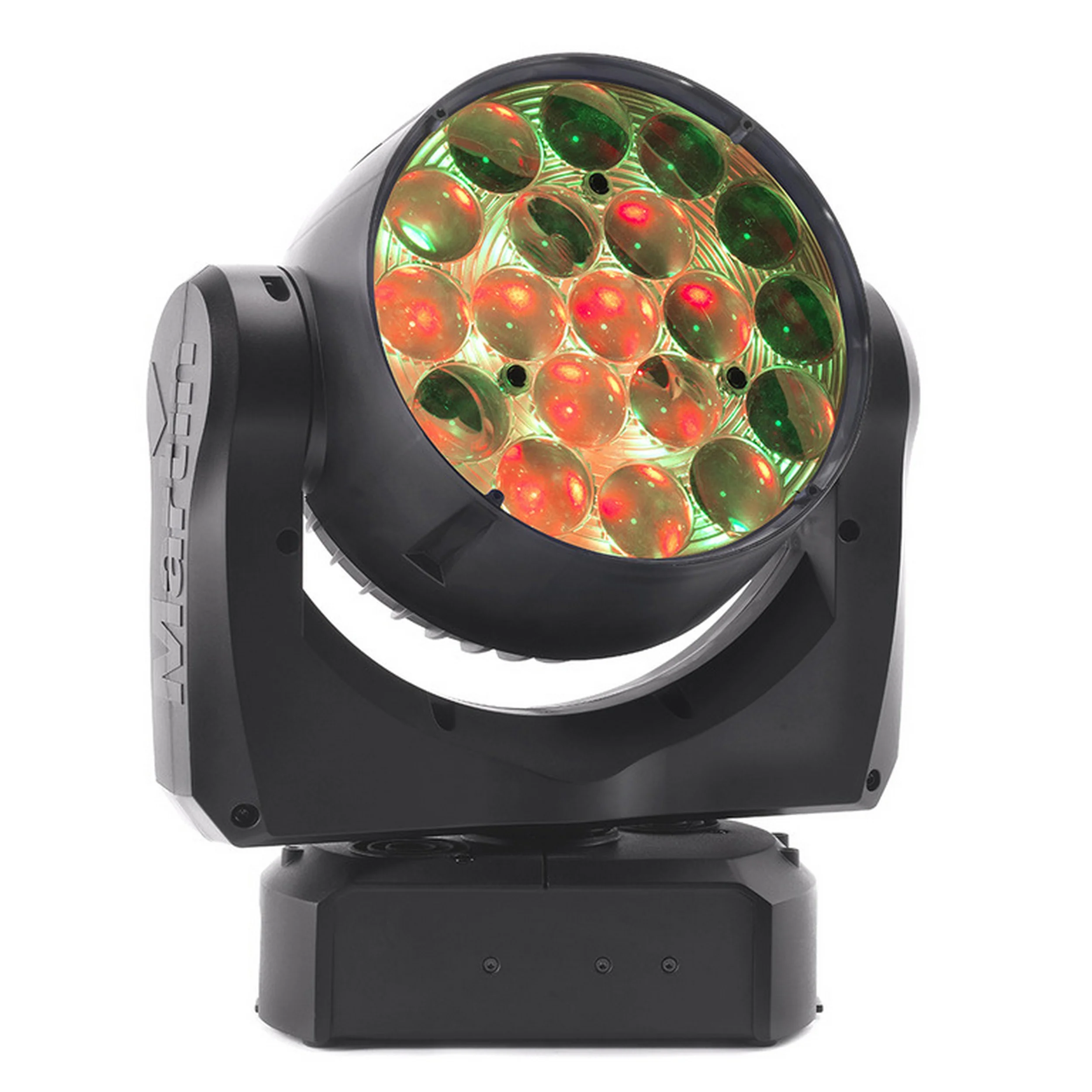

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martins unique and patented Eye-candy Aura Effect™ is also part of the package.
- Super bright single lens wash with fully premixed color
- Compact design and low weight
- High efficiency, low power consumption, long service life
VIDEOS
FEATURES
- Super-bright single-lens wash with fully premixed color
- Broad color palette, RGBW color mixing
- Eye-candy Aura Effect™
- Uniform shades
- Built-in FX engine
- 10 to 60° uniform zoom
- 6000 Lumens output
- Rapid movement
- Compact, low weight design (6.5 kg)
- High efficiency, low power consumption, long lifetime
SPECIFICATIONS
- PHYSICALLength: 302 mm (11.9 in.) across yokeWidth: 302 mm (11.9 in.) across yokeHeight: 360 mm (14.2 in.),head straight upWeight: 6.5 kg (14.4 lbs.) without accessoriesDYNAMIC EFFECTSBeam color mixing: RGBWAura (secondary lens array illumination) color mixing: RGBBeam color temperature control: CTO, variable 10,000 - 2500 KBeam and aura electronic color wheel effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random colorBeam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effectsPre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combinedElectronic dimming: Independent beam and aura, four dimming curve optionsPan: 540°Tilt: 232°Pan and tilt speed: Adjustable via onboard control panel and DMXCONTROL AND PROGRAMMINGControl systems: DMX, RDMControl options: Independent or synchronized Beam and Aura controlControl resolution: 8-bit, with 16-bit control of pan & tiltSetting and addressing: Control panel with backlit graphic displayDMX channels: 14/25DMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Transceiver: RS-485Firmware update: Via DMX with Martin™ USB Duo DMX Interface BoxOPTICS AND PHOTOMETRIC DATA
Light Source: 19x 15W RGBW LED Array System
LED Refresh Rate Beam: 1200 Hz
LED Refresh Rate Aura: 4395 Hz
Total luminous output (wide, one-tenth peak): 6000 lumens
Total luminous output (narrow, one-tenth peak): 4300 lumens
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Extended Mode, Calibrated Mode and Raw Mode
Video compatibility: Designed for use with HD/high-speed video cameras
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer´s test conditionsCONSTRUCTIONHousing: High-impact thermoplastic, flame-retardant to UL 94 5VAColor: BlackProtection rating: IP20INSTALLATIONMounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracketLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 200 mm (8.0 in.)Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.)CONNECTIONSAC Power: Neutrik PowerCON TRUE1 NAC3PX dual socketAC power input socket: Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connectorAC power thru socket: Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connectorDMX and RDM data in/out: 5-pin locking XLR - ELECTRICALAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current: 10.7 ATypical power consumption, all effects static, zero light output: <25 WMaximum total power consumption: 400 WTYPICAL POWER AND CURRENT100 V, 60 Hz: 359 W, 3.8 A, PF 0.99120 V, 60 Hz: 355 W, 3.2 A, PF 0.99208 V, 60 Hz: 350 W, 1.8 A, PF 0.97230 V, 50 Hz: 349 W, 1.7 A, PF 0.95240 V, 50 Hz: 349 W, 1.6 A, PF 0.95Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.THERMALCooling: Forced air (temperature-regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.APPROVALSEU safety: EN 60598-2-17 (EN 60598-1),EN 62471EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA E598-2-17 (CSA E60598-1)Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241INCLUDED ITEMSUser manual: P/N 35000254
M12 bolt suitable for use with Martin rigging clamps
Note that power cables and connectors are not included and must be ordered separatelyACCESSORIESPower connectors:Cable connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
Cables, 16 A, for connection to power in chains:
Cable Connector, Neutrik PowerCON TRUE1 NAC3MX-W (male): P/N 91611788Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),1.5 m (4.9 ft.): P/N 91611797
Cables, 16 A, for relaying power in chains:
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),5 m (16.4 ft.): P/N 91610174Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172(H07RN-F are European approved cables, SJOOW are US approved cables)
Optical Accessories: MAC Aura / Aura XB Soft Lens Kit: P/N 91611730Installation hardware:Quick surface mounting bracket for MAC Aura XB, set of 5: P/N 91606018
Flightcase: 6-unit flightcase for MAC Aura™: P/N 91515020
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007RELATED ITEMSMartin Companion Cable: P/N 91616091Martin Companion Software Suite (including firmware uploader): Free download from www.martin.comORDERING INFORMATIONMAC Aura XB™ in cardboard box: P/N 90232100MAC Aura XB™ in 6-unit flightcase: P/N 90232110
