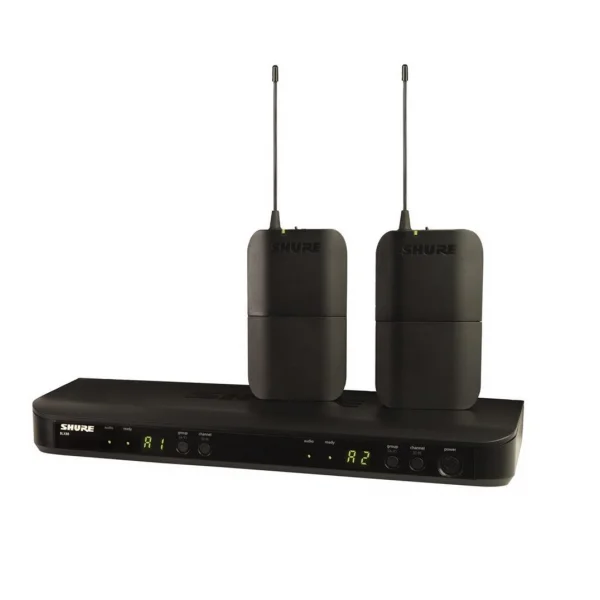

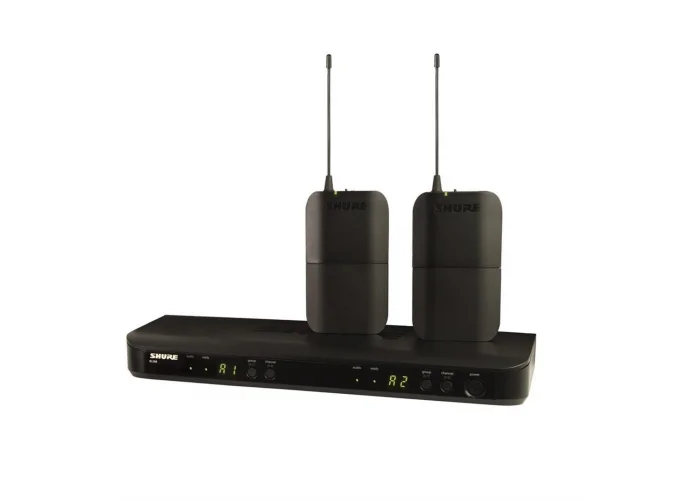

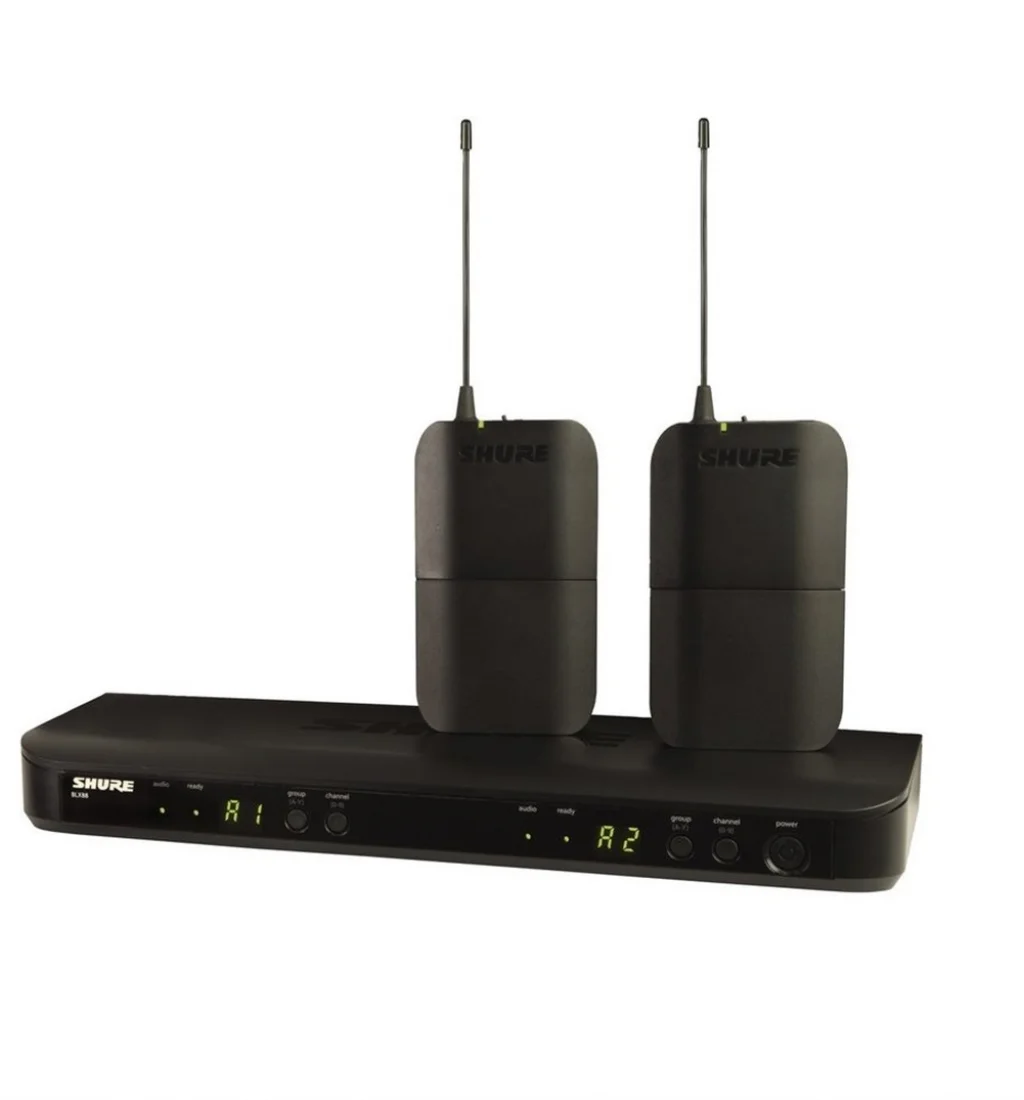

Shure BLX188E Dual Receiver and 2 x Bodypack Transmitter
Frekans
- H8 - 518 / 542 Mhz
- J10 - 584 / 608 Mhz
- K12 - 614 / 638 Mhz
- M15 - 662 / 686 Mhz
BLX88 Dual Ch. Receiver
- Dual-Channel Receiver
- H8 Frequency Band
- One-Touch QuickScan Frequency Selection
- 2x XLR & 2x 1/4" Outputs
- Diversity Antenna
- Audio Status LED Indicator
| utput | 2x XLR Output
2x 1/4" (6.35 mm) Output |
| Output Impedance | XLR: 200 Ω
1/4": 50 Ω |
| Audio Output Level | XLR Connector: -20.5 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, Typical |
| Image Rejection | >50 dB, Typical |
| Housing | Molded ABS |
| Power Requirement | 12 to 15 V DC @ 320 mA, Supplied by External Power Supply (Tip Positive) |
| Dimensions (H x W x D) | 1.5 x 15 x 4.5" (40 x 388 x 116 mm) |
| Weight | 15.1 oz (429 g) |
BLX1 Bodypack Receiver
- For Use with BLX Wireless Systems
- For Lavalier, Headset, Instrument Mics
- For Guitar Cables
- TQG Connection
- 14 Hours Battery Life
- Includes 2x AA Batteries
| Audio Input | Gain: -16 dBV (Maximum), 10 dBV (Minimum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 MΩ |
| RF Output | 10 mW, Typical |
| Housing | Molded ABS |
| Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline |
| Battery Life | Up to 14 Hours |
| Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm) |
| Weight | 2.6 oz (75 g) |
