WOX SUH8E-H2 1:8 HDMI Splitter, Çoklayıcı 4K@60, AOC Destekli

Uzun Mesafeler için AOC Destekli
Barkod: 2242005592830
Marka: WOX
Kategori: HDMI Splitter
Fiyatlar İçin Bilgi Alınız

Havale/EFT ile 0 TL

Stokta yok veya sipariş üzerine tedarik edilir. Lütfen iletişime geçiniz: 0 (533) 592 49 10

HDMI 2.0 1x8 Splitter with 4K to 1080p Down-scaling 4K 60Hz 4:4:4, Down Scaling, EDID

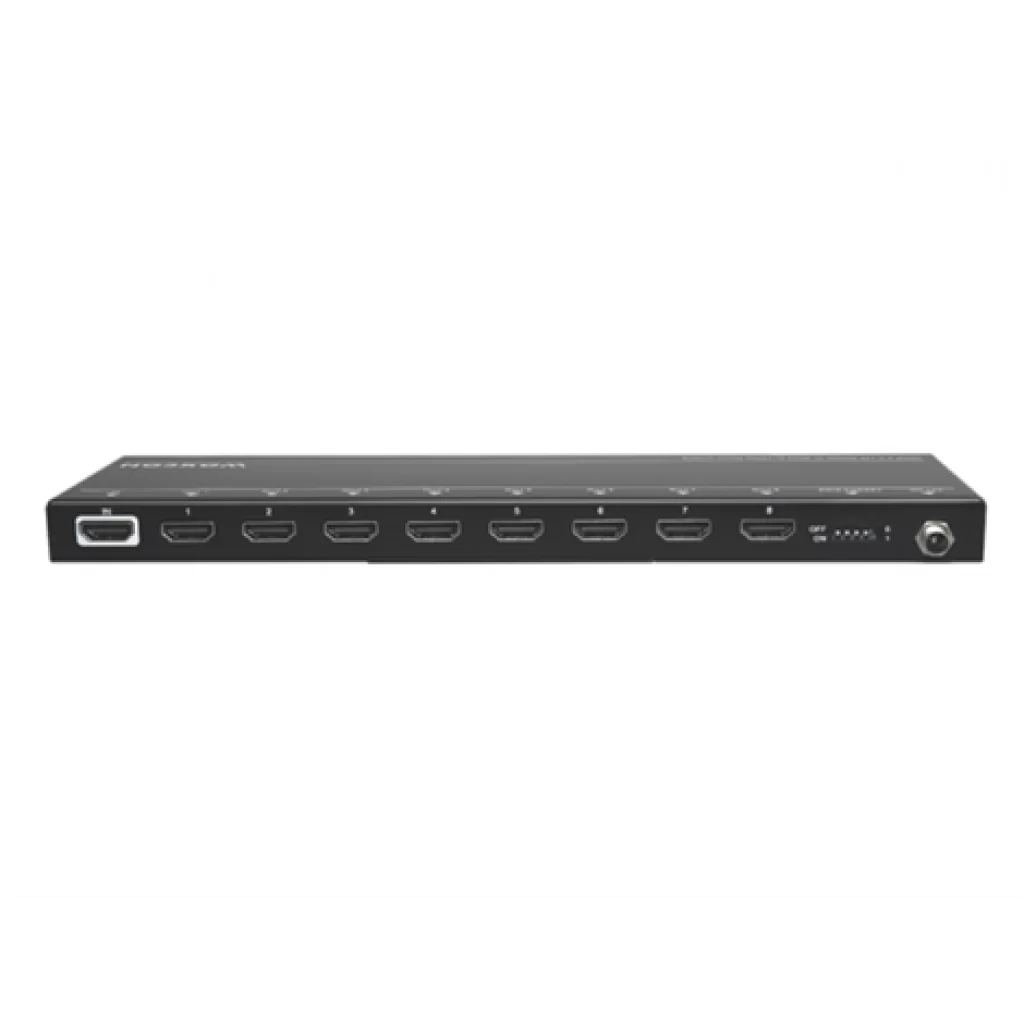

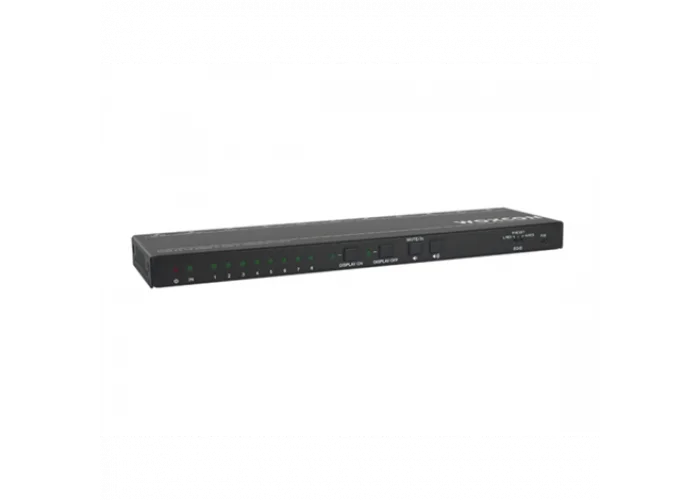

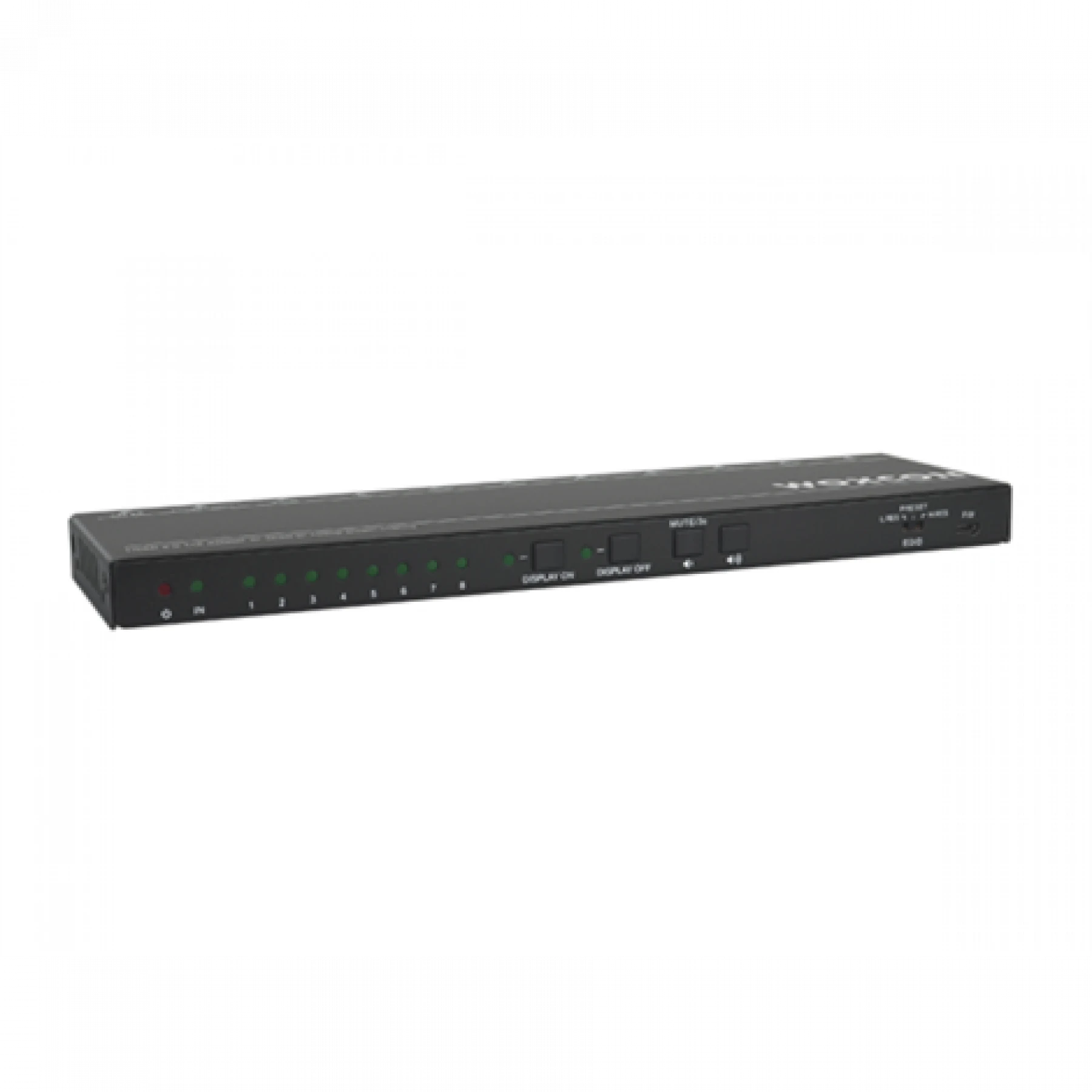

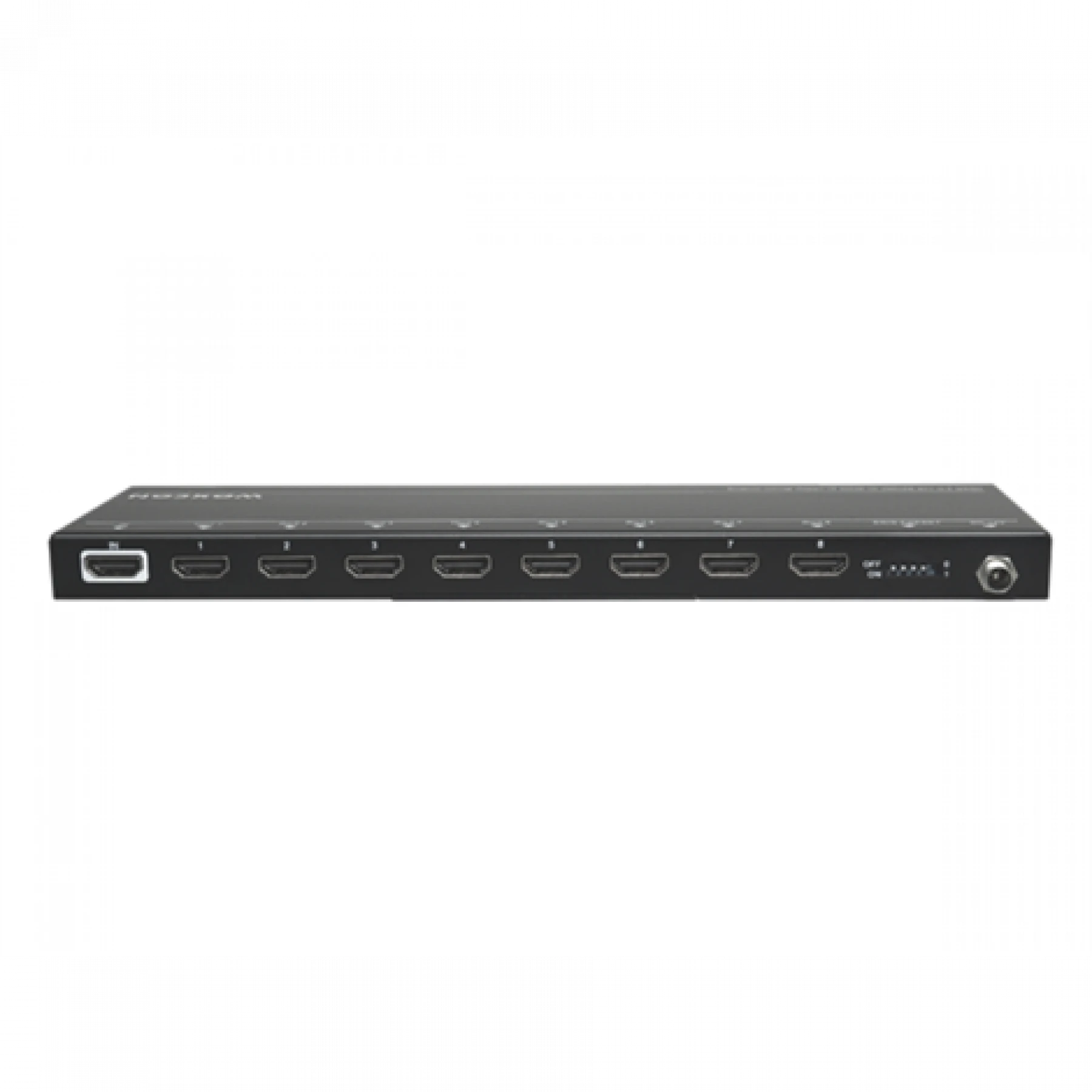

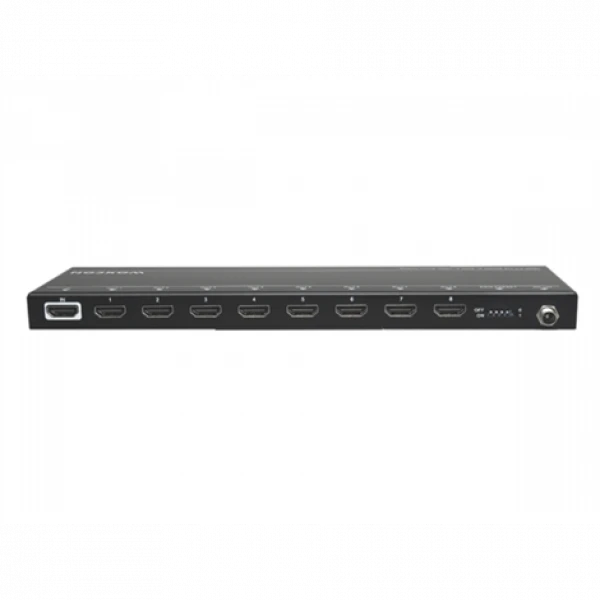

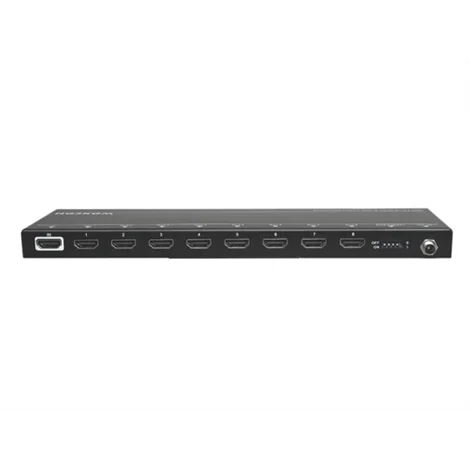

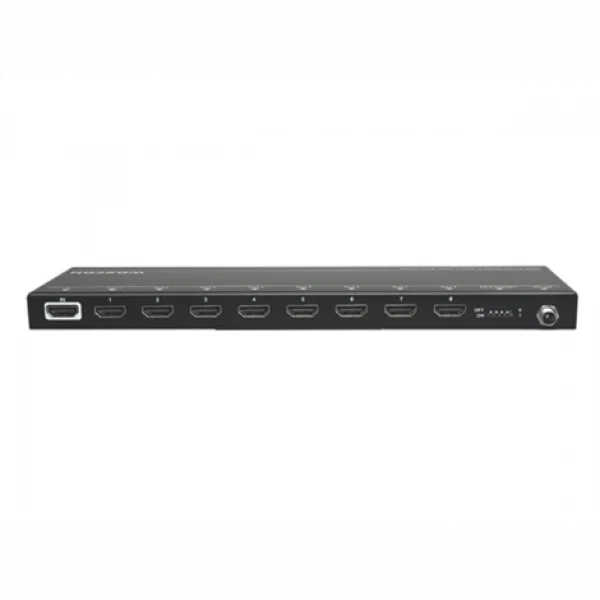

SUH8E-H2 is HDMI 2.0 1×8 Splitter, which can distribute one HDMI input to eight outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080p 3D and multichannel audio formats. Except passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the rear panel.

CEC technology is adopted to turn on/off displays and adjust volume by the control buttons on the front panel. Moreover, the splitter supports convenient firmware upgrade through Micro-USB port.

Features
Specification
System Diagram
Package List
Downloads

Supports HDMI 2.0 and the video resolution up to 4K@60Hz 4:4:4.
HDMI input supports HDCP 2.2 and the outputs support HDCP1.4.
Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display.
18Gbps high bandwidth.
Advanced EDID management: multiple preset and user defined allowed.
Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
Supports CEC control to turn on/off displays and adjust their volume.
Provides LEDs to indicate the current operating status and to assist troubleshooting and installation.
Firmware upgrade by Micro-USB port.

Video Input
Input	(1) HDMI
Input Connector	(1) Female type-A HDMI
HDMI Input Resolution	Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard	2.0
HDCP Version	2.Şub
CEC	Supported
Video Output
Output	(8) HDMI
Output Connector	(8) Female type-A HDMI
HDMI Output Resolution	Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard	2.0
CEC	Supported
Control
Control Part	(4) Control buttons; (1) EDID 3-pin DIP switch;
Control Part	(1) EDID 4-pin DIP switch; (1) Micro-USB port
General
Bandwidth	18Gbps
Operation Temperature	-10℃ ~ +55℃
Storage Temperature	-25℃ ~ +70℃
Relative Humility	10%-90%
Power Supply	Input:100V~240V AC; Output: 12V DC 1A
Power Consumption	7W(Max)
Dimension (WHD)	260mm x 20mm x 70mm
Net Weight	500g
