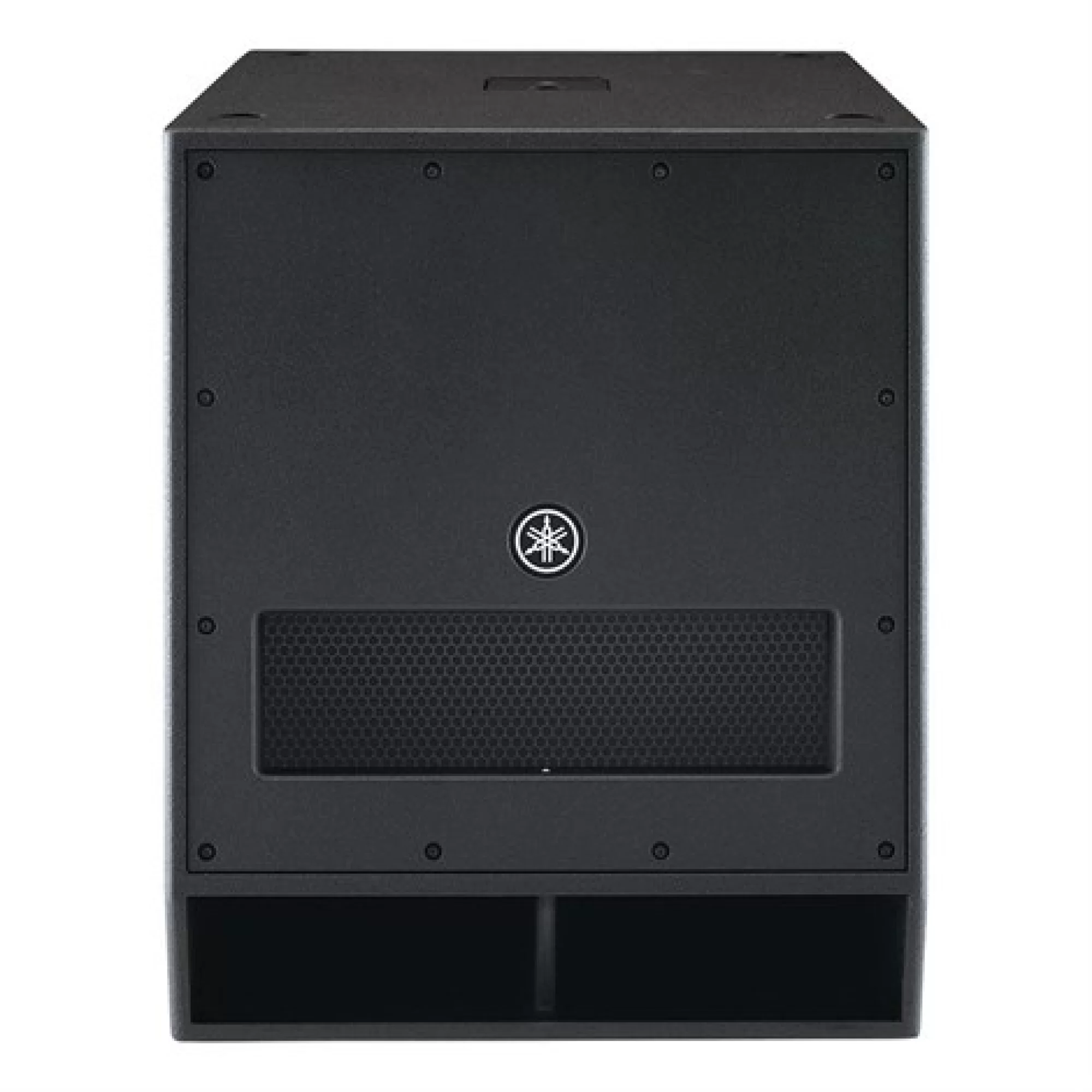

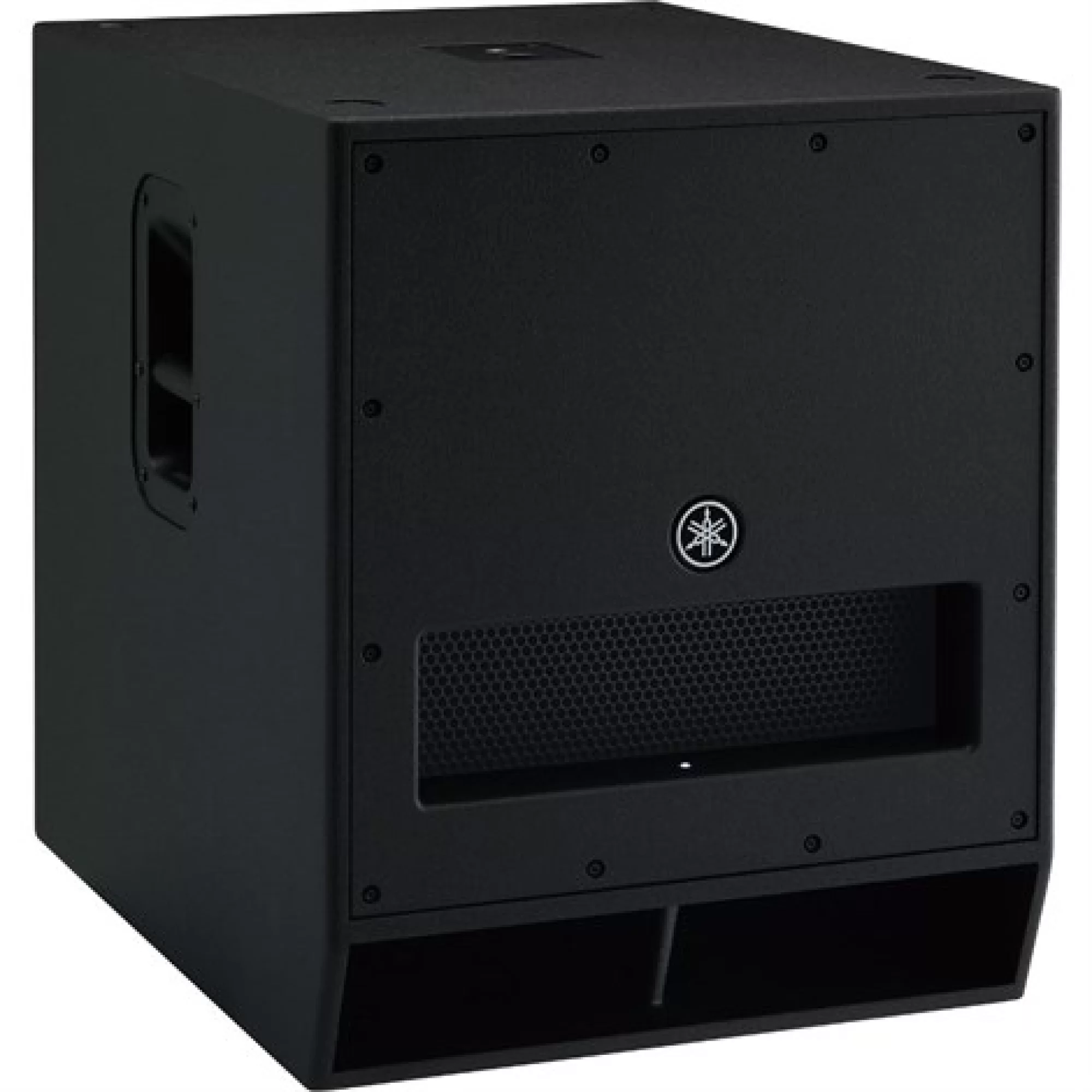

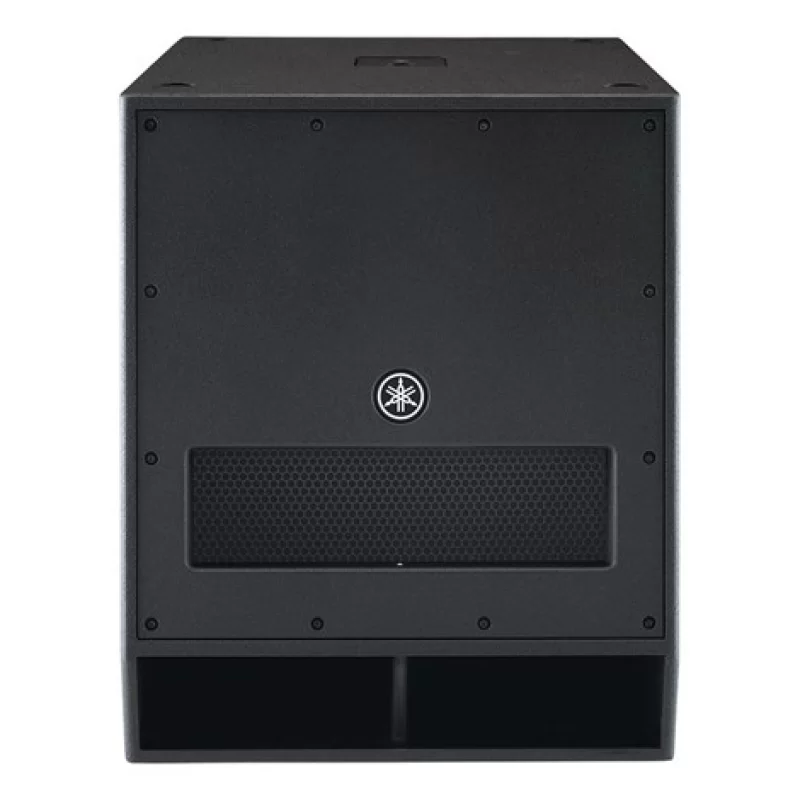

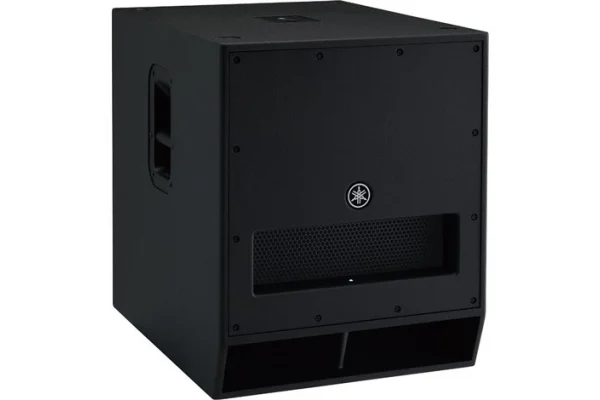

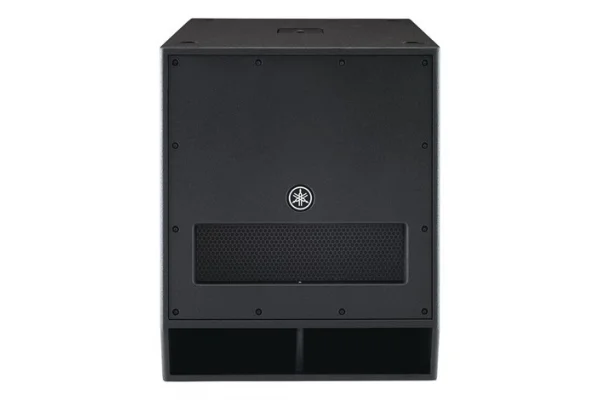

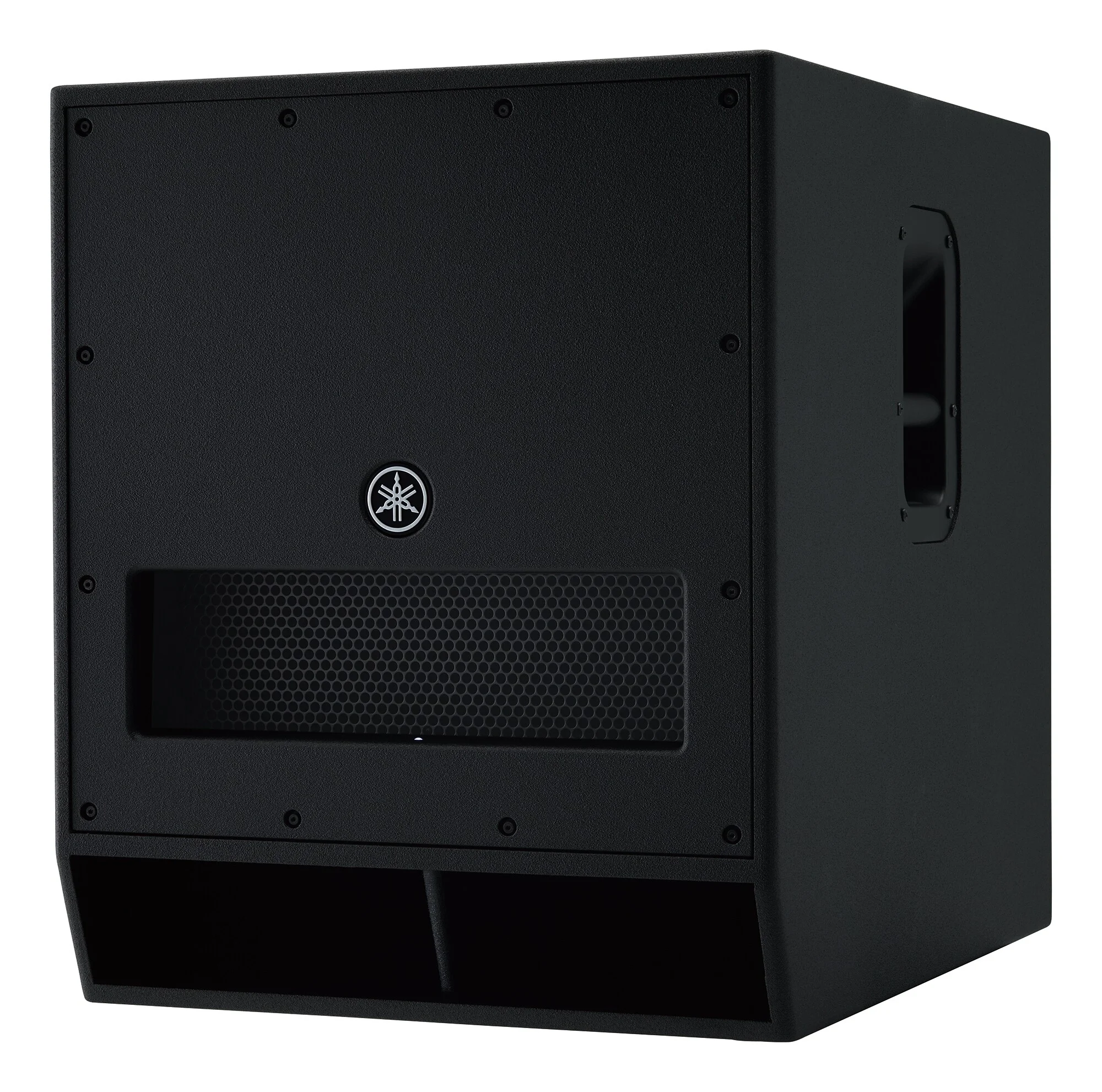

Yamaha DXS18 18" Aktif Subwoofer, 1020 Watt, 136 dB
High-Efficiency 1020W Class-D Amplifiers
The DXS’s high performance Class-D amplifier is capable of producing up to 1020W* of power, realizing an SPL of 136dB, delivered with exceptional clarity and accuracy. *DXS12 and DXS15 deliver 950W power.
Custom Designed Transducer
The high-output woofer features a 4" voice coil magnet and delivers powerful, well-defined, low-frequency bass with minimal distortion. *DXS12 and DXS15 feature 2.5" voice coil magnets.
Band-Pass Type Enclosure
The DXS Series has a band-pass design that produces extremely high SPL by drastically reducing the distortion.
Durable Wooden Enclosures with LINE-X® Coating
The exteriors feature a LINE-X® coating with extremely high damage resistance to protect the cabinet from scratches and wear, maintaining a professional appearance that can withstand many years of usage.

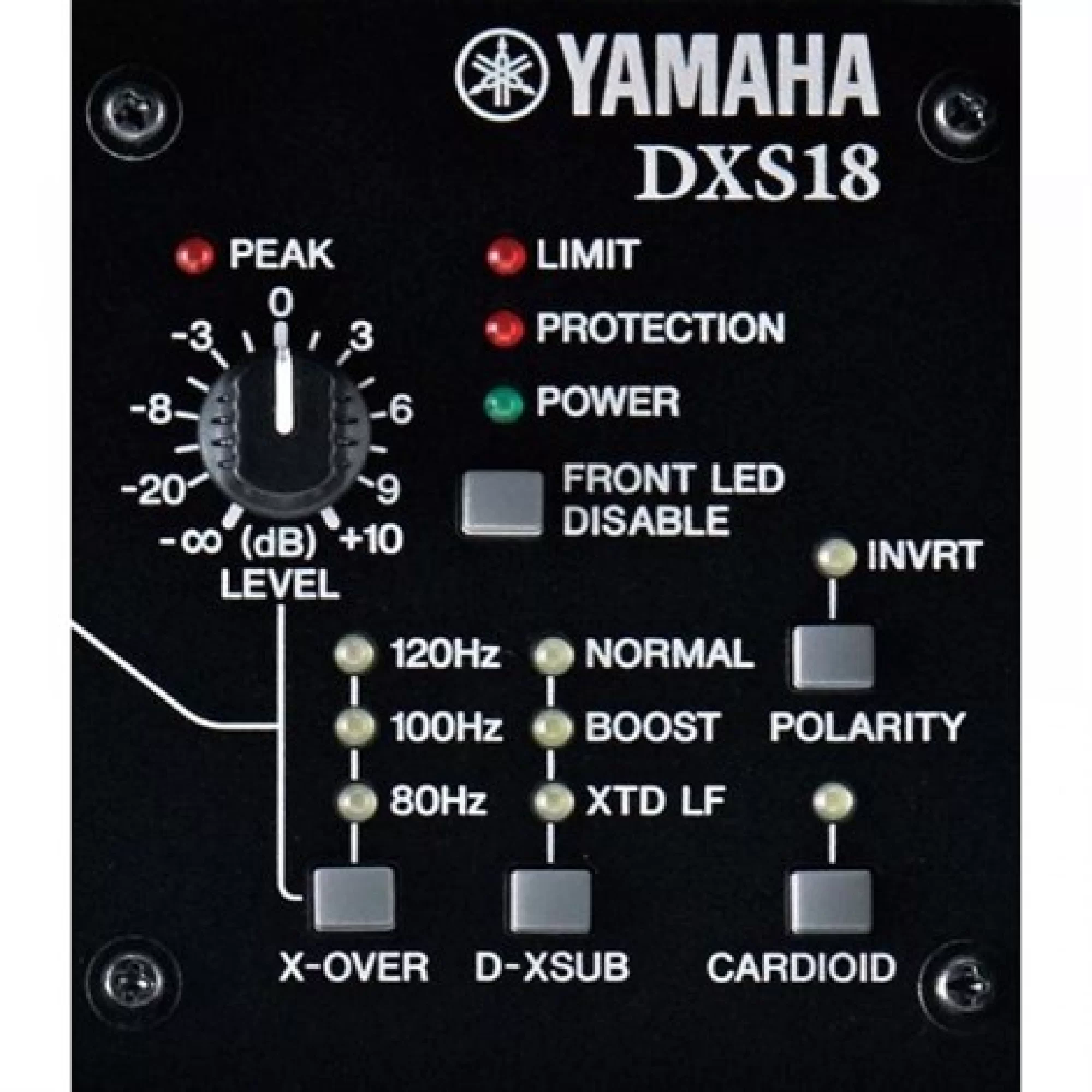

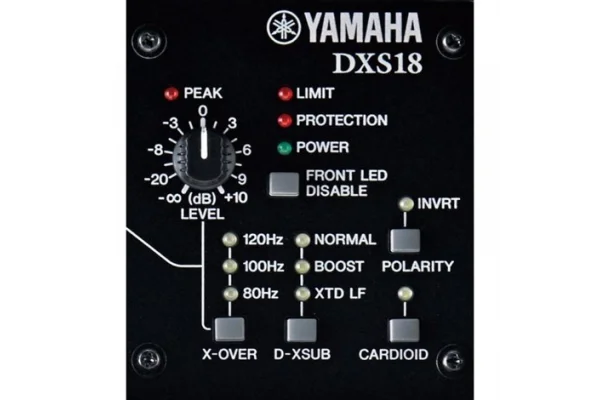

Selectable X-OVER(80/100/120Hz)
Crossover switching allows users to seamlessly match DXS subwoofers with any of Yamaha’s full-range powered speakers by selecting the cutoff frequency best suited to the models in their speaker array (up to 120Hz).
| Speaker type | 18" Powered subwoofer, Band-pass type |
|---|
| Frequency range (-10dB) | 32Hz – 120Hz |
|---|
| Components | LF | 18" cone, Voice Coil:4" |
|---|
| Output power | Dynamic:1020W / Continuous: 800W |
|---|
| Maximum output level (1m; on axis) | 136dB SPL |
|---|
| I/O connectors | INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST) |
|---|
| Processors | D-XSUB: BOOST, XTD LF, NORMAL |
|---|
| Cooling | Natural convection |
|---|
| Power requirements | 100V – 240V, 50Hz/60Hz |
|---|
| Power consumption | 100W |
|---|
| Pole socket | 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) |
|---|
| Dimensions | W | 563mm (22.2") |
|---|
| H | 683mm (26.8") |
|---|
| D | 721mm (28.4") |
|---|
| Net weight | 49.7kg (110lbs) |
|---|
| Others | Material: Plywood (LINE-X®, Black) |
|---|
