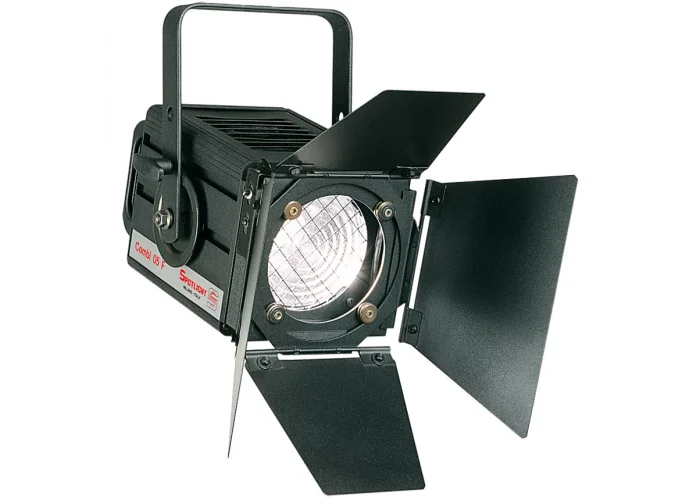

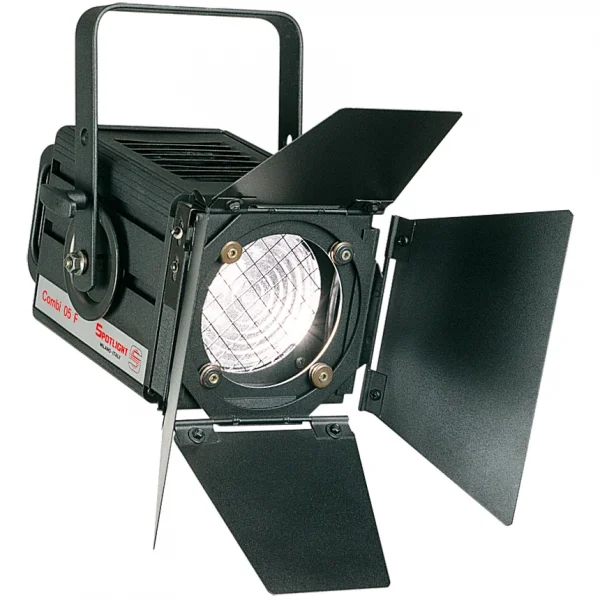

Spotlight COM-05 F 500 / 650 Watt Fresnel Spot, 7˚ - 62˚

Stok yok sipariş üzerine tedarik edilir. Lütfen iletişime geçiniz: 0 (533) 592 49 10



Fresnel luminaire with a soft-edged beam
Variable from 7 to 62° 110mm Ø borosilicate lens
Barndoors optional


Power: 300/500/650W

TECHNICAL FEATURES



 Electrical
Standard 230V, 50/60Hz power supply (others available on request)
Lamp-holder type GY 9.5
2m power supply cable (plug available on request)
Strain relief cable clamp entry into light housing
 Safety
Safety mesh
Filter-frame locking system
Compliance to CE EN 60598-2-17 standards
 Optical
Spherical reflector in 99.99% polished and treated aluminium:
70mm diameter
110mm diameter borosilicate lens mounted onto extended holders to allow ventilation
 Mechanical
Extruded aluminium and steel housing
Black Epoxy Resin paint
Labyrinth ventilation to avoid light spillage
 Operational
Access for lamp maintenance via removable top cover
Yoke with 10mm diameter hole, adjustable height, reversible and
sliding into extruded rails to balance accessories and for use in any position
Heat insulated knobs and handles
Focus adjustment by an endless screw mechanism operated by rear knob
