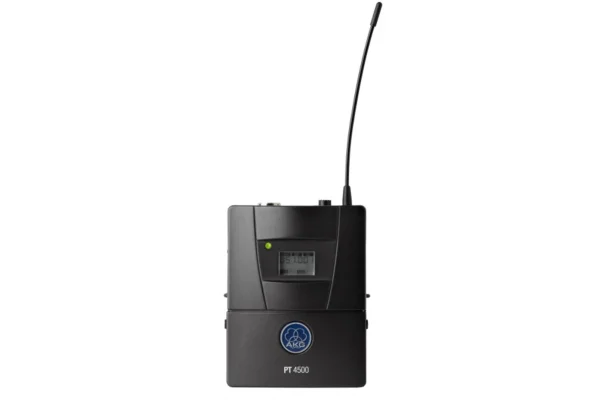

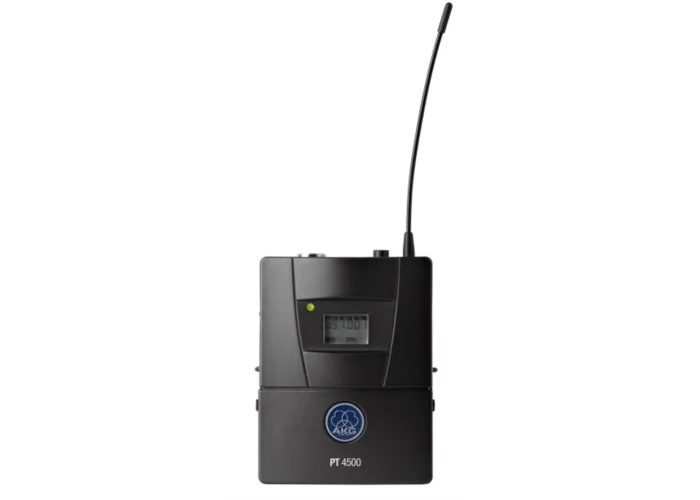

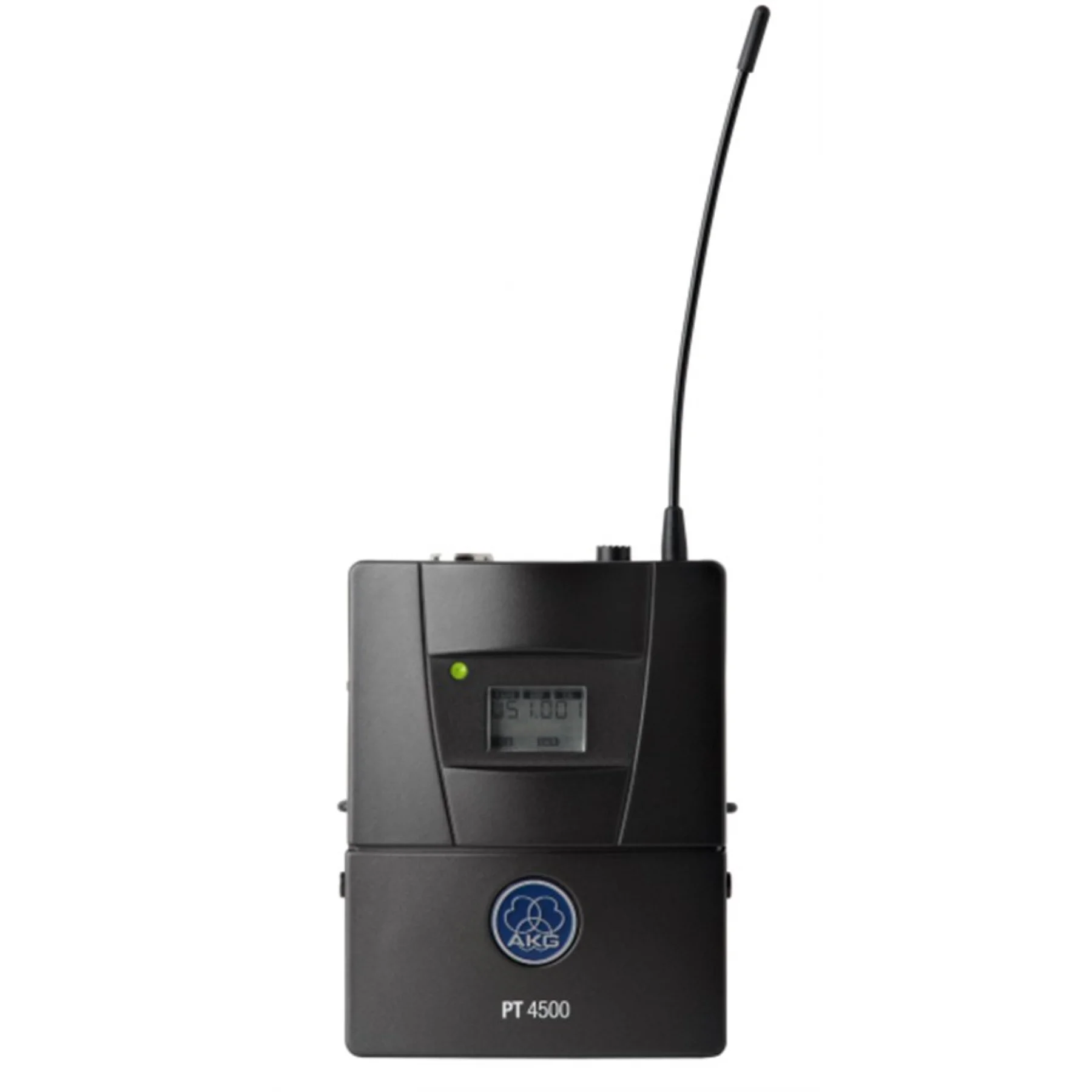

Akg PT4500 Bel Tipi Transmitter (650.100-680.000 Mhz)


The PT4500 is an analog reference wireless body-pack transmitter with supreme wireless audio quality for instrumental and vocal use. The pilot tone prevents unexpected system startup noise, continuously sending transmitter data, including mute switch position and remaining battery life, to the receiver. An optional RMS4000 external mute switch allows the user to mute the transmitter remotely.

WMS4500 transmitters offer an unmatched battery life of 15 hours with two standard AA-size alkaline batteries. With the integrated charging contacts, the optional BP4000 battery-pack can be charged inside the transmitter.



Audio Frequency bandwidth35 to 20000 Hz
Signal to Noise120 dB-A
THD at 1 kHz0.3 Prozent
Operating temperature range-10 to 55 Celsius
Peak deviation48 kHz
Pocket Transmitter
Nominal deviation20 kHz
Radio Output Power (min/max)10 to 50 mW
Transmitter SynchronizationManual
Audio Input
TypeMini XLR
Contacts3 Kontakte
Maximum audio level12 dB
Mute Switch Interface
TypeKlinkenstecker Mono (6,3mm)
Battery 1
BatterietypeLR6 AA Alkaline Batterie
Number of Batteries2
Operating Time15 h
Battery 2
BatterietypeHR 6 AA (NiHM) Wiederaufladbare Batterie
Compatibel Charging SystemCU4000
Number of Batteries2
Operating Time15 h
Battery 3
BatterietypeAKG BP 4000
Compatibel Charging SystemCU4000
Number of Batteries1
Operating Time12 h
Dimensions / Weight
Length25 mm
Height91 mm
Width70 mm
Switching bandwidth30 MHz
Recommended simultaneous channels50
Number of selectable frequencies1220 (selectable in 25kHz steps)
Frequency SelectionSelectable frequency in 25kHz steps
Wireless channels within device-
Radio Range (Line of Sight)100m (depending on antenna system)
Switchable RF Powerno
EncryptionNo encryption
DiversityTrue Diversity
Pilot Toneyes
