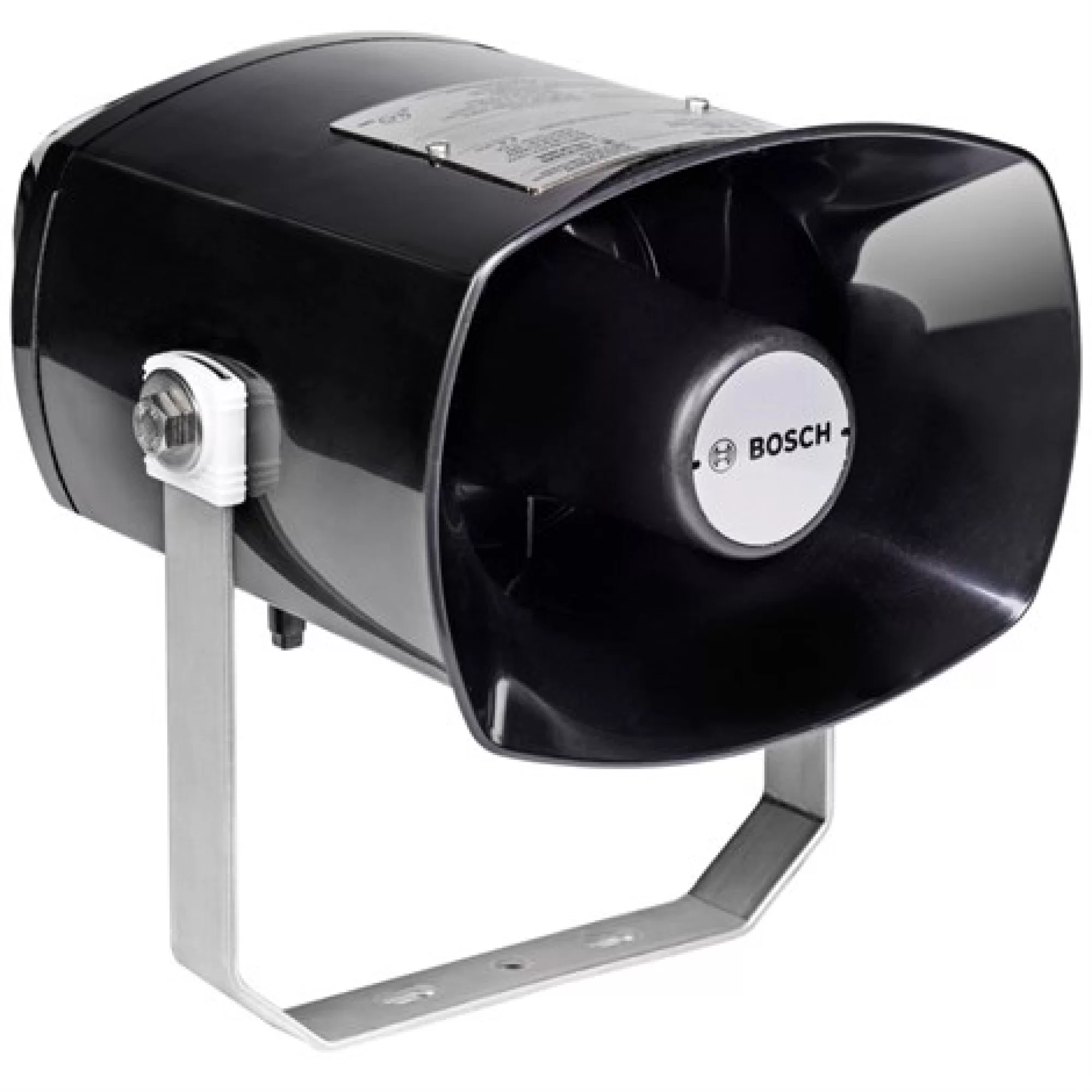

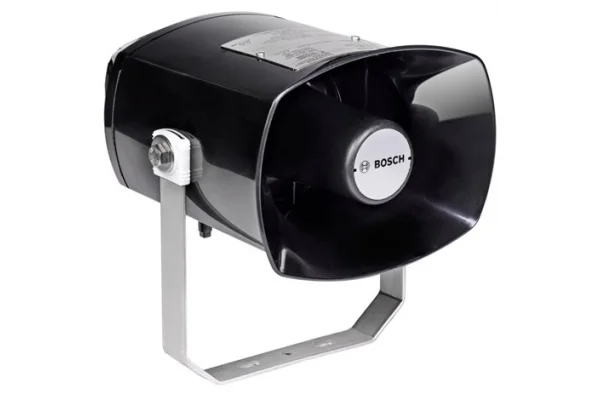

Bosch Lh3-Uc25xs Exproof Speaker ip67, 22/15W/100V
| | |
| Maximum power | 30 W |
| Rated power (PHC) | 25 W |
| Rated power | 25 / 15 / 6.5/ 5/ 2.5/ 1.5 W |
| Sound pressure levelat rated power / 1 W (1 kHz, 1 m) | 118 dB / 104 dB |
| Opening angleat 1 kHz/ 4 kHz (- 6 dB) | 155 / 47 degrees |
| Effective frequency range(-10 dB) | 480 Hz to 7000 Hz |
| Rated voltage | 100 V |
| Rated impedance | 400 ohm |
| Electrical connection | 2 x 6 pole push terminal |
| Acceptable wire gauge | 0.5 – 2.5 mm2 (AWG 20-12) |
| | |
| Material horn | Polyamide (PA) |
| Material bracket | Stainless Steel (Grade 316) |
| Dimensions (H x W x D) | 144 x 170 x 207 mm(5.66 x 6.69 x 8.15 in) |
