The full range of dynamic colors and countless white shades in maximum reproduction quality - the Cameo F2 FC is your perfect Fresnel spotlight for professional use in front of the camera and in the theater. Its whites can be precisely adjusted in CCT mode from 1,600 K to 6,500 K at a constant CRI above 90 and can be adapted to skin tones, camera sensors and ambient light via the additional green-magenta correction. HSI mode RGBW color mixing lets you quickly
The F2 FC is fully RDM enabled and features several DMX control modes, as well as 4 dimmer curves with 16-bit resolution and adjustable response. Even in the lowest setting range, stepless dimming meets the highest theatrical requirements. Six
Features
- Full Color Fresnel with special RGBW LED and CRI over 90
- Stepless adjustment of the color temperature from 1,600 to 6,500 K.
- Variable green-magenta correction
- Brilliant colors and precise white balance
- Stepless zoom for beam angles from 18 ° to 55 °
- 4 selectable 16-bit dimmer curves with adjustable response
- Highly efficient cooling by heat pipe and temperature-controlled fan
- Control via DMX and RDM
- Selectable pulse width modulation frequencies up to 25 kHz
- Flicker-free and quiet operation, ideal for TV, film, photo studios and theaters
- Including 8-fold sash limiter and gel filter frame
Technical specifications
- Type: Theater Fresnel
- Color spectrum: RGBW
- LED Number: R: 18 PCS / G: 18 PCS / B: 16 PCS / W: 37 PCS
- LED type: 240 W (about 50,000 operating hours)
- Frequency response: 1200 Hz, 12000 Hz, 2000 Hz, 25000 Hz, 3600 Hz, 800 Hz
- Beam Angle: Beam Angle: 17 - 53 °, Field Angle: 30 - 87 °
- Lens: 200 mm Fresnel

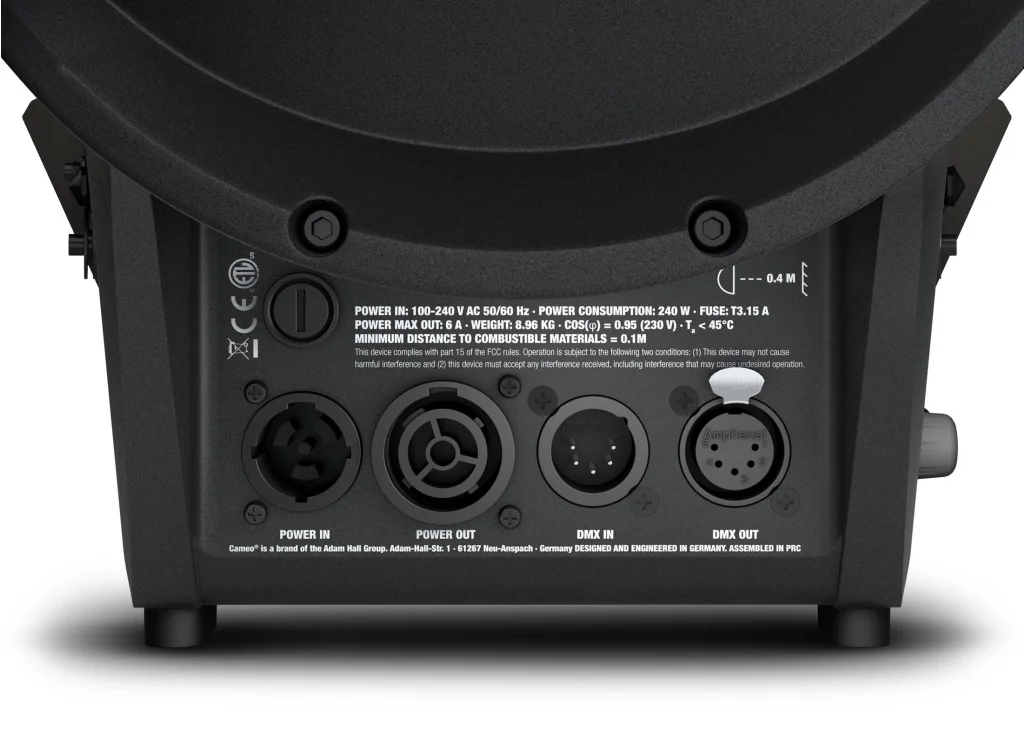

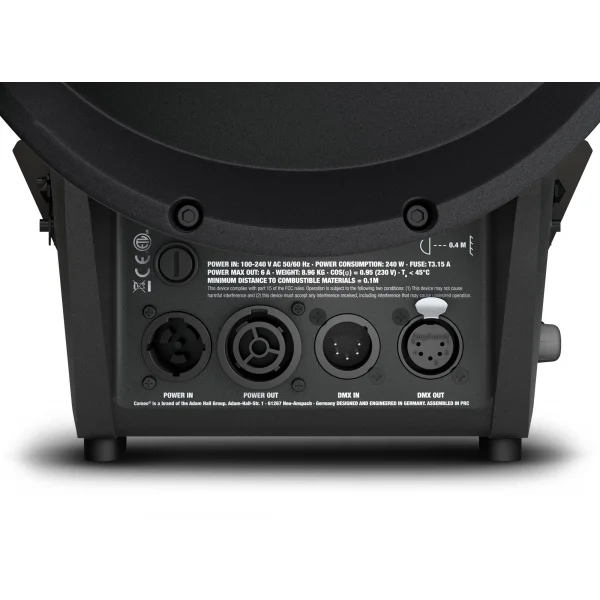

- DMX input: 5-pin
- DMX output: 5-pin
- DMX Mode: 10 Channel CCT, 10 Channel HSI, 14 Channel, 3 Channel CCT, 3 Channel HSI, 4 Channel, 7 Channel CCT, 7 Channel HSI, 8 Channel, 9 Channel
- DMX Functions: CCT, Dim to Warm, Dimmer, Dimmer Curve, Dimmer Fine, Color Macros, Hue Saturation, Device Settings, RGBW, RGBW Fine, Strobe
- Standalone modes: Loop, Master / Slave mode, Static
- Controls: 3 x rotary control, 4 x buttons
- Display elements: OLED display
- Power supply: 100 V AC - 240 V AC / 50 - 60 Hz
- Power consumption: 250 W
- Power factor: 0.95 / 230V, 0.99 / 120V
- Power connection: TRUE1 compatible sockets
- Housing material: die-cast aluminum
- Housing color: black
- IP protection class: 20
- Cooling: Combination of heat pipe and temperature-controlled fan
- Luminous flux: 6500 lm
- Efficiency: 27 lm / W
- Ambient temperature: -15 - 45 ° C
- Dimensions (WxDxH): 302x442x433mm
- Weight: 9,0kg
