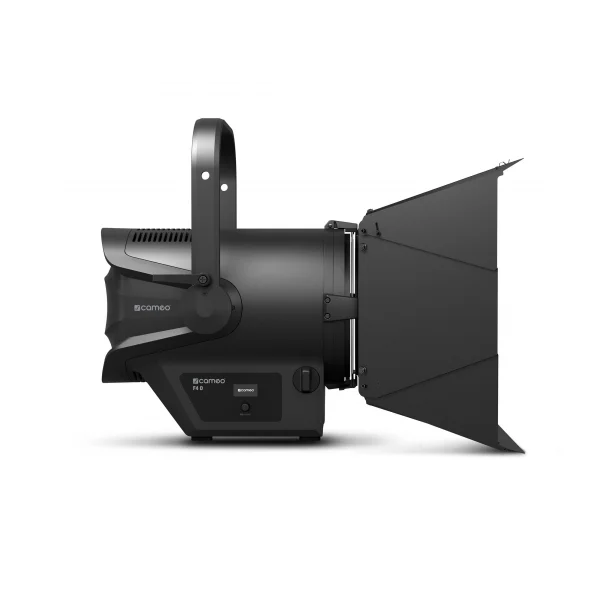

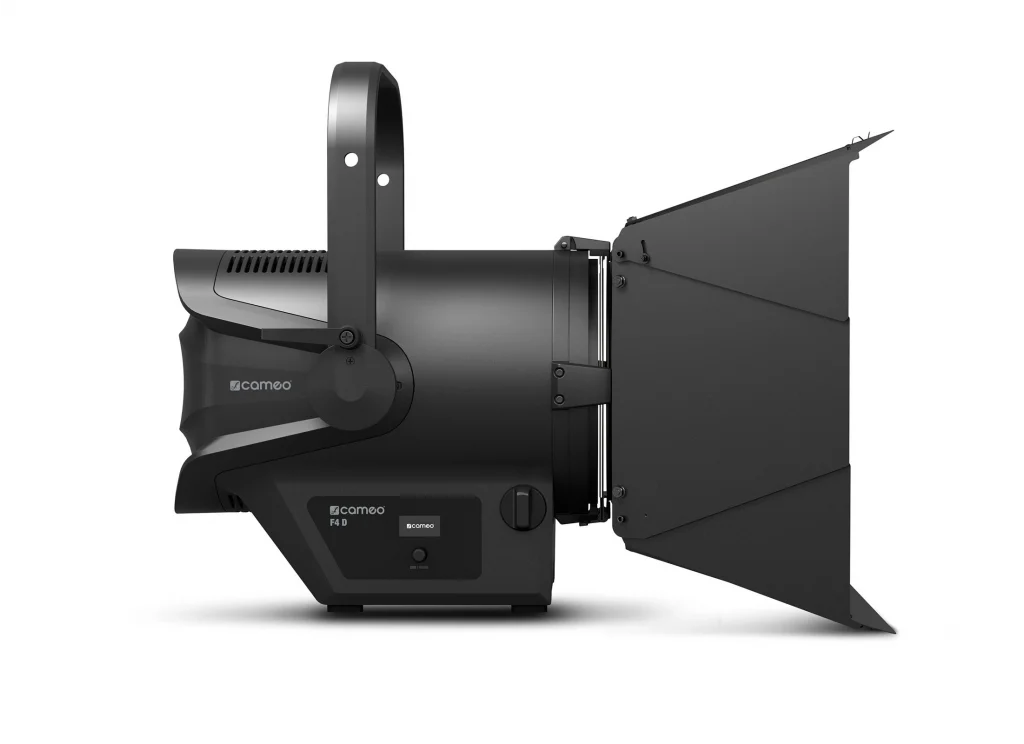

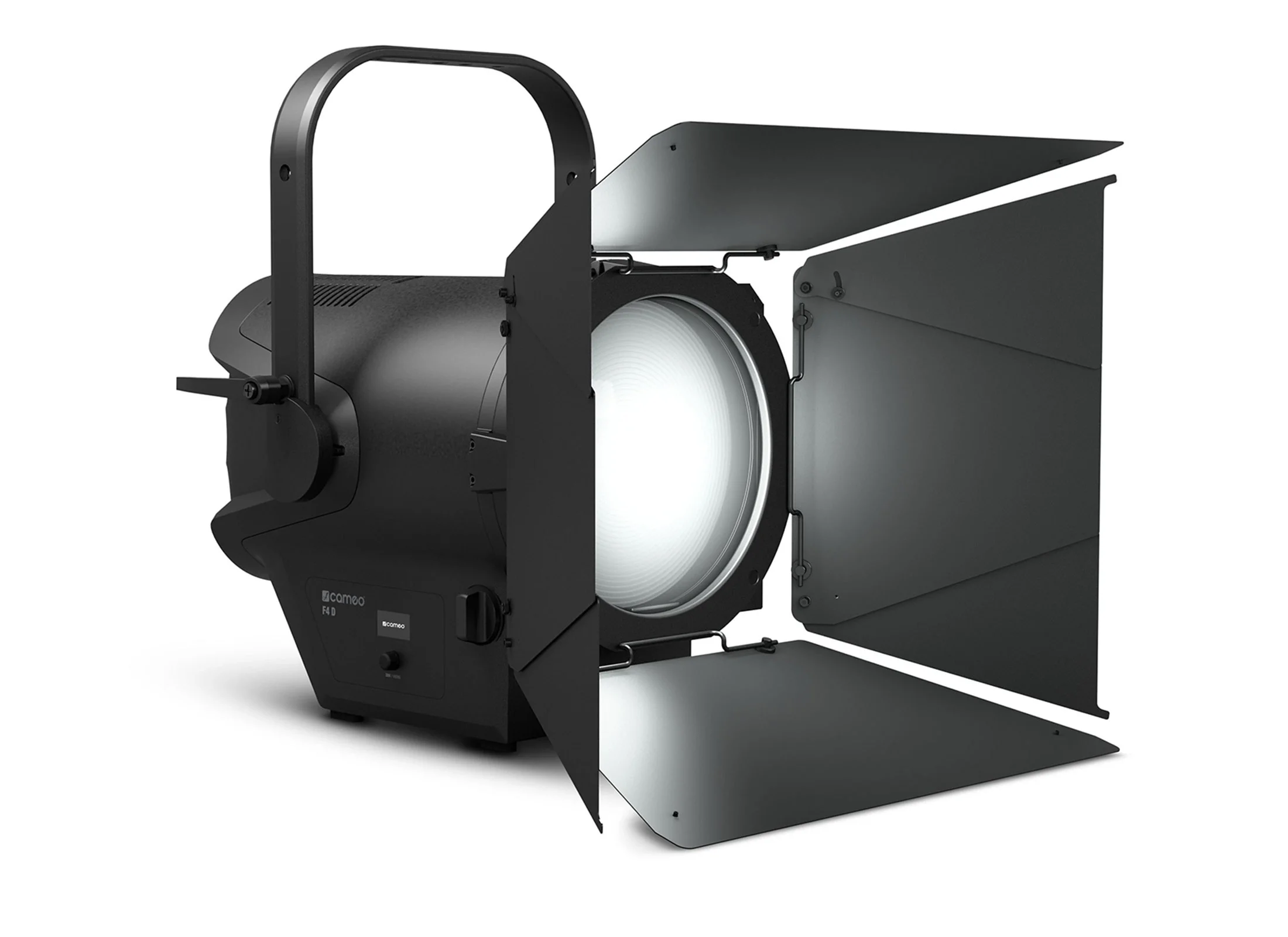

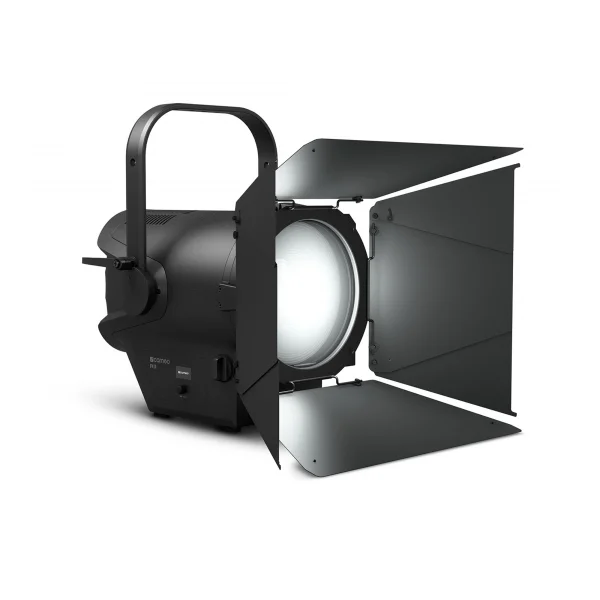

Cameo F4 D LED Lens Spotlight
Natural white daylight in precise reproduction quality: The CAMEO F4 D is a professional Fresnel spotlight with the latest LED technology. It's an outstanding replacement for conventional halogen Fresnel spotlights that also leads to significant energy savings. The 250 mm high-quality lens is flooded with a powerful luminous flux of 34,000 lm. The RDM-capable spotlight creates a soft-edged beam of light with a continuously adjustable beam angle of 12° to 40° (beam angle) or 24° to 47° (field angle). Its 520-watt daylight LED has a colour temperature of 5,600 K and a service life of 50,000 hours. Its extremely high colour rendering index of 96 reproduces pure and natural colours.
Features
- LED Fresnel spotlight with daylight LED and 34,000 lm total light output
- Natural colour reproduction, CRI 96, TLCI > 94
- Continuous zoom for beam angles from 12° to 40°
- 16-bit technology for high-resolution dimming
- Four selectable dimmer curves with adjustable response
- Highly efficient heatpipe cooling with temperature-controlled fan
- RDM-capable, selectable pulse width modulation frequencies up to 25 kHz
- Flicker-free and silent operation, ideal for TV, film and theatre
- Quicklight function to save time when setting lights
- 8-way barndoor and gel frames included
Technical Data
- Colour spectrum: Daylight
- Number of LEDs: 1
- LED type: 520 W (approx. 50,000 operating hours)
- LED PWM Frequency: Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
- Dispersion: Beam Angle: 12 - 40 ° , Field Angle: 24 - 47 °
- Lens: 250 mm Fresnel

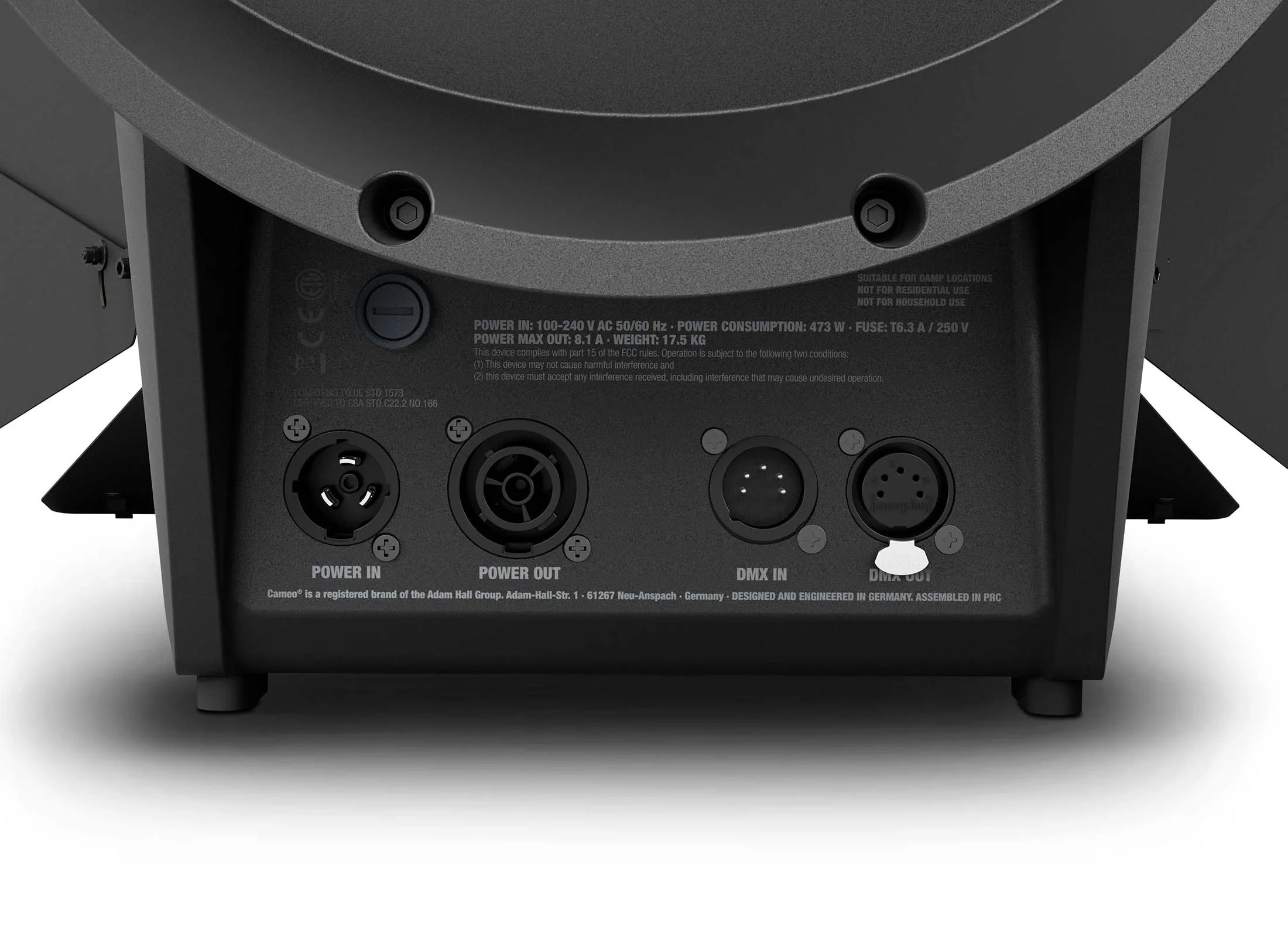

- DMX input: 5-Pol
- DMX output: 5-Pol
- DMX Functions: Device Settings , Dimmer , Dimmer Curve , Dimmer Fine , strobe
- Standalone modes: Master / Slave mode , Static
- Controls: Push encoder
- Indicators: OLED Display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 478 W
- Power connector: TRUE1 compatible Power I/O sockets
- Power supply connection: TRUE1 compatible Power I/O sockets
- Housing material: Die-cast aluminum
- Cabinet colour: Black
- Protection class IP: IP20
- Cooling: Comination of Heat Pipe and Temperature Controlled Fan
- Luminous flux: 34000 lm
- Efficiency: 71 lm/W
- Colour temperature: 5600 K
- Ambient temperature (operating): -15 - 45 °C
- Dimensions without mounting bracket (WxDxH): 410 x 433 x 364 mm
- Weight: 17,8 kg
Scope of Delivery
- Cameo F4 D
- Power cord
- Barndoor
- Gel frame
