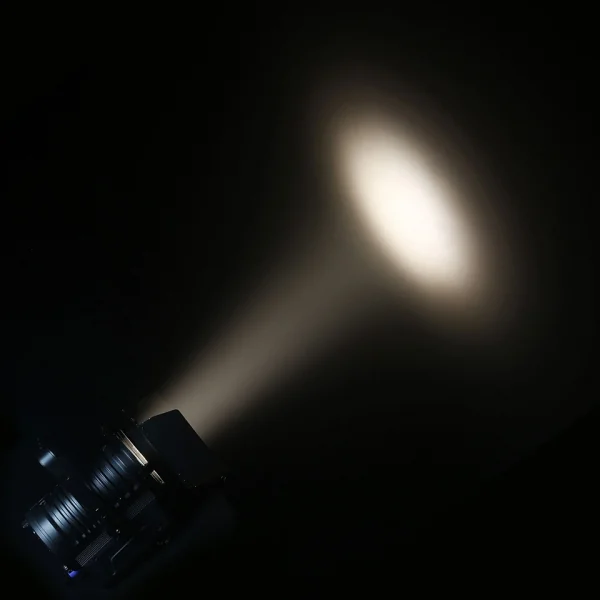

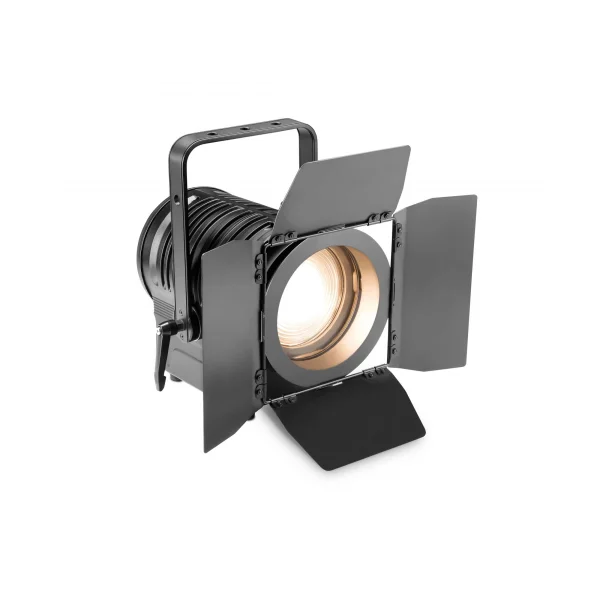

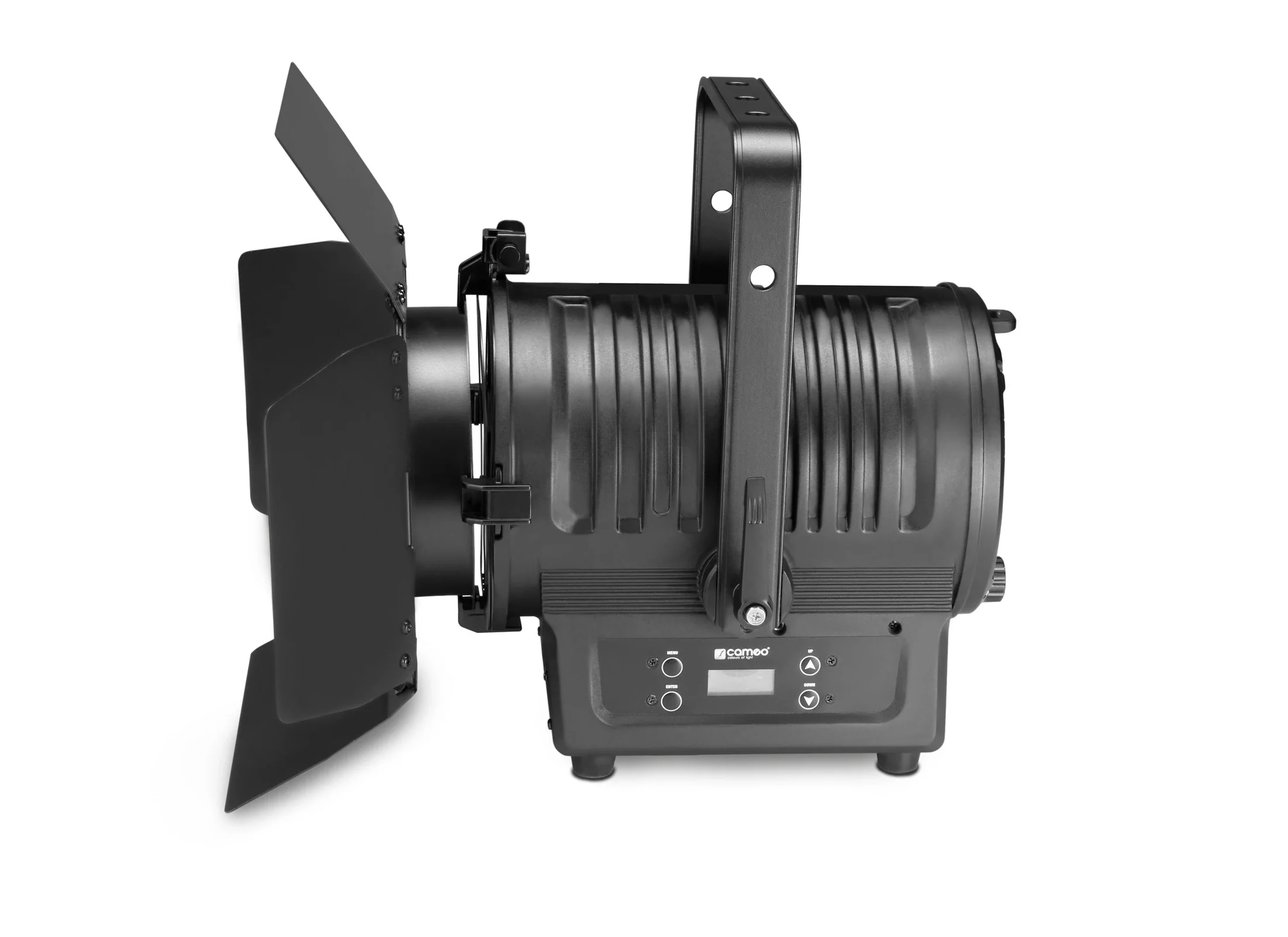

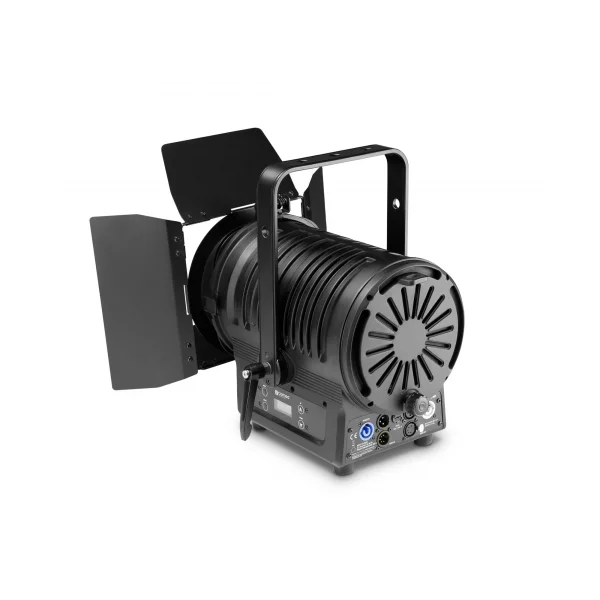

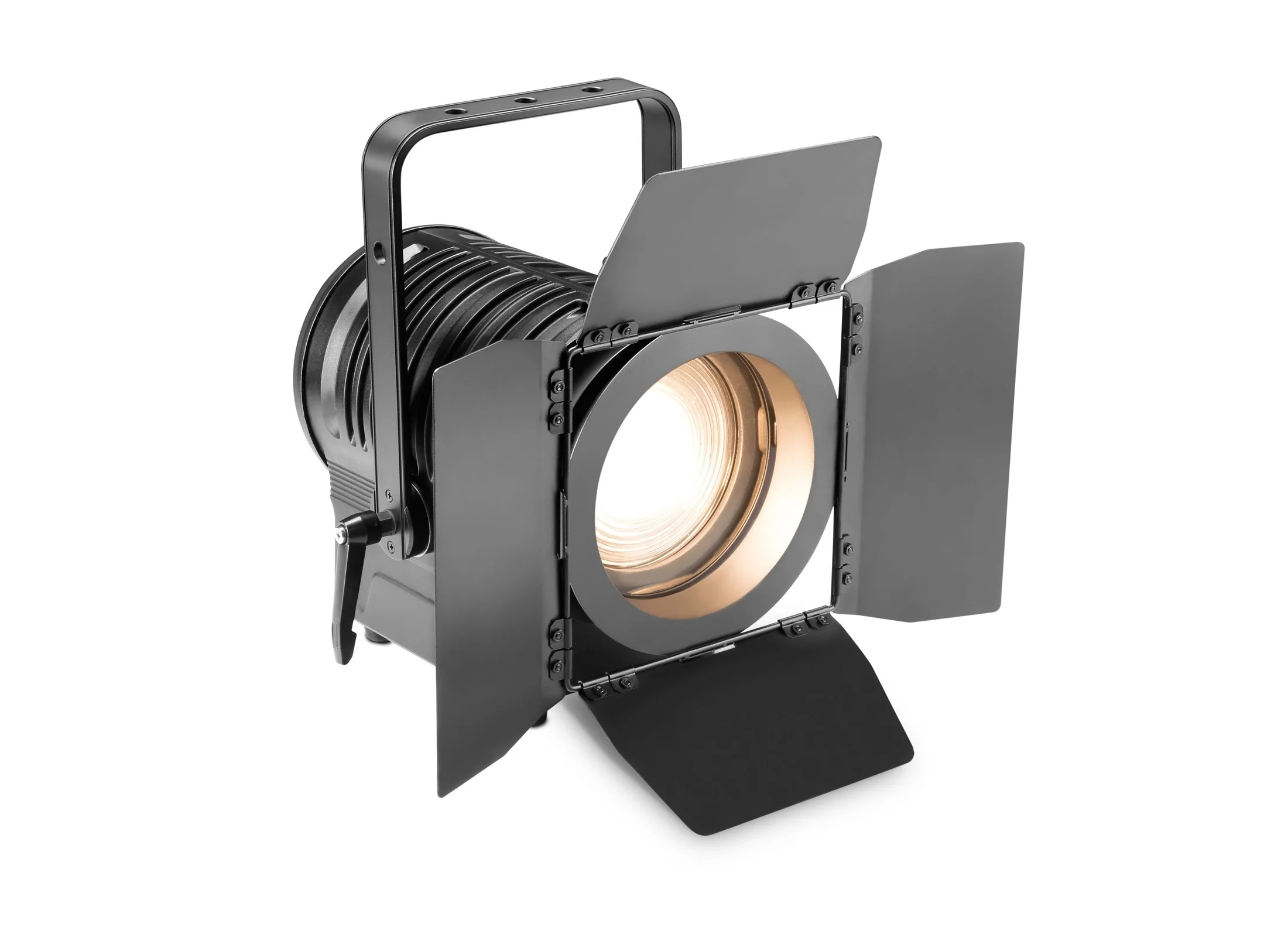

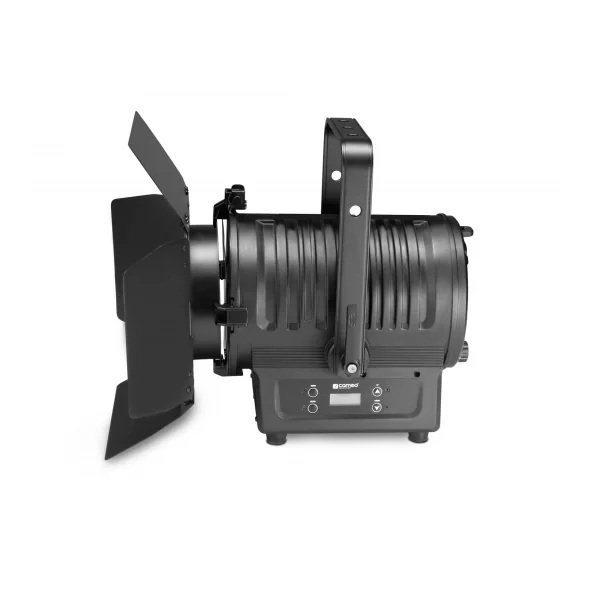

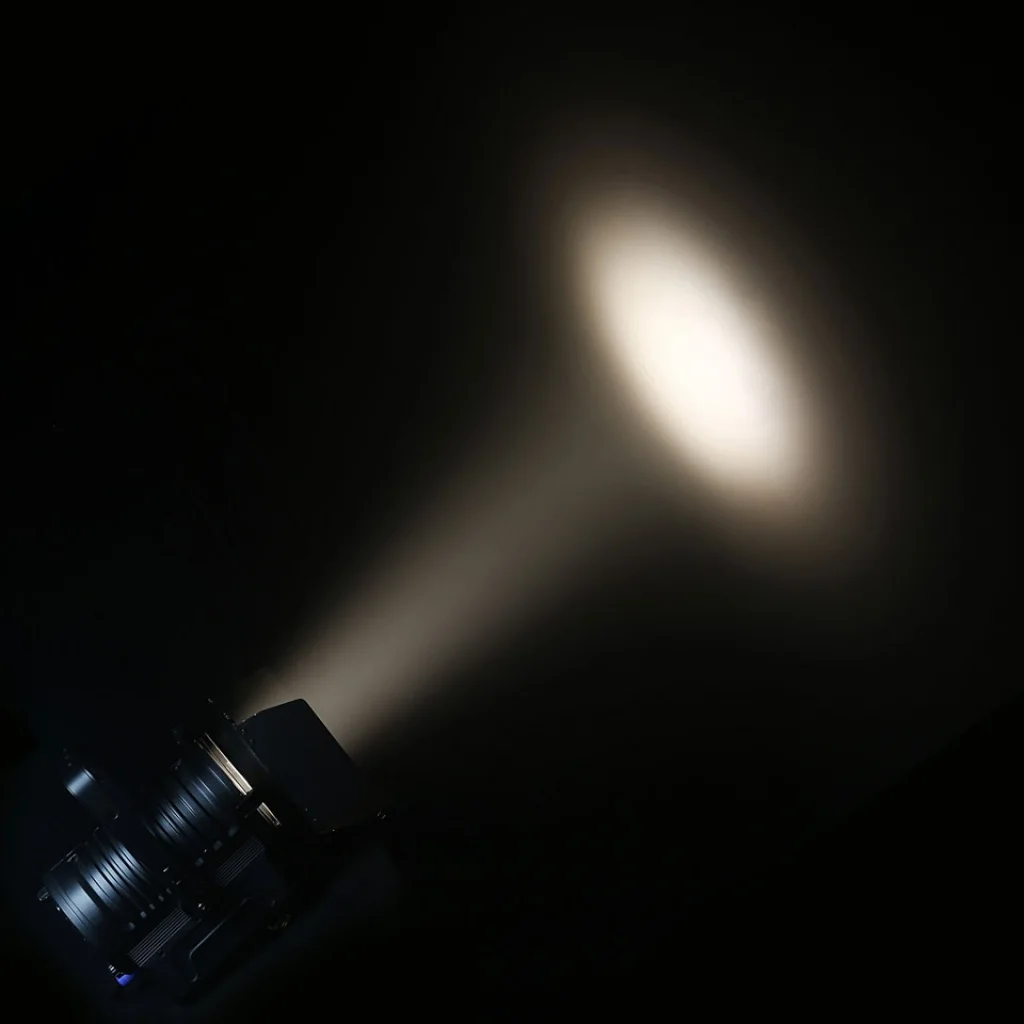

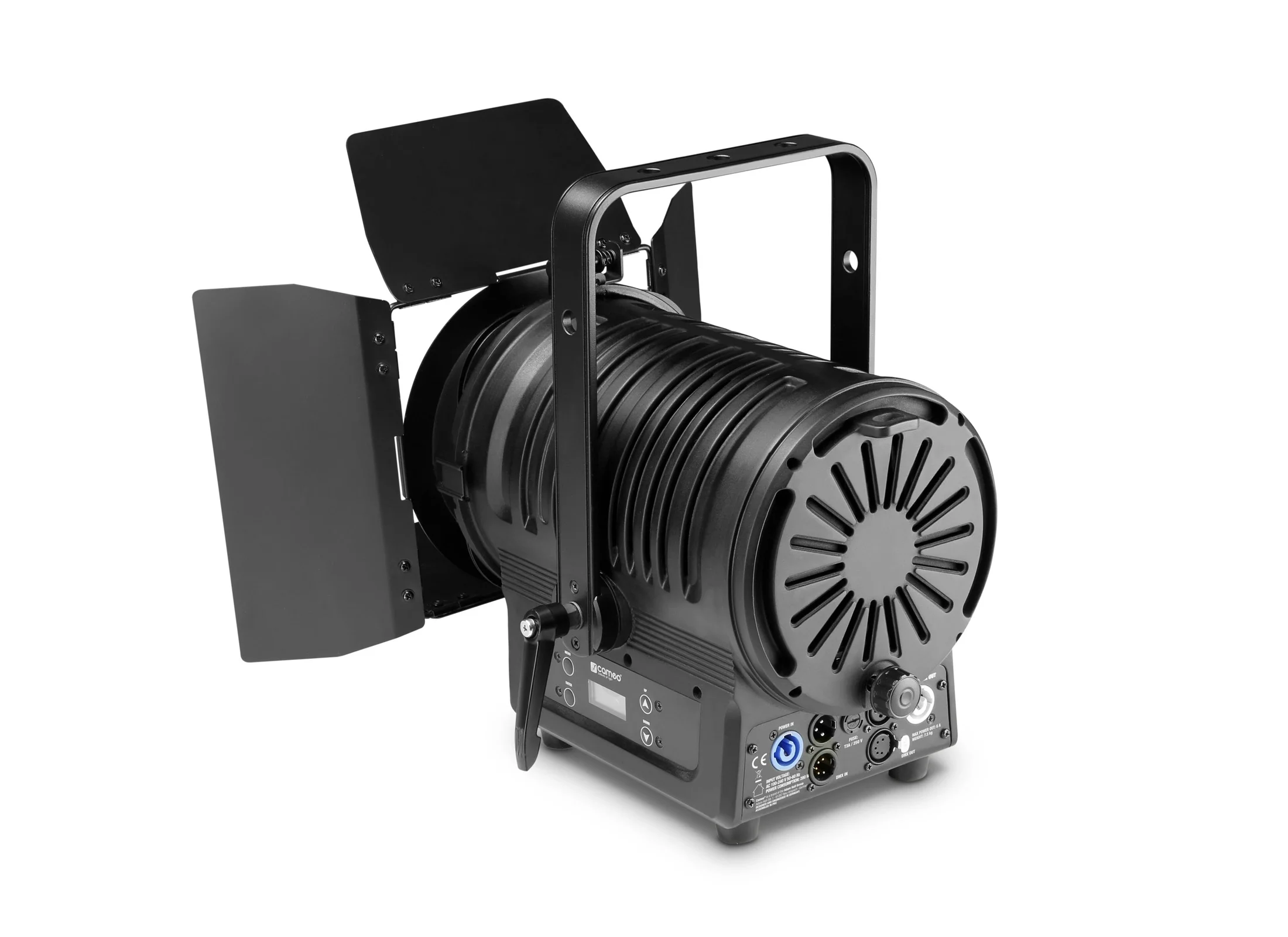

The Cameo TS 200 WW is a versatile theatrical spotlight with a Fresnel lens and manual zoom that allows the beam angle of its uniform, soft-edged light beam to be continuously adjusted from 14° to a wide 38°. The RDM-capable spotlight's 180-watt warm white LED with 3,100 Kelvin color temperature achieves a high luminous intensity of 67,500 lux at a distance of 1 meter. With an extremely high color rendering index of 96, the spotlight displays colors naturally and without distortion. .
The spot's DMX features include a fast strobe that can be adjusted from 1 - 20 Hz and various dimmer curves with 16-bit resolution. Selectable repetition rates up to 25 kHz ensure flicker-free operation. The TS 200 WW has a robust metal housing with temperature-controlled fan, and a display with 4 buttons is used for convenient configuration. 3- and 5-pin DMX connectors and power twist jacks allow easy back-to-back switching. The scope of delivery includes a rotating barndoor to limit the light cone and a color filter frame.
Features
- Powerful warm white 180 W LED
- Fresnel lens
- Continuous manual zoom for 14° - 38° beam angle
- RDM-capable
- 67,500 lux @ 1 m / 6,600 lumens
- 3,100 K color temperature
- CRI >96 for lifelike color reproduction
- Flicker-free projection
- Robust metal housing with temperature controlled fan
- Including rotatable sash limiter and color filter frame
Technical Data
- Product type: LED PAR spotlight
- Type: Theater Spot
- Color spectrum: warm white
- LED quantity: 1
- Color temperature: 3100 K
- CRI: 97
- LED type: warm white 180 W
- Repetition rate: 650 Hz; 1530 Hz; 3600 Hz; 25 k Hz
- Beam angle: 14 - 38 °
- DMX input: XLR 3-pin male , XLR 5-pin male
- DMX output: XLR 3-pin female , XLR 5-pin female
- Operating modes: DMX 512, Stand Alone, Master/Slave
- DMX mode: 1-channel , 3-channel , 5-channel
- DMX functions: 16-bit dimmer , dimmer curve , fixture settings , strobe
- Flash rate strobe: 1 Hz - 20 Hz
- Standalone modes: Dimmer
- Controls: Down , Enter , Mode , Up
- Power supply: 100 V AC - 240 V AC / 50 - 60 Hz
- Display elements: LC-Display
- Power consumption: 200 W
- Power supply connector: Blue and white power twist
- Cooling: temperature controlled fan
- Operating temperature: 0 - 40 °C
- Illuminance: 67500 lx @ 1 m
- Luminous flux: 6600 lm
- Housing material: die-cast metal
- Housing color: black
- Dimensions (WxHxD): 320x310x370mm
- Weight: 7,4 kg
Scope of Delivery
- Color filter frame
- Wing gate
